| PCE-3B06-00A1E | PCE-3B06-02A1E | PCE-3B06-03A1E | ||
| Expansion Interface | PCI Express x 16 | 1 | 1 | 1 |
| Expansion Interface | PCI Express x 1 | 4 | 2 | 1 |
| Environment | Operating Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | 2 | 3 |
| Mechanical | Dimension (L x H) | 142 x 176 mm | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Mechanical | Dimension (L x H) | 142 x 176 mm | 142 x 176 mm | |

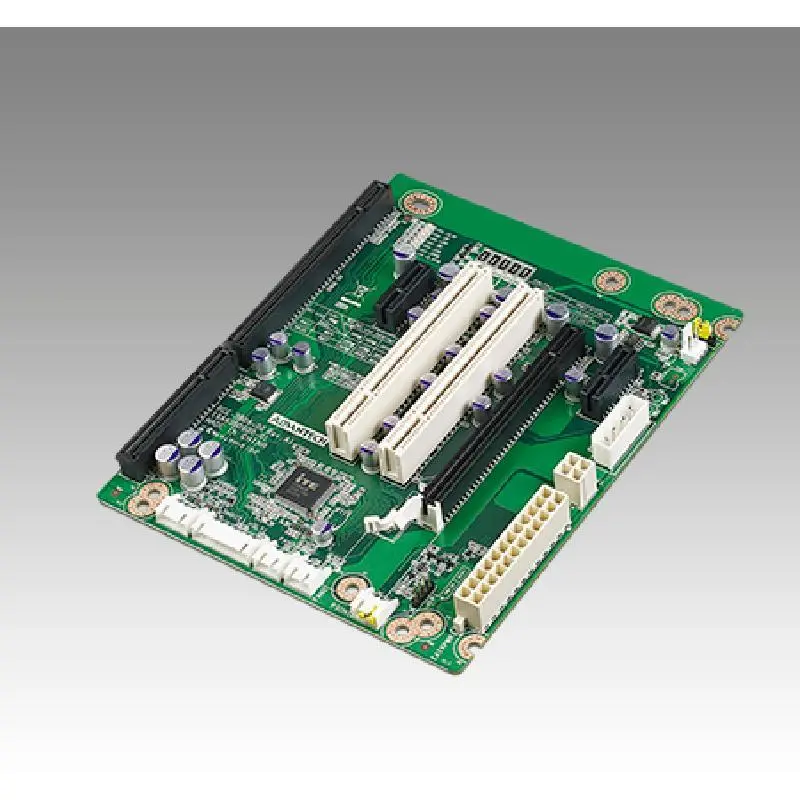

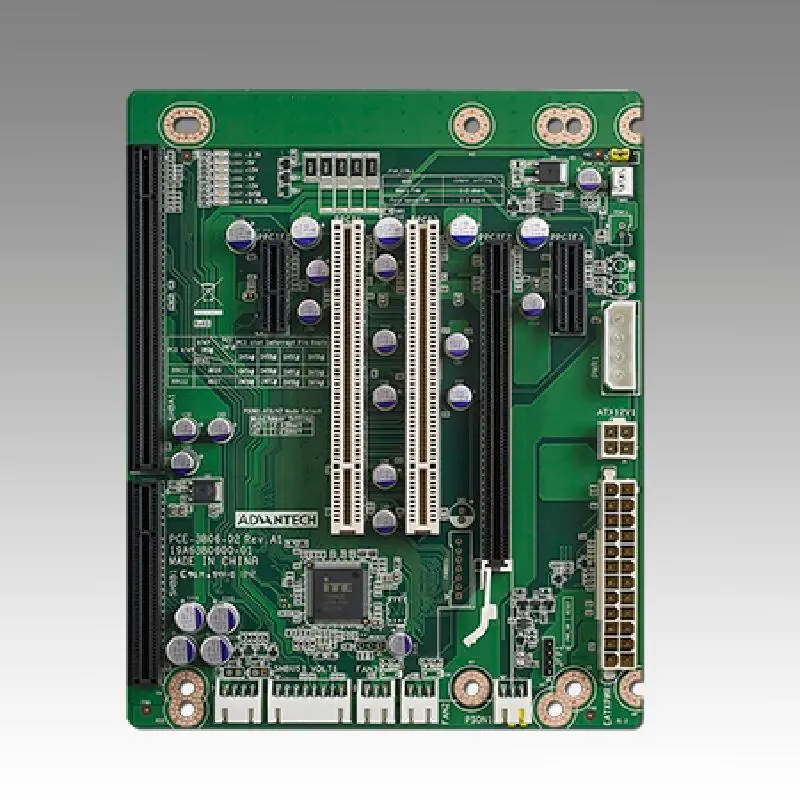

Advantech PCE-3B06 PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000/PCE-4000 series and IPC chassis: IPC-3026, IPC-6806S
