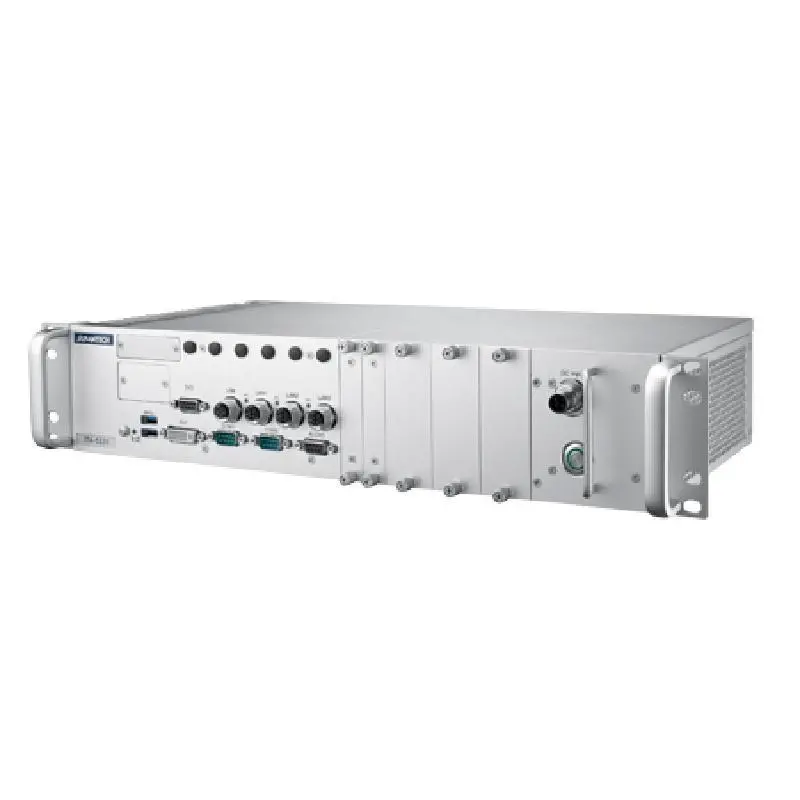

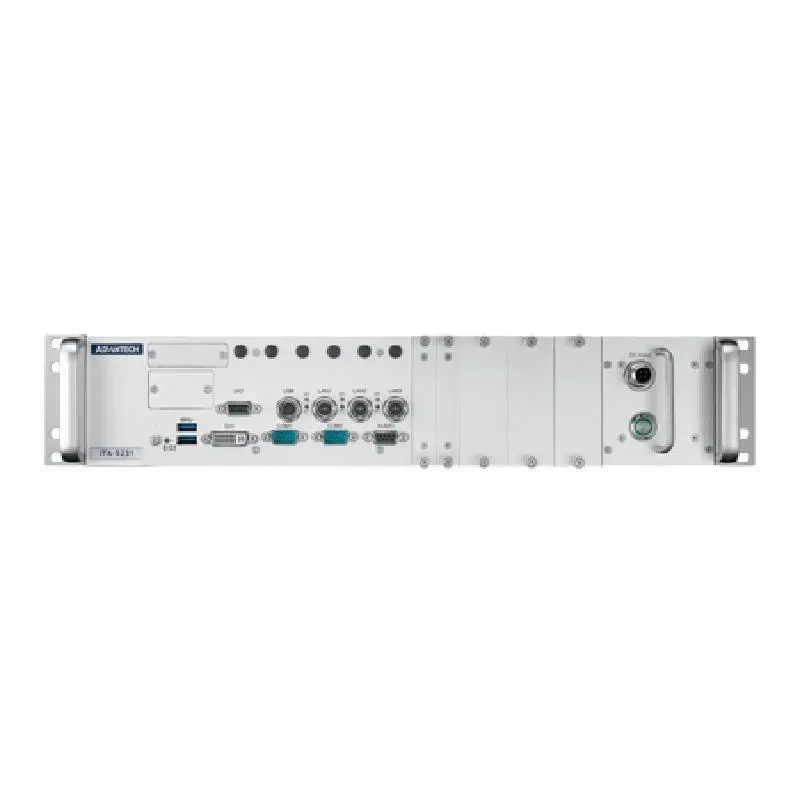

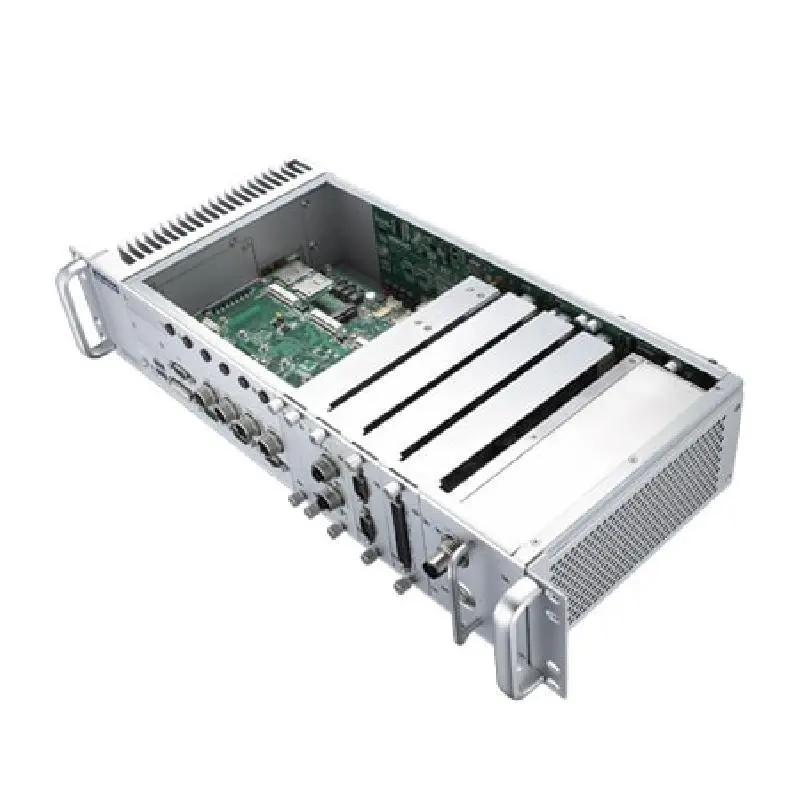

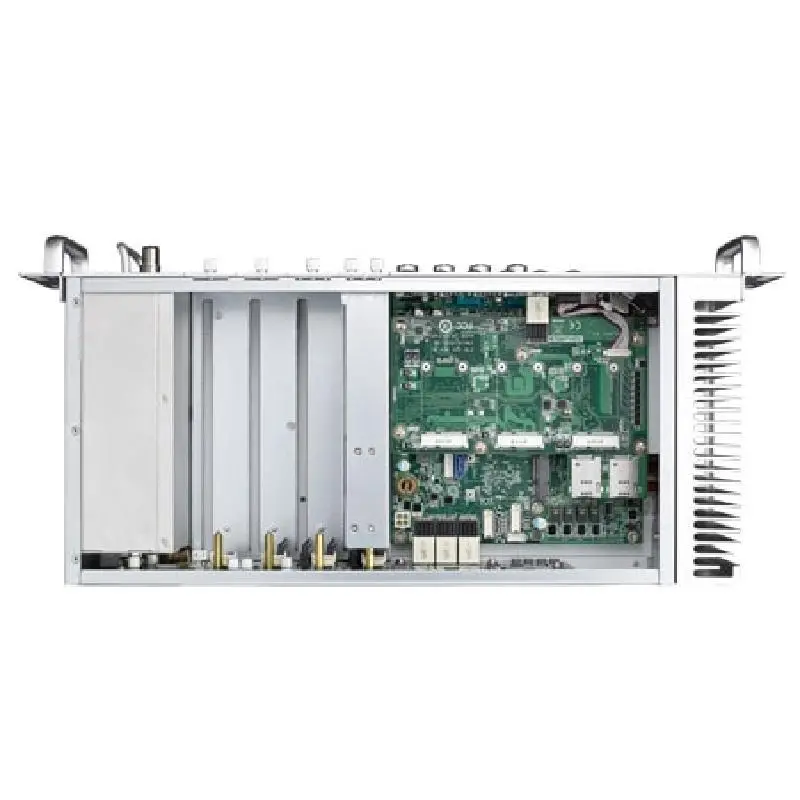

Advantech ITA-5231 Intel® 6th Generation Core™ i Processor Fanless System; EN 50155 Complied Product for Railway Applications

    Intel skylake-H platform with QM170

    Fanless computer for railway vehicle applications, fully compliant with EN 50155

    Satisfy temp. standard: EN 50155 TX (-40 ~ 70° C) and IEC 61373 body mount class B

    Compliant with EN 50121-3-2/ EN 50121-4 EMC test standard

    Ruggedized connectors (M12) used for communication and power ports

    Support Easy-swap storage module and I/O module

    No RED Certification

ITA-5231-S5A1E ITA-5231-S7A1E
Storage SSD Max to 4 x 2.5" SSD (7mm/9.5mm) Max to 4 x 2.5" SSD (7mm/9.5mm)
Processor System CPU Intel® Core™ i5-6442EQ Intel® Core™ i7-6822EQ
I/O Audio 1 x DB9, 1 x Speaker-out with 2W4Ω Amp. and 1 x Mic-in 1 x DB9, 1 x Speaker-out with 2W4Ω Amp. and 1 x Mic-in
I/O Display 1 x DVI-I 1 x DVI-I
Environment Humidity (Operating) 5% ~ 95% @ 40° C, non-condensing 5% ~ 95% @ 40° C, non-condensing
Environment Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)
Environment Operating Temperature -40 ~ 70℃ (with wide-temperature storage and 0.7m/s air flow) -40 ~ 70℃ (with wide-temperature storage and 0.7m/s air flow)
EN 50155 Compliance Supply Change Over Class C1: at 0,6 Un during 100 ms (without interruptions) Class C1: at 0,6 Un during 100 ms (without interruptions)
Processor System L3 Cache 6 MB 8 MB
Processor System Max. Speed 2.7 GHz 2.8 GHz
Processor System Frequency 1.9 GHz 2.0 GHz
Certification EMC CE/FCC Class A, CCC, BSMI CE/FCC Class A, CCC, BSMI
EN 50155 Compliance EMC EN 50121-3-2, EN 50121-4 EN 50121-3-2, EN 50121-4
I/O USB2.0 1 x USB2.0 with M12 A-coded(F) 4-pin 1 x USB2.0 with M12 A-coded(F) 4-pin
I/O USB3.0 2 x USB3.0 with Type A 2 x USB3.0 with Type A
I/O COM Port 2 x DB9, RS-232/422/485 with 2KV Isolation, Support auto-flow control 2 x DB9, RS-232/422/485 with 2KV Isolation, Support auto-flow control
I/O DIO 4 DI/4 DO with 2500Vdc Isolation 4 DI/4 DO with 2500Vdc Isolation
Power Supply Voltage Compliance with EN 50155 Compliance with EN 50155
WatchDog Timer Interval Programmable 1~255 sec Programmable 1~255 sec
WatchDog Timer Output System Reset System Reset
Display Graphic Memory Shared with system memory to 512MB Shared with system memory to 512MB
Display Controller Intel Integrated Graphics GT2 Intel Integrated Graphics GT2
Processor System Chipset Intel QM170 Intel QM170
Processor System BIOS AMI SPI 16MB AMI SPI 16MB
Memory Max. Capacity 8GB on board memory, DDR4 2133MHz 8GB on board memory, DDR4 2133MHz
Ethernet Interface 10/100/1000 Mbps 10/100/1000 Mbps
Ethernet Controller Intel I219-LM x1/ I210-IT x2 Intel I219-LM x1/ I210-IT x2
Ethernet Connector Up to 3 x M12 X-coded(F) Up to 3 x M12 X-coded(F)
Power Input DC-IN 110V DC-IN 110V
Power Connector 1 x M12 S-coded(M) 4-pin 1 x M12 S-coded(M) 4-pin
EN 50155 Compliance Ambient Temperature EN 50155 TX(-40~70℃) EN 50155 TX(-40~70℃)
Certification Safety Certifications UL/CB/CCC/BSMI UL/CB/CCC/BSMI
EN 50155 Compliance Shock and Vibration IEC 61373 body mount class B IEC 61373 body mount class B
