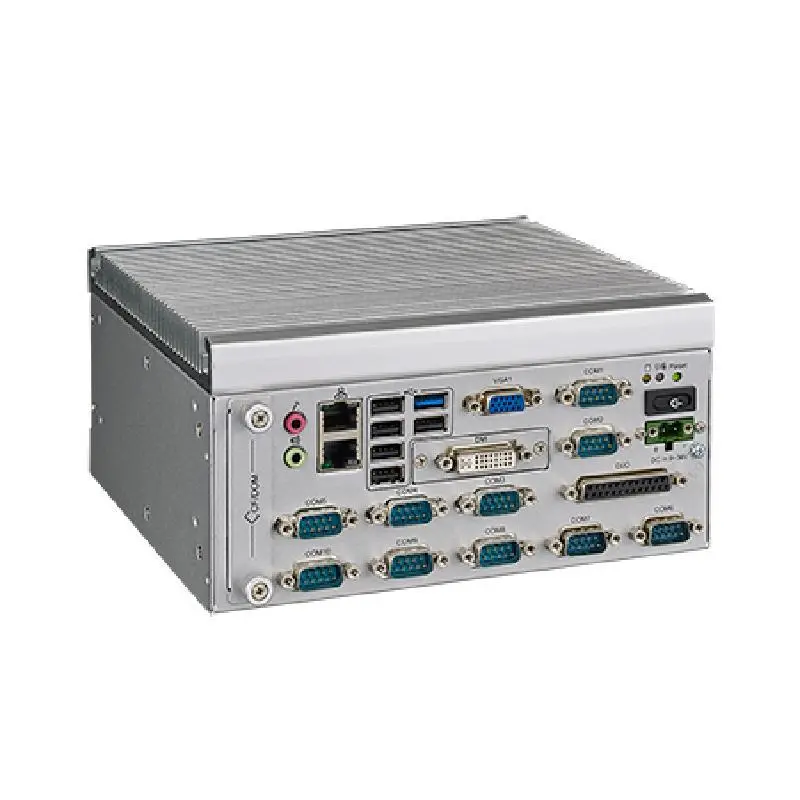

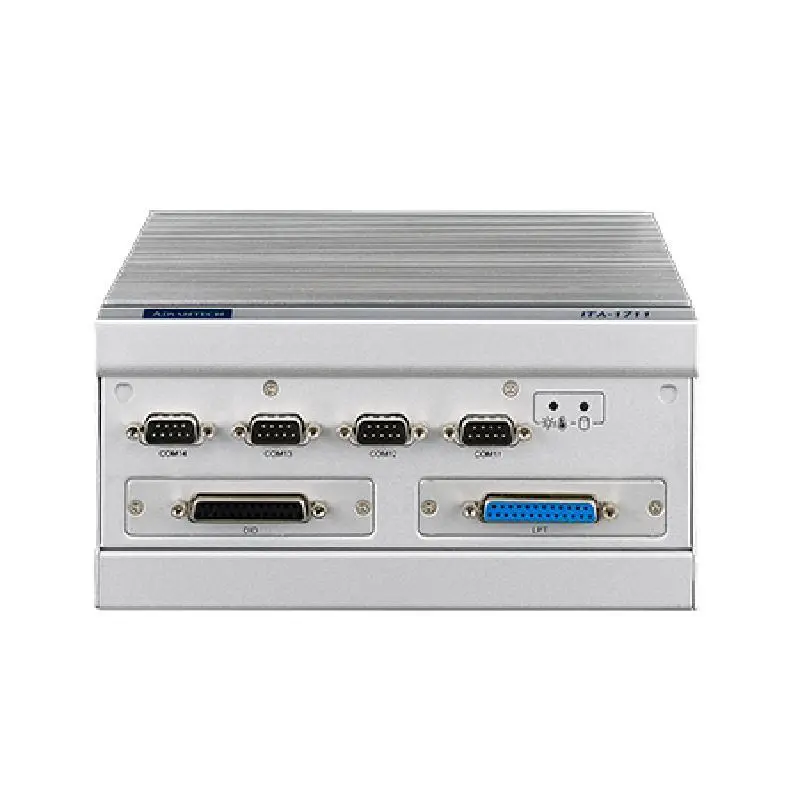

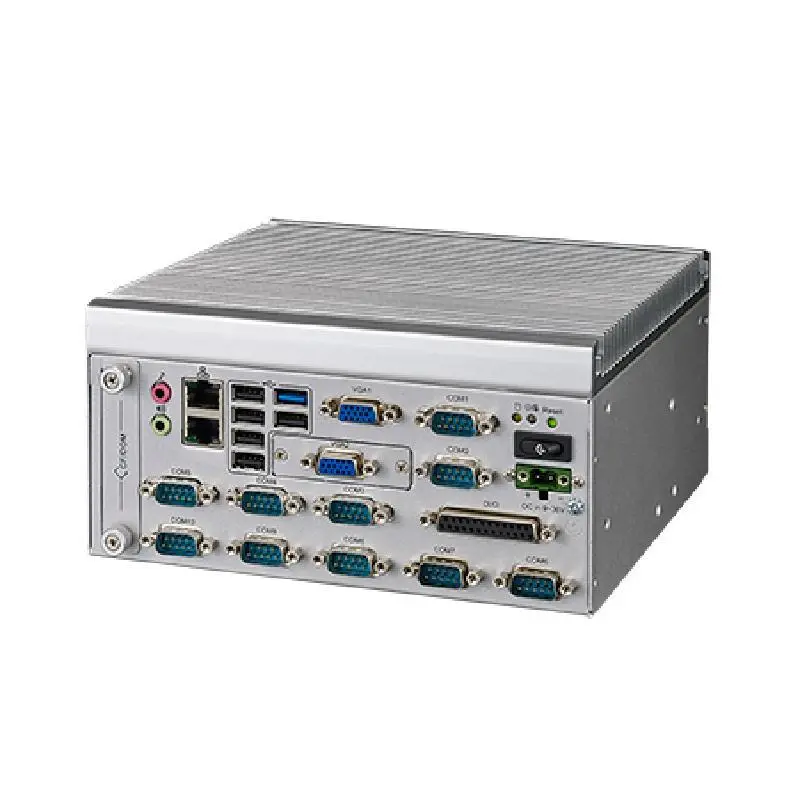

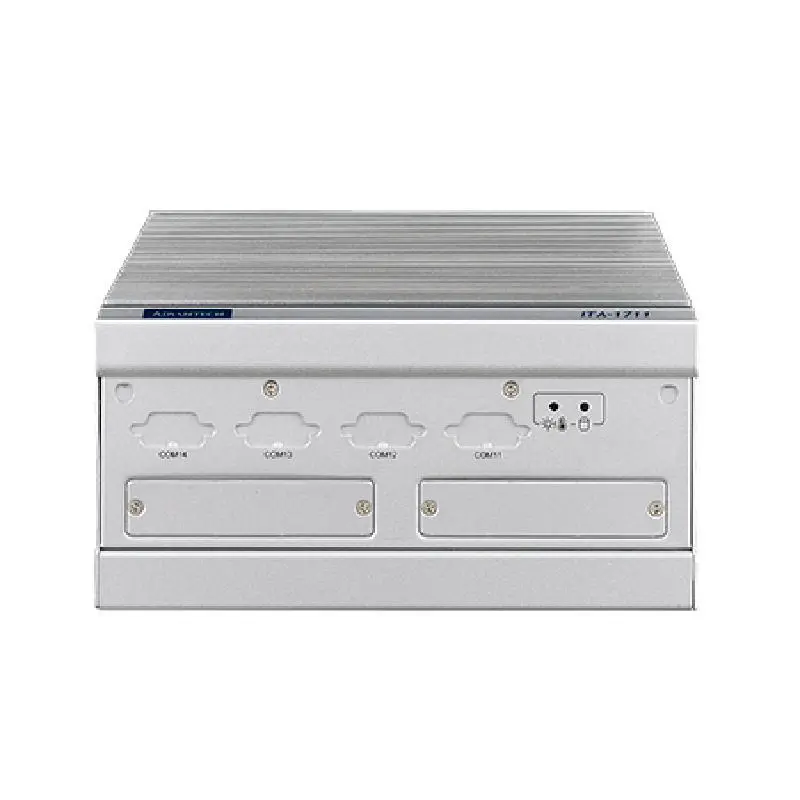

Advantech ITA-1711 Intel® Celeron™J1900 Compact System Dual Gigabit Ethernet LAN and Dual Display

Fanless, Intel® Celeron™ J1900, 2.0 GHz Quad Core Compact System

Onboard 4G DDR3 Memory and optional NVRAM

Supports up to 2 x LAN, 6 x USB, 14 x COM ports

Supports 1 x USB 3.0 port

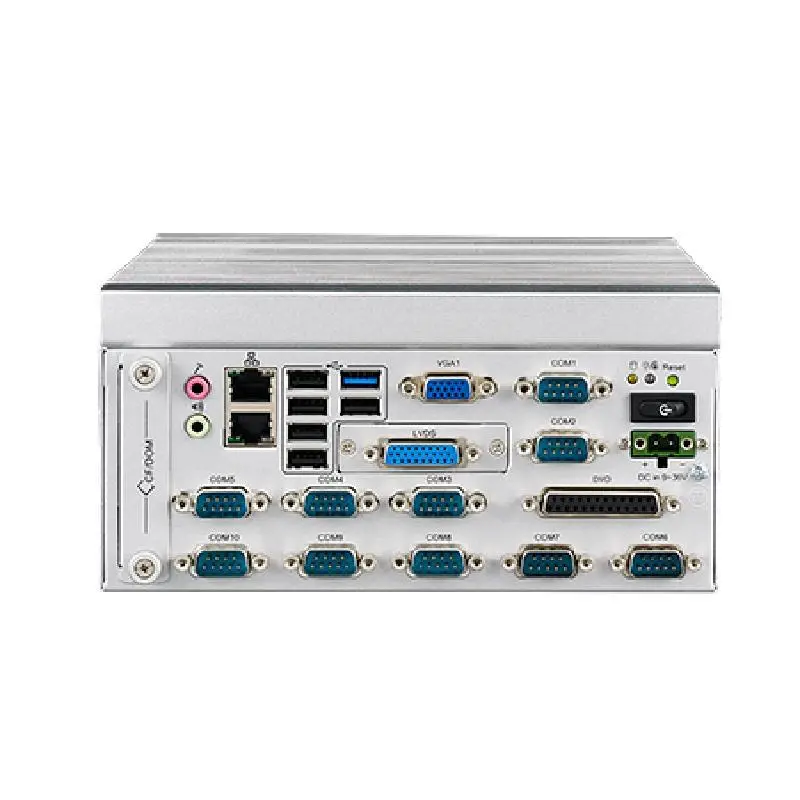

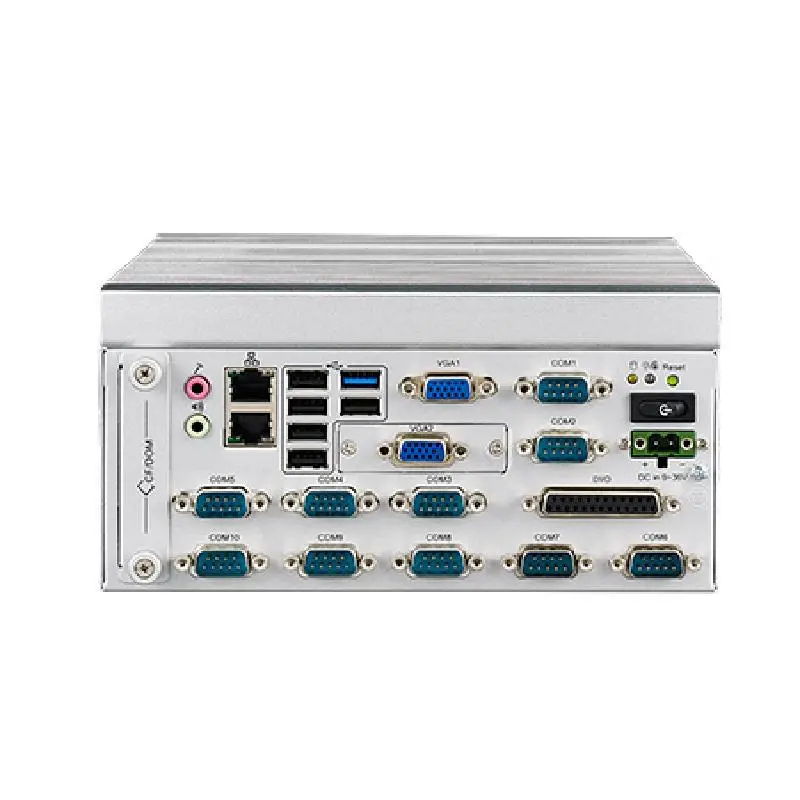

Replaceable secondary display output (VGA2/DVI-D/LVDS)

Support dual full HD resolution video output

Serial ports support RS-232/422/485 with automatic flow control

Support up to 24 in, 24 out Digital IO

No RED Certification

		ITA-1711-00A1E	ITA-1711-10A1E	ITA-1711-20A1E
Graphics	Chipset Integrated	Embedded Gen 4+GFX Core	Embedded Gen 4+GFX Core	Embedded Gen 4+GFX Core
Graphics	Dual Display	Single channel max: 2048 x 1536 @ 60Hz	Single channel max: 2048 x 1536 @ 60Hz	Single channel max: 2048 x 1536 @ 60Hz
Graphics	VRAM	Shared system memory up to 256 MB SDRAM	Shared system memory up to 256 MB SDRAM	Shared system memory up to 256 MB SDRAM
Memory	Capacity	Up to 8 GB	Up to 8 GB	Up to 8 GB
Memory	Technology	Dual Chanel DDR3 1066/1333	Dual Chanel DDR3 1066/1333	Dual Chanel DDR3 1066/1333
Processor System	BIOS	AMI SPI 16MB	AMI SPI 16MB	AMI SPI 16MB
Processor System	Core Number	4	4	4
Processor System	CPU	Intel® Celeron™ J1900	Intel® Celeron™ J1900	Intel® Celeron™ J1900
Processor System	L2 Cache	2 MB	2 MB	2 MB
Processor System	Max. Speed	2.0 GHz	2.0 GHz	2.0 GHz
