| ITA-2231-10A1E | ||
| Certification | EMC | CE/FCC Class A |
| Certification | Other | EN 50121-4, Level 4 EMS |
| Certification | Safety Certifications | UL/CB/CCC/BSMI |
| Environment | Non-Operational Temperature | -40 ~ 85 °C |
| Environment | Operational Temperature with SSD | -25 ~ 60° C |
| Mechanical | Dimension (W x H x D) | 483 x 88 x 325 mm |
| Power | Input | AC 100 ~ 240V or DC 110V |
| Ethernet | Connector | 2 x RJ45 |
| Ethernet | Controller | 1x Intel® I219IT, 1 x Intel® I210IT |
| Ethernet | Speed | 10/100/1000 Mbps |
| Expansion Interface | PCIe | 1 x PCIe x 4 slot |
| Expansion Interface | PC104+ | 1 |
| Expansion Interface | ITAM | 3 |
| I/O | Audio | 1 x Speak Out + Line In/Speak Out with 6W amp, 1 x Mic-in |
| I/O | COM | 2 x DB9 (RS-232/422/485) with 2.5KV Isolation |
| I/O | Display | 1 x DVI-I, 1 x DVI-D |
| I/O | Ethernet | 2 |
| I/O | USB2.0 | 3 |
| I/O | USB3.0 | 4 |
| Storage | HDD | 2 x 3.5" or 3 x 2.5" HDD bay |
| Storage | SSD | 1 x 2260 size M.2 (only supports SATA interface) |
| WatchDog Timer | Interval | Programmable 1~255 sec |
| WatchDog Timer | Output | System Reset |
| Display | Graphic Memory | Share with system memory up to 512MB |
| Display | Multiple Display | Dual |
| Memory | Onboard Memory | 16 GB |
| Memory | Technology | Dual Channel DDR4-2133MHz |
| Processor System | CPU | Intel Core i7-6822EQ (25W) |

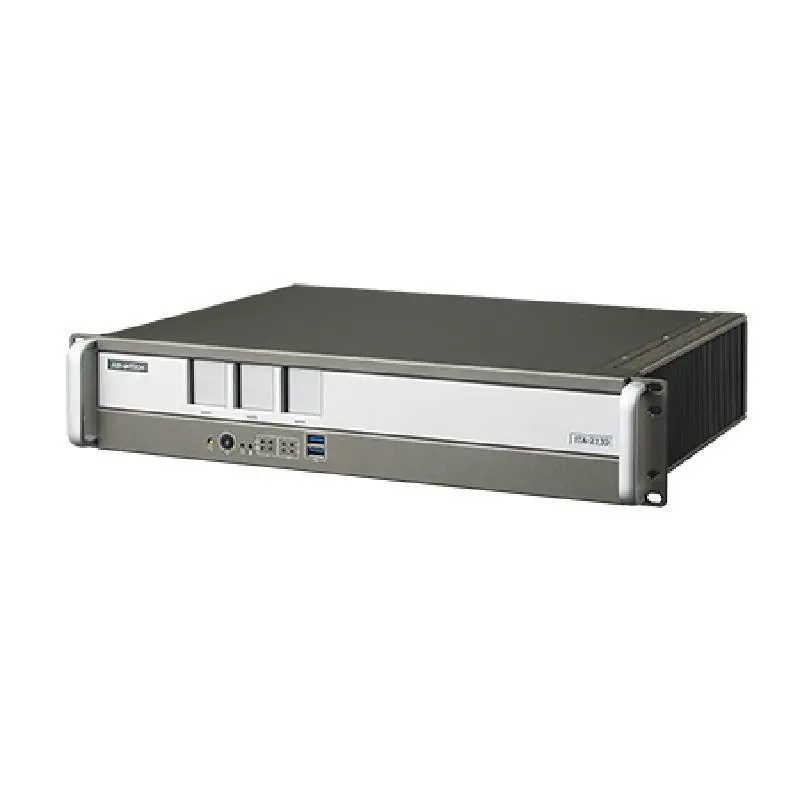

Advantech ITA-2231 Intel® 6th Generation Core™ i Processor 2U Fanless System; EN 50121-4 Compliant for Railway Applications
