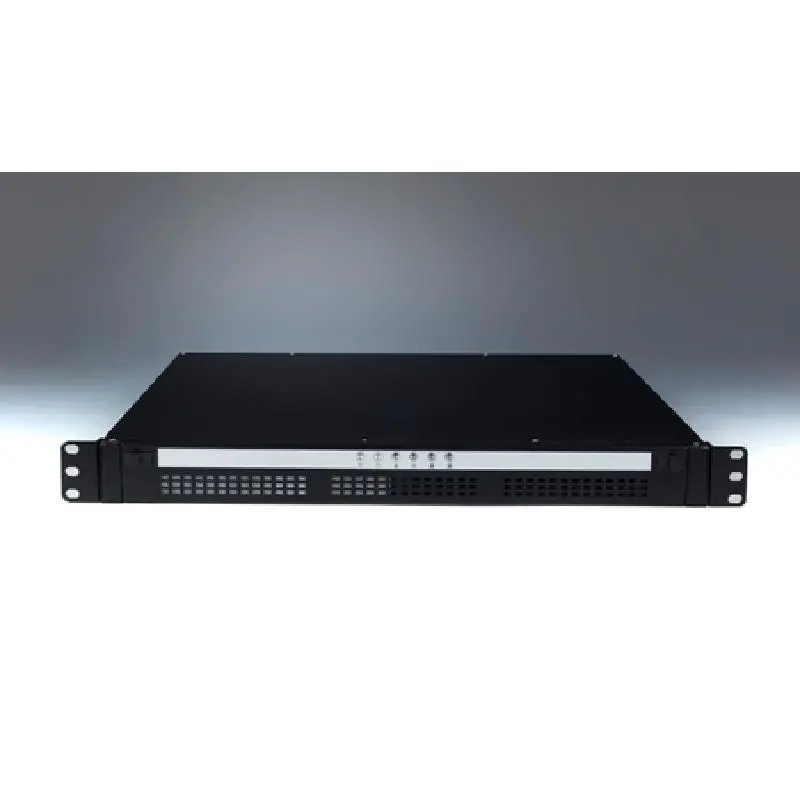

Advantech ACP-1010 1U Rackmount Chassis for ATX/uATX Motherboard with Dual SATA HDD Trays

Space-saving 1U rackmount chassis, ideal building block for business expansion

Supports full-size SHB/SBC or ATX/MicroATX motherboards

LED indicators for LAN connectivity, alarm notification of power supply, HDD activity, system fan, and in-chassis temperature

supports a slim ODD and two disk drives

Supports up to 2 expansion slots in BP version, and 1 expansion slot via riser card in MB version

Supports both 250 W/300 W ATX/PFC power supply

Efficient cooling design prevents the system from over-heating

		ACP-1010MB-00BE
Form Factor	Form Factor	1U Rackmount
Drive Bay	Slim Optical Drive External	1
Drive Bay	3.5" External	1
Drive Bay	3.5" Internal	Optional (1 x 3.5" or 2 x 2.5")
Drive Bay	2.5" Internal	Optional (1 x 3.5" or 2 x 2.5")
Cooling	Fan	2 (4 cm / 24 CFM)
Front I/O Interface	USB 2.0	2
Power	Power Consumption	250 W/ 350 W (Single)

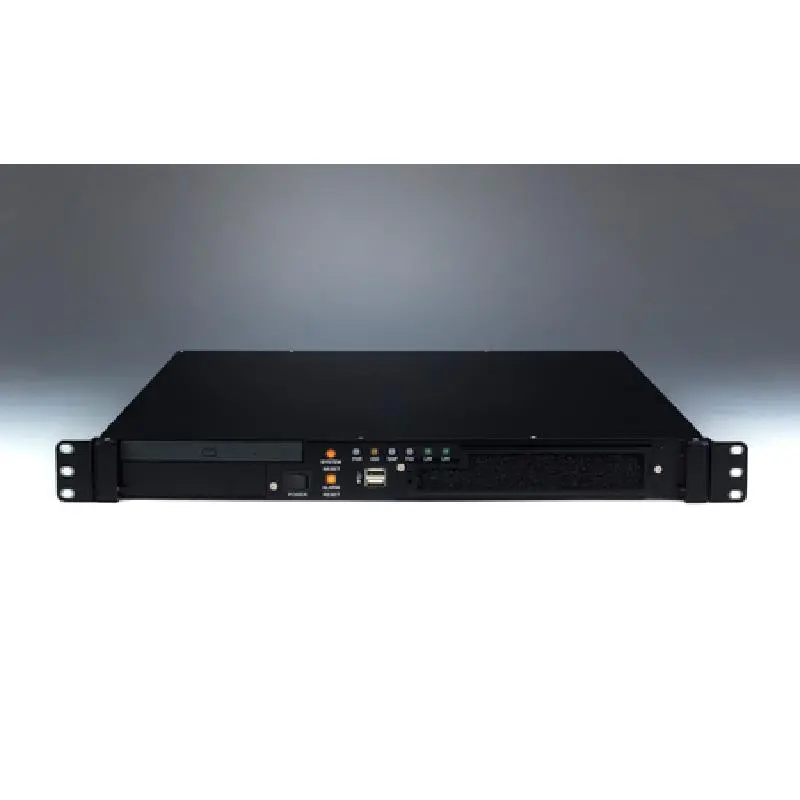

Miscellaneous	LED Indicators	System: Power, HDD, Temperature, Fan, LAN1, LAN2
Miscellaneous	Control	Power Switch, System reset, Alarm reset

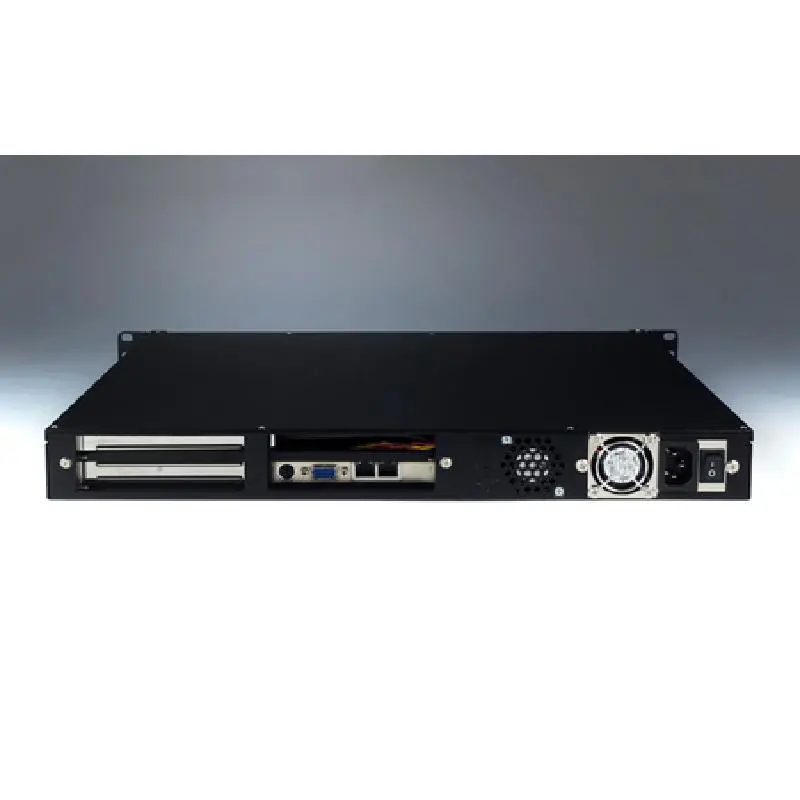

Miscellaneous	Rear Panel	1 x 9-pin D-Sub opening
Environment	Operating Temperature	0~40 °C (32~104 °F)
Environment	Non-Operational Temperature	-20 ~ 60° C (-4 ~ 140° F)
Environment	Operating Humidity	10 ~ 85% @ 40° C, non-condensing
Environment	Non-Operating Humidity	10 ~ 95% @ 40° C, non-condensing
Environment	Non-Operating Vibration (5 ~ 500 Hz)	2 G
Mechanical	Dimension (W x H x D)	480 x 44 x 497 mm (19" x 1.7" x 19.6")
Mechanical	Weight (Net)	8 kg (17.6 lb)
