| ACP-2020MB-35B | ACP-2020MB-50RE | ||
| Form Factor | Form Factor | 2U Rackmount | 2U Rackmount |

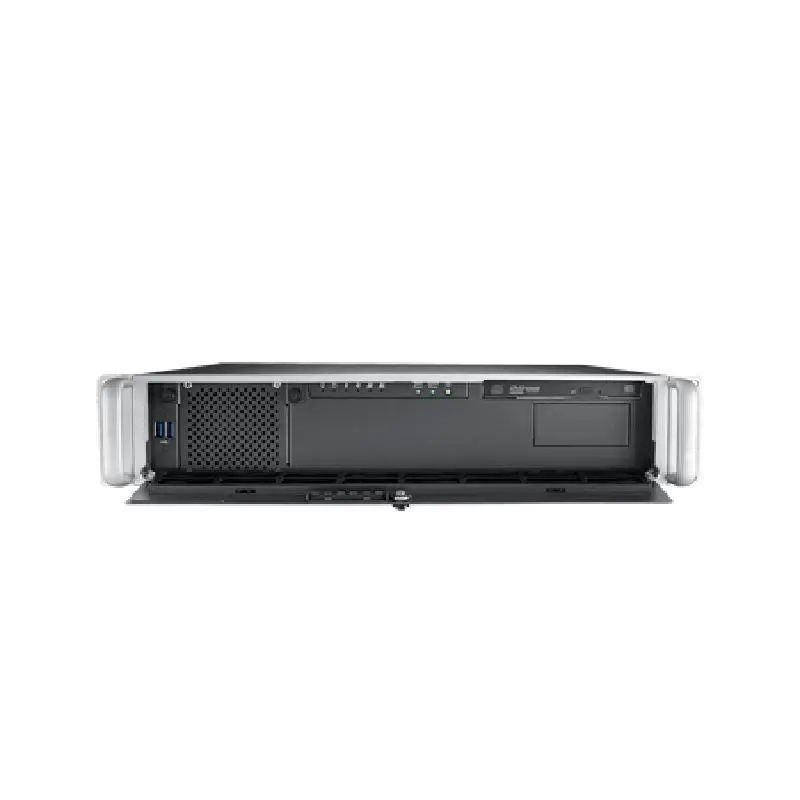

| Drive Bay | Slim Optical Drive External | 1 | 1 |

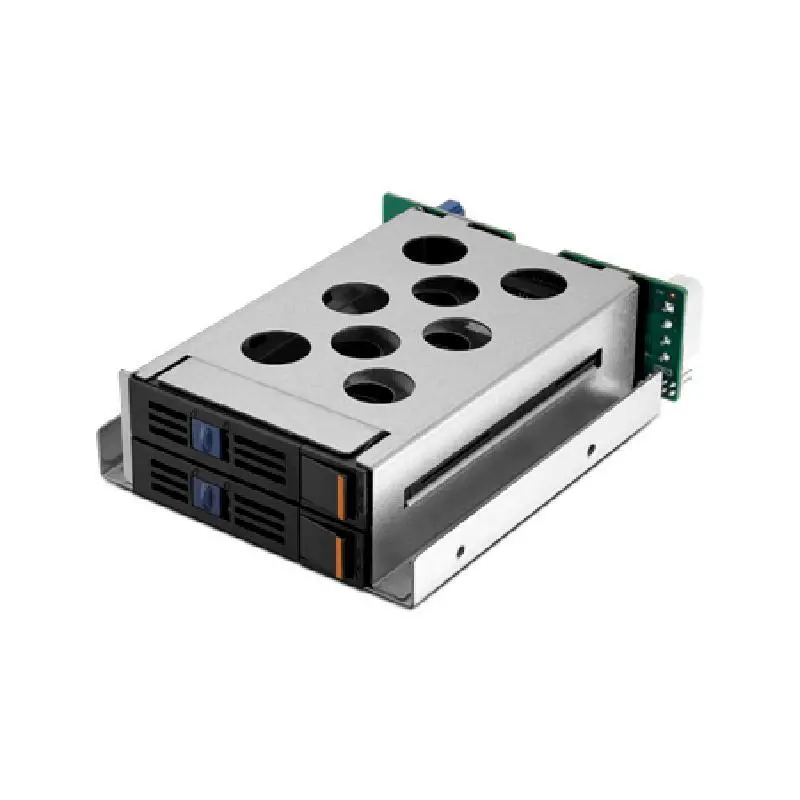

| Drive Bay | 2.5" External | 2 (hot-swap tray module as optional) | 2 (hot-swap tray module as optional) |
| Drive Bay | 2.5" Internal | 2 | 2 |
| Cooling | Fan | 1 (8 cm / 46.62 CFM) | 1 (8 cm / 46.62 CFM) |
| Cooling | Air Filter | Yes | Yes |
| Front I/O Interface | USB 3.0 | 2 | 2 |
| Power | Power Consumption | 350 W (Single) | 500 W (Redundant) |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan, LAN1, and LAN2 | Power, HDD, temperature, fan, LAN1, and LAN2 |

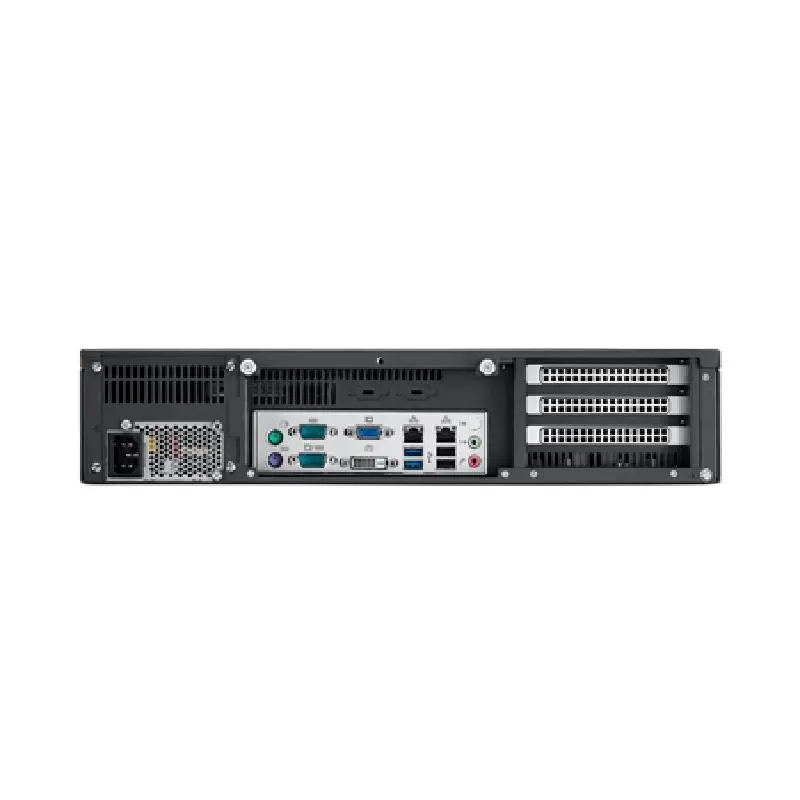

| Miscellaneous | Rear Panel | 2 x 9-pin D-Sub openings | 2 x 9-pin D-Sub openings |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed, CPU/System temperature | CPU/System fan speed, CPU/System temperature |
| Environment | Operating Temperature | 0~40 °C (32~104 °F) | 0~40 °C (32~104 °F) |
| Environment | Non-Operating Temperature | -20~60 °C (-4~140 °F) | -20~60 °C (-4~140 °F) |
| Environment | Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 85% @ 40° C, non-condensing |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 60° C, non-condensing | 10 ~ 95% @ 60° C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 1 Grms | 1 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 G | 2 G |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Mechanical | Dimension (W x H x D) | 482 x 88 x 398 mm (19" x 3.46" x 15.7") | 482 x 88 x 398 mm (19" x 3.46" x 15.7") |
| Mechanical | Weight (Net) | 8.6 kg ( 18.96 lbs ) | 8.6 kg ( 18.96 lbs ) |

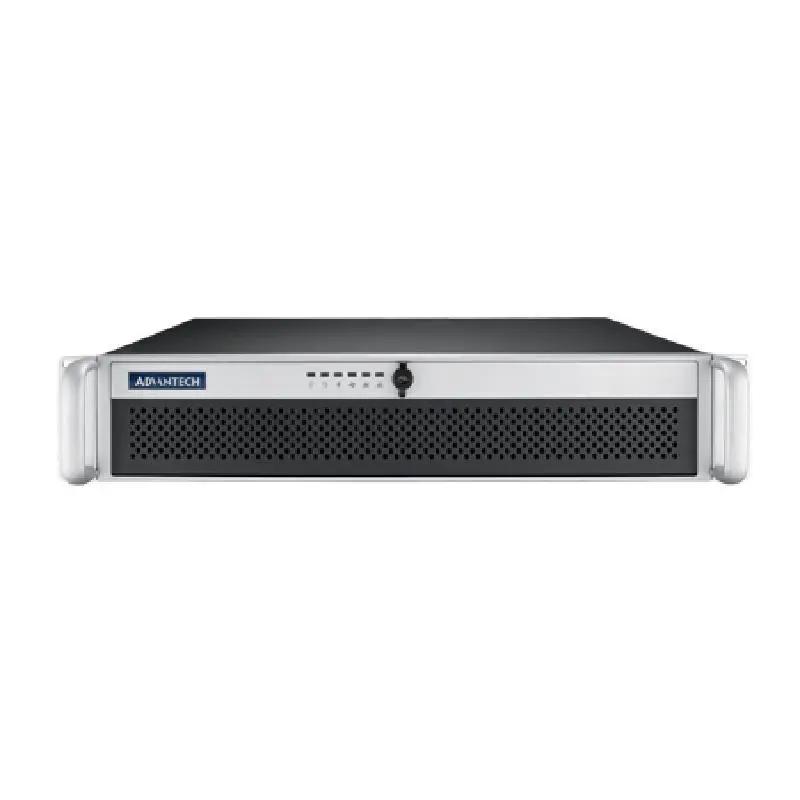

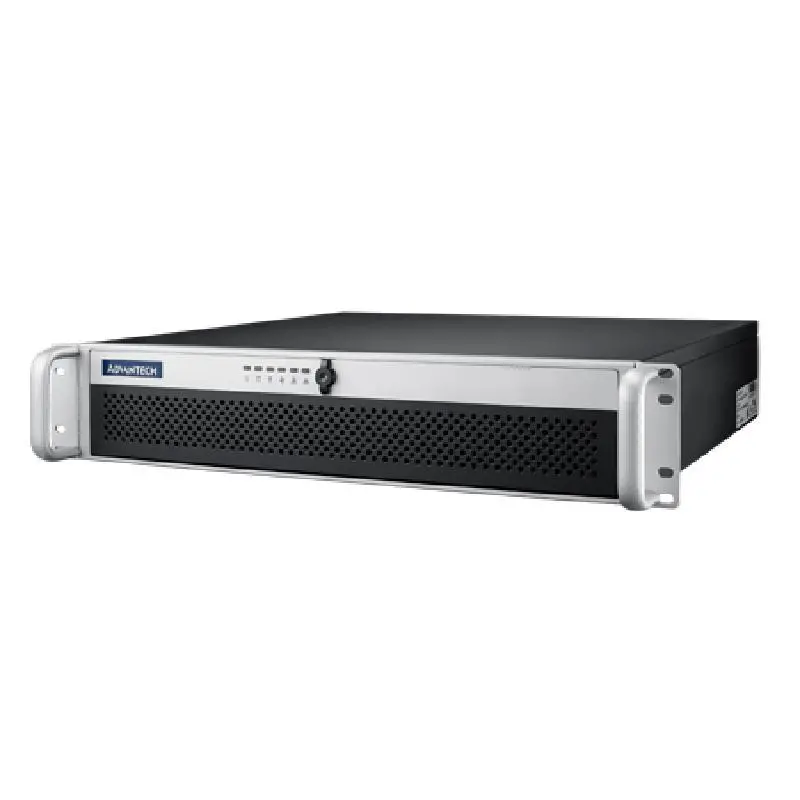

Advantech ACP-2020 2U Rackmount Short Depth Chassis for ATX and mATX Motherboard
