| ACP-2000EBP-00C | ||
| Form Factor | Form Factor | 2U Rackmount |
| Drive Bay | Slim Optical Drive External | 1 |
| Drive Bay | 3.5" External | 2 |
| Cooling | Fan | 2 (8 cm / 47 CFM) |
| Cooling | Air Filter | Yes |
| Front I/O Interface | USB | 2 |
| Front I/O Interface | PS/2 | 1 |
| Power | Power Consumption | 250 W/ 300 W/ 500W (Single) |
| Miscellaneous | LED Indicators | Power, HDD |
| Miscellaneous | Rear Panel | 1 x 9-pin D-Sub opening |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed, CPU/System temperature |
| Environment | Operating Temperature | 0~40 °C (32~104 °F) |
| Environment | Non-Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Operating Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 0.5 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 G |
| Mechanical | Dimension (W x H x D) | 482 x 88 x 451 mm (19'' x 3.5'' x 17.8'') |
| Mechanical | Weight (Net) | 11.3 kg (24.9 lb) |

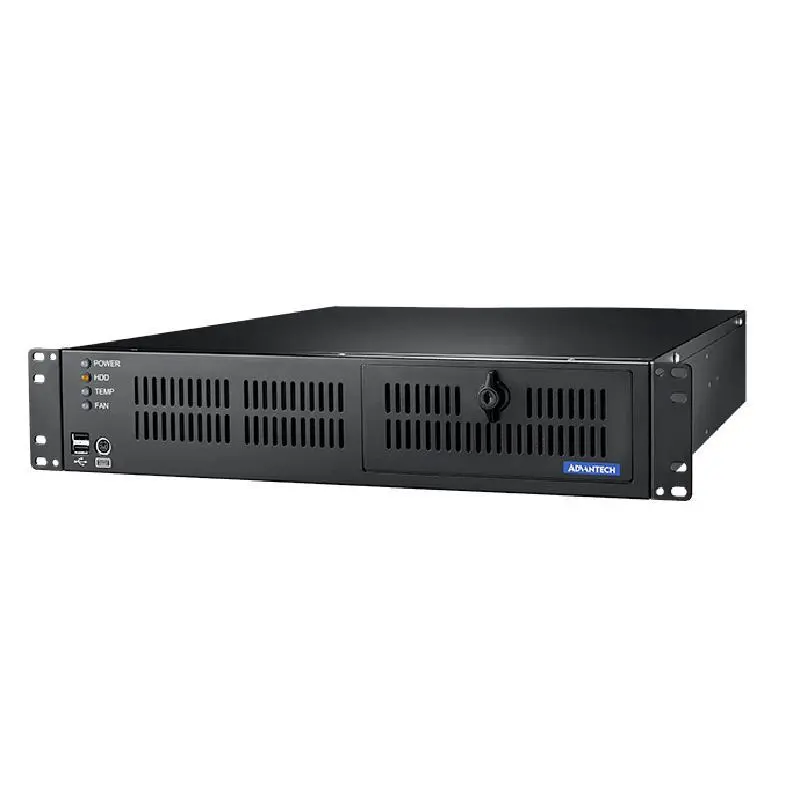

Advantech ACP-2000 2U 6-Slot Rackmount Chassis with Front USB and PS/2 Interfaces
