| ACP-2320MB-35D | ||
| Form Factor | Form Factor | 2U Rackmount |
| Drive Bay | Slim Optical Drive External | 1 |
| Drive Bay | 3.5" External | 2 |
| Drive Bay | 3.5" Internal | 2 |

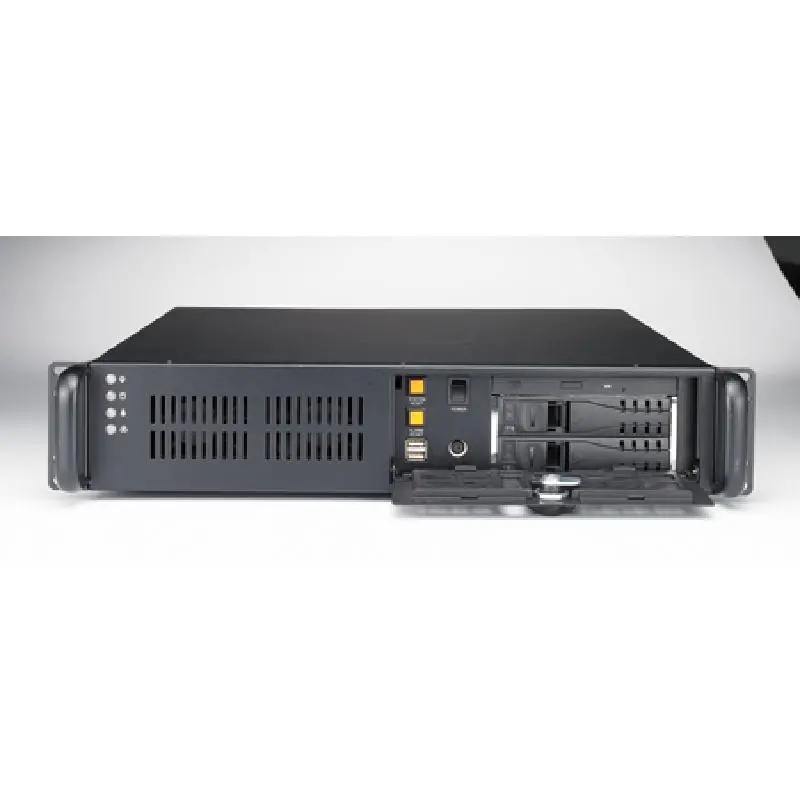

| Drive Bay | Hot Swap External | 2 (Compatible with both 3.5" or 2.5" devices, no convert bracket needed) |
| Cooling | Fan | 2 (8 cm / 47 CFM each) + 1 (6 cm / 28 CFM) for SATA storage unit |
| Cooling | Air Filter | Yes |
| Cooling | Smart Fan | System fan speed referring to chassis thermal sensor, or CPU temperature |
| Front I/O Interface | USB 2.0 | 2 |
| Front I/O Interface | PS/2 | 1 |
| Power | Power Consumption | 350 W (Single) |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan |

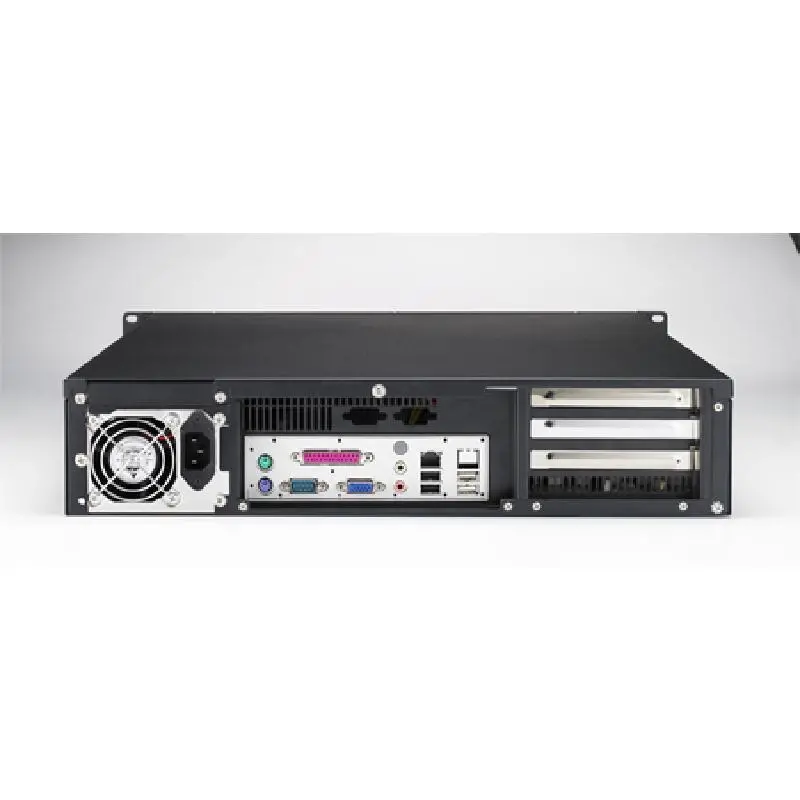

| Miscellaneous | Rear Panel | 2 x 9-pin D-Sub openings |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed, CPU/System temperature |
| Environment | Operating Temperature | 0~40 °C (32~104 °F) |
| Environment | Non-Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Operating Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 1 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 G |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) |
| Mechanical | Dimension (W x H x D) | 482 x 88 x 480 mm (19" x 3.46" x 18.9") |
| Mechanical | Weight (Net) | 11.7 kg (25.7 lb) |

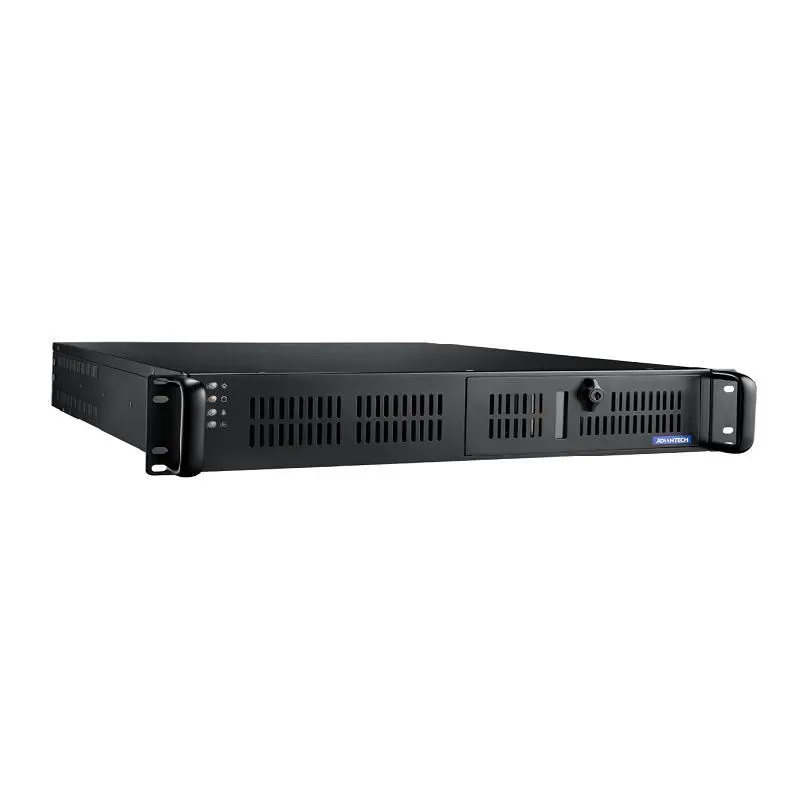

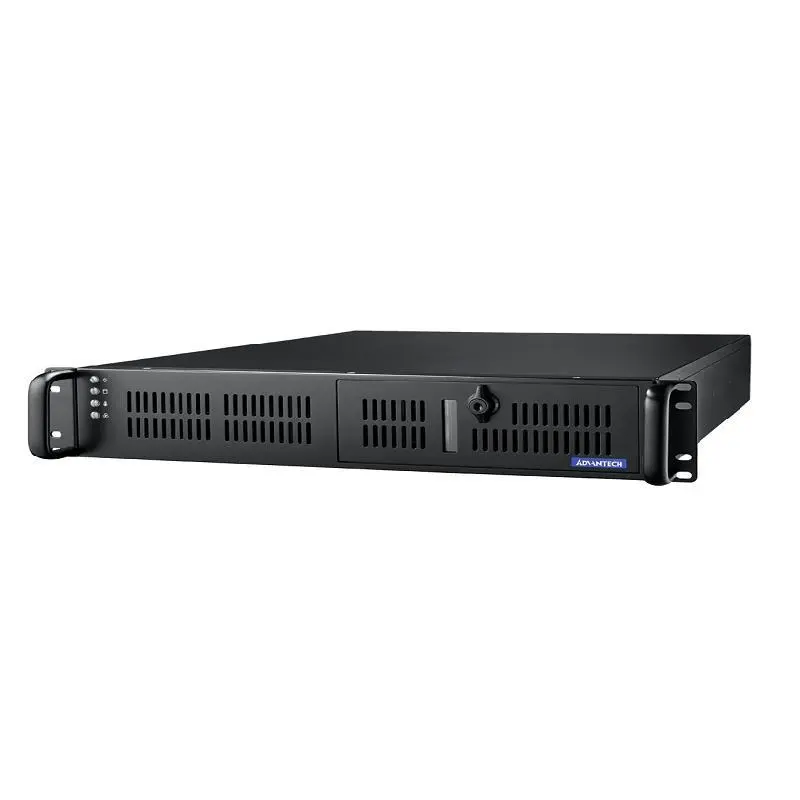

Advantech ACP-2320 2U Rackmount Chassis for ATX/ MicroATX Motherboard with Low-Profile Rear Bracket Option
