| IPC-603MB-35C | ||
| Form Factor | Form Factor | 2U Rackmount |
| Drive Bay | Slim Optical Drive External | 1 |
| Drive Bay | 3.5" Internal | 1 |
| Cooling | Fan | 2 (8 cm / 47 CFM) |
| Cooling | Air Filter | Yes |
| Power | Power Consumption | 350 W (Single) |
| Miscellaneous | LED Indicators | Power, HDD |
| Environment | Operating Temperature | 0~40 °C (32~104 °F) |
| Environment | Non-Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Operating Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 1 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 G |
| Mechanical | Dimension (W x H x D) | 482 x 88 x 308 mm (19" x 3.46" x 12.1") |
| Mechanical | Weight (Net) | 6.4 kg (14.1lb) |

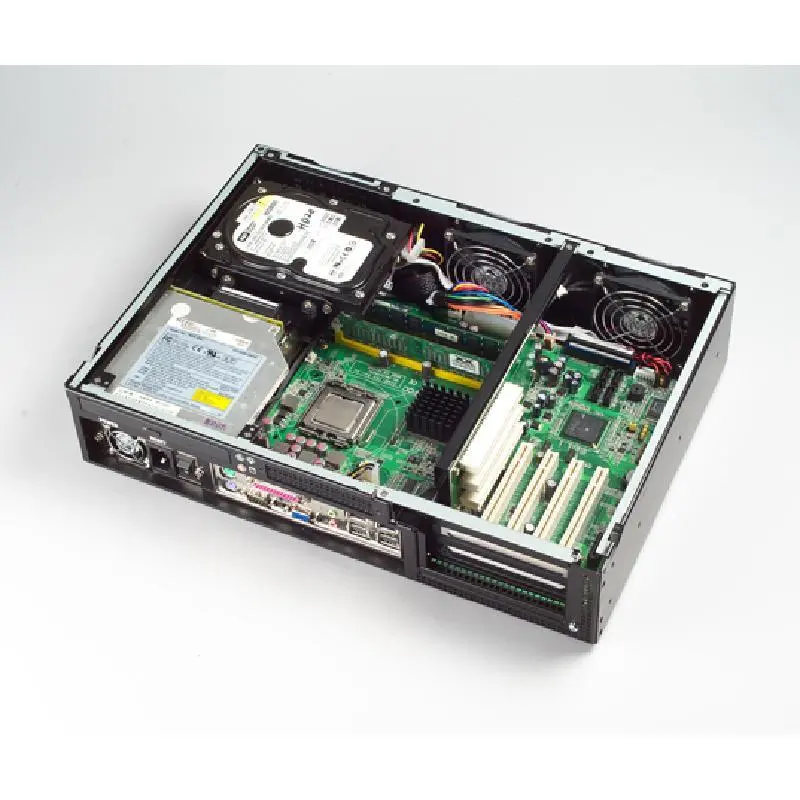

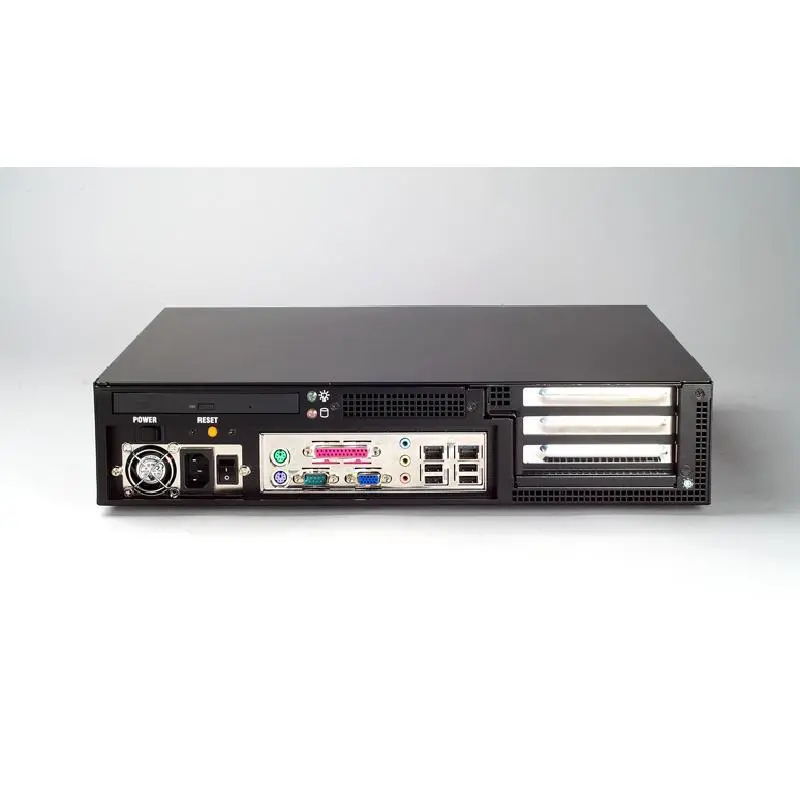

Advantech IPC-603MB 2U 3-Slot Rackmount Chassis for ATX/MicroATX Motherboard with Front I/O
