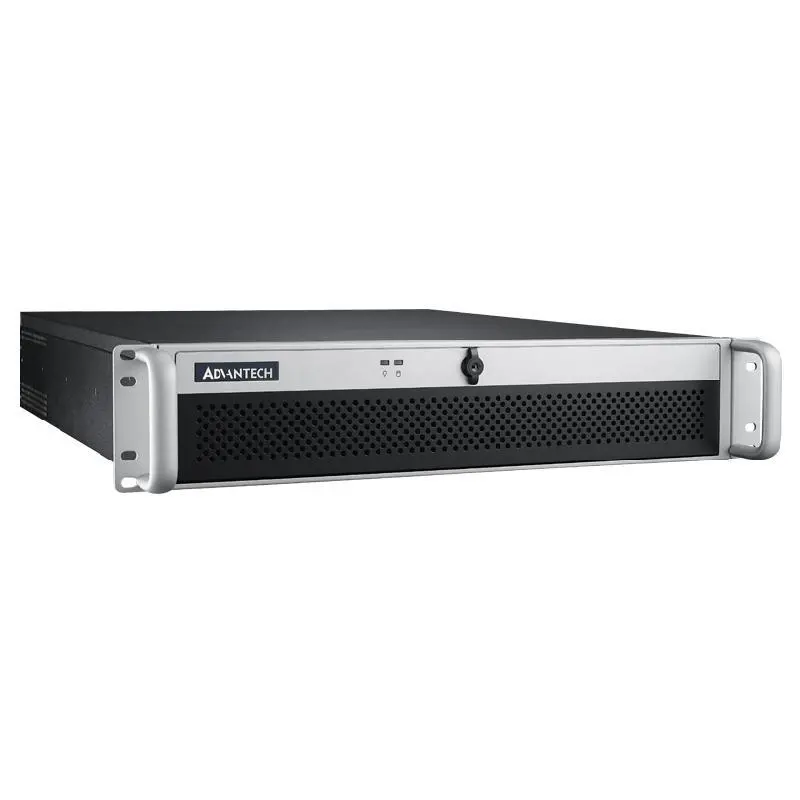

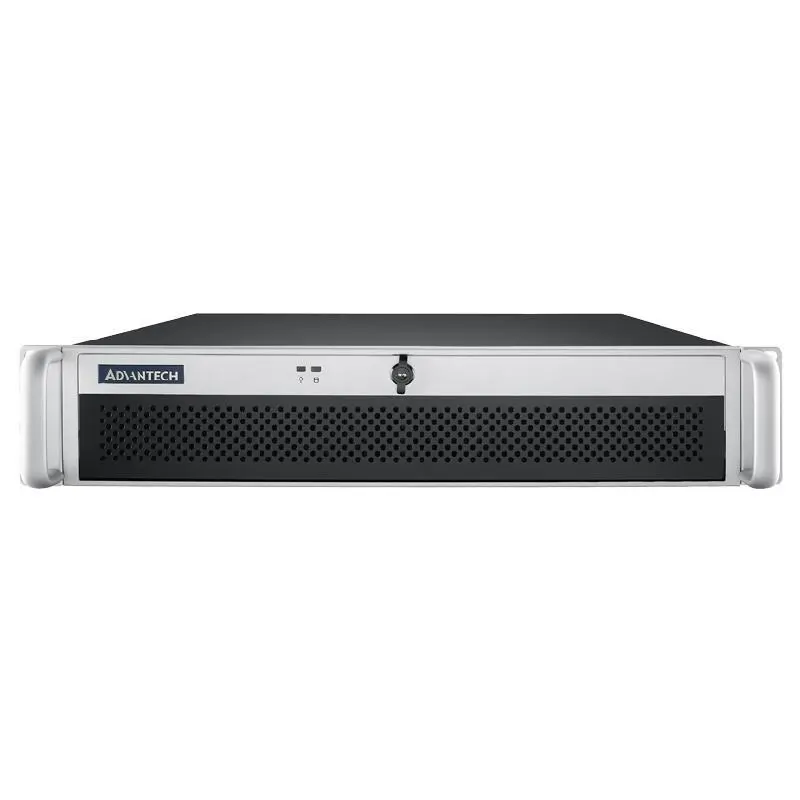

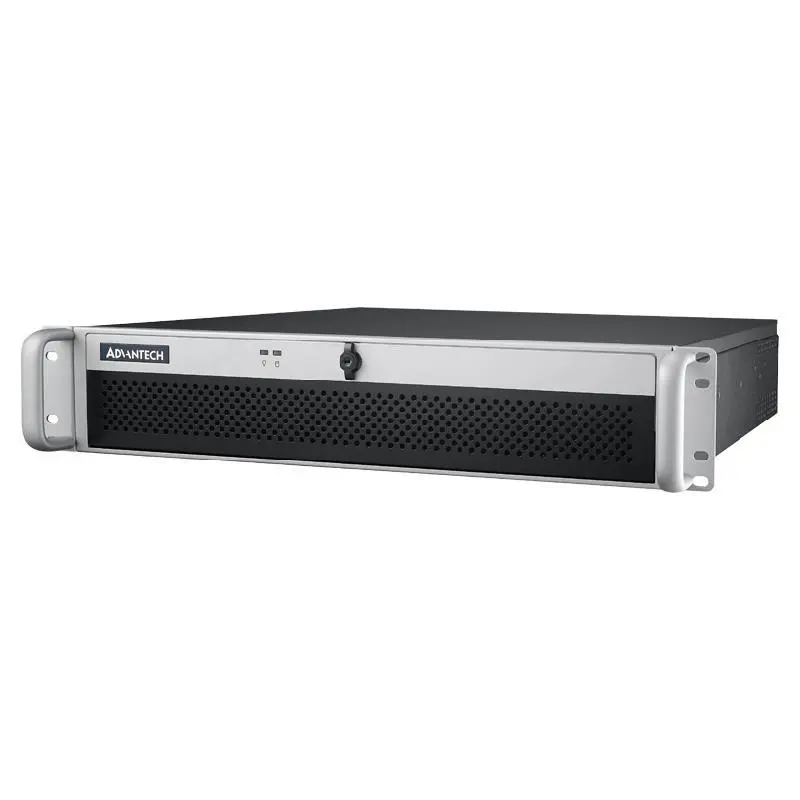

Advantech ACP-2020G 2U Rackmount Chassis for ATX and uATX Motherboard

Support ATX and microATX form factor single processor motherboard with max 80W CPU TDP

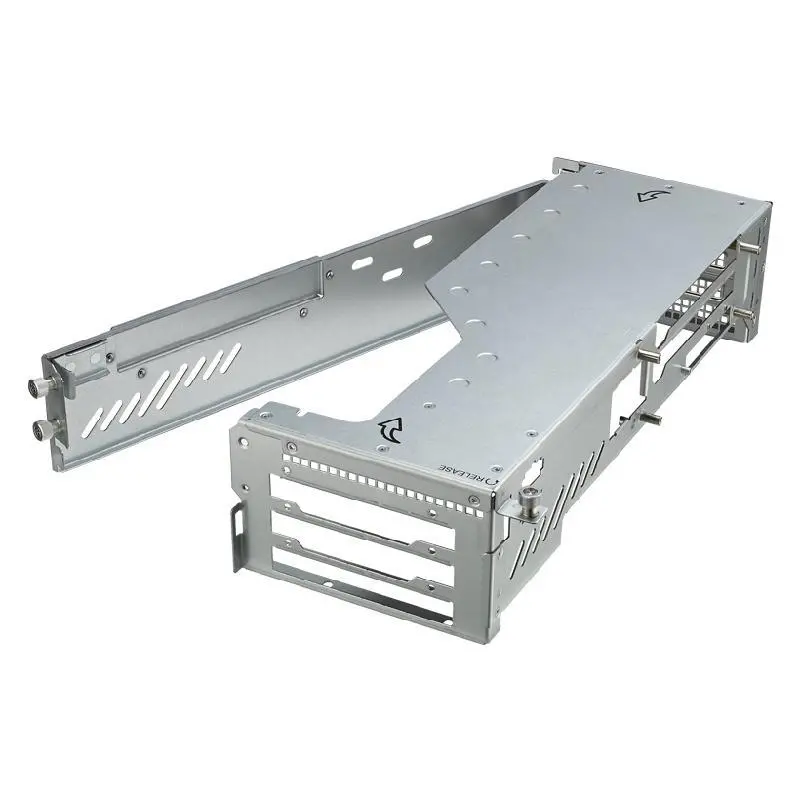

Special modularized card cage to provide 350W GPU card tool-less installation experience

Two Internal 2.5" or one 3.5" drive bay and optional 2.5" hot-swap module available

Built in 80 Plus Platinum single 850W power supply

		ACP-2020G-85Z
Form Factor	Form Factor	2U Rackmount
Drive Bay	Slim Optical Drive External	1
Drive Bay	3.5" Internal	1
Drive Bay	2.5" External	2 (hot-swap tray module as optional)
Drive Bay	2.5" Internal	1

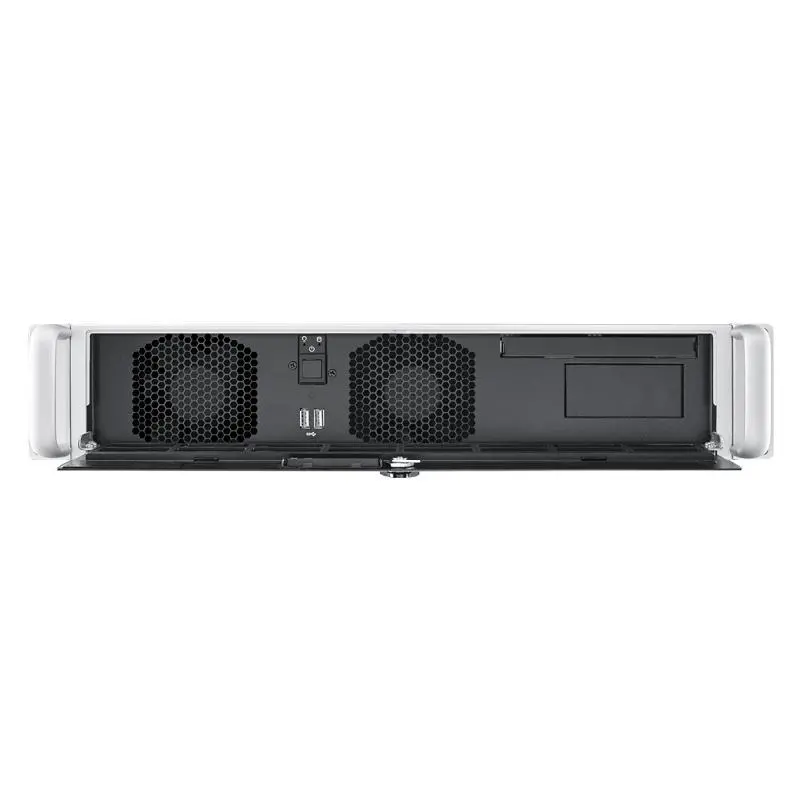

Cooling	Fan	2 (8 cm / 103 CFM)
Cooling	Air Filter	Yes
Front I/O Interface	USB 2.0	2
Power	Power Consumption	850 W (Single)
Miscellaneous	LED Indicators	Power, HDD

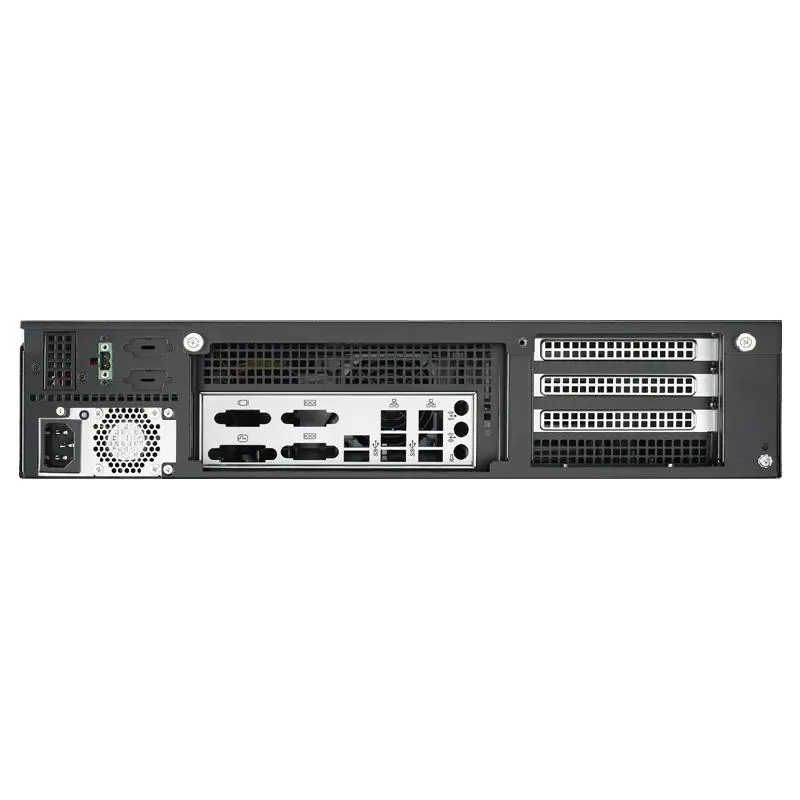

Miscellaneous	Rear Panel	2 x 9-pin D-Sub opening, phoenix connector
System Monitoring	System Monitoring	Chassis intrusion switch
Environment	Operating Temperature	0~40 °C (32~104 °F)
Environment	Non-Operating Temperature	-20~60 °C (-4~140 °F)
Environment	Operating Humidity	10 ~ 85% @ 40° C, non-condensing
Environment	Non-Operating Humidity	10 ~ 95% @ 60° C, non-condensing
Environment	Operating Vibration (5 ~ 500 Hz)	0.5 Grms
Environment	Non-Operating Vibration (5 ~ 500 Hz)	2 G
Environment	Operating Shock	10 G (with 11 ms duration, half sine wave)
Mechanical	Dimension (W x H x D)	482 x 88 x 445 mm (18.96" x 3.46" x 17.52")
Mechanical	Weight (Net)	11.78 kg (25.97 lb)
