| IPC-631MB-50B | IPC-631MB-70B | ||
| Form Factor | Form Factor | 4U Rackmount | 4U Rackmount |
| Disk Drive Bay | Slim ODD | 1 | 1 |
| Disk Drive Bay | Hot-swap Drive Bay | 2 ( 2.5" SAS/SATA - Optional ) | 2 ( 2.5" SAS/SATA - Optional ) |
| Cooling | Fan | 2 (12 cm / 82 CFM) | 2 (12 cm / 82 CFM) |
| Cooling | Air Filter | Yes | Yes |
| Front I/O Interface | Phoenix front PW-ON | 1 | 1 |
| Miscellaneous | COM | 3 | 3 |
| Miscellaneous | LED Indicators | Power status and HDD activity | Power status and HDD activity |
| Miscellaneous | Control | Power switch and system reset button | Power switch and system reset button |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing |
| Environment | Operating Vibration | 1 Grms | 1 Grms |
| Environment | Non-Operating Vibration | 2 G | 2 G |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Mechanical | Dimension (W x H x D) | 482 x 177 x 348 mm (19'' x 7.0'' x 13.7'') | 482 x 177 x 348 mm (19'' x 7.0'' x 13.7'') |
| Mechanical | Weight (Net) | 8 kg (17.6 lb) | 8 kg (17.6 lb) |
| Power Supply | Power Supply | 500W (Single) | 700W (Single) |

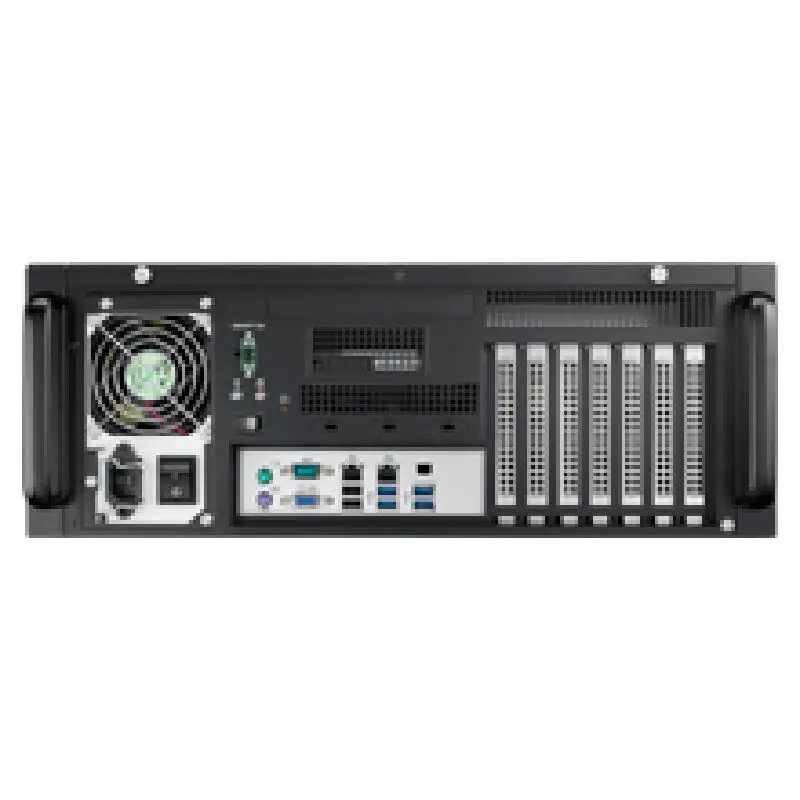

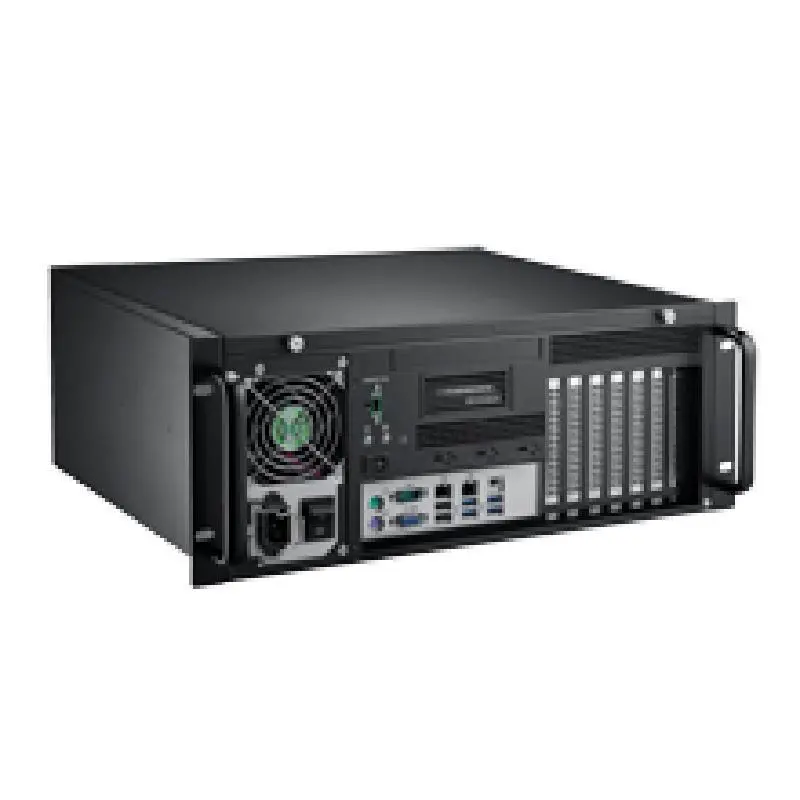

Advantech IPC-631 4U Front I/O Short Depth Rackmount Chassis for ATX/MicroATX Motherboard
