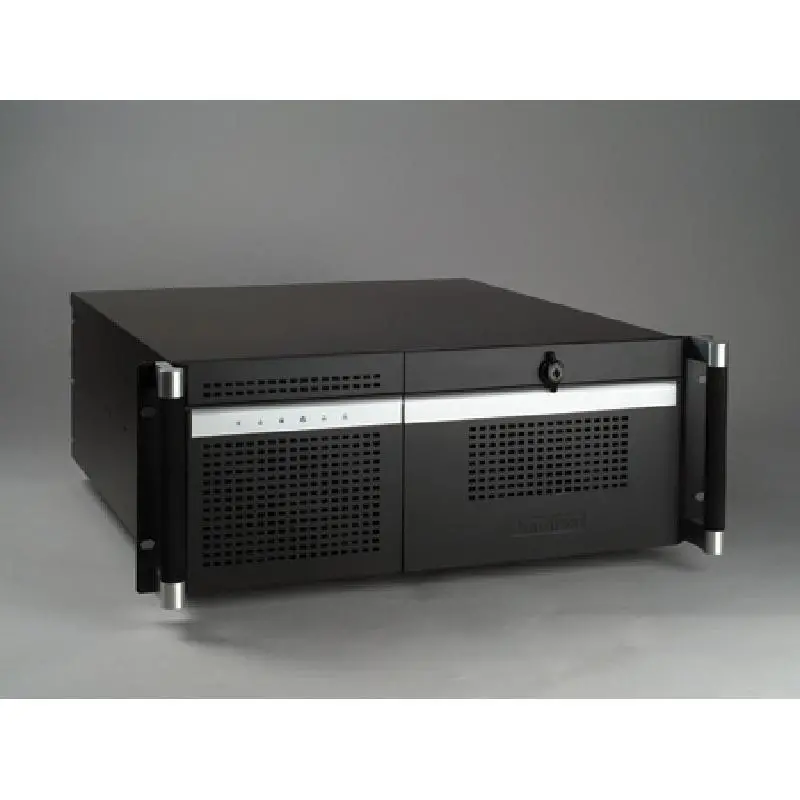

Advantech ACP-4010 Quiet 4U Rackmount Chassis for ATX/uATX Motherboard or Full-size SBC with Dual System Support

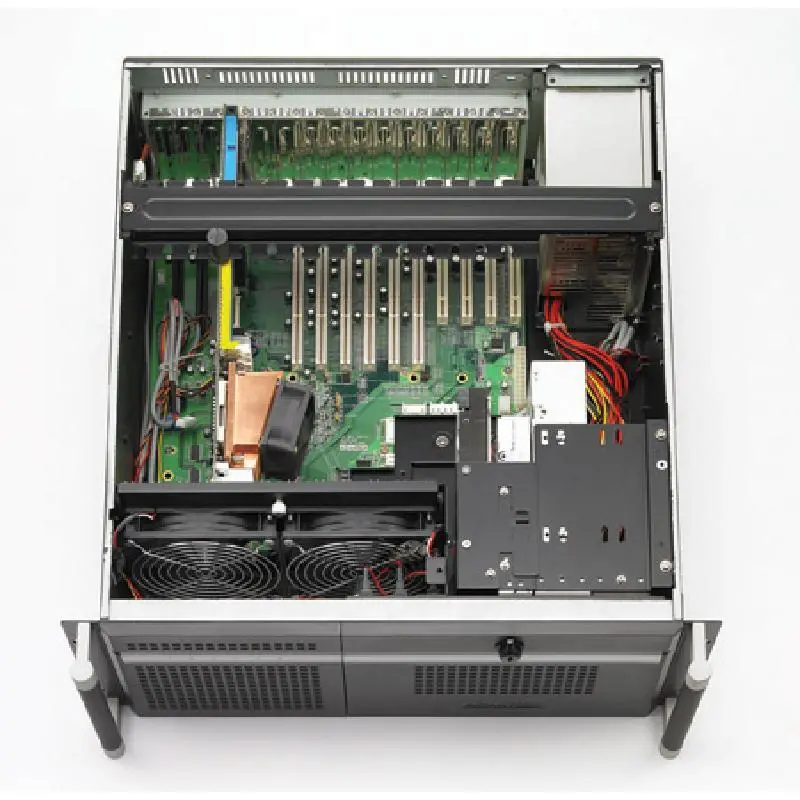

Supports either an ATX/CEB/EEB single/dual processors motherboard or a PICMG backplane with up to 15 slots

Supports one or two systems in a single chassis

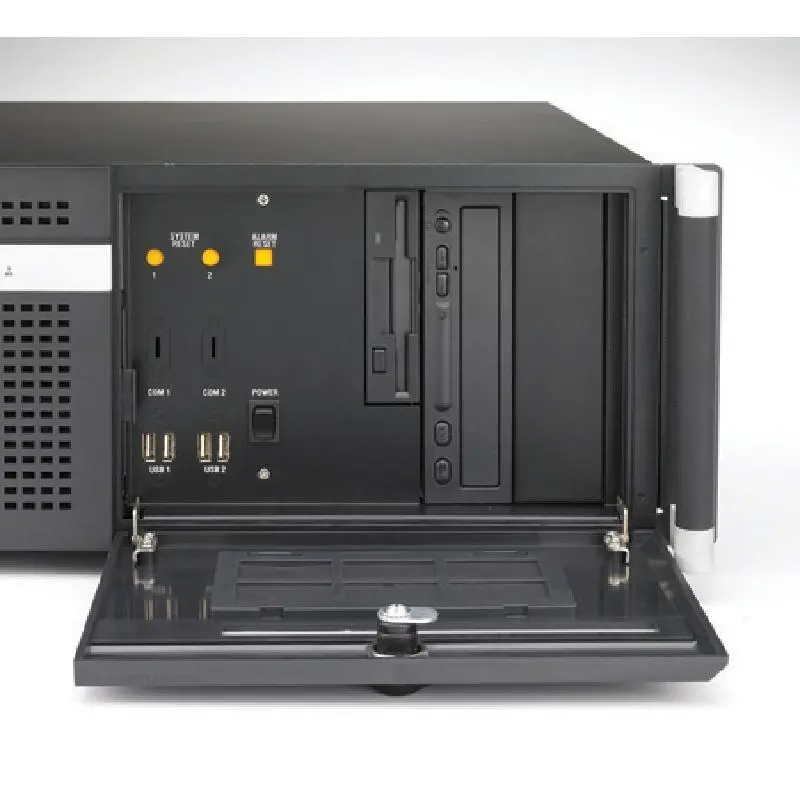

Shock-resistant disk drive bay design holds up to two 5.25" and two 3.5" disk drives

LED indicators and alarm notification for system fault detection and network connection

Low noise system fans with fan speed control

Built-in Intelligent System Module enables whole system fan control and remote manageability

		ACP-4010BP-00C	ACP-4010MB-00C
Form Factor	Form Factor	4U Rackmount	4U Rackmount
Cooling	Air Filter	Yes	Yes
Cooling	Fan	2 (12 cm / 82 CFM)	2 (12 cm / 82 CFM)
Environment	Operating Temperature	0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)	0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
Environment	Non-Operational Temperature	-20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing	-20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
Environment	Operating Shock	10 G (with 11 ms duration, half sine wave)	10 G (with 11 ms duration, half sine wave)
Environment	Operating Vibration (5 ~ 500 Hz)	1 Grms	1 Grms
Environment	Non-Operating Vibration (5 ~ 500 Hz)	2 G	2 G
Mechanical	Weight (Net)	16.6 kg (36.5 lb)	16.6 kg (36.5 lb)
Mechanical	Dimension (W x H x D)	482 x 177 x 479 mm (19" x 7" x 18.9")	482 x 177 x 479 mm (19" x 7" x 18.9")
Disk Drive Bay	5.25 External Bay	2	2
Disk Drive Bay	3.5 External Bay	1	1
Disk Drive Bay	3.5" Internal	1	1
Miscellaneous	LED Indicators	Power, HDD, temperature, fan, LAN1, and LAN2	Power, HDD, temperature, fan, LAN1, and LAN2
Intelligent System Module	Remote Monitoring	CPU/System fan speed, CPU/System temperature	CPU/System fan speed, CPU/System temperature
