| ACP-4020BP-50B | ACP-4020MB-30B | ACP-4020MB-50B | ACP-4020MB-70B | ||
| Form Factor | Form Factor | 4U Rackmount | 4U Rackmount | 4U Rackmount | 4U Rackmount |
| Cooling | Air Filter | Yes | Yes | Yes | Yes |
| Front I/O Interface | USB 3.0 | 2 | 2 | 2 | 2 |
| Disk Drive Bay | Slim ODD | 1 | 1 | 1 | 1 |
| Disk Drive Bay | 2.5" Internal | 1 | 1 | 1 | 1 |
| Disk Drive Bay | 3.5 External Bay | 2 | 2 | 2 | 2 |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Environment | Operating Vibration (5 ~ 500 Hz) | 1 Grms | 1 Grms | 1 Grms | 1 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 G | 2 G | 2 G | 2 G |
| Mechanical | Weight (Net) | 8.5 kg (18.7 lb) | 8.5 kg (18.7 lb) | 8.5 kg (18.7 lb) | 8.5 kg (18.7 lb) |
| Mechanical | Dimension (W x H x D) | 482 x 177 x 348 mm (19'' x 7.0'' x 13.7'') | 482 x 177 x 348 mm (19'' x 7.0'' x 13.7'') | 482 x 177 x 348 mm (19'' x 7.0'' x 13.7'') | 482 x 177 x 348 mm (19'' x 7.0'' x 13.7'') |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan, LAN1, and LAN2 | Power, HDD, temperature, fan, LAN1, and LAN2 | Power, HDD, temperature, fan, LAN1, and LAN2 | Power, HDD, temperature, fan, LAN1, and LAN2 |
| Miscellaneous | Rear Panel | One 9-pin D-Sub opening | Five 9-pin D-Sub and one 25-pin D-Sub openings | Five 9-pin D-Sub and one 25-pin D-Sub openings | Five 9-pin D-Sub and one 25-pin D-Sub openings |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed, CPU/System temperature | CPU/System fan speed, CPU/System temperature | CPU/System fan speed, CPU/System temperature | CPU/System fan speed, CPU/System temperature |
| Power Supply | Power Supply | 500W (Single) | 300W (Single) | 500W (Single) | 700W (Single) |
| System Monitoring | System Monitoring | Chassis intrusion switch | Chassis intrusion switch | Chassis intrusion switch | Chassis intrusion switch |
| Cooling | Fan | 2 (9 cm / 52 CFM) | 2 (9 cm / 52 CFM) | 2 (9 cm / 52 CFM) | 2 (9 cm / 52 CFM) |

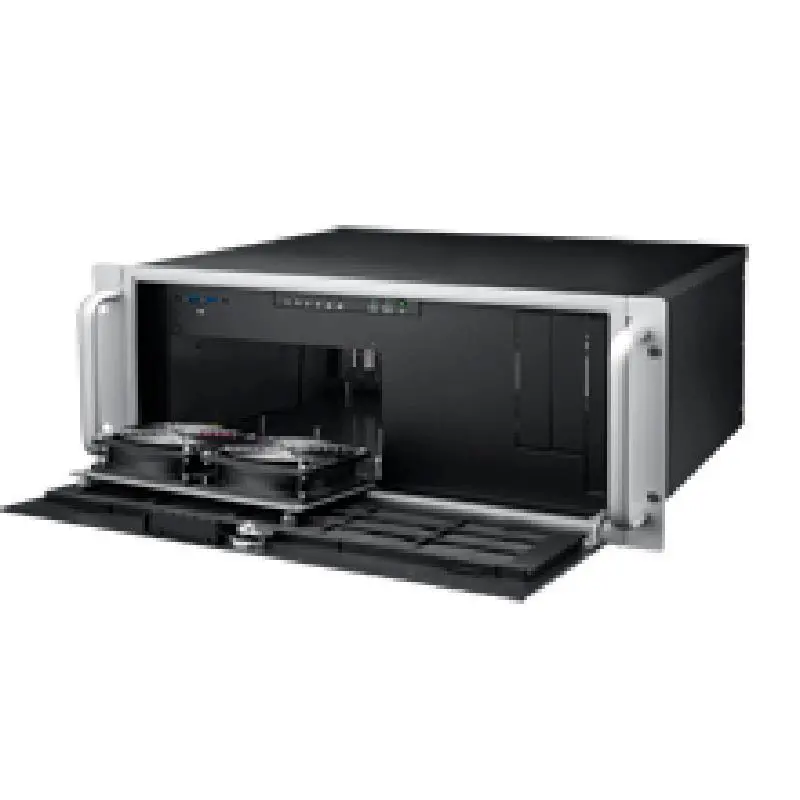

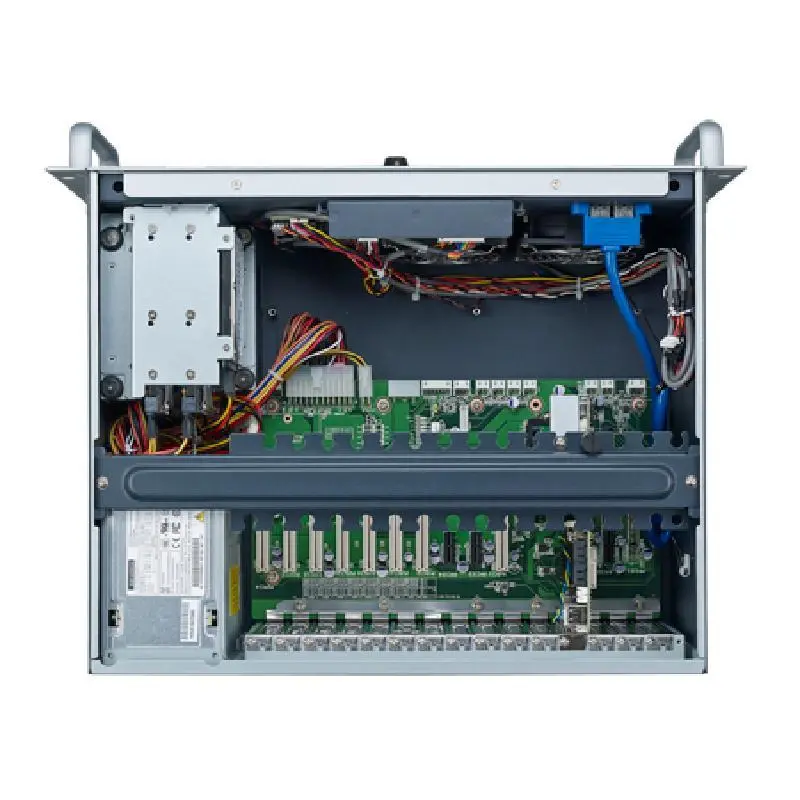

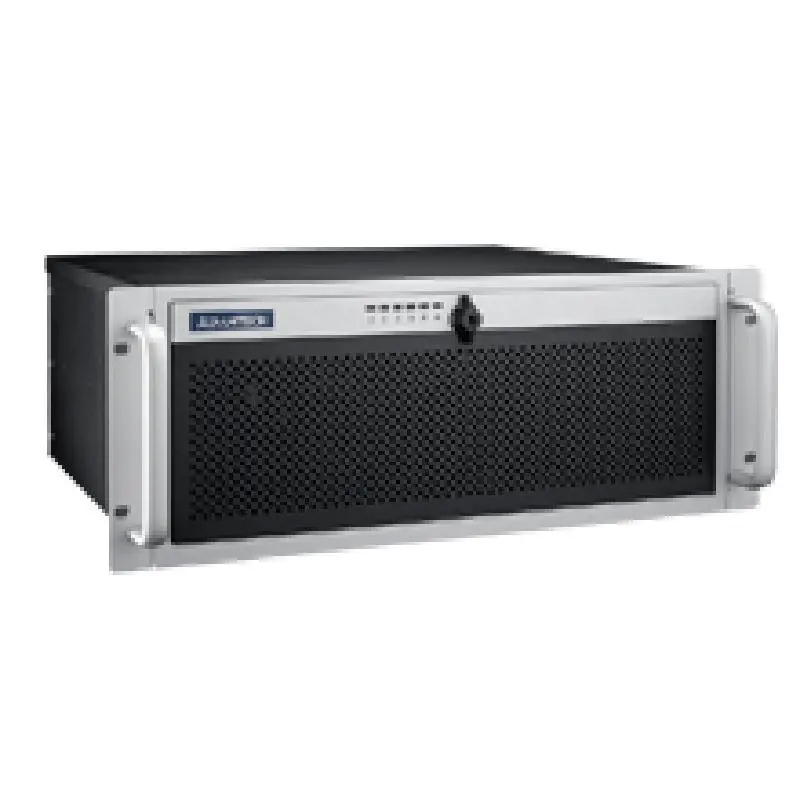

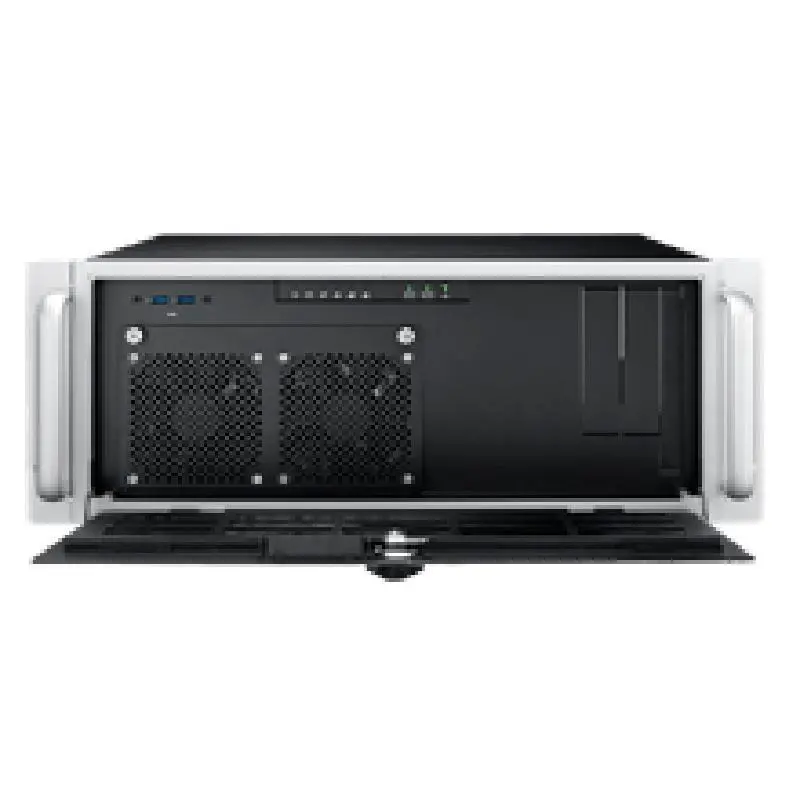

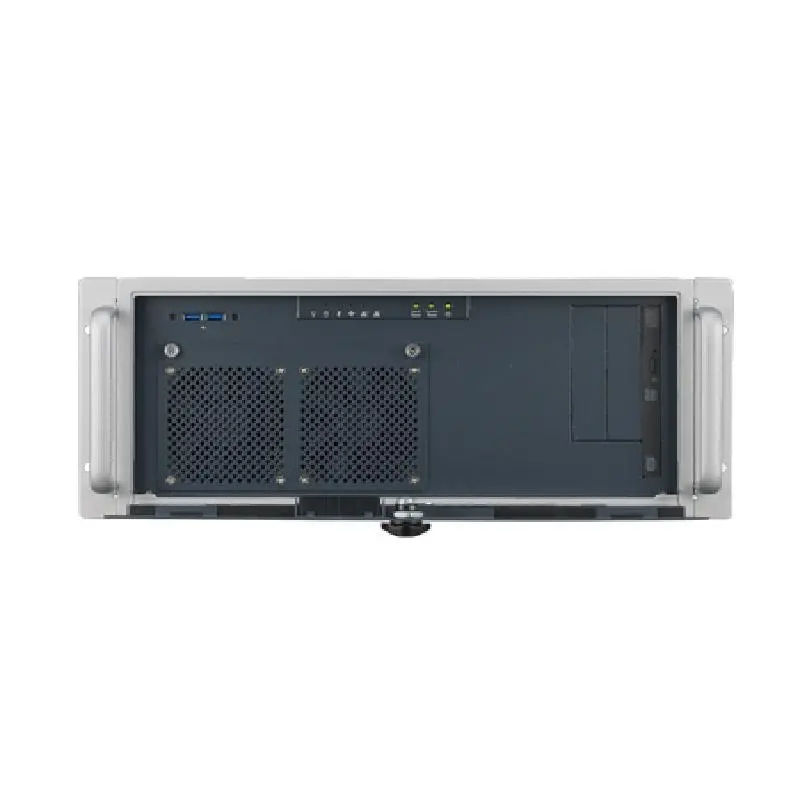

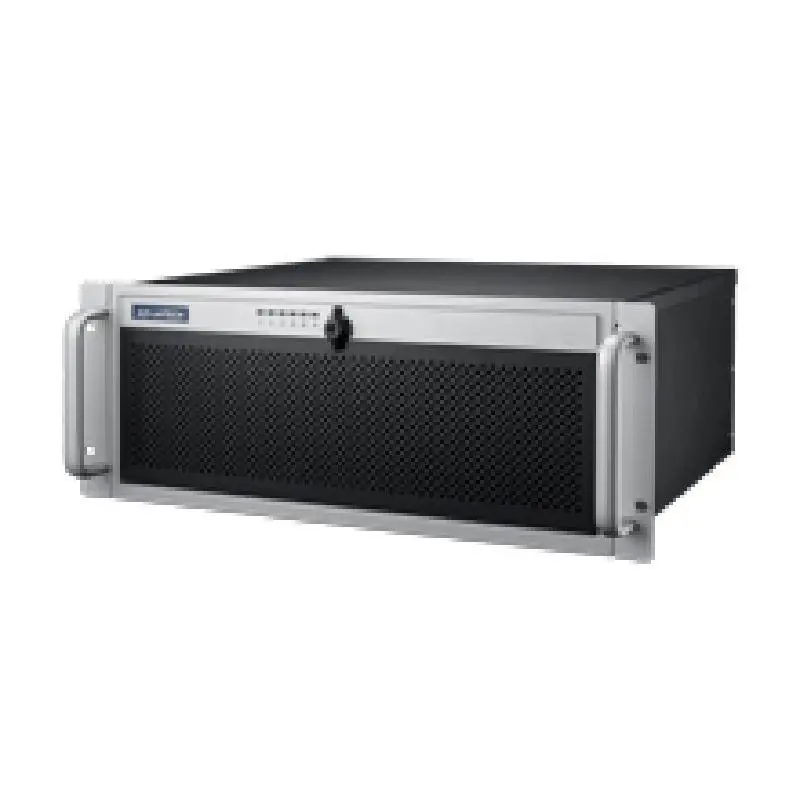

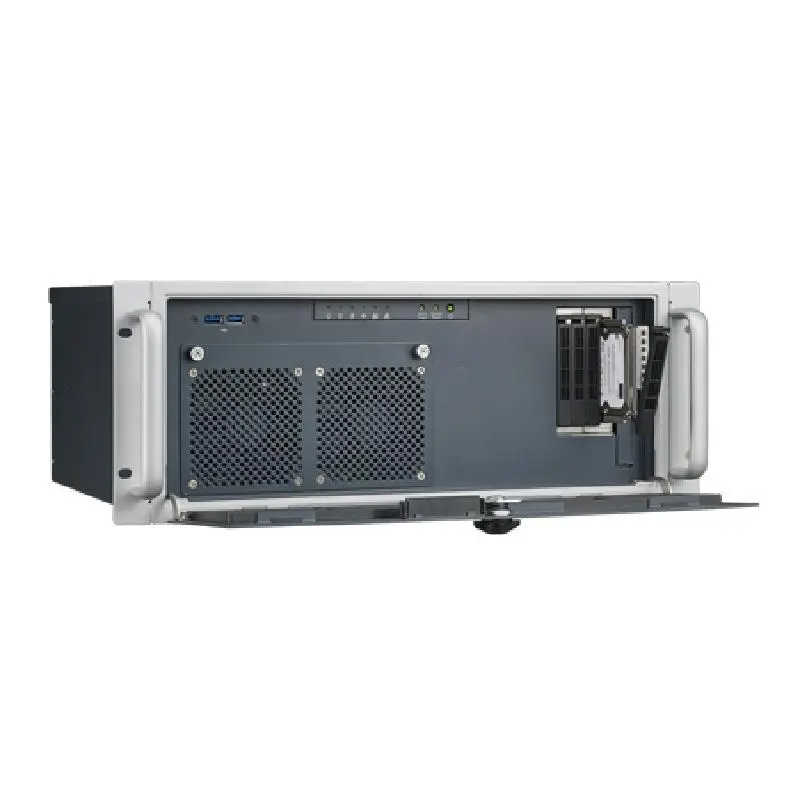

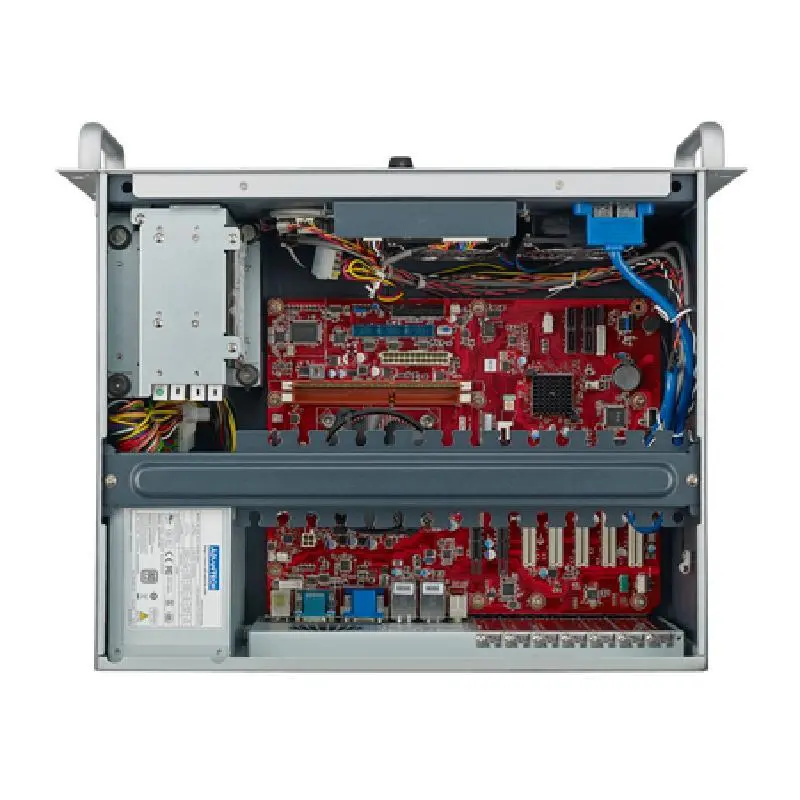

Advantech ACP-4020 Compact 4U Rackmount Chassis for Half-size SBC or ATX/MicroATX Motherboard
