| ACP-4320BP-00C | ACP-4320MB-00C | ACP-4320MB-50C | ||
| Form Factor | Form Factor | 4U Rackmount | 4U Rackmount | 4U Rackmount |
| Disk Drive Bay | 5.25 External Bay | 2 | 2 | 2 |
| Drive Bay | 3.5" External | 1 | 1 | 1 |
| Drive Bay | Hot Swap External | 2 (Compatible with both 3.5" or 2.5" devices, no convert bracket needed) | 2 (Compatible with both 3.5" or 2.5" devices, no convert bracket needed) | 2 (Compatible with both 3.5" or 2.5" devices, no convert bracket needed) |
| Cooling | Fan | 1 (12 cm / 82 CFM) + 1 (6 cm / 28 CFM) | 1 (12 cm / 82 CFM) + 1 (6 cm / 28 CFM) | 1 (12 cm / 82 CFM) + 1 (6 cm / 28 CFM) |
| Cooling | Air Filter | Yes | Yes | Yes |
| Front I/O Interface | USB 2.0 | 2 | 2 | 2 |

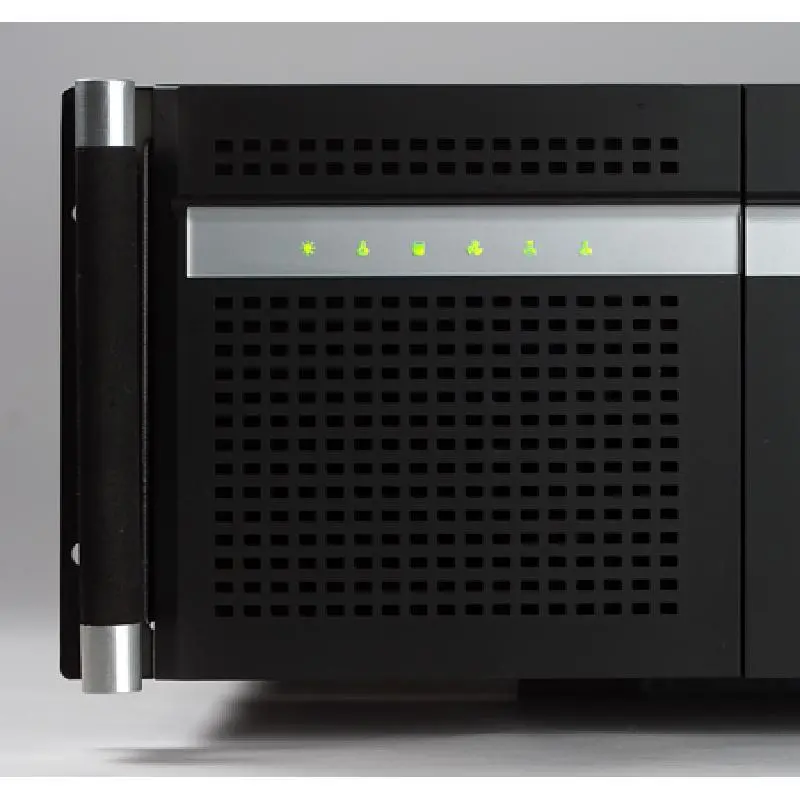

| Miscellaneous | LED Indicators | Power, HDD, temperature, fan, LAN1, and LAN2 | Power, HDD, temperature, fan, LAN1, and LAN2 | Power, HDD, temperature, fan, LAN1, and LAN2 |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed , CPU/System temperature , motherboard voltage | CPU/System fan speed , CPU/System temperature , motherboard voltage | CPU/System fan speed , CPU/System temperature , motherboard voltage |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing |
| Environment | Operating Vibration | 1 Grms | 1 Grms | 1 Grms |
| Mechanical | Dimension (W x H x D) | 482 x 177 x 479 mm (19" x 7" x 18.9") | 482 x 177 x 479 mm (19" x 7" x 18.9") | 482 x 177 x 479 mm (19" x 7" x 18.9") |
| Mechanical | Weight (Net) | 17.6 kg (38.7 lb) | 17.6 kg (38.7 lb) | 17.6 kg (38.7 lb) |
| Power Supply | Power Supply | - | - | 500W (Single) |

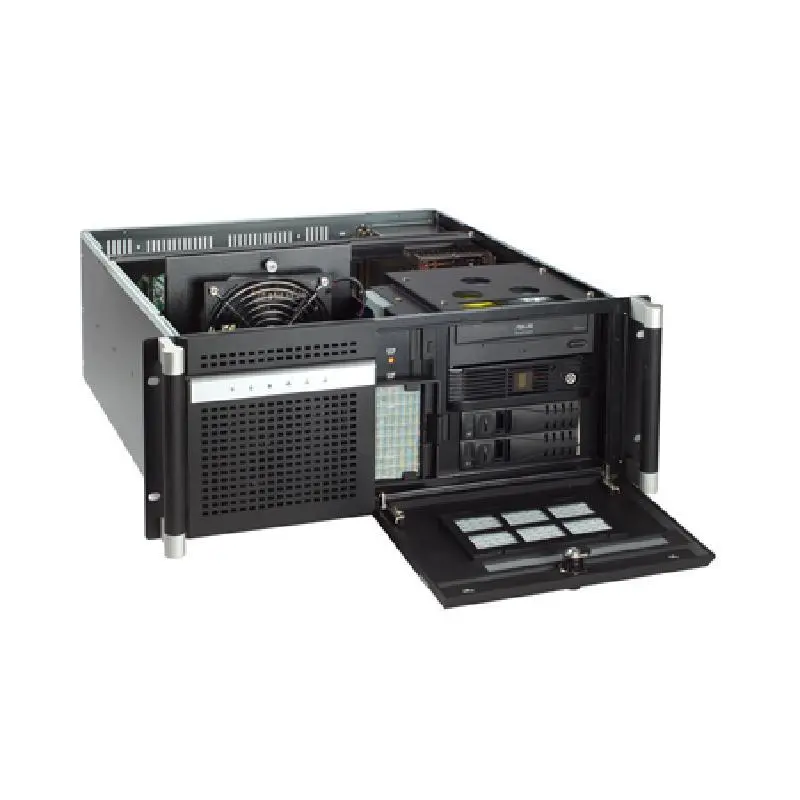

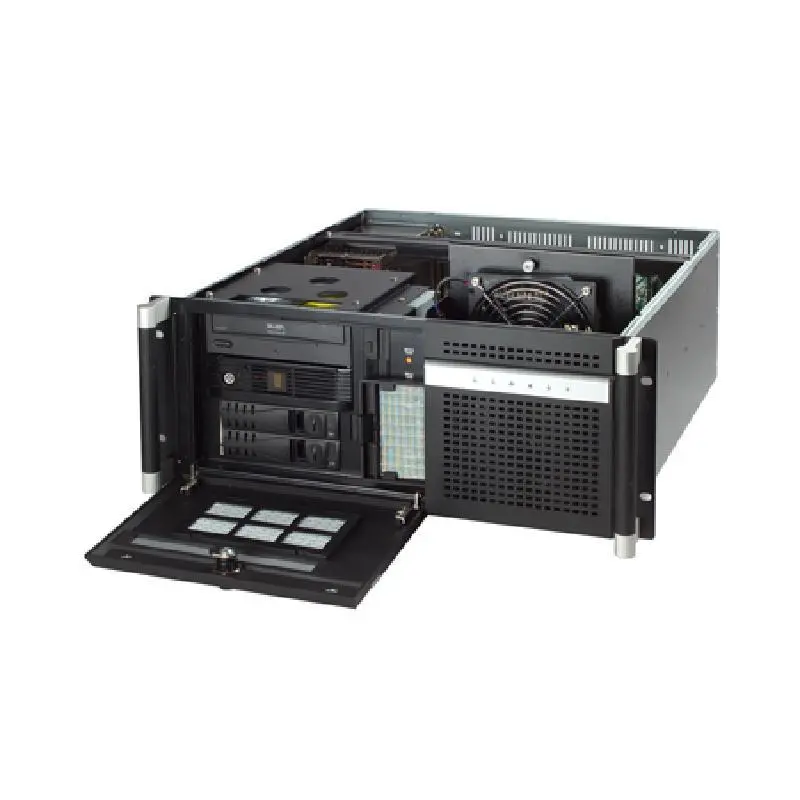

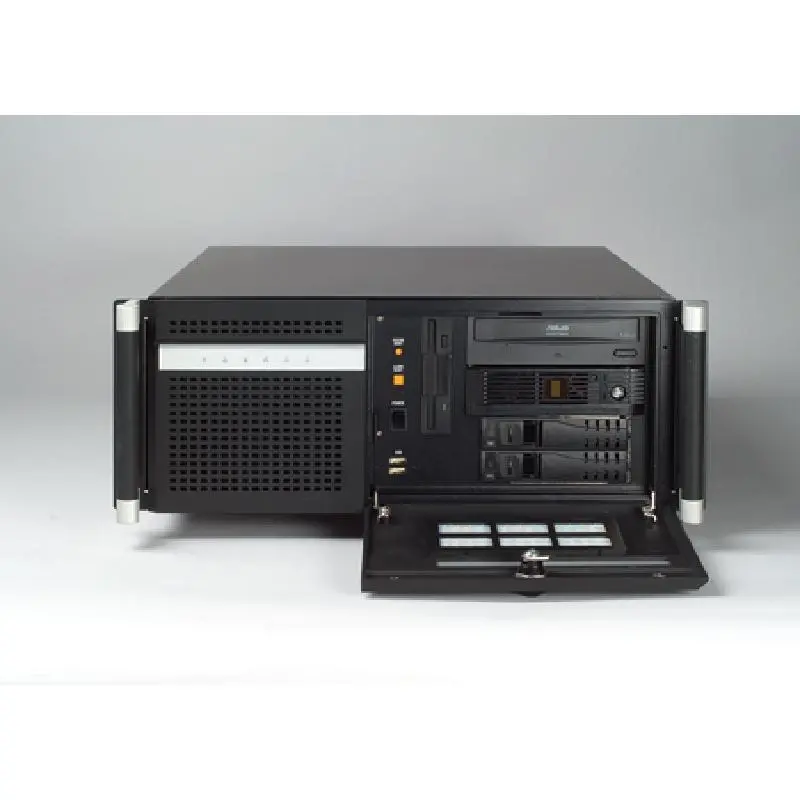

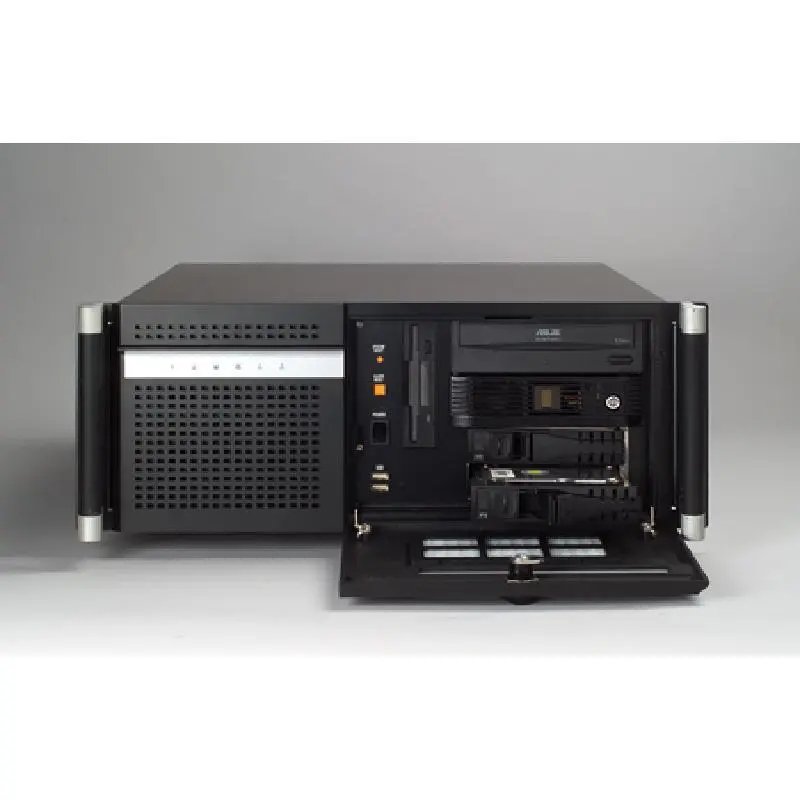

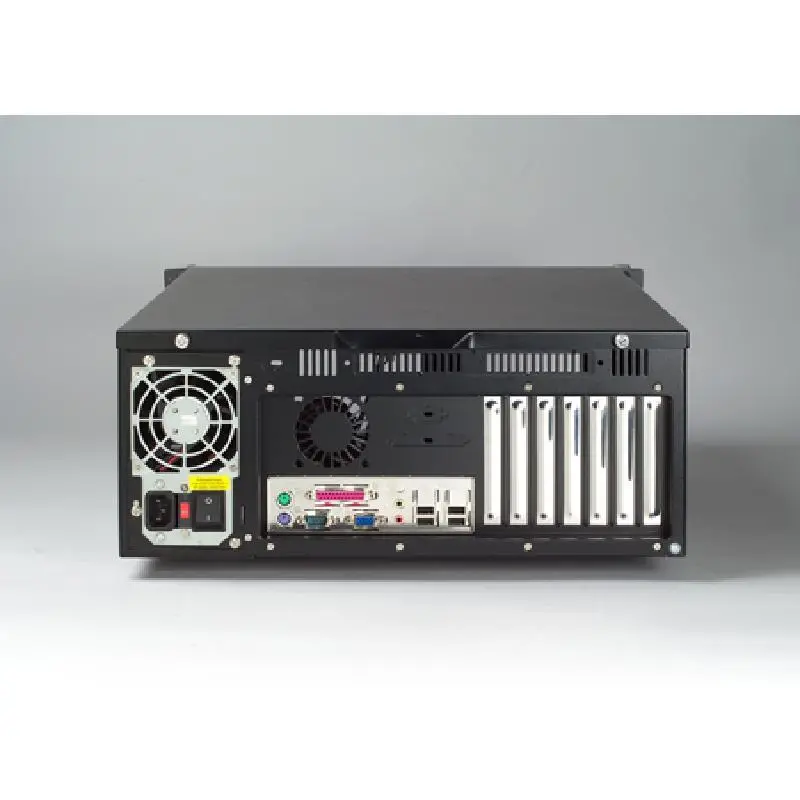

Advantech ACP-4320 Quiet 4U Rackmount Chassis with Dual Hot-Swap SATA HDD Trays
