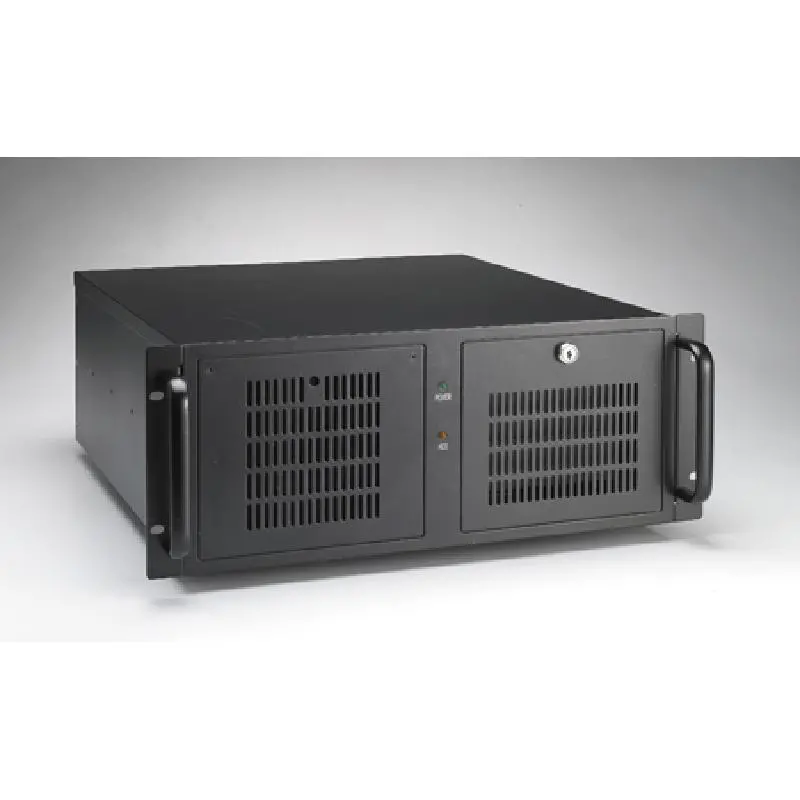

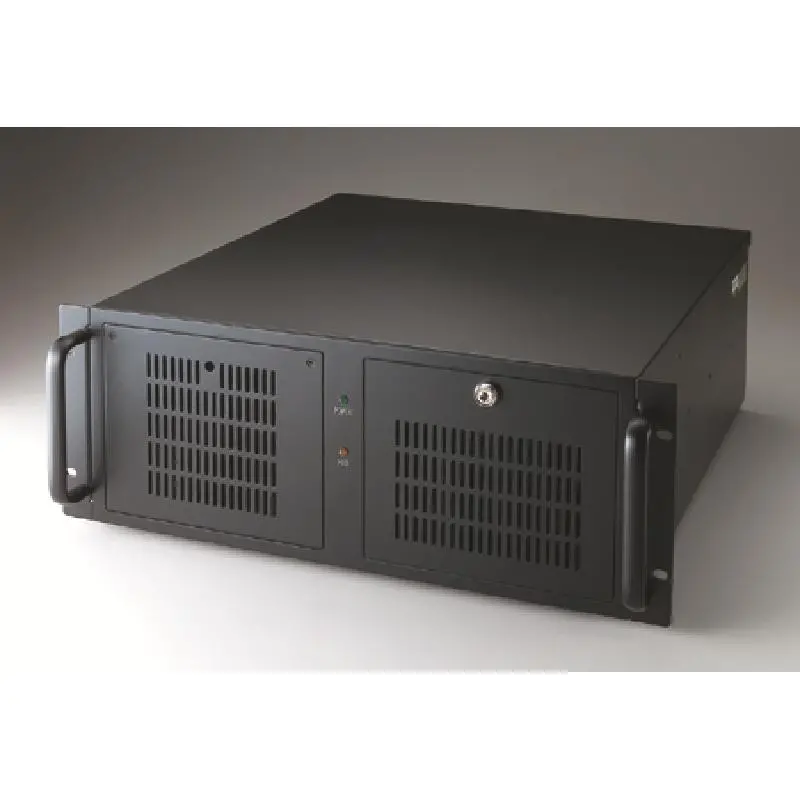

Advantech IPC-611 4U 15-Slot Rackmount Chassis with Front-Accessible Fan

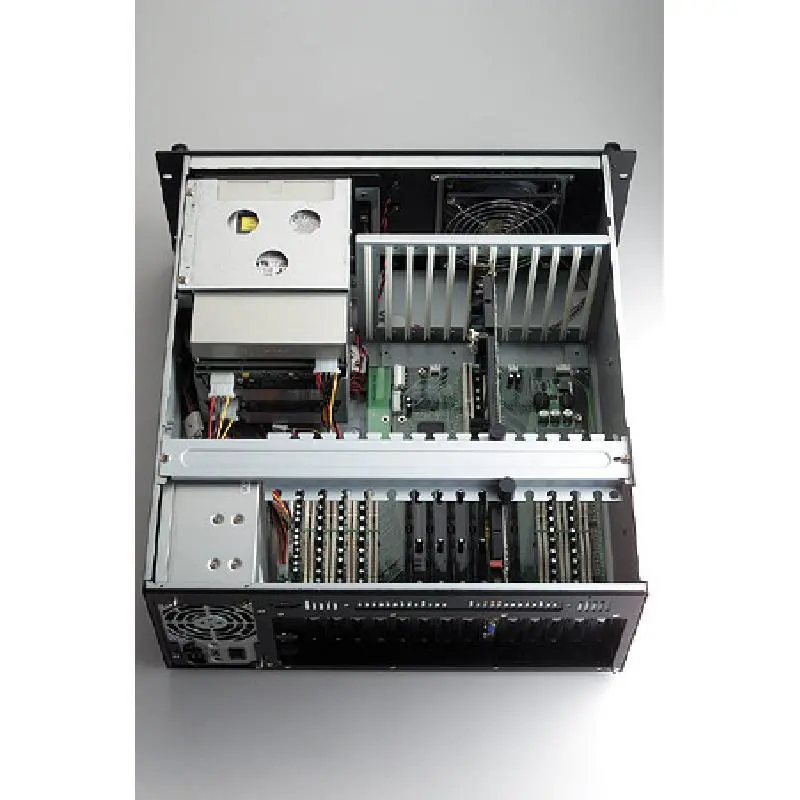

Supports an ATX motherboard or a backplane with up to 15 slots

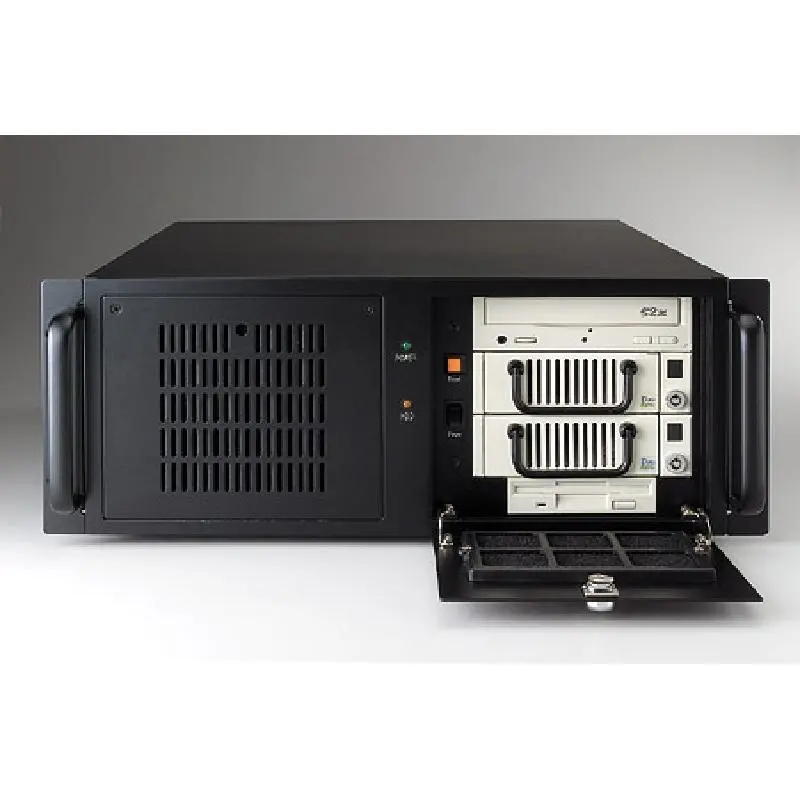

Shock-resistant disk drive bay design holds up to three 5.25" and one 3.5" disk drives

Special hold-down clamp design with rubber cushions protects the cards from shocks and vibrations

Power and HDD activity notification improves system availability

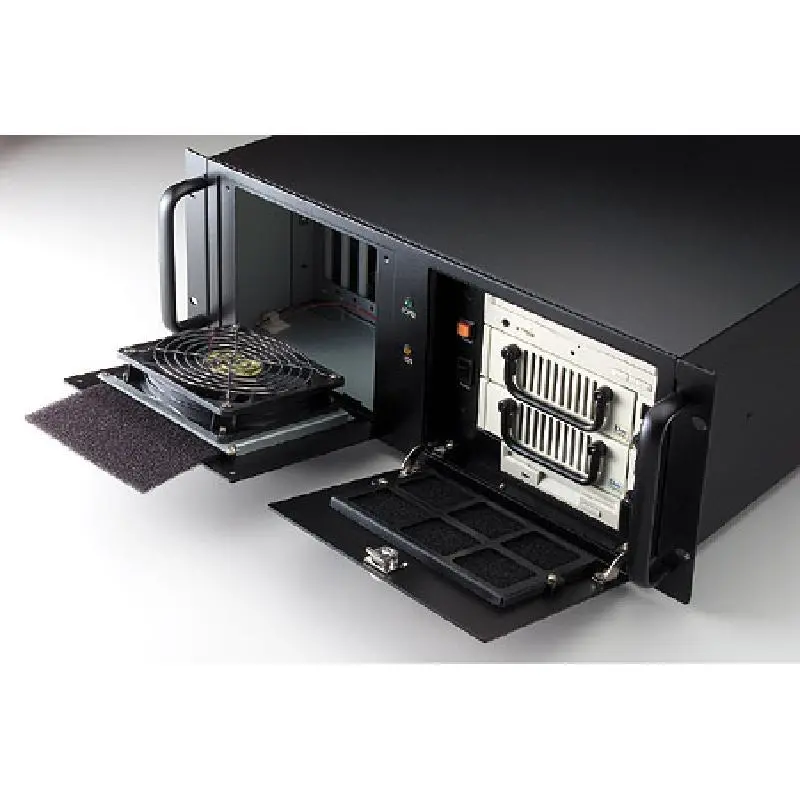

Front-accessible air filter for easy system maintenance

Lockable front door prevents unauthorized access

Flexible mechanical design supports both 300 W single PS/2 and redundant ATX power supply

		IPC-611MB-00C
Form Factor	Form Factor	4U Rackmount
Disk Drive Bay	3.5" Internal	1
Disk Drive Bay	5.25 External Bay	3
Cooling	System Fan	1 (12 cm , 82 CFM)
Cooling	Air Filter	Yes
Miscellaneous	LED Indicators	Power status and HDD activity
Miscellaneous	Control	Power switch and system reset button
Environment	Operating Temperature	0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
Environment	Non-Operational Temperature	-20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
Environment	Operating Vibration	1 Grms
Environment	Non-Operating Vibration	2 G
Mechanical	Dimension (W x H x D)	482 x 177 x 479 mm (19" x 7" x 18.9")
Mechanical	Weight (Net)	14.2 kg (31.2 lb)
