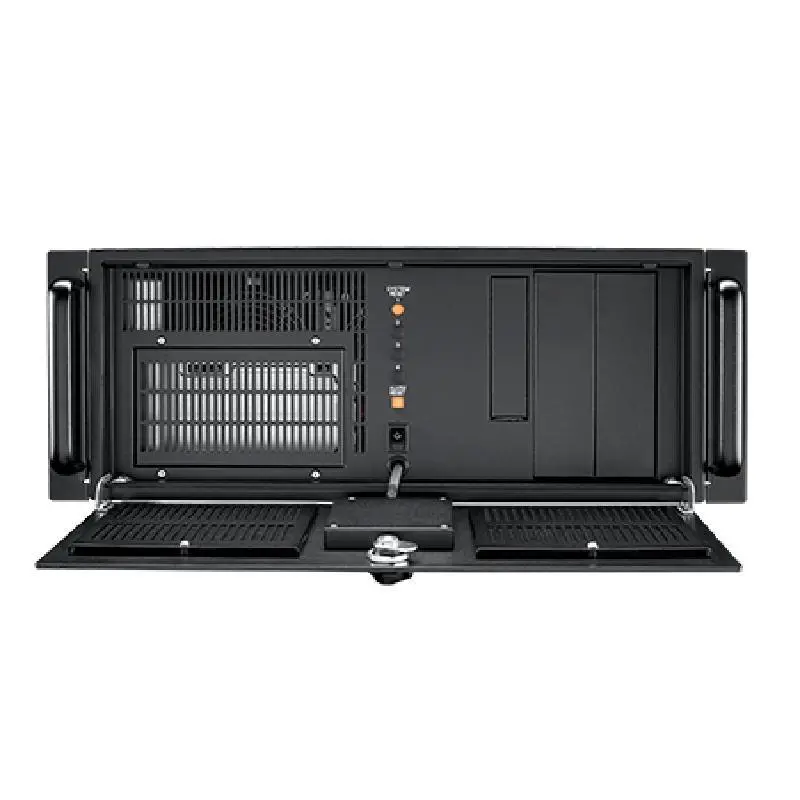

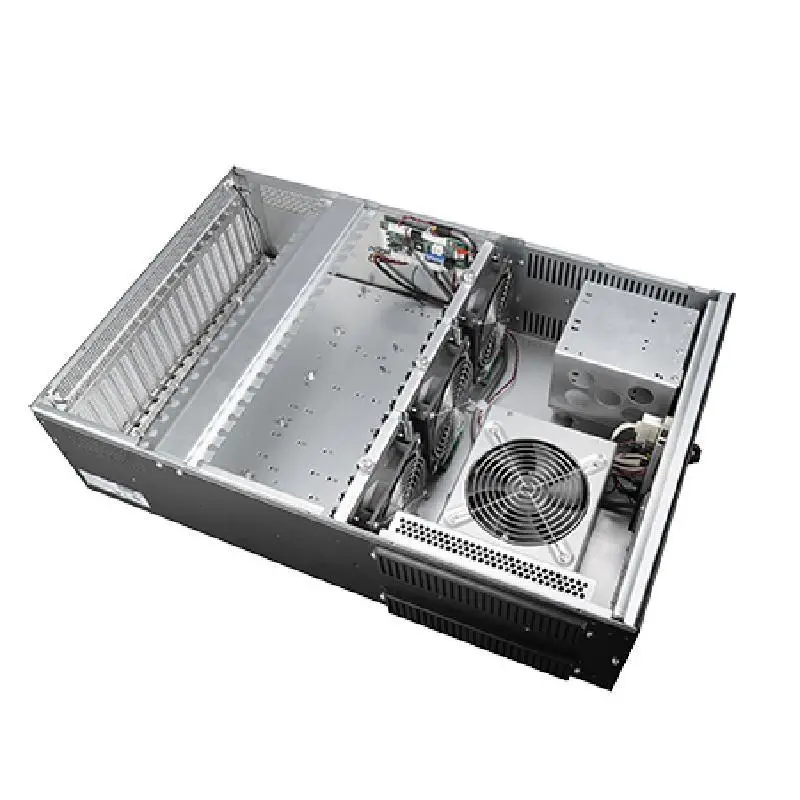

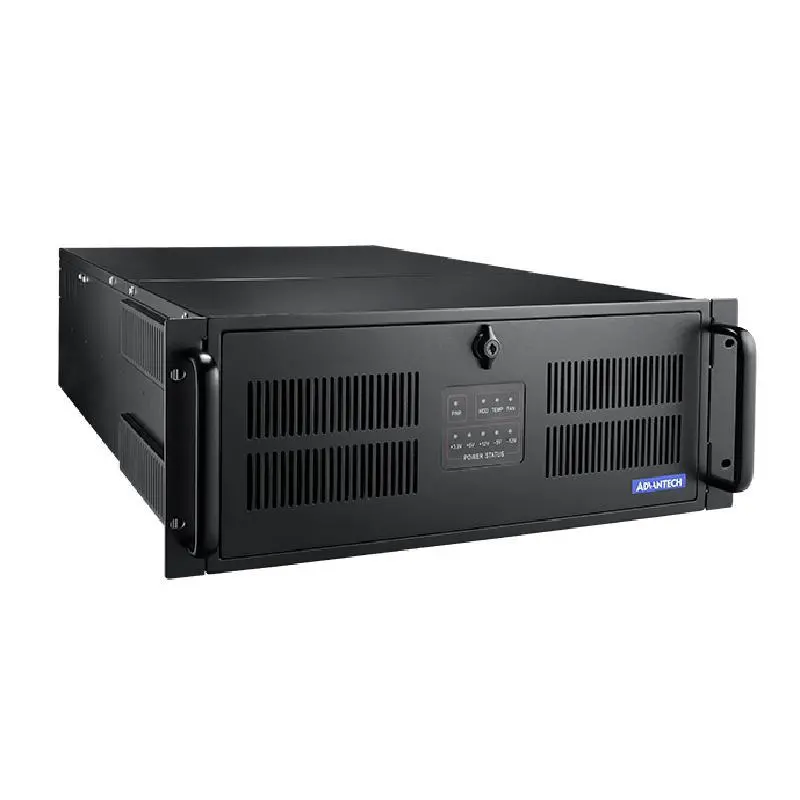

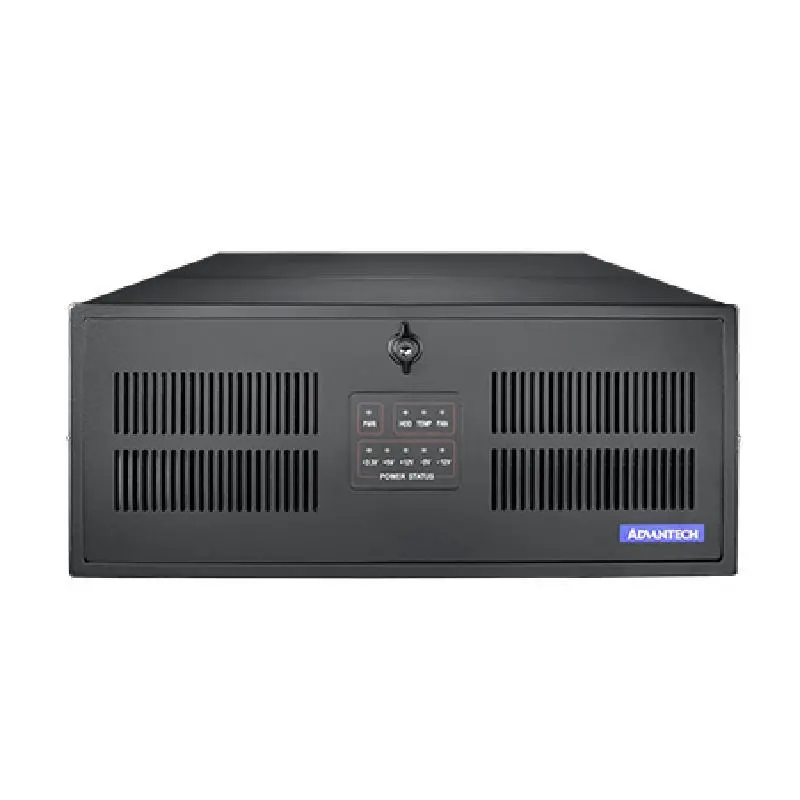

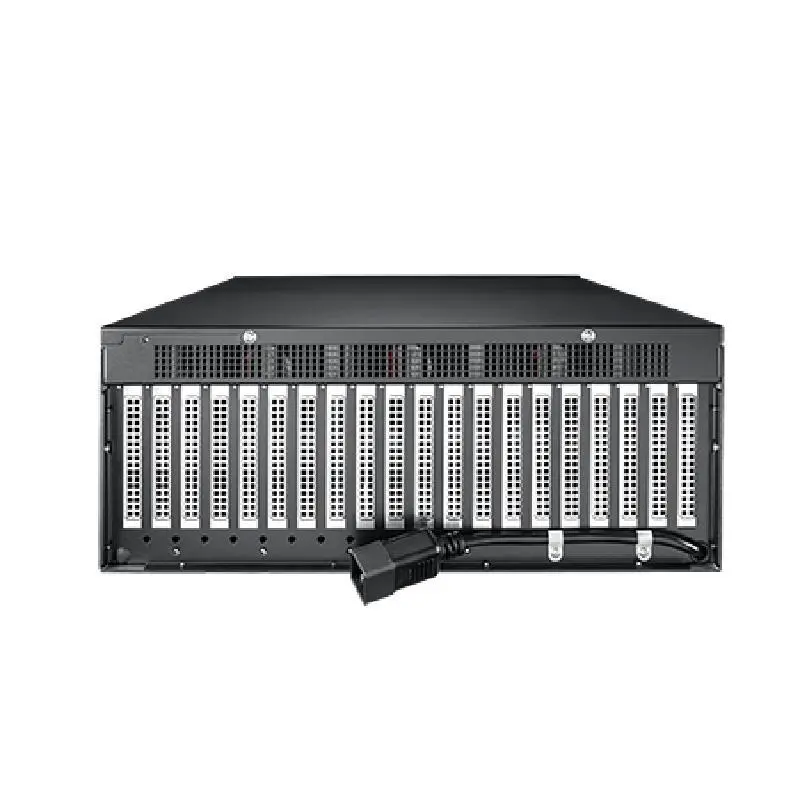

Advantech IPC-623 4U 20-Slot Rackmount Chassis

4U rackmount chassis supports up to 20 slot backplane

Support 500W or 1200W single power supply

Two external 5.25" and one 3.5" shockproof drive bays

Three 12 cm / 150 CFM cooling fans

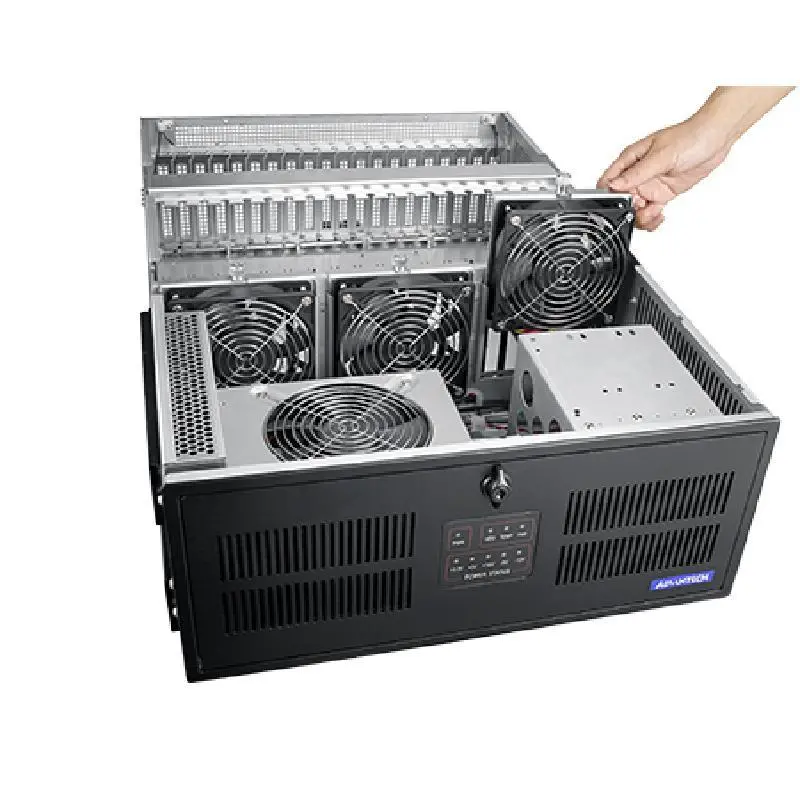

Dual top cover designed for easy maintenance

Six easily replaceable air filters provide good airflow

Built-in Intelligent System Module enabling whole system fan control and remote manageability

		IPC-623BP-1KZC
Front I/O Interface	USB 2.0	-
Form Factor	Form Factor	4U Rackmount
Environment	Operating Temperature	0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
Environment	Non-Operational Temperature	-20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
Environment	Operating Vibration	1 Grms
Environment	Non-Operating Vibration	2 G
Mechanical	Dimension (W x H x D)	482 x 177 x 657 mm (19'' x 7'' x 26'')
Miscellaneous	LED Indicators	Power, HDD, Temperature, FAN, and Power voltage Status
Disk Drive Bay	5.25" Front-Accessible	2
Power Supply	Power Supply	500W (Single)
Cooling	System Fan	3 (12 cm/150 CFM)
