| IPC-610BP-00LD | IPC-610MB-00LD | IPC-610MB-30LD | IPC-610MB-50LD | ||
| Form Factor | Form Factor | 4U Rackmount | 4U Rackmount | 4U Rackmount | 4U Rackmount |
| Disk Drive Bay | 3.5 External Bay | 1 | 1 | 1 | 1 |
| Drive Bay | 5.25" External | 3 | 3 | 3 | 3 |
| Cooling | Fan | 1(12cm / 82CFM) | 1(12cm / 82CFM) | 1(12cm / 82CFM) | 1(12cm / 82CFM) |
| Cooling | Air Filter | Yes | Yes | Yes | Yes |
| Miscellaneous | LED Indicators | Power status and HDD activity | Power status and HDD activity | Power status and HDD activity | Power status and HDD activity |
| Miscellaneous | Control | Power switch and system reset button | Power switch and system reset button | Power switch and system reset button | Power switch and system reset button |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing | -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing |
| Environment | Operating Vibration | 1 Grms | 1 Grms | 1 Grms | 1 Grms |
| Environment | Non-Operating Vibration | 2 G | 2 G | 2 G | 2 G |
| Mechanical | Dimension (W x H x D) | 482 x 177 x 479 mm (19" x 7" x 18.9") | 482 x 177 x 479 mm (19" x 7" x 18.9") | 482 x 177 x 479 mm (19" x 7" x 18.9") | 482 x 177 x 479 mm (19" x 7" x 18.9") |
| Mechanical | Weight (Net) | 14.5 kg ( 31.9 lb ) | 14.5 kg ( 31.9 lb ) | 14.5 kg ( 31.9 lb ) | 14.5 kg ( 31.9 lb ) |
| Power Supply | Power Supply | - | - | 300W (Single) | 500W (Single) |

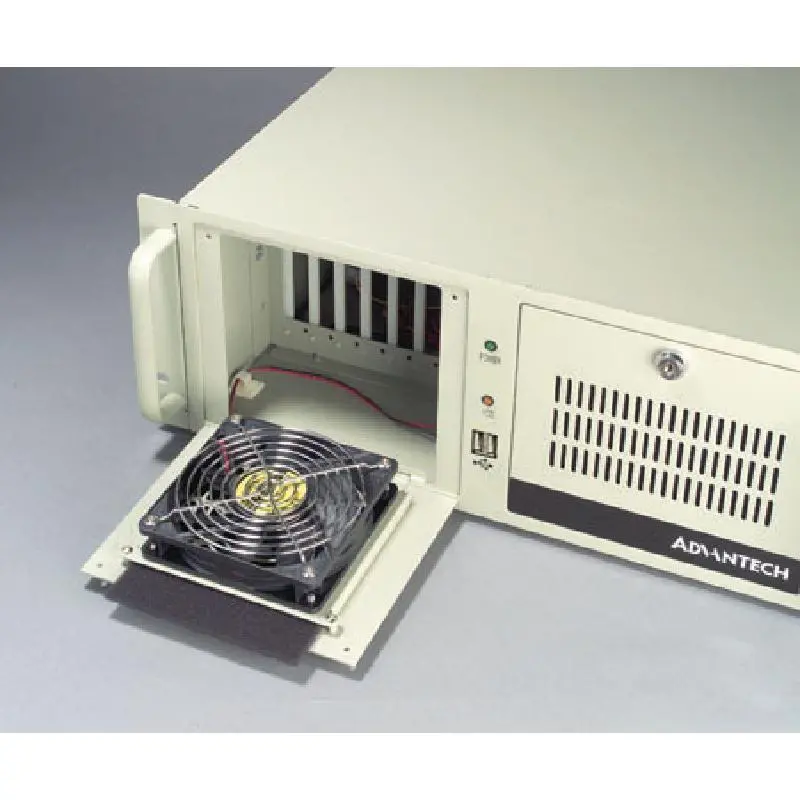

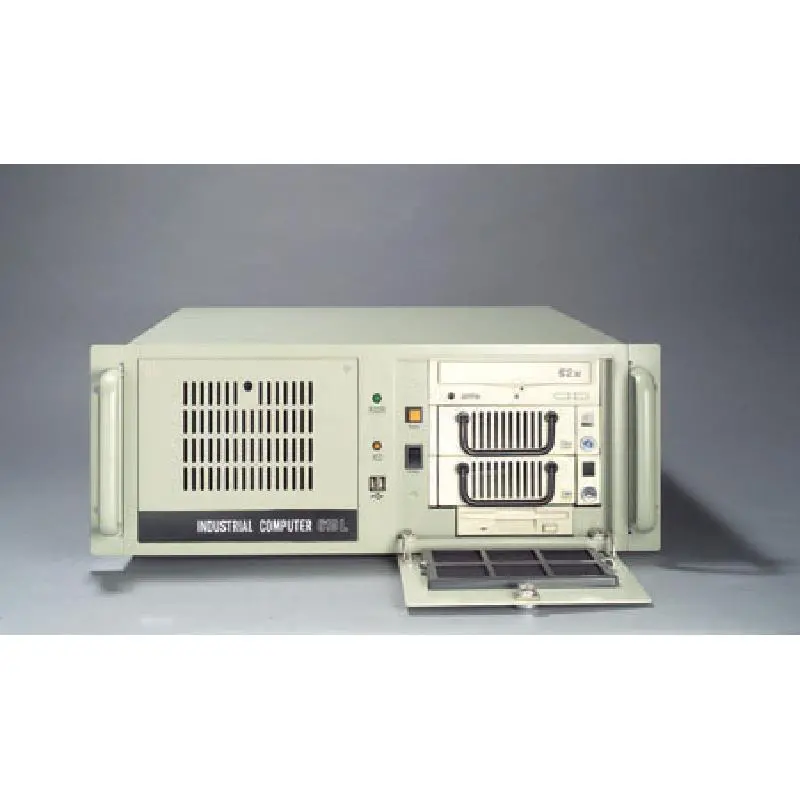

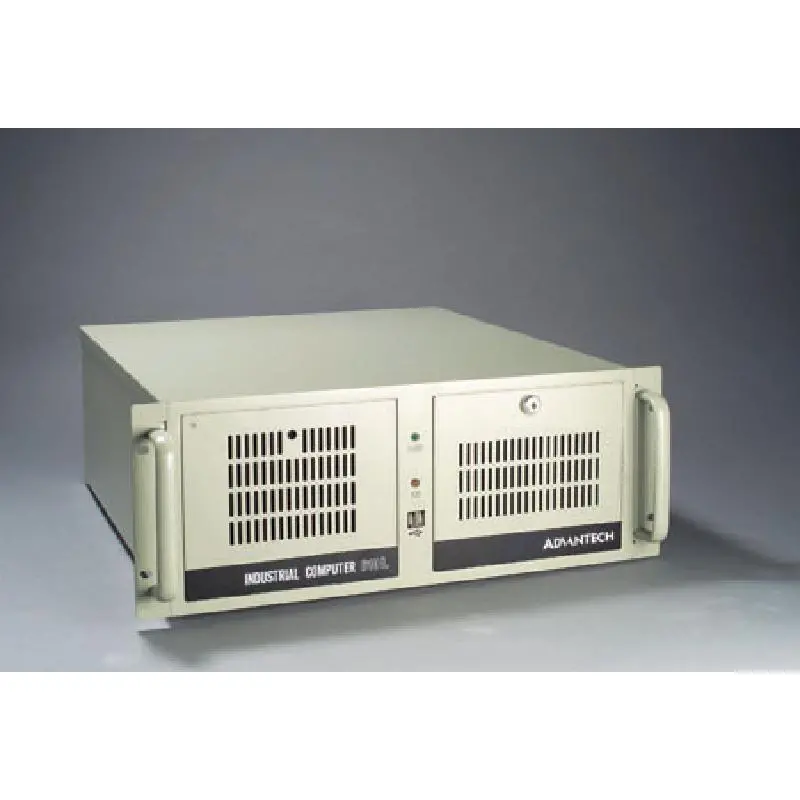

Advantech IPC-610-L 4U 15-Slot Rackmount Chassis with Front-Accessible Fan
