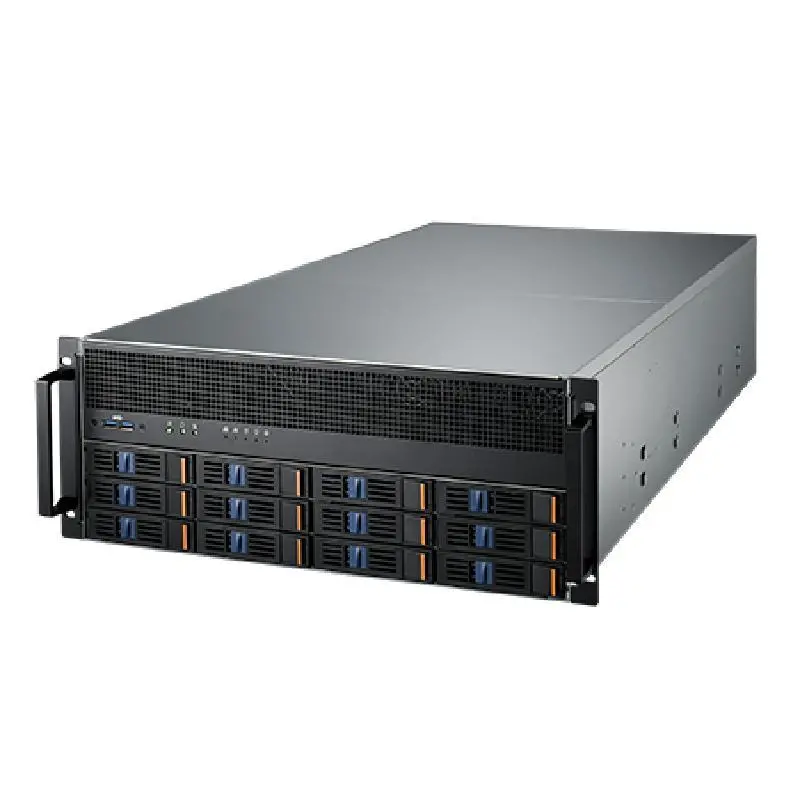

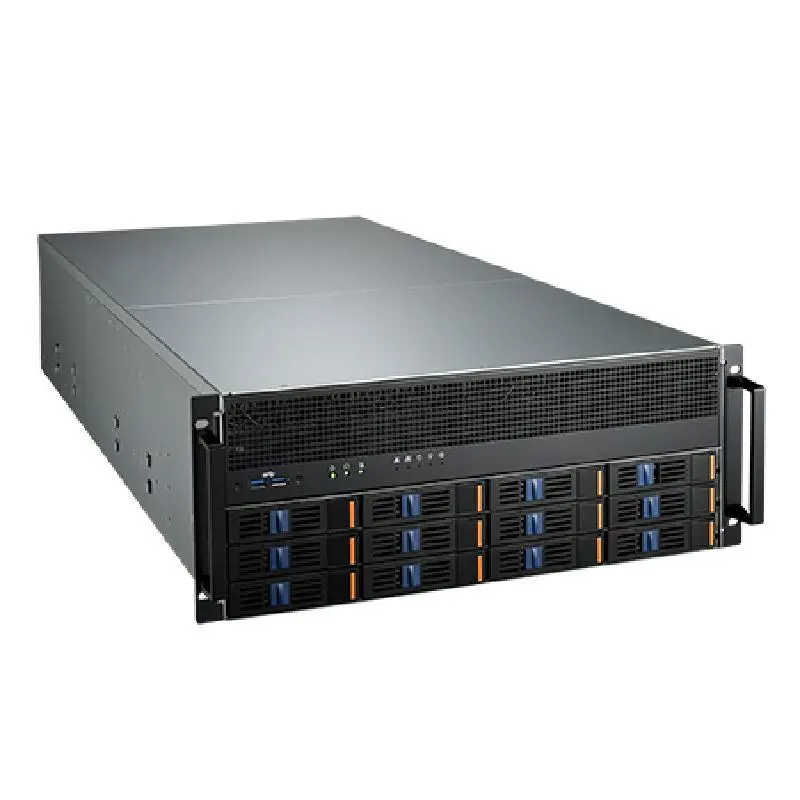

Advantech SKY-6420 4U Rackmount Intel® Xeon® Scalable GPU Server, Supporting 10 x PCIe x16 Double-Deck Cards Plus 1 x PCIe x16 and 1 x PCIe x8 Single-Deck Cards

    Processor: Dual 2nd Gen Intel® Xeon® Scalable Processors

    Memory: 24 x DDR4 2666/2933 MHz ECC RDIMM/LRDIMM / Intel Optane DC Persistent Memory, up to 6TB

    Remote Management: IPMI function support

    Expansion: Supporting 10 * PCIe x16 double-deck card with peer to peer feature + 1* PCIe x16 single-deck FH/HL card + 1*PCIe x8 card

    PSU: 4800W 3+1 redundant power supply with 80 PLUS Platinum level certification

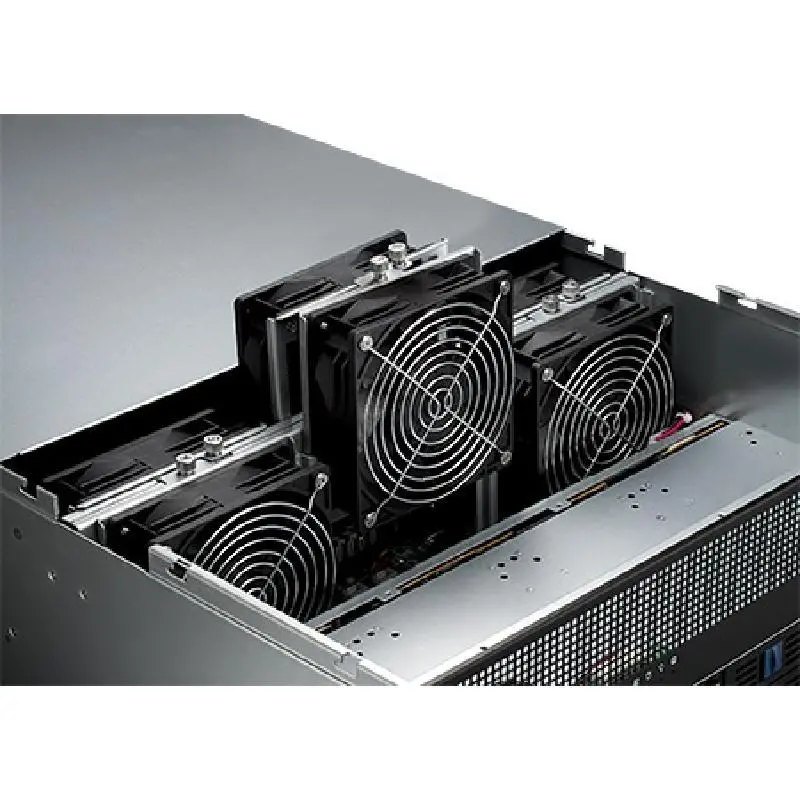

    Easy maintenance system fan: 6 x 12CM system fan with Hot-Swappable feature

SKY-6420-R48A1
Processor System Chipset Intel C622
Processor System CPU Dual Intel LGA 3647-P0 for Intel® Xeon® Scalable Series processor (up to 160W TDP)
Memory Max. Capacity 24 x DDR4 REG 2666/2400/2133/1866 MHz DIMM / Intel Optane DC Persistent Memory, up to 6TB
Graphics Controller Aspeed AST2500
Graphics VRAM 64 MB
Expansion Slot Slot 1 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Expansion Slot Slot 2 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Expansion Slot Slot 3 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Expansion Slot Slot 4 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Expansion Slot Slot 5 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Expansion Slot Slot 6 PCIe x16 slot (Gen3 x16 link), for single-deck add on cards
Expansion Slot Slot 7 PCIe x16 slot (Gen3 x8 link), if Slot8 populated with single-deck add on card
Expansion Slot Slot 8 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Expansion Slot Slot 9 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Expansion Slot Slot 10 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Expansion Slot Slot 11 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Expansion Slot Slot 12 PCIe x16 slot (Gen3 x16 link), for double-deck 4.376"(H)/10.5"(L) expansion cards
Drive Bay 2.5" (Internal) -
Drive Bay 3.5" (Front Accessible/Hot Swap) 12
Ethernet Interface 2 x 10GbE
Ethernet Controller Intel X557-AT2

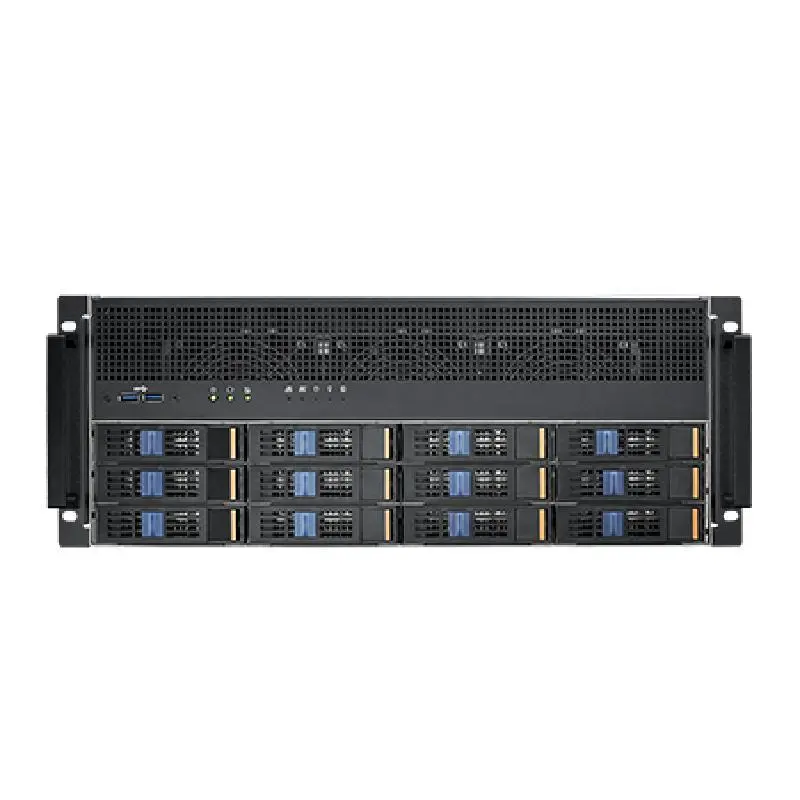

Front I/O Interface USB 3.0 2

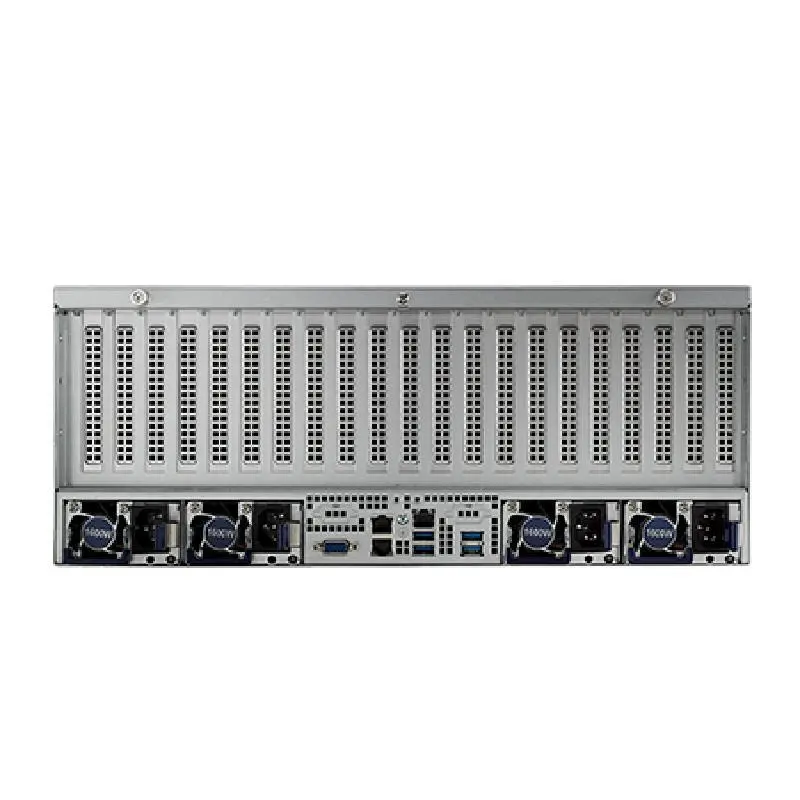

Rear I/O Interface USB 3.0 4
Rear I/O Interface PS/2 -
Rear I/O Interface COM 2 (Optional)
Rear I/O Interface VGA 1
Rear I/O Interface RJ-45 3 (1 is dedicate NIC for IPMI)
Internal Connector USB 3 (2 USB3.0, 1 USB 3.0 Type-A)
Internal Connector COM 2
Internal Connector LPC -
Watchdog Timer Output System Reset
Watchdog Timer Interval Programmable 1 ~255 sec
Power Supply Output Wattage 80 PLUS Platinum 4800W redundant Power Supply (Depends on input voltage)
Power Supply Input Range 90-127 VAC (Output: 1000W)/200-240VAC (Output: 1600W)
Cooling Chassis Fan 6 x 120 x 38 (Internal) + 4 x 80 x 38 (External, Optional)
Cooling Air Filter -
Miscellaneous LED Indicators Power, HDD, LAN1, LAN2, System Information
Miscellaneous Front Button Power, Reset, PSU Alarm Mute
Miscellaneous Remote Management Advantech Remote Monitoring Utility
Environment Operating-Temperature 0 ~ 35° C (32 ~ 85° F)
Environment Non-operating Temperature -40 ~ 60° C (-4 ~ 140° F)
Environment Operating Humidity 95% @ 40° C
Environment Non-operating Humidity 95% @ 60° C
Environment Operating Vibration (5 ~ 500 Hz) 0.25 Grms
Environment Non-Operating Vibration (5 ~ 500 Hz) 2 Grms
Environment Shock 5 G (with 11 ms duration, half sine wave)
Physical Characteristics Dimensions (W x H x D) 438 x 176 x 770 mm (17.24" x 6.93" x 30.31")
Physical Characteristics Package Dimension (W x H x D) 685 x 400 x 1050 (26.96" x 15.74" x 41.33")
Physical Characteristics Weight (N.W. / G.W.) 28kg / 41kg
Compliance EMC/Safety CE/ FCC/ UL/ CB/ CCC
