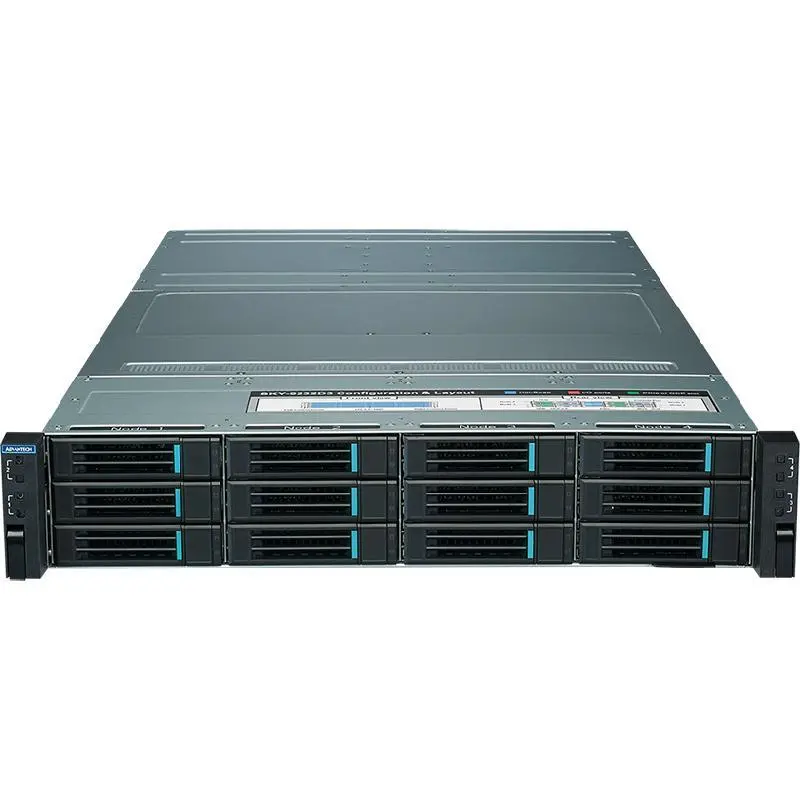

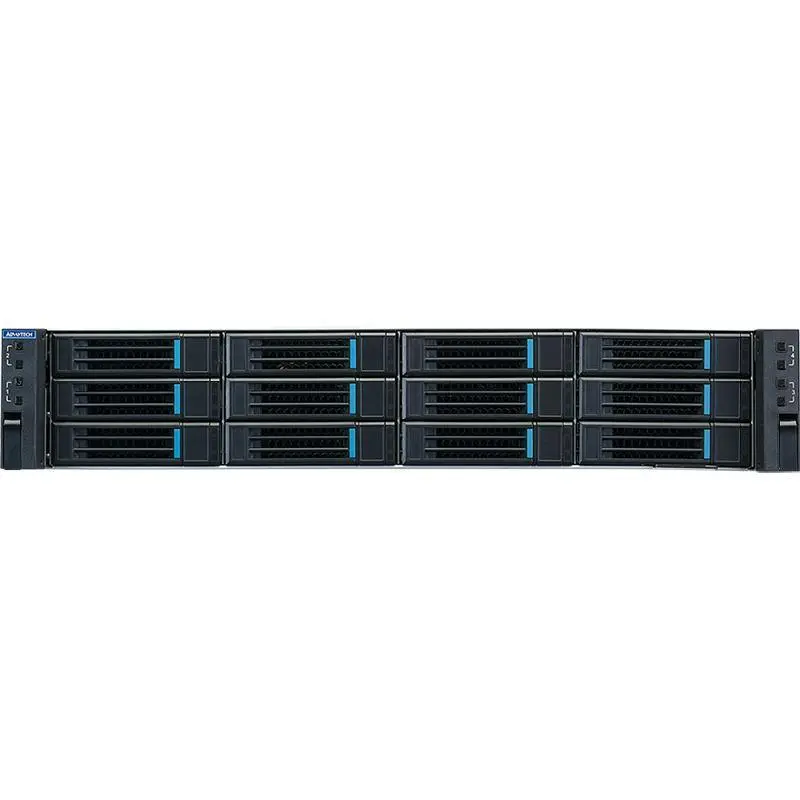

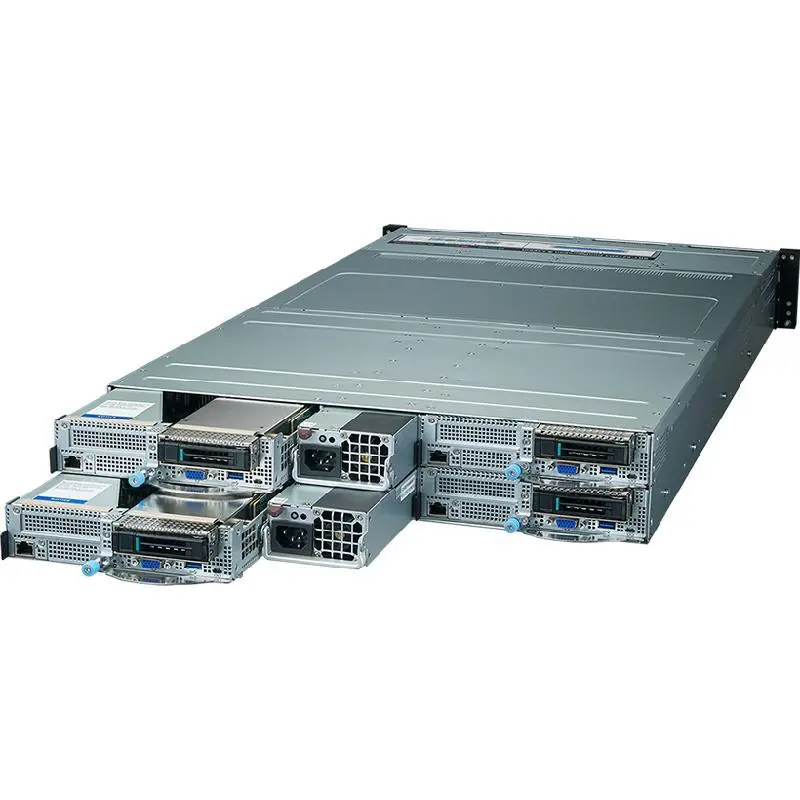

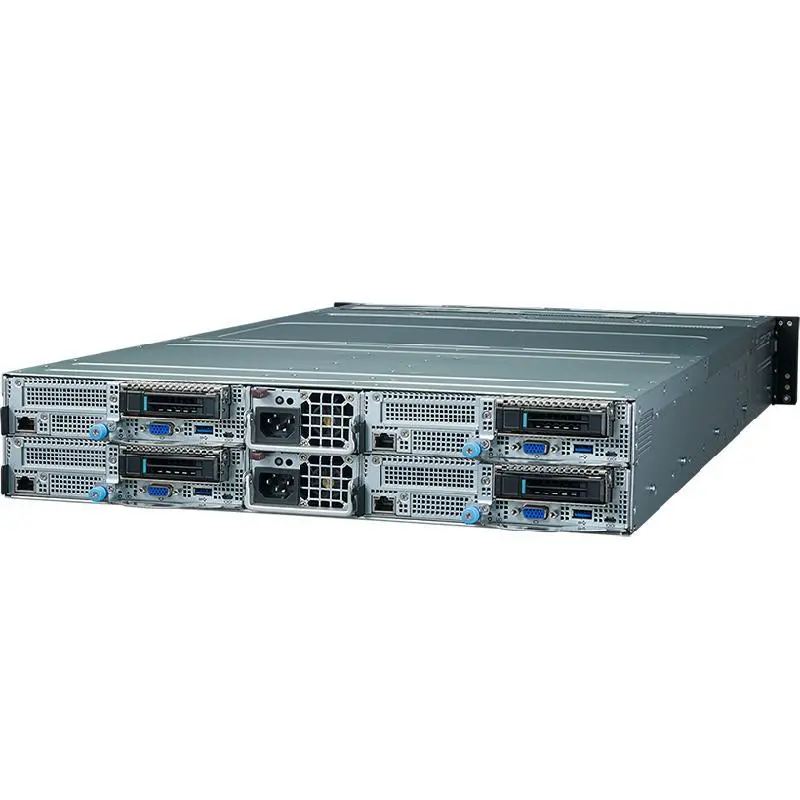

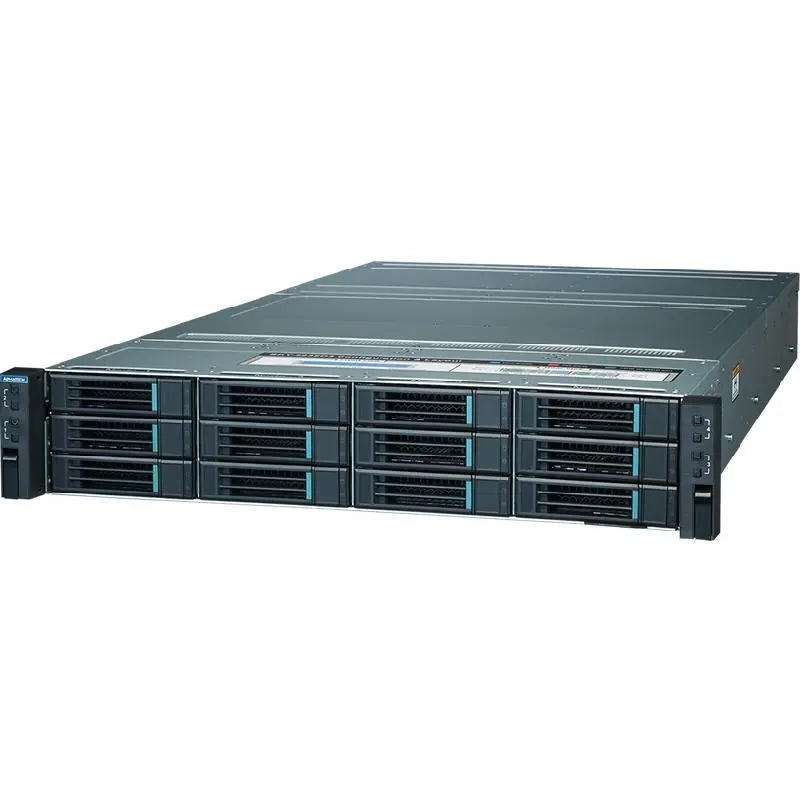

Advantech SKY-9232D3 2U 4Node Rackmount Server for Hyper-converged Infrastructure and Storage

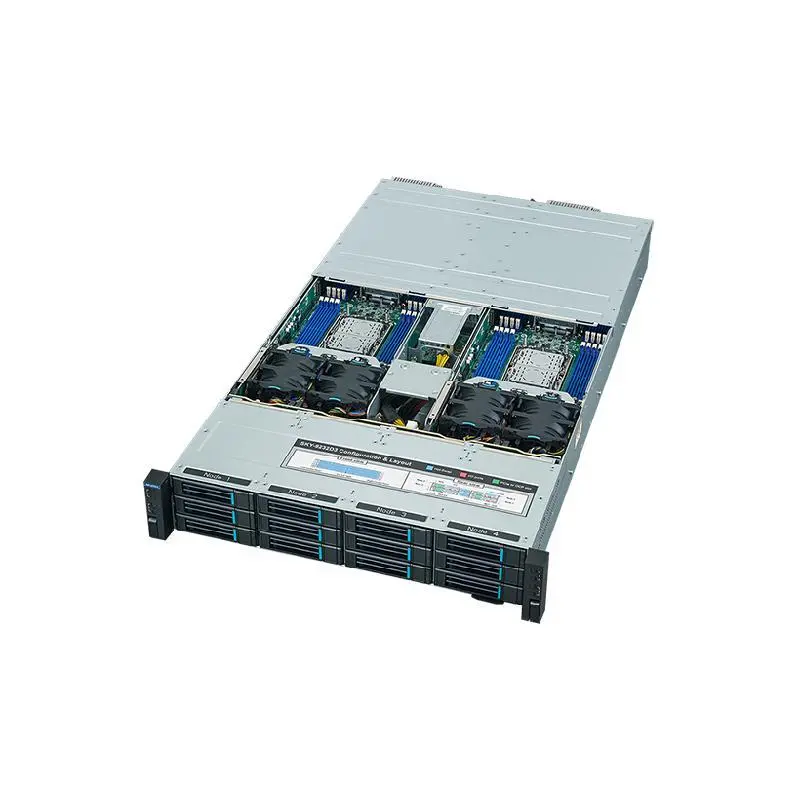

Up to 4 Hot-Swappable CPU Node boards with single/dual Intel® Xeon® Scalable Processors

Up to 16 DIMM slots DDR4 3200MHz RDIMM/LRDIMM 3DS (per Node)

Flexible I/O configurations with up to 2x PCIe Gen4 x16 slots (half length, low profile) or 1xNVMe/SATA SSD + 1x PCIe x16 slot (per Node)(SKU depends)

Support one PCIe Gen3 x8 OCP2.0 mezzanine (per Node)

Optional 2xM.2 storage devices (per Node)

Up to 12x 3.5” SATA storage on the system

Optional hot swappable and redundant AC PSU

Redundant FW images (Advantech BIOS and BMC)

Onboard BMC (IPMIv2.0 compliant) with Web Interface, KVM and Redfish
