| ASMB-785G4-00A1E | ASMB-785G2-00A1E | ||
| Form Factor | Form Factor | ATX | ATX |
| Processor System | CPU | Intel LGA1151 Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3/i5/i7 series | Intel LGA1151 Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3/i5/i7 series |
| Processor System | CPU TDP | Up to 91W | Up to 91W |
| Processor System | Frequency | Up to 3.7 GHz | Up to 3.7 GHz |
| Processor System | Core Number | Up to 4 cores | Up to 4 cores |
| Processor System | L3 Cache | Up to 8MB | Up to 8MB |
| Processor System | BIOS | AMI 128 Mbit SPI (UEFI) | AMI 128 Mbit SPI (UEFI) |
| Processor System | Chipset | Intel C236 PCH | Intel C236 PCH |
| Processor System | Integrated Graphics | - | - |
| Processor System | DMI | - | - |
| Memory | Capacity | Up to 64 GB (16 GB per DIMM) | Up to 64 GB (16 GB per DIMM) |
| Memory | ECC Support | Yes | Yes |
| Display | Controller | Intel HQ Graphics Integrated | Intel HQ Graphics Integrated |
| Memory | Socket | 4 x 288-pin UDIMM | 4 x 288-pin UDIMM |
| Display | Graphic Memory | Share system memory up to 1 GB with 2 GB and above memory installed | Share system memory up to 1 GB with 2 GB and above memory installed |
| Display | Multiple Display | Triple | Triple |
| Memory | REG Support | - | - |
| Display | Display Interface | VGA: Up to 1920 x 1200DVI-D: Up to 1920 x 1200 | VGA: Up to 1920 x 1200DVI-D: Up to 1920 x 1200 |
| Expansion Interface | PCI Express x 16 | 1(or 2 PCIe x8) | 1(or 2 PCIe x8) |
| Expansion Interface | PCI Express x 8 | - | - |
| Expansion Interface | PCI Express x 1 | - | - |
| Expansion Interface | PCI Express x 4 | 2 | 2 |
| Expansion Interface | PCI | 3 | 3 |
| Expansion Interface | LPC | 1 | 1 |
| Expansion Interface | PME | - | - |
| Ethernet | Controller | 1 x Intel I219-LM + 3 x Intel I210-AT | 1 x Intel I219-LM + 1 x Intel I210-AT |
| Expansion Interface | SMBus | 1 | 1 |
| Ethernet | Connector | 4 x RJ45 | 2 x RJ45 |
| Ethernet | Speed | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Processor System | QPI | - | - |
| Memory | Technology | Dual Channel DDR4 ECC/Non-ECC 1600/1866/2133/2400 MHz | Dual Channel DDR4 ECC/Non-ECC 1600/1866/2133/2400 MHz |
| Watchdog Timer | Output | System Reset | System Reset |
| Watchdog Timer | Interval | Programmable 1~255 sec | Programmable 1~255 sec |
| I/O | COM Port | 5 x RS-232 | 5 x RS-232 |
| I/O | GPIO | 8-bit | 8-bit |
| I/O | LPT | 1 | 1 |
| I/O | PS/2 Keyboard/Mouse | 1 | 1 |
| I/O | SAS controller | - | - |
| I/O | SATA | 6 x SATA III (RAID 0, 1, 5, 10) | 6 x SATA III (RAID 0, 1, 5, 10) |
| I/O | SPDIF | 1 | 1 |
| I/O | System Fan | 4 | 4 |
| I/O | USB2.0 | 7 | 7 |
| I/O | USB3.0 | 2 | 2 |
| I/O | SAS Port | - | - |

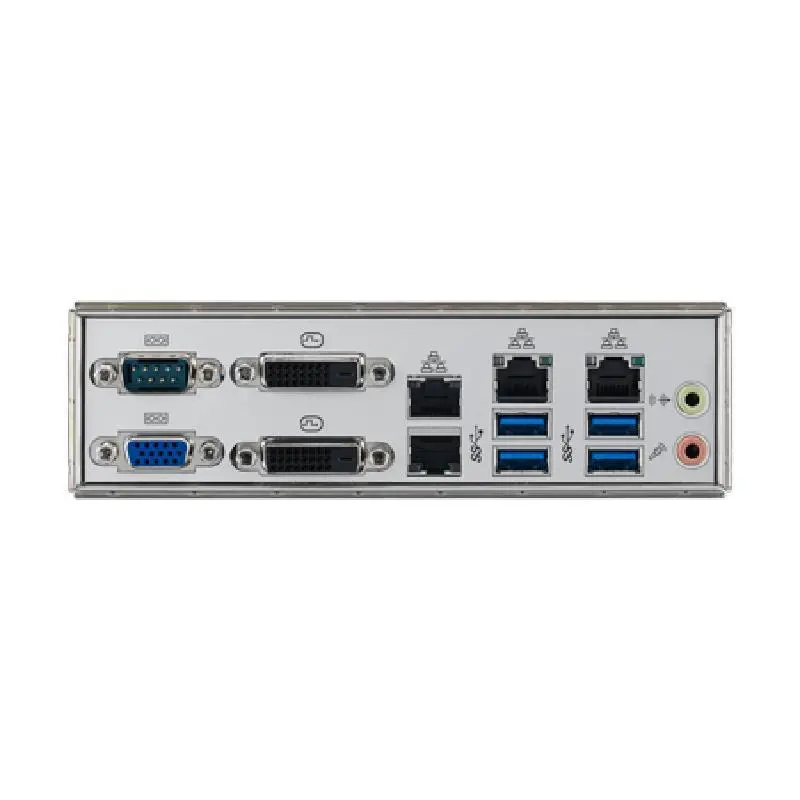

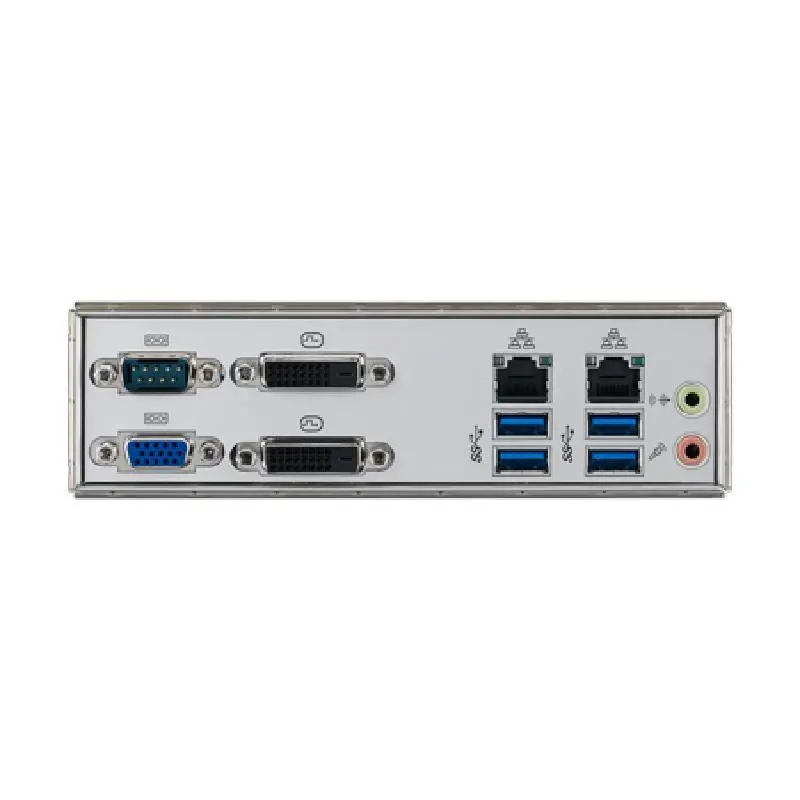

| Rear I/O Interface | USB3.0 | 4 | 4 |
| Rear I/O Interface | COM | 1 (1 x RS232) | 1 (1 x RS232) |
| Rear I/O Interface | PS/2 | - | - |
| Rear I/O Interface | DVI | 2 | 2 |
| Rear I/O Interface | Ethernet | 4 | 2 |
| Rear I/O Interface | VGA | 1 | 1 |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total | +12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total |
| Environment | Operating-Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Environment | Non-Operational Temperature | -40~ 85° C and 60° C @ 95% RH Non-Condensing | -40~ 85° C and 60° C @ 95% RH Non-Condensing |
| Environment | Non-Operating Vibration | 3.5 Grms | 3.5 Grms |
| Physical Characteristics | Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") | 304.8 x 244 mm (12" x 9.6") |
| Physical Characteristics | Weight | 0.8 kg (1.8 lb) | 0.8 kg (1.8 lb) |
| Certification | EMC | CE/FCC | CE/FCC |
| Management Solution | Out of band remote management | - | - |

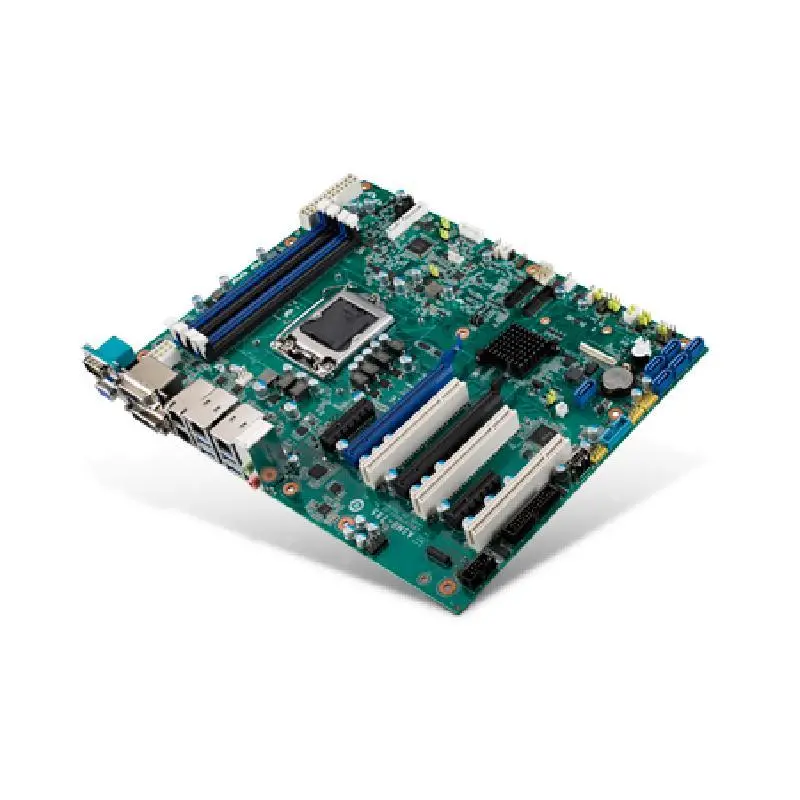

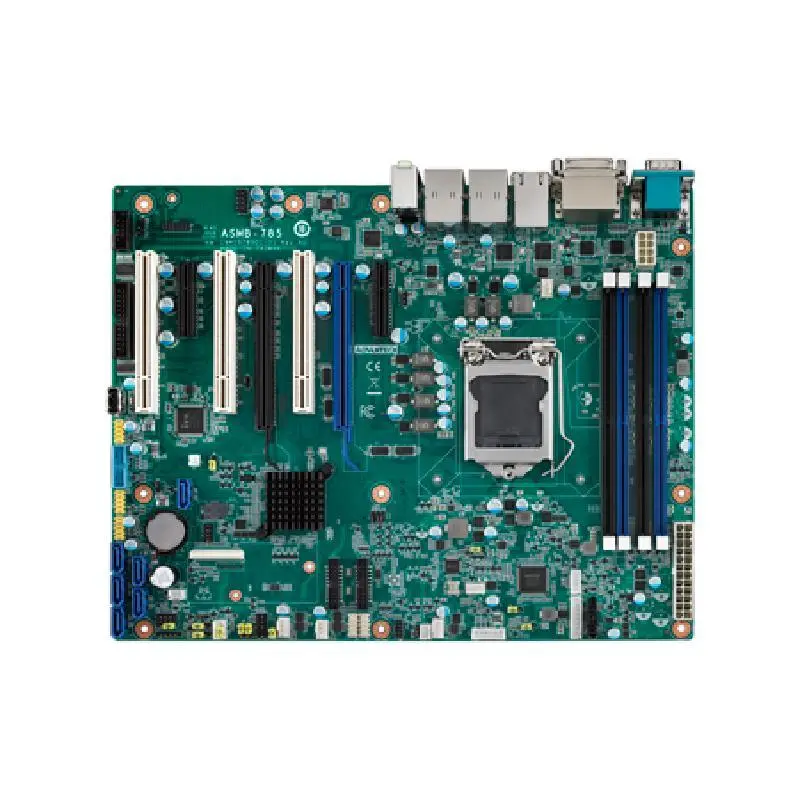

Advantech ASMB-785 LGA 1151 Intel® Xeon® E3 v5/v6 & 6th/7th Generation Core™ ATX Server Board with 4 DDR4, 4 PCIe, 3 PCI, 6 USB 3.0, 6 COM, 6 SATA3, Quad/Dual LANs, IPMI
