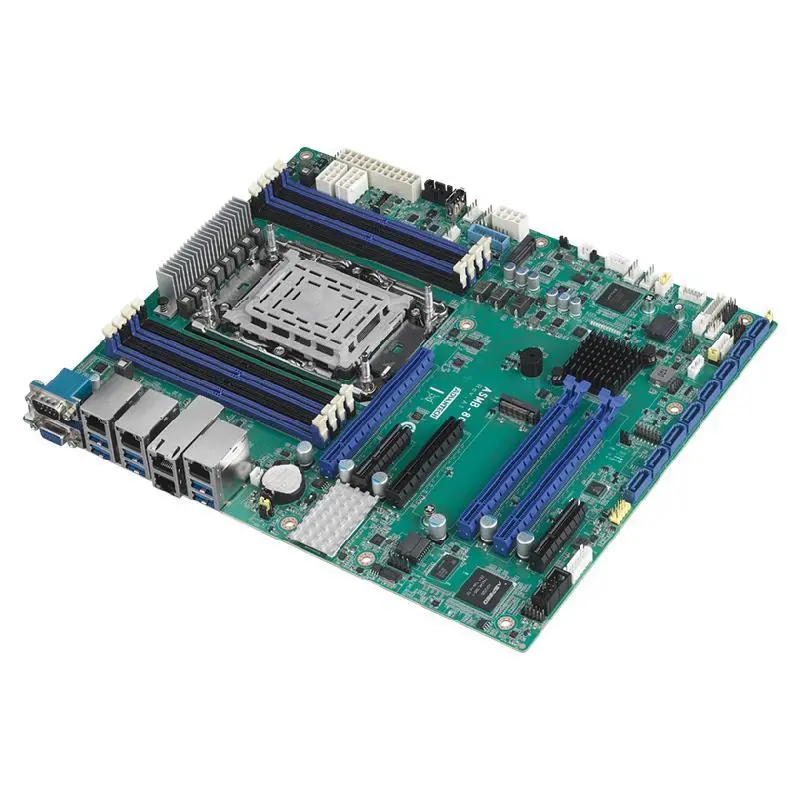

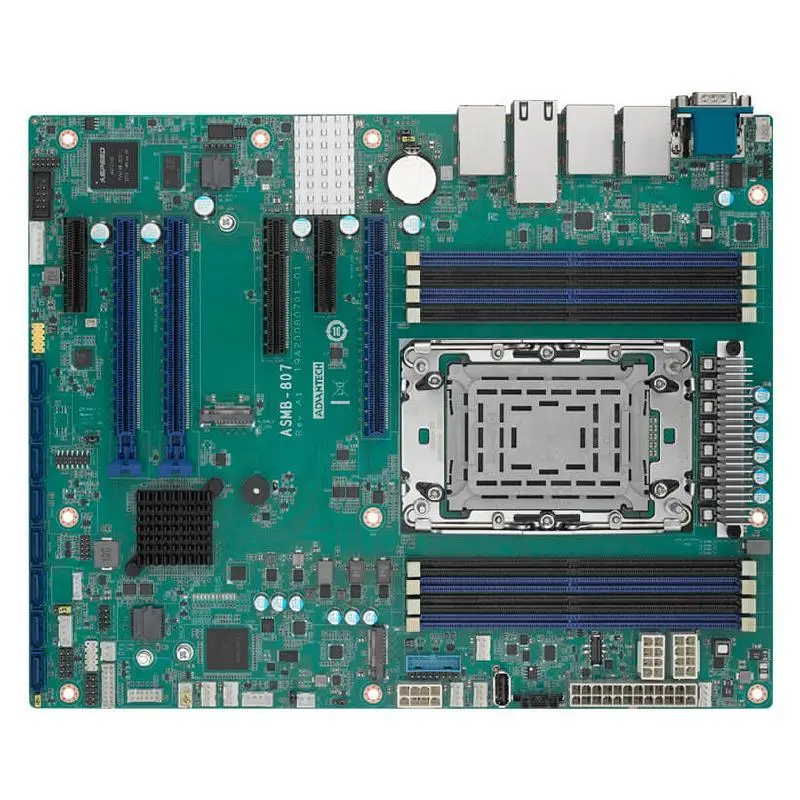

Advantech ASMB-807 Intel® Xeon® W Processors ATX Server Board with 8 x DDR5, 3 x PCIe x16, 8 x SATA 3.0, 9 x USB 3.2 , 1 x USB Type C, 2 x M.2, Dual 10GbE, and IPMI
LGA4677 ATX server board supports Intel Xeon® W-3500/2500 and W-3400/2400 series, TDP up to 385W
DDR5 RDIMM 4800/5200/5600 (W-3500/2500) and 4400/4800 (W-3400/2400)
3 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), and 2 x PCIe x4 (Gen4)
Intel® X710 dual 10GbE ports
8 x SATA 3 and 2 x M.2 connectors (PCIe x4)
9 x USB 3.2 ports including one Gen2x2 via Type E-Key A connector
0 ~ 60°C (32 ~ 140°F) ambient operating temperature range
