| ASMB-815-00A2 | ASMB-815I-00A2 | ASMB-815T2-00A2 | ||
| Processor System | UPI | Up to 10.4 GT/s | Up to 10.4 GT/s | Up to 10.4 GT/s |
| Form Factor | Form Factor | ATX | ATX | ATX |
| Processor System | CPU | Intel® Xeon® Scalable | Intel® Xeon® Scalable | Intel® Xeon® Scalable |
| Processor System | CPU TDP | Up to 205W | Up to 205W | Up to 205W |
| Processor System | Frequency | Up to 3.6GHz | Up to 3.6GHz | Up to 3.6GHz |
| Processor System | Core Number | Up to 28 cores | Up to 28 cores | Up to 28 cores |
| Processor System | L3 Cache | 38.5 MB | 38.5 MB | 38.5 MB |
| Processor System | BIOS | AMI SPI 256 Mbit | AMI SPI 256 Mbit | AMI SPI 256 Mbit |
| Processor System | Chipset | Intel C621 | Intel C621 | Intel C622 |
| Processor System | Integrated Graphics | - | - | - |
| Processor System | DMI | Gen3 x4 | Gen3 x4 | Gen3 x4 |
| Processor System | QPI | 10.4 GT/s | 10.4 GT/s | 10.4 GT/s |
| Memory | Technology | DDR4 ECC-REG 2133/2400/2666 | DDR4 ECC-REG 2133/2400/2666 | DDR4 ECC-REG 2133/2400/2666 |
| Memory | Capacity | Up to 384 GB | Up to 384 GB | Up to 384 GB |
| Memory | ECC Support | Yes | Yes | Yes |
| Memory | Socket | 6 x 288-pin DIMM | 6 x 288-pin DIMM | 6 x 288-pin DIMM |
| Memory | REG Support | Yes | Yes | Yes |
| Display | Controller | ASPEED AST2500 | ASPEED AST2500 | ASPEED AST2500 |
| Display | Graphic Memory | Onboard memory 64MB | Onboard memory 64MB | Onboard memory 64MB |
| Display | Multiple Display | - | - | - |
| Display | Display Interface | VGA: Up to 1920 x 1200 | VGA: Up to 1920 x 1200 | VGA: Up to 1920 x 1200 |
| Expansion Interface | PCI Express x 16 | 2 (or 4 PCIe x8) | 2 (or 4 PCIe x8) | 2 (or 4 PCIe x8) |
| Expansion Interface | PCI Express x 8 | 2 (Gen3) | 2 (Gen3) | 2 (Gen3) |
| Expansion Interface | PCI Express x 4 | 1 | 1 | 1 |
| Expansion Interface | PCI Express x 1 | 1 | 1 | 1 |
| Expansion Interface | PCI | - | - | - |
| Expansion Interface | LPC | 1 | 1 | 1 |
| Expansion Interface | SMBus | 1 | 1 | 1 |
| Expansion Interface | PME | - | - | - |
| Ethernet | Controller | LAN1: Intel I210AT, LAN2: Intel I210AT, LAN5: Realtek 8201EL | LAN1: Intel I210AT, LAN2: Intel I210AT, LAN5: Realtek 8201EL | LAN1: Intel I210AT, LAN2: Intel I210AT, LAN3: Intel X557-AT2, LAN4: Intel X557-AT2, LAN5: Realtek 8201EL |
| Ethernet | Speed | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps & 10G Base-T |
| Ethernet | Connector | 3 x RJ45 | 3 x RJ45 | 5 x RJ45 |
| Watchdog Timer | Output | System Reset | System Reset | System Reset |
| Watchdog Timer | Interval | Programmable 1 ~ 255 sec/min | Programmable 1 ~ 255 sec/min | Programmable 1 ~ 255 sec/min |
| I/O | SATA | 8 x SATAIII (RAID 0,1,5,10) | 8 x SATAIII (RAID 0,1,5,10) | 8 x SATAIII (RAID 0,1,5,10) |
| I/O | SAS Port | - | - | - |
| I/O | SAS controller | - | - | - |
| I/O | USB3.0 | 2 | 2 | 2 |
| I/O | USB2.0 | 5 (1 Type-A) | 5 (1 Type-A) | 5 (1 Type-A) |
| I/O | GPIO | 8-bit | 8-bit | 8-bit |
| I/O | LPT | - | - | - |
| I/O | COM Port | 1 x RS232 | 1 x RS232 | 1 x RS232 |
| I/O | PS/2 Keyboard/Mouse | 1 | 1 | 1 |
| I/O | SPDIF | - | - | - |
| I/O | System Fan | 5 | 5 | 5 |
| Rear I/O Interface | Display | - | - | - |

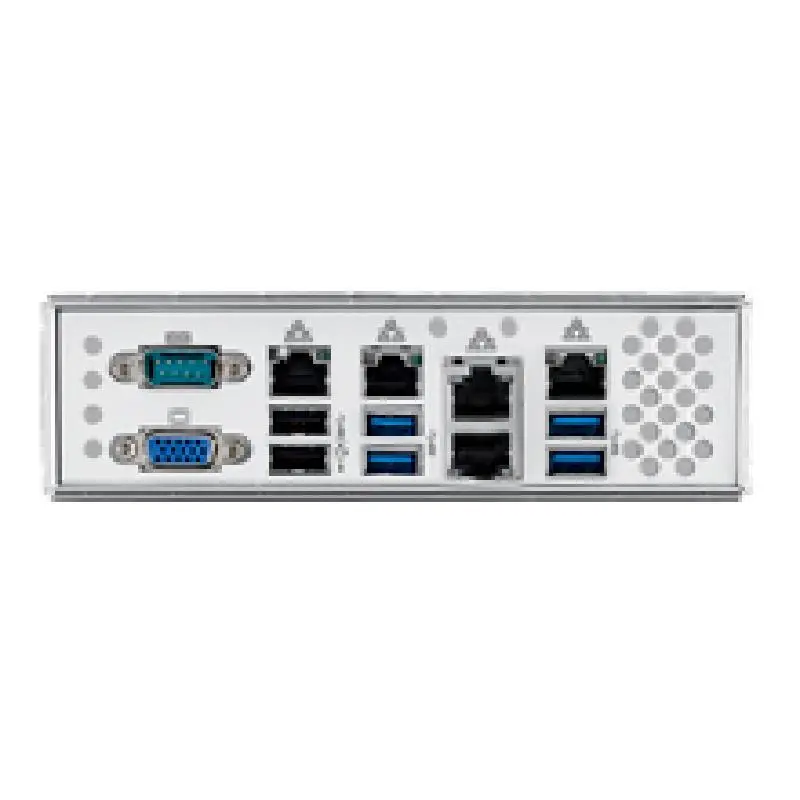

| Rear I/O Interface | LAN | 3 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) | 3 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) | 5 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) |
| Rear I/O Interface | USB3.0 | 4 | 4 | 4 |
| Rear I/O Interface | USB2.0 | 2 | 2 | 2 |
| Rear I/O Interface | COM | 1 | 1 | 1 |
| Rear I/O Interface | PS/2 | - | - | - |
| Rear I/O Interface | DVI | - | - | - |
| Rear I/O Interface | Ethernet | 5 | 5 | 5 |
| Rear I/O Interface | VGA | 1 | 1 | 1 |
| Power Requirement | Voltage | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P |
| Power Requirement | Current | 2.77A/7.01A/0.58A/0.13A/0.06A/17.58A | 2.77A/7.01A/0.58A/0.13A/0.06A/17.58A | 2.77A/7.01A/0.58A/0.13A/0.06A/17.58A |
| Environment | Operating-Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Non-Operating Vibration | 3.5 Grms | 3.5 Grms | 3.5 Grms |
| Physical Characteristics | Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") | 304.8 x 244 mm (12" x 9.6") | 304.8 x 244 mm (12" x 9.6") |
| Physical Characteristics | Weight | 0.91 kg | 0.91 kg | 0.91 kg |
| Certification | EMC | CE/FCC | CE/FCC | CE/FCC |
| Management Solution | Software | IPMI 2.0 | IPMI 2.0 | IPMI 2.0 |
| Management Solution | Out of band remote management | Realtek 8201F | Realtek 8201F | Realtek 8201F |

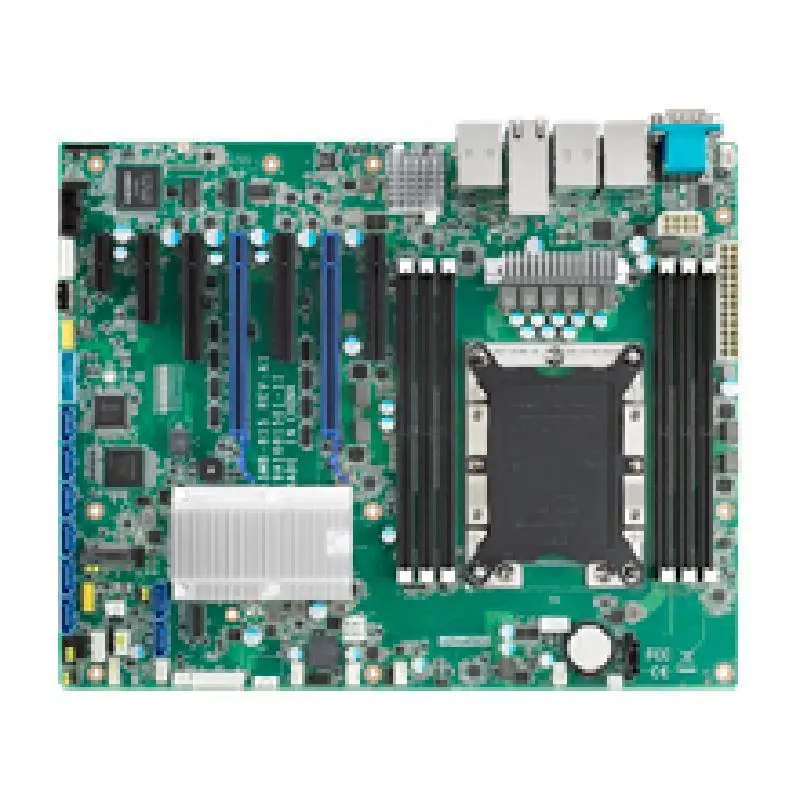

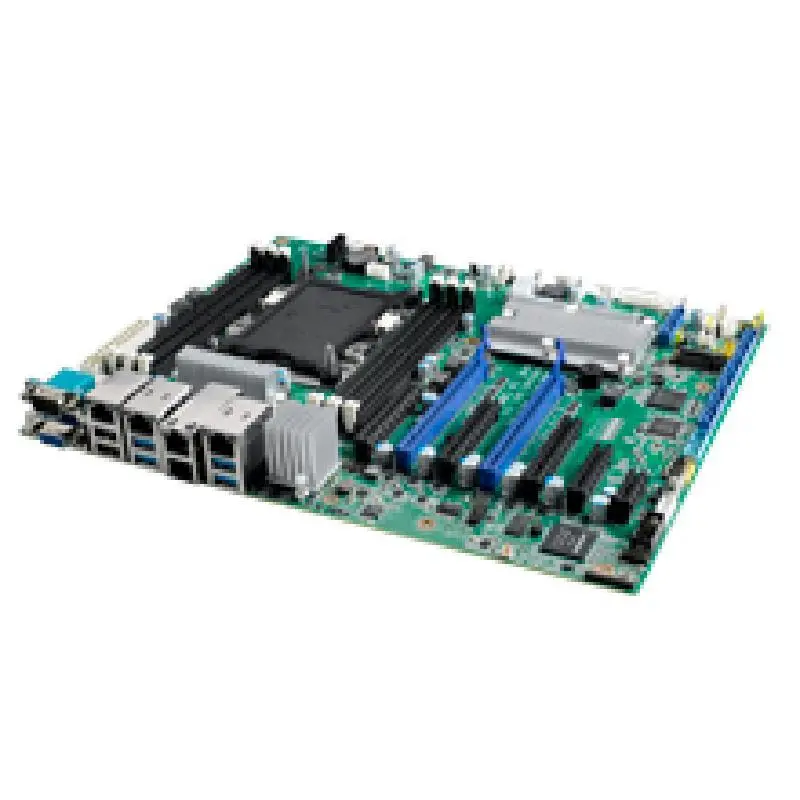

Advantech ASMB-815 LGA 3647-P0 Intel® Xeon® Scalable ATX Server Board with 6 DDR4, 5 PCIe x8 or 2 PCIe x16 and 1 PCIe x8, 8 SATA3.0, 6 USB3.0, Dual 10GbE, IPMI
