| ASMB-816-00A1 | ASMB-816I-00A1 | ASMB-816T2-00A1 | ASMB-816T2-00A1U | ||
| Processor System | CPU | 3rd Gen Intel® Xeon Scalable processors | 3rd Gen Intel® Xeon Scalable processors | Intel® Xeon® Scalable | Intel® Xeon® Scalable |
| Processor System | CPU TDP | Up to 205W | Up to 205W | Up to 205W | Up to 205W |
| Processor System | Frequency | Up to 3.6GHz | Up to 3.6GHz | Up to 3.6GHz | Up to 3.6GHz |
| Processor System | Core Number | 36 cores | 36 cores | 36 cores | 36 cores |
| Processor System | L3 Cache | 54 MB | 54 MB | 54 MB | 54 MB |
| Processor System | UPI | 10.4 GT/s | 10.4 GT/s | 10.4 GT/s | 10.4 GT/s |
| Processor System | Chipset | Intel C621A | Intel C621A | Intel C621A | Intel C621A |
| Processor System | BIOS | AMI SPI 256 Mbit | AMI SPI 256 Mbit | AMI SPI 256 Mbit | AMI SPI 256 Mbit |
| Processor System | Integrated Graphics | - | - | - | - |
| Processor System | DMI | Gen3 x4 | Gen3 x4 | Gen3 x4 | Gen3 x4 |
| Form Factor | Form Factor | ATX | ATX | ATX | ATX |
| Memory | Technology | DDR4 ECC-REG 2666/2933/3200 MHz | DDR4 ECC-REG 2666/2933/3200 MHz | DDR4 ECC-REG 2666/2933/3200 MHz | DDR4 ECC-REG 2666/2933/3200 MHz |
| Memory | Capacity | 1TB (128 GB per DIMM) | 1TB (128 GB per DIMM) | 1TB (128 GB per DIMM) | 1TB (128 GB per DIMM) |
| Memory | Socket | 8 x 288-pin DIMM | 8 x 288-pin DIMM | 8 x 288-pin DIMM | 8 x 288-pin DIMM |
| Memory | Type | RDIMM/ LRDIMM | RDIMM/ LRDIMM | RDIMM/ LRDIMM | RDIMM/ LRDIMM |
| Memory | ECC Support | Yes | Yes | Yes | Yes |
| Memory | REG Support | Yes | Yes | Yes | Yes |
| Display | Controller | ASPEED AST2510 | ASPEED AST2500 | ASPEED AST2500 | ASPEED AST2500 |
| Display | Graphic Memory | Onboard memory 64MB | Onboard memory 64MB | Onboard memory 64MB | Onboard memory 64MB |
| Display | Multiple Display | - | - | - | - |
| Display | Display Interface | VGA: Up to 1920 x 1200 | VGA: Up to 1920 x 1200 | VGA: Up to 1920 x 1200 | VGA: Up to 1920 x 1200 |
| Expansion Interface | PCI Express x 16 | 3 (Gen4) | 3 (Gen4) | 3 (Gen4) | 3 (Gen4) |
| Expansion Interface | PCI Express x 8 | 2 (Gen4) | 2 (Gen4) | 2 (Gen4) | 2 (Gen4) |
| Expansion Interface | PCI Express x 4 | 1 | 1 | 1 | 1 |
| Ethernet | Controller | LAN1: Intel I210AT, LAN2: Intel I210AT | 1 | LAN1: Intel I210AT, LAN2: Intel I210AT, LAN3: Intel X550-AT2, LAN4: Intel X550-AT2, LAN5: Realtek 8201F | LAN1: Intel I210AT, LAN2: Intel I210AT, LAN3: Intel X550-AT2, LAN4: Intel X550-AT2, LAN5: Realtek 8201F |
| Expansion Interface | PCI Express x 1 | 1 | 10/100/1000 Mbps | 1 | 1 |
| Ethernet | Speed | 10/100/1000 Mbps | 3 x RJ45 | 10/100/1000 Mbps & 10G Base-T | 10/100/1000 Mbps & 10G Base-T |
| Ethernet | Connector | 2 x RJ45 | System Reset | 5 x RJ45 | 5 x RJ45 |
| Watchdog Timer | Output | System Reset | Programmable 1 ~ 255 sec/min | System Reset | System Reset |
| Watchdog Timer | Interval | Programmable 1 ~ 255 sec/min | 8 x SATAIII (RAID 0,1,5,10) | Programmable 1 ~ 255 sec/min | Programmable 1 ~ 255 sec/min |
| I/O | SATA | 8 x SATAIII (RAID 0,1,5,10) | 7 (1 TypeA) | 8 x SATAIII (RAID 0,1,5,10) | 8 x SATAIII (RAID 0,1,5,10) |
| I/O | USB2.0 | 7 (1 TypeA) | 6 | 7 (1 TypeA) | 7 (1 TypeA) |
| I/O | USB3.0 | 6 | 8-bit | 6 | 6 |
| I/O | GPIO | 8-bit | 1 (1 x RS232) | 8-bit | 8-bit |
| I/O | COM Port | 1 (1 x RS232) | 1 | 2 (2 x RS232) | 2 (2 x RS232) |
| I/O | PS/2 Keyboard/Mouse | 1 | 5 | 1 | 1 |
| I/O | System Fan | 5 | VGA x1 | 5 | 5 |
| Rear I/O Interface | Display | VGA x1 | 3 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) | VGA x1 | VGA x1 |
| Rear I/O Interface | LAN | 2 | 4 | 5 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) | 5 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) |
| Rear I/O Interface | USB3.0 | 4 | 2 | 4 | 4 |
| Rear I/O Interface | USB2.0 | 2 | 1 (1 x RS232) | 2 | 2 |
| Rear I/O Interface | COM | 1 (1 x RS232) | 1 | 1 (1 x RS232) | 1 (1 x RS232) |
| Rear I/O Interface | VGA | 1 | 9.4A/4.56A/13.98A/0.22A/0.08A/25.14A | 1 | 1 |
| Power Requirement | Current | 9.4A/4.56A/13.98A/0.22A/0.08A/25.14A | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P | 9.4A/4.56A/13.98A/0.22A/0.08A/25.14A | 9.4A/4.56A/13.98A/0.22A/0.08A/25.14A |
| Power Requirement | Voltage | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P | 0 ~ 60° C (32 ~ 140° F) | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P |
| Environment | Operating-Temperature | 0 ~ 60° C (32 ~ 140° F) | -40 ~ 85 °C | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40 ~ 85 °C | 3.5 Grms | -40 ~ 85 °C | -40 ~ 85 °C |
| Environment | Non-Operating Vibration | 3.5 Grms | 304.8 x 244 mm (12" x 9.6") | 3.5 Grms | 3.5 Grms |
| Physical Characteristics | Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") | 0.91 kg | 304.8 x 244 mm (12" x 9.6") | 304.8 x 244 mm (12" x 9.6") |
| Physical Characteristics | Weight | 0.91 kg | CE/FCC | 0.91 kg | 0.91 kg |
| Certification | EMC | CE/FCC | IPMI 2.0 | CE/FCC | CE/FCC |
| Management Solution | Software | SUSIAccess (Optional) | IPMI 2.0 | IPMI 2.0 | IPMI 2.0 |
| Management Solution | Out of band remote management | - | IPMI 2.0 | IPMI 2.0 | |

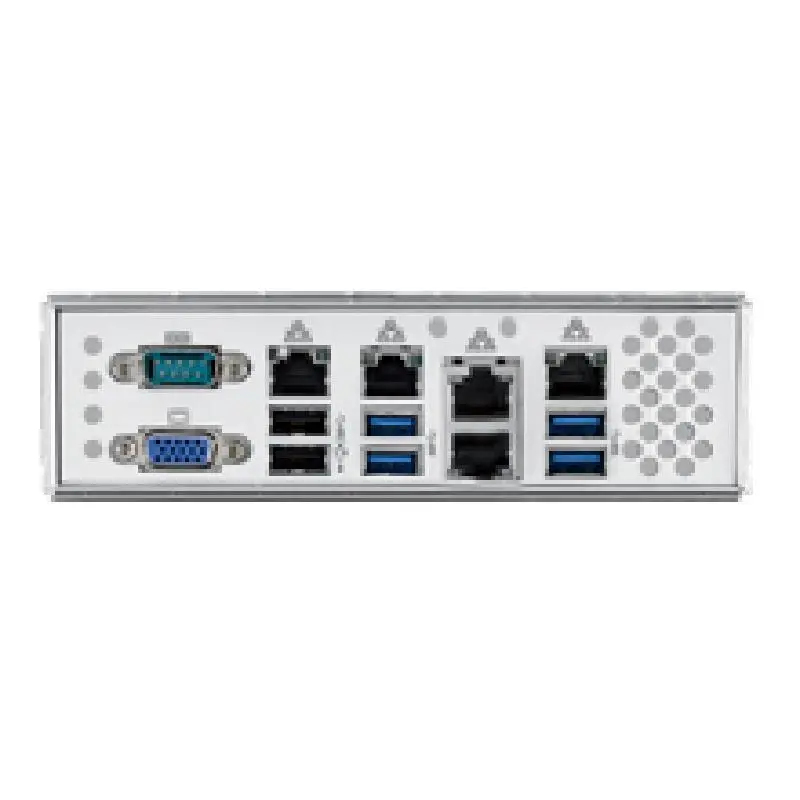

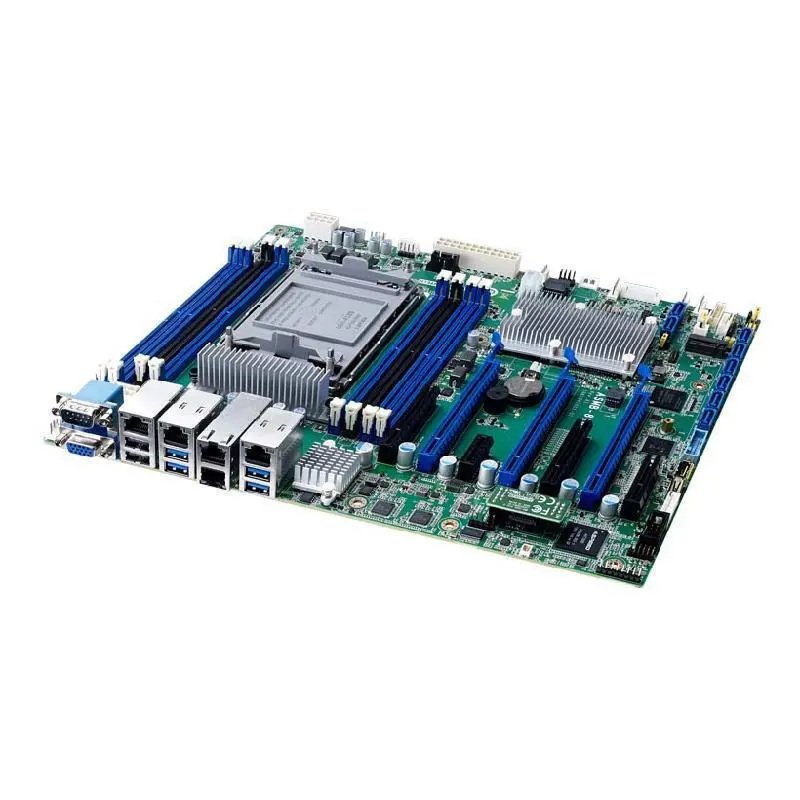

Advantech ASMB-816 LGA 4189 Intel® 3rd Gen Xeon® Scalable ATX Server Board with 8x DDR4, 3x PCIe x16, 8x SATA 3, 6x USB 3.2 (Gen1), Dual 10GbE, and IPMI
