| ASMB-830T2-00A1 | ASMB-830I-00A1 | ||
| Processor System | CPU | AMD EPYC™ 7002/7003 processors | AMD EPYC™ 7002/7003 processors |
| Processor System | CPU TDP | Up to 225W | Up to 225W |
| Processor System | Frequency | Up to 3.7 GHz | Up to 3.7 GHz |
| Processor System | Core Number | Up to 64 cores | Up to 64 cores |
| Processor System | L3 Cache | Up to 256MB | Up to 256MB |
| Processor System | BIOS | AMI SPI 256 Mbit | AMI SPI 256 Mbit |
| Processor System | Integrated Graphics | - | - |
| Form Factor | Form Factor | ATX | ATX |
| Memory | Capacity | 1TB (128 GB per DIMM) | 1TB (128 GB per DIMM) |
| Memory | Technology | DDR4 ECC-REG 2666/2933/3200 MHz | DDR4 ECC-REG 2666/2933/3200 MHz |
| Memory | Socket | 8 x 288-pin DIMM | 8 x 288-pin DIMM |
| Memory | Type | RDIMM/ LRDIMM | RDIMM/ LRDIMM |
| Memory | ECC Support | Yes | Yes |
| Memory | REG Support | Yes | Yes |
| Display | Controller | ASPEED AST2500 | ASPEED AST2500 |
| Display | Graphic Memory | Onboard memory 64MB | Onboard memory 64MB |
| Display | Multiple Display | - | - |
| Display | Display Interface | VGA: Up to 1920 x 1200 | VGA: Up to 1920 x 1200 |
| Expansion Interface | PCI Express x 16 | 5 (Gen4) | 5 (Gen4) |
| Expansion Interface | PCI Express x 8 | 2 (Gen4) | 2 (Gen4) |
| Ethernet | Controller | LAN1: Intel I210AT, LAN2: Intel I210AT, LAN3: Intel X550-AT2, LAN4: Intel X550-AT2, LAN5: Realtek 8201F | LAN1: Intel I210AT, LAN2: Intel I210AT, LAN5: Realtek 8201EL |
| Ethernet | Speed | 10/100/1000 Mbps & 10G Base-T | 10/100/1000 Mbps |
| Ethernet | Connector | 5 x RJ45 | 3 x RJ45 |
| Watchdog Timer | Output | System Reset | System Reset |
| Watchdog Timer | Interval | Programmable 1 ~ 255 sec/min | Programmable 1 ~ 255 sec/min |
| I/O | SATA | 9 x SATA3 | 9 x SATA3 |
| I/O | SAS Port | - | - |
| I/O | SAS controller | - | - |
| I/O | USB2.0 | 5 (1 Type-A) | 5 (1 Type-A) |
| I/O | USB3.0 | 5 | 5 |
| I/O | GPIO | 8-bit | 8-bit |
| I/O | LPT | - | - |
| I/O | COM Port | 2 (2 x RS232) | 2 (2 x RS232) |
| I/O | PS/2 Keyboard/Mouse | 1 | 1 |
| I/O | SPDIF | - | - |
| I/O | System Fan | 5 | 5 |

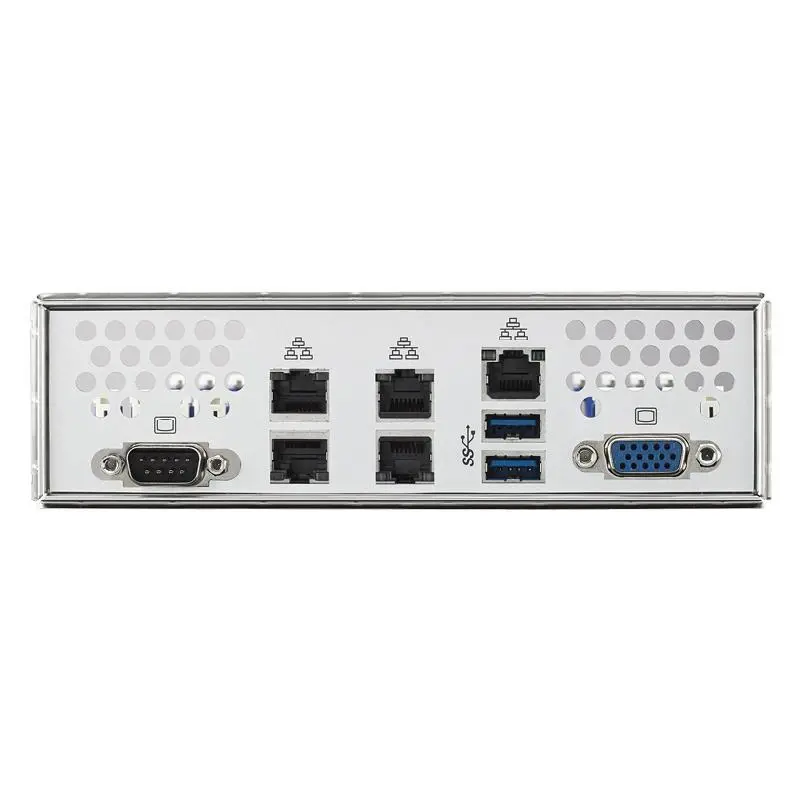

| Rear I/O Interface | Display | VGA x1 | VGA x1 |
| Rear I/O Interface | LAN | 5 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) | 3 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) |
| Rear I/O Interface | USB3.0 | 2 | 2 |
| Rear I/O Interface | USB2.0 | - | - |
| Rear I/O Interface | COM | 1 (1 x RS232) | 1 (1 x RS232) |
| Rear I/O Interface | PS/2 | - | - |
| Rear I/O Interface | VGA | 1 | 1 |
| Power Requirement | Current | 1.78A/1.7A/1.38A/0.14A/16.98A/8.23A | 1.78A/1.7A/1.38A/0.14A/16.98A/8.23A |
| Rear I/O Interface | DVI | - | - |
| Power Requirement | Voltage | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P |
| Environment | Operating-Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Non-Operating Vibration | 3.5 Grms | 3.5 Grms |
| Physical Characteristics | Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") | 304.8 x 244 mm (12" x 9.6") |
| Physical Characteristics | Weight | 1.3 kg | 1.3 kg |
| Certification | EMC | CE/FCC | CE/FCC |
| Management Solution | Software | IPMI 2.0 | IPMI 2.0 |
| Management Solution | Out of band remote management | IPMI 2.0 | IPMI 2.0 |

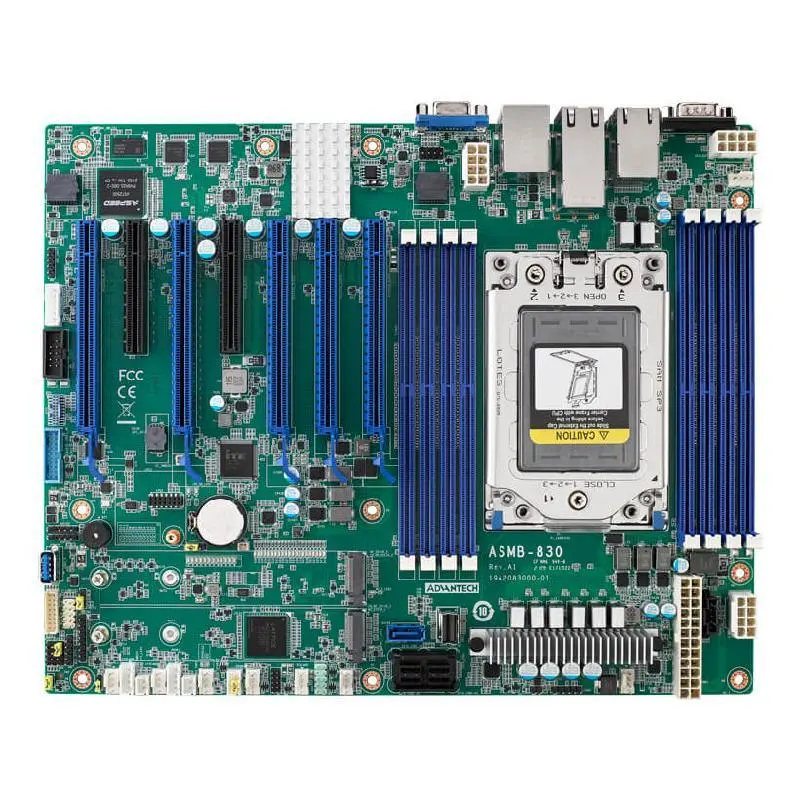

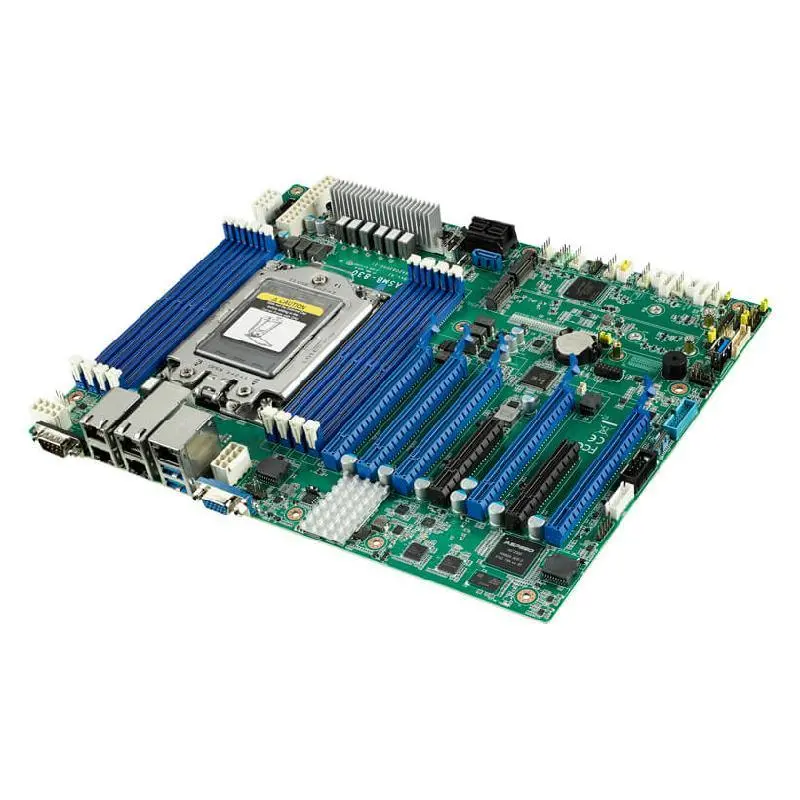

Advantech ASMB-830 LGA 4094 AMD® EPYC™ 7002/7003 ATX Server Board with 8x DDR4, 5x PCIe 4.0 x16 + 2x PCIe 4.0 x8, 9x SATA 3, 5x USB 3.2 (Gen1), Dual 10GbE, and IPMI
