| ASMB-831T2-00A1 | ||
| Processor System | CPU | AMD EPYC™ 9004 processors |
| Processor System | CPU TDP | Up to 210W |
| Processor System | Frequency | Up to 3.0 GHz |
| Processor System | Core Number | Up to 32 cores |
| Processor System | L3 Cache | Up to 256MB |
| Processor System | BIOS | AMI SPI 256 Mbit |
| Processor System | Integrated Graphics | - |
| Form Factor | Form Factor | ATX |
| Memory | Capacity | Up to 384 GB |
| Memory | Technology | DDR5 ECC-REG 4000/4400/4800 MHz |
| Memory | Socket | 8 x 288-pin DIMM |
| Memory | Type | RDIMM/ LRDIMM |
| Memory | ECC Support | Yes |
| Memory | REG Support | Yes |
| Display | Controller | ASPEED AST2600 |
| Display | Graphic Memory | Onboard memory 64MB |
| Display | Multiple Display | - |
| Display | Display Interface | VGA: Up to 1920 x 1200 |
| Expansion Interface | PCI Express x 16 | 5 (Gen5) |
| Expansion Interface | PCI Express x 8 | 2 (Gen5) |
| Ethernet | Controller | LAN1: Intel X710-AT2, LAN2: Intel Intel X710-AT2, LAN3: Realtek 8211F |
| Ethernet | Speed | 10/100/1000 Mbps & 10G Base-T |
| Ethernet | Connector | 3 x RJ45 |
| Watchdog Timer | Output | System Reset |
| Watchdog Timer | Interval | Programmable 1 ~ 255 sec/min |
| I/O | SATA | 9 x SATA3 |
| I/O | SAS Port | - |
| I/O | SAS controller | - |
| I/O | USB2.0 | 7 (1 TypeA) |
| I/O | USB3.0 | 7 |
| I/O | GPIO | 8-bit |
| I/O | LPT | - |
| I/O | COM Port | 1 (1 x RS232) |
| I/O | PS/2 Keyboard/Mouse | - |
| I/O | SPDIF | - |
| I/O | System Fan | 5 |
| Rear I/O Interface | Display | VGA x1 |
| Rear I/O Interface | LAN | 3 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) |
| Rear I/O Interface | USB3.0 | 4 |
| Rear I/O Interface | USB2.0 | - |
| Rear I/O Interface | COM | 1 (1 x RS232) |
| Rear I/O Interface | PS/2 | - |
| Rear I/O Interface | VGA | 1 |
| Power Requirement | Current | 2.96A/3.26A/0.61A/15.72A/6.87A |
| Rear I/O Interface | DVI | - |
| Power Requirement | Voltage | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P |
| Environment | Operating-Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Non-Operating Vibration | 3.5 Grms |
| Physical Characteristics | Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") |
| Physical Characteristics | Weight | 1.3 kg |
| Certification | EMC | CE/FCC |
| Management Solution | Software | IPMI 2.0 |
| Management Solution | Out of band remote management | IPMI 2.0 |

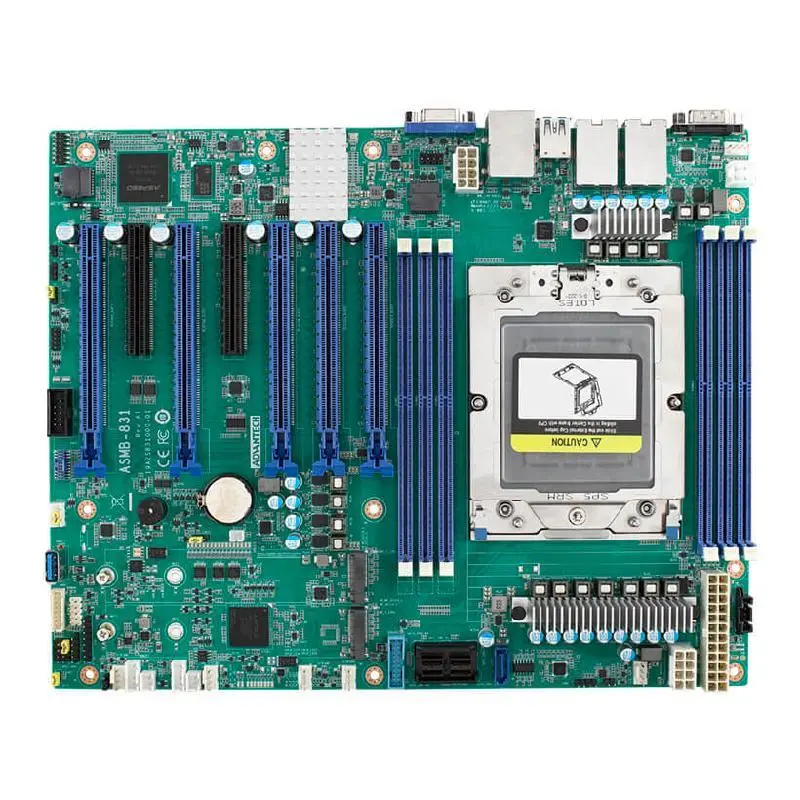

Advantech ASMB-831 LGA 6096 AMD® EPYC™ Embedded 9004 ATX Server Board with 6 x DDR5, 5 x PCIe x16 + 2 x PCIe x8, 9 x SATA3, 7 x USB 3.2 (Gen1), Dual 10GbE, and IPMI
