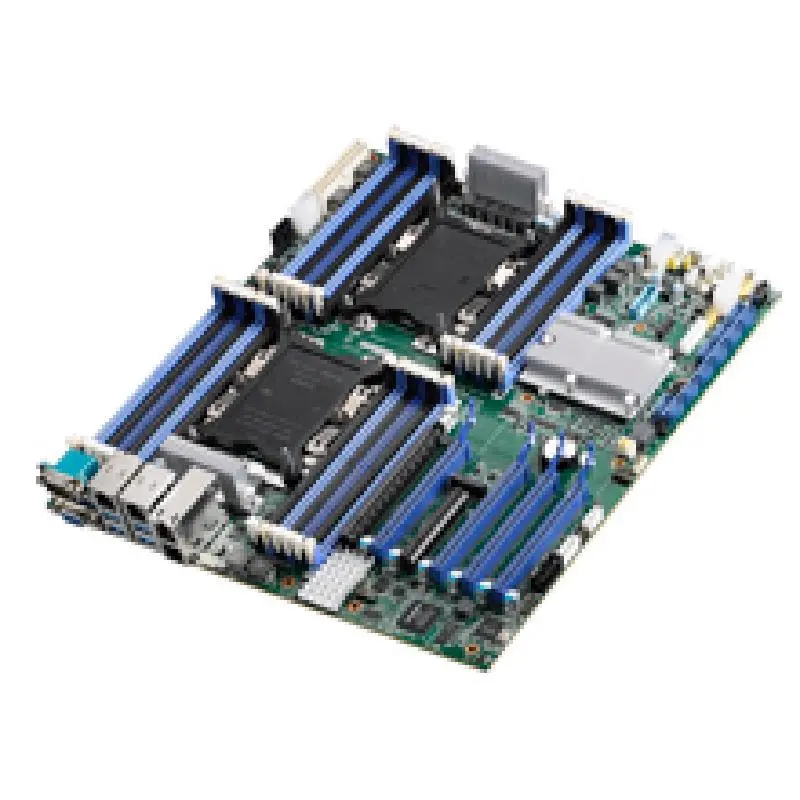

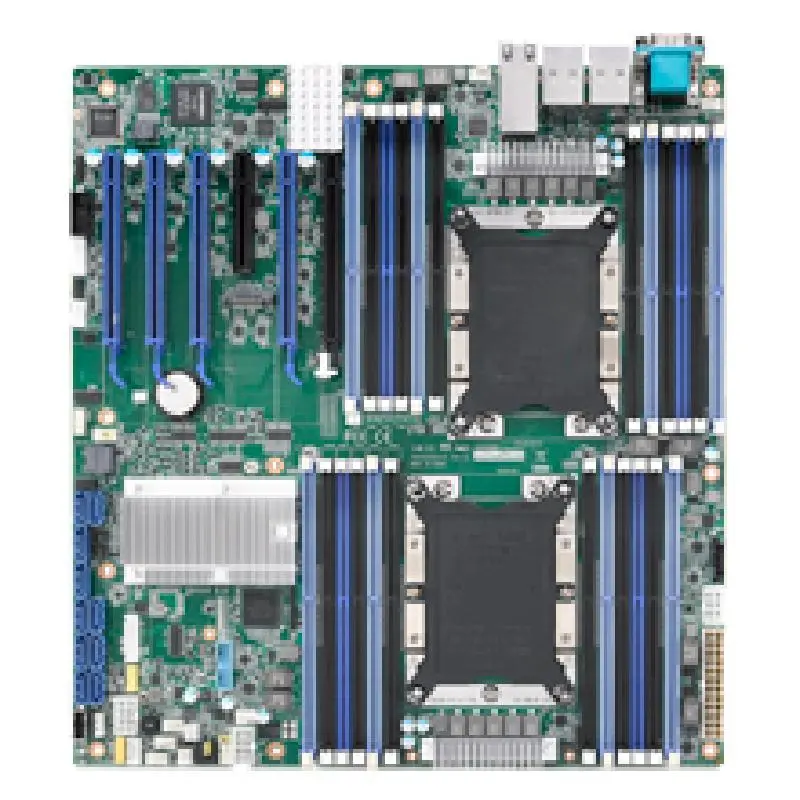

Advantech ASMB-935 Dual LGA3647-P0 Intel® Xeon® Scalable EATX Server Board with 24 DDR4, 5 PCIe x16 + 1 PCIe x8, 10 SATA3.0, 6 USB3.0, Dual 10GbE, IPMI

    EATX server board with dual Xeon Scalable processors

    DDR4 2933 MHz RDIMM up to 3TB, support Intel Optane DC Persistent Memory

    Five PCIe x16 (Gen3) and one PCIe x8 (Gen3) for three double-deck cards

    Intel® X557-AT2 dual 10GbE ports

    Ten SATA3.0 and six USB3.0 ports

    One M.2 2280 (SATA / PCIe compatible)

    0 ~ 40 °C ambient operating temperature range

ASMB-935I-00A1 ASMB-935T2-00A1
Form Factor Form Factor EATX EATX
Processor System CPU Intel® Xeon® Scalable Intel® Xeon® Scalable
Processor System CPU TDP Up to 205W Up to 205W
Processor System Frequency Up to 3.6GHz Up to 3.6GHz
Processor System Core Number Up to 28 cores Up to 28 cores
Processor System L3 Cache 38.5 MB 38.5 MB
Processor System BIOS AMI SPI 256 Mbit AMI SPI 256 Mbit
Processor System Chipset Intel C621 Intel C622
Processor System Integrated Graphics - -
Processor System DMI Gen3 x4 Gen3 x4
Processor System UPI 10.4 GT/s 10.4 GT/s
Memory Technology DDR4 ECC-REG 2133/2400/2666 DDR4 ECC-REG 2133/2400/2666
Memory Capacity Up to 1.5 TB Up to 1.5 TB
Memory ECC Support Yes Yes
Memory Socket 24 x 288-pin DIMM 24 x 288-pin DIMM
Memory REG Support Yes Yes
Display Controller ASPEED AST2500 ASPEED AST2500
Display Graphic Memory Onboard memory 64MB Onboard memory 64MB
Display Multiple Display - -
Display Display Interface VGA: Up to 1920 x 1200 VGA: Up to 1920 x 1200
Expansion Interface PCI Express x 16 5 (Gen3) 5 (Gen3)
Expansion Interface PCI Express x 8 1 (Gen3) 1 (Gen3)
Expansion Interface LPC 1 1
Expansion Interface SMBus 1 1
Ethernet Controller LAN1: Intel I210AT, LAN2: Intel I210AT LAN1: Intel I210AT, LAN2: Intel I210AT, LAN3: Intel X557-AT2, LAN4: Intel X557-AT2
Ethernet Speed 10/100/1000 Mbps 10/100/1000 Mbps & 10G Base-T
Ethernet Connector 2 x RJ45 4 x RJ45
Watchdog Timer Output System Reset System Reset
Watchdog Timer Interval Programmable 1 ~ 255 sec/min Programmable 1 ~ 255 sec/min
I/O SATA 10 x SATAIII (RAID 0,1,5,10) 10 x SATAIII (RAID 0,1,5,10)
I/O USB3.0 2 2
I/O USB2.0 5 (1 Type-A) 5 (1 Type-A)
I/O GPIO 8-bit 8-bit
I/O LPT 1 1
I/O COM Port 1 x RS232 1 x RS232
I/O PS/2 Keyboard/Mouse 1 1
I/O System Fan 5 5
Rear I/O Interface LAN 4 4
Rear I/O Interface USB3.0 4 4
Rear I/O Interface COM 1 1
Rear I/O Interface Ethernet 2 4
Rear I/O Interface VGA 1 1
Power Requirement Voltage +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P_0/12V_8P_1 +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P_0/12V_8P_1
Power Requirement Current 0.04A/5.11A/6.77A/0.17A/0A/21.49A/23.19A 0.04A/5.11A/6.77A/0.17A/0A/21.49A/23.19A
Environment Operating-Temperature 0 ~ 45 0 ~ 45
Environment Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)
Environment Non-Operating Vibration 3.5 Grms 3.5 Grms
Physical Characteristics Dimensions (LxW) 304.8 x 330.2 mm (12" x 13") 304.8 x 330.2 mm (12" x 13")
Physical Characteristics Weight 1.5kg 1.5kg
Certification EMC CE/FCC CE/FCC
Management Solution Software IPMI 2.0 IPMI 2.0
Management Solution Out of band remote management Intel I210 share NIC Intel I210 share NIC
