| ASMB-975-00A1 | ASMB-975I-00A1 | ASMB-975T2-00A1 | ||
| Processor System | CPU | Intel® Xeon® Scalable | Intel® Xeon® Scalable | Intel® Xeon® Scalable |
| Processor System | CPU TDP | Up to 205W | Up to 205W | Up to 205W |
| Processor System | Frequency | Up to 3.7 GHz | Up to 3.7 GHz | Up to 3.7 GHz |
| Processor System | Core Number | Up to 28 cores | Up to 28 cores | Up to 28 cores |
| Processor System | L3 Cache | 38.5 MB | 38.5 MB | 38.5 MB |
| Processor System | BIOS | AMI SPI 256 Mbit | AMI SPI 256 Mbit | AMI SPI 256 Mbit |
| Processor System | Chipset | Intel C621 | Intel C621 | Intel C622 |
| Processor System | DMI | Gen3 x4 | Gen3 x4 | Gen3 x4 |
| Processor System | Integrated Graphics | - | - | - |
| Processor System | UPI | Up to 10.4 GT/s | Up to 10.4 GT/s | Up to 10.4 GT/s |
| Memory | Technology | DDR4 2666 MHz | DDR4 2666 MHz | Up to 768 GB |
| Memory | Capacity | Up to 768 GB | Up to 768 GB | Yes |
| Memory | ECC Support | Yes | Yes | 12 x 288-pin DIMM |
| Memory | Socket | 12 x 288-pin DIMM | 12 x 288-pin DIMM | ASPEED AST2500 |
| Display | Controller | ASPEED AST2510 | ASPEED AST2500 | VGA: Up to 1920 x 1200 |
| Display | Display Interface | VGA: Up to 1920 x 1200 | VGA: Up to 1920 x 1200 | Onboard memory 64MB |
| Display | Graphic Memory | Onboard memory 64MB | Onboard memory 64MB | - |
| Display | Multiple Display | - | - | 4 (Gen3) |
| Expansion Interface | PCI Express x 16 | 4 (Gen3) | 4 (Gen3) | 4 (Gen 3) |
| Expansion Interface | PCI Express x 4 | 4 (Gen 3) | 4 (Gen 3) | Yes |
| Memory | REG Support | Yes | Yes | 1 (Gen3) |
| Expansion Interface | PCI Express x 8 | 1 (Gen3) | 1 (Gen3) | - |
| Expansion Interface | PCI | - | - | - |
| Expansion Interface | PCI Express x 1 | - | - | 1 |
| Expansion Interface | LPC | 1 | 1 | - |
| Expansion Interface | PME | - | - | 1 |
| Expansion Interface | SMBus | 1 | 1 | LAN1: Intel I210AT, LAN2: Intel I210AT, LAN3: Intel X557-AT2, LAN4: Intel X557-AT2 |
| Ethernet | Controller | LAN1: Intel I210, LAN2: Intel I210 | LAN1: Intel I210AT, LAN2: Intel I210AT | 10/100/1000 Mbps & 10G Base-T |
| Ethernet | Speed | 10/100/1000 Mbps | 10/100/1000 Mbps | 4 x RJ45 |
| Ethernet | Connector | 2 x RJ45 | 2 x RJ45 | System Reset |
| Watchdog Timer | Output | System Reset | System Reset | Programmable 1 ~ 255 sec/min |
| Watchdog Timer | Interval | Programmable 1 ~ 255 sec/min | Programmable 1 ~ 255 sec/min | 14 x SATAIII (SATA0-SATA7 & SSATA0-SSATA5 support RAID 0,1,10 & 5 ) |
| I/O | SATA | 14 x SATAIII (SATA0-SATA7 & SSATA0-SSATA5 support RAID 0,1,10 & 5 ) | 14 x SATAIII (SATA0-SATA7 & SSATA0-SSATA5 support RAID 0,1,10 & 5 ) | - |
| I/O | SAS Port | - | - | - |
| I/O | SAS controller | - | - | 8 |
| I/O | USB3.0 | 8 | 8 | 3 USB 2.0 (1 Type-A USB2.0 port) |
| I/O | USB2.0 | 3 USB 2.0 (1 Type-A USB2.0 port) | 3 USB 2.0 (1 Type-A USB2.0 port) | 8-bit |
| I/O | GPIO | 8-bit | 8-bit | 0 |
| I/O | LPT | - | - | 1 (1 x RS232) |
| I/O | COM Port | 1 (1 x RS232) | 1 (1 x RS232) | 1 |
| I/O | PS/2 Keyboard/Mouse | 1 | 1 | - |
| I/O | SPDIF | - | - | 6 |
| I/O | System Fan | 6 | 6 | - |
| Rear I/O Interface | Display | - | - | 4 |
| Rear I/O Interface | LAN | 2 | 2 | 4 |
| Rear I/O Interface | USB3.0 | 4 | 4 | - |
| Rear I/O Interface | USB2.0 | - | - | 1 |
| Rear I/O Interface | COM | 1 | 1 | - |
| Rear I/O Interface | PS/2 | - | - | - |
| Rear I/O Interface | DVI | - | - | 4 |
| Rear I/O Interface | Ethernet | 2 | 2 | 1 |
| Rear I/O Interface | VGA | 1 | 1 | +12V/+5V/+3.3V/+5Vsb/-12V |
| Power Requirement | Voltage | +12V/+5V/+3.3V/+5Vsb/-12V | +12V/+5V/+3.3V/+5Vsb/-12V | 0.09A/6.83A/1.37A/0.14A/0.03A |
| Power Requirement | Current | 0.09A/6.83A/1.37A/0.14A/0.03A | 0.09A/6.83A/1.37A/0.14A/0.03A | 0 ~ 45 |
| Environment | Operating-Temperature | 0 ~ 45 | 0 ~ 45 | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | 3.5 Grms |
| Environment | Non-Operating Vibration | 3.5 Grms | 3.5 Grms | 358 .1 mm x 330 mm (14.1”x 13”) |
| Physical Characteristics | Dimensions (LxW) | 358 .1 mm x 330 mm (14.1”x 13”) | 358 .1 mm x 330 mm (14.1”x 13”) | 1.5kg |
| Physical Characteristics | Weight | 1.5kg | 1.5kg | IPMI 2.0 |
| Certification | EMC | CE/FCC | CE/FCC | Intel I210 share NIC |
| Management Solution | Software | IPMI 2.0 | IPMI 2.0 | |
| Management Solution | Out of band remote management | Intel I210 share NIC | Intel I210 share NIC | |

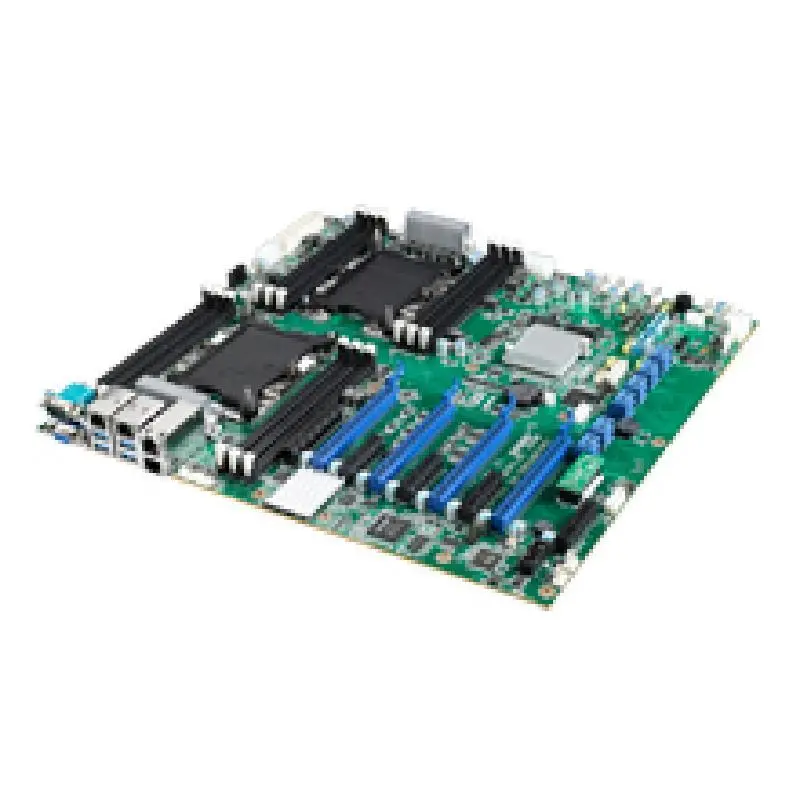

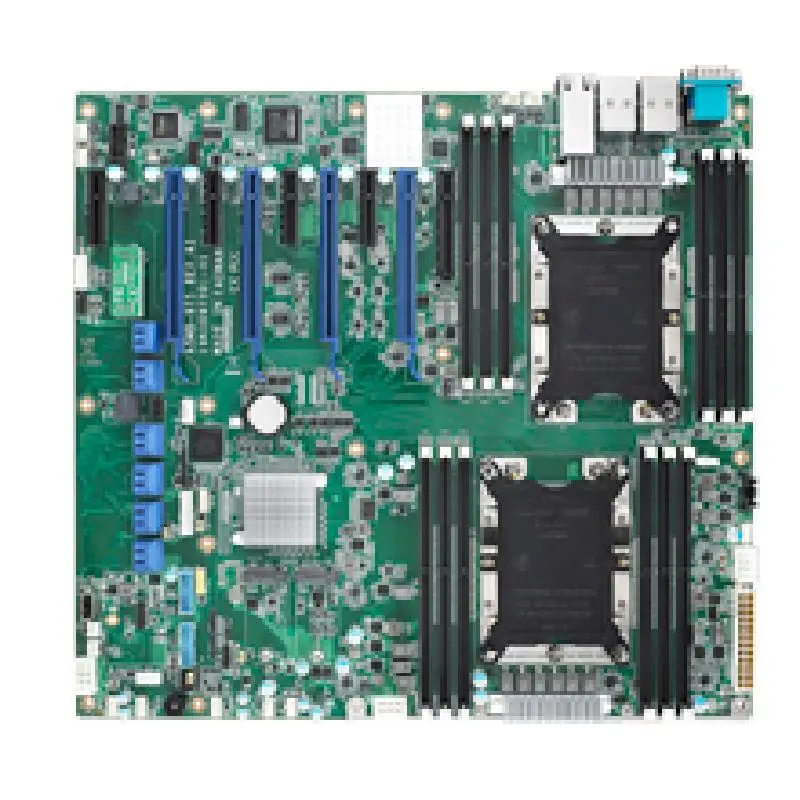

Advantech ASMB-975 Dual LGA 3647-P0 Intel® Xeon® Scalable Proprietary Server Board with 12 DDR4, 4 PCIe x16 + 1 PCIe x8+4 PCIe x4, 14 SATA3.0, 8 USB3.0, Dual 10GbE, IPMI
