| HPC-6120-50ZX | HPC-6120-65ZX | ||
| Storage Interface | 2.5" HDD Bay | 2 x 2.5” Hot-swappable | 2 x 2.5” Hot-swappable |
| Miscellaneous | Front Panel Control | Power & reset switch | Power & reset switch |
| Miscellaneous | LED Indicators | Power, System Information, LAN1, LAN2, LAN3, LAN4 | Power, System Information, LAN1, LAN2, LAN3, LAN4 |
| Front I/O Interface | USB 3.0 | 2 | 2 |
| Expansion Slot | PCIe x16 | 1 x PCIeX16 or 2 PCIeX8 | 1 x PCIeX16 or 2 PCIeX8 |
| Expansion Slot | PCIe x4 | 1 x PCIeX4 (external I/O), 1 x PCIeX4 (internal I/O) | 1 x PCIeX4 (external I/O), 1 x PCIeX4 (internal I/O) |
| Cooling | Fan | 3 (4cm / 34CFM) + 2 (4cm / 28CFM) | 3 (4cm / 34CFM) + 2 (4cm / 28CFM) |
| Form Factor | Board | ASMB-61 series proprietary MB | ASMB-61 series proprietary MB |
| Power Supply | Power Supply | 500W (Single) | 650W 1+0 non-redundancy |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) | 0 ~ 40° C (32 ~ 104° F) |
| Environment | Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Non-operating Temperature | -40 ~ 70 °C (-40 ~ 156 °F) | -40 ~ 70 °C (-40 ~ 156 °F) |
| Environment | Non-operating Humidity | 10 ~ 95% @ 70°C, non-condensing | 10 ~ 95% @ 70°C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 1 Grms | 1 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 Grms | 2 Grms |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Physical Characteristics | Dimensions (W x H x D) | 438 mm x 44 mm x 480 mm ( 17.24" x 1.73" x 18.9") | 438 mm x 44 mm x 480 mm ( 17.24" x 1.73" x 18.9") |
| Physical Characteristics | Weight | 7 kg | 7 kg |
| Certification | EMC | CE/FCC | CE/FCC |

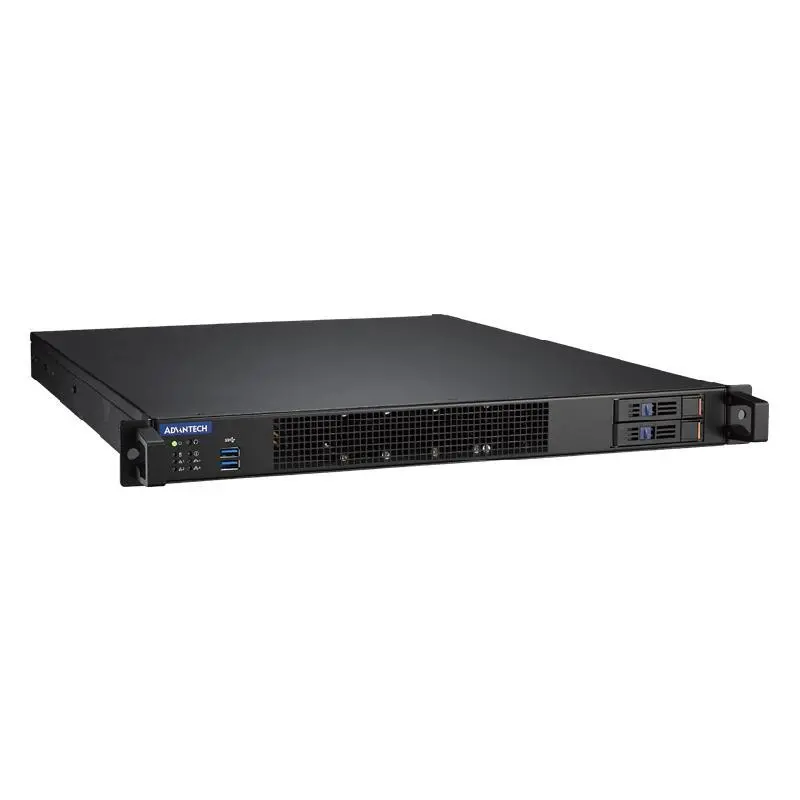

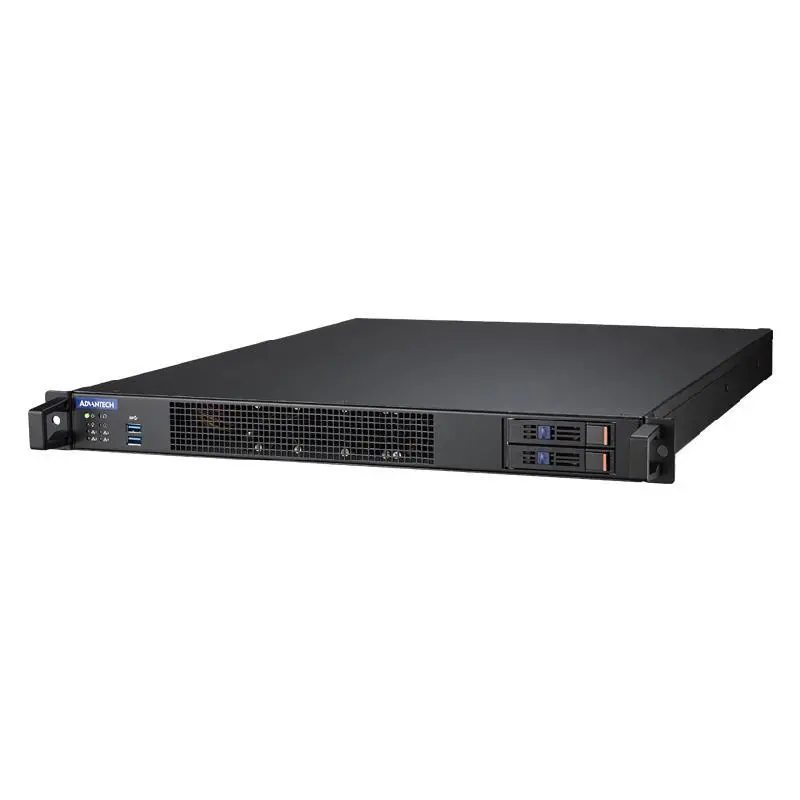

Advantech HPC-6120 1U short-depth Optimized Chassis for ASMB-61 Series Edge Accelerator Server Board
