| HPC-7120S-35ZB | HPC-7120S-85ZB | ||
| Expansion Slots | PCIE | 1 x PCIe x16 | 1 x PCIe x16 |
| Disk Drive Bay | 2.5" Internal | 2 | 2 |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Front I/O Interface | USB 3.0 | 2 | 2 |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, LAN2, System Information | Power, HDD, LAN1, LAN2, System Information |
| System Alarm | Chassis Intrusion Alarm | Yes | Yes |
| Disk Drive Bay | 2.5" Hot Swap | 2 | 2 |
| Cooling | System Fan | 3 (4cm / 23.1 CFM) | 3 (4cm / 23.1 CFM) |
| Environment | Non-operating Humidity | 10 ~ 95% @ 60° C, non-condensing | 10 ~ 95% @ 60° C, non-condensing |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 Grms | 2 Grms |
| Environment | Non-Operational Temperature | -40 ~ 70° C (-40 ~ 158° F) | -40 ~ 70° C (-40 ~ 158° F) |
| Environment | Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 1 Grms | 1 Grms |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) | 0 ~ 40° C (32 ~ 104° F) |
| Physical Characteristics | Dimensions (W x H x D) | 438 x 43 x 381 mm (17.24" x 1.7" x 15") | 438 x 43 x 381 mm (17.24" x 1.7" x 15") |

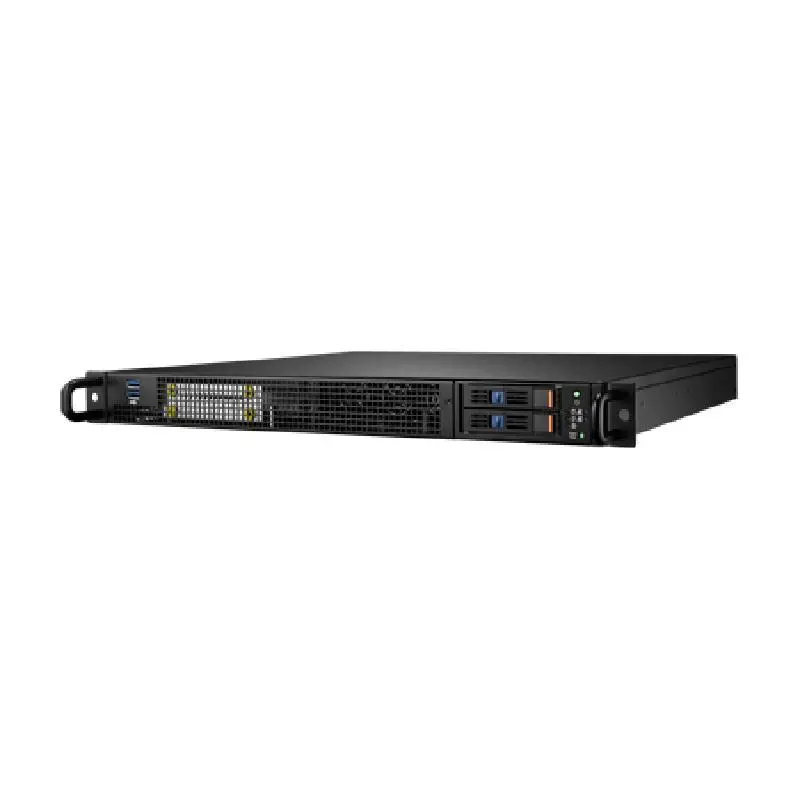

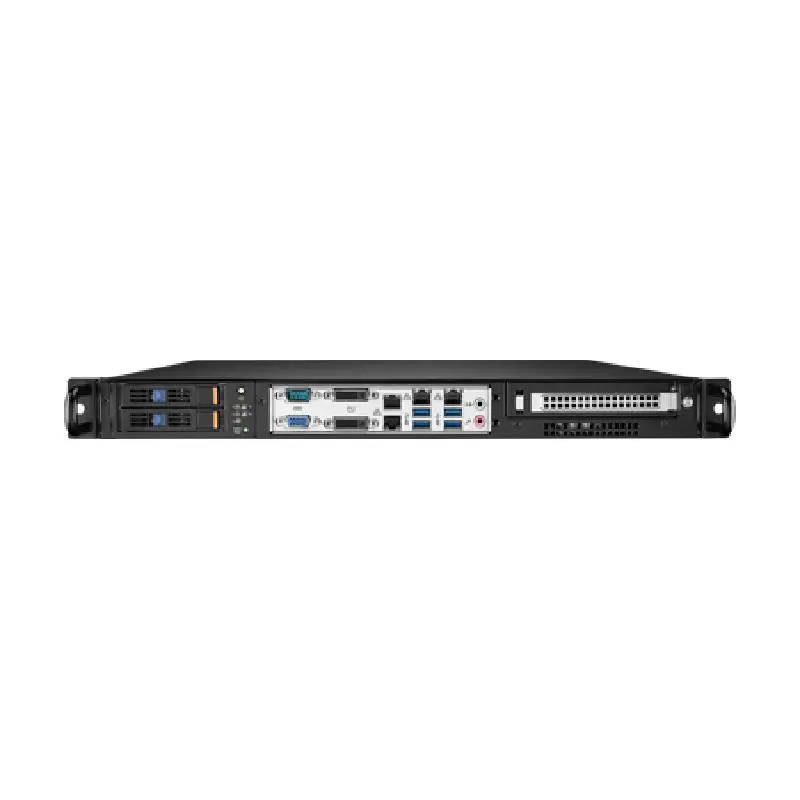

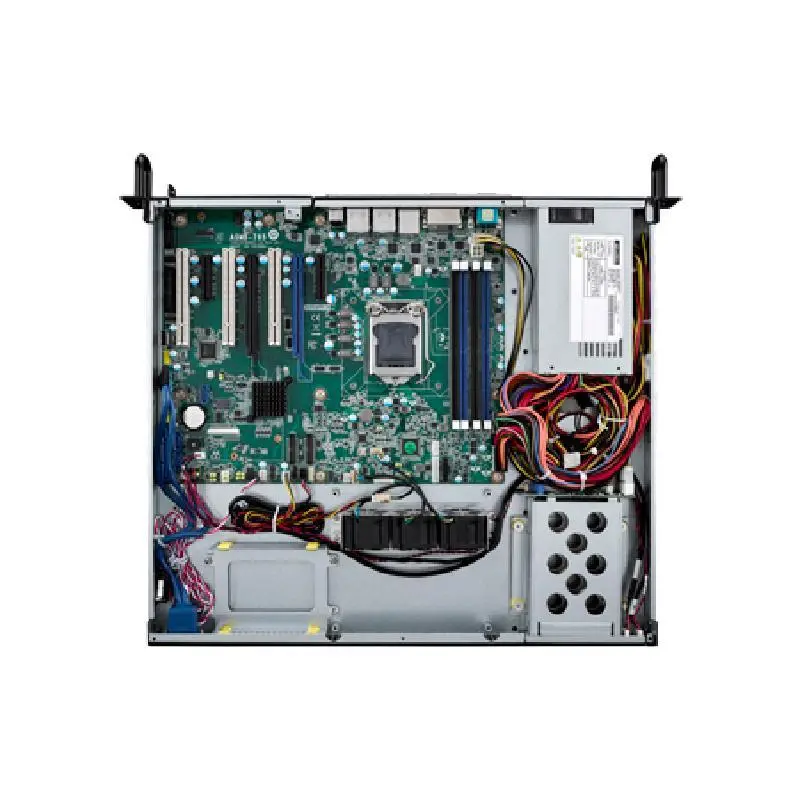

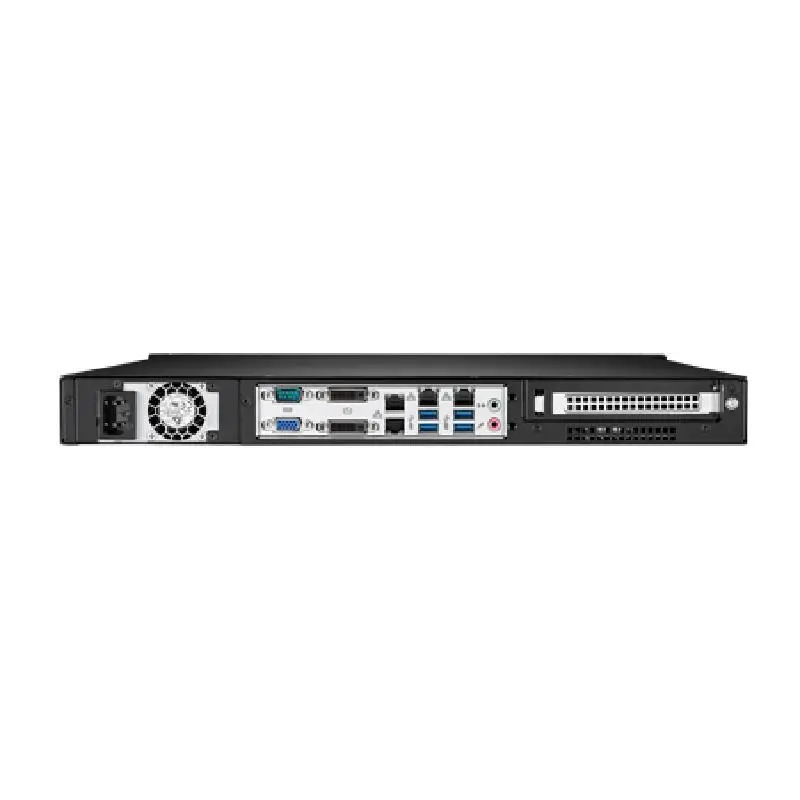

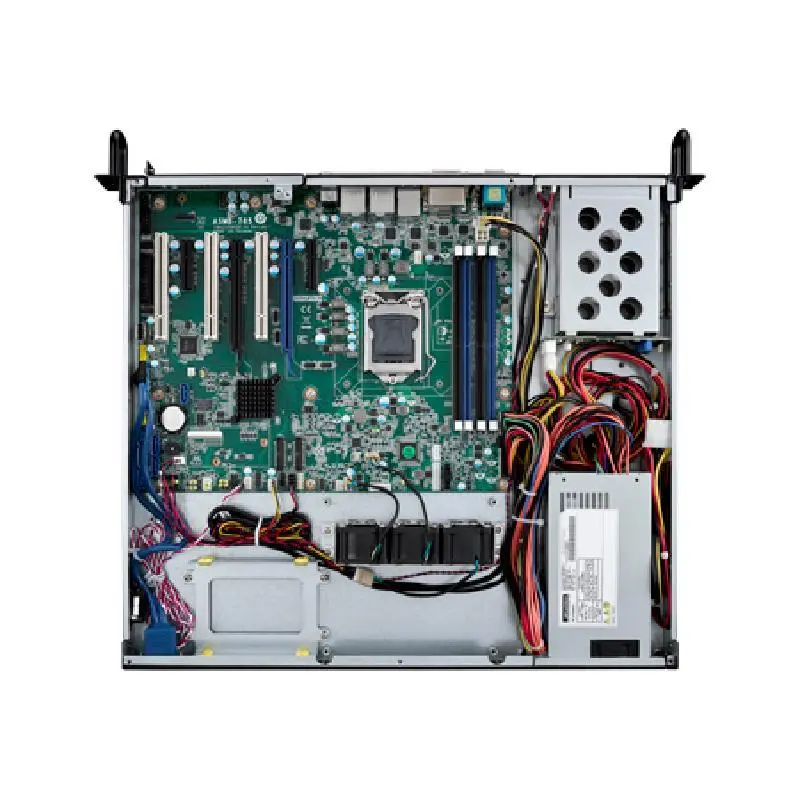

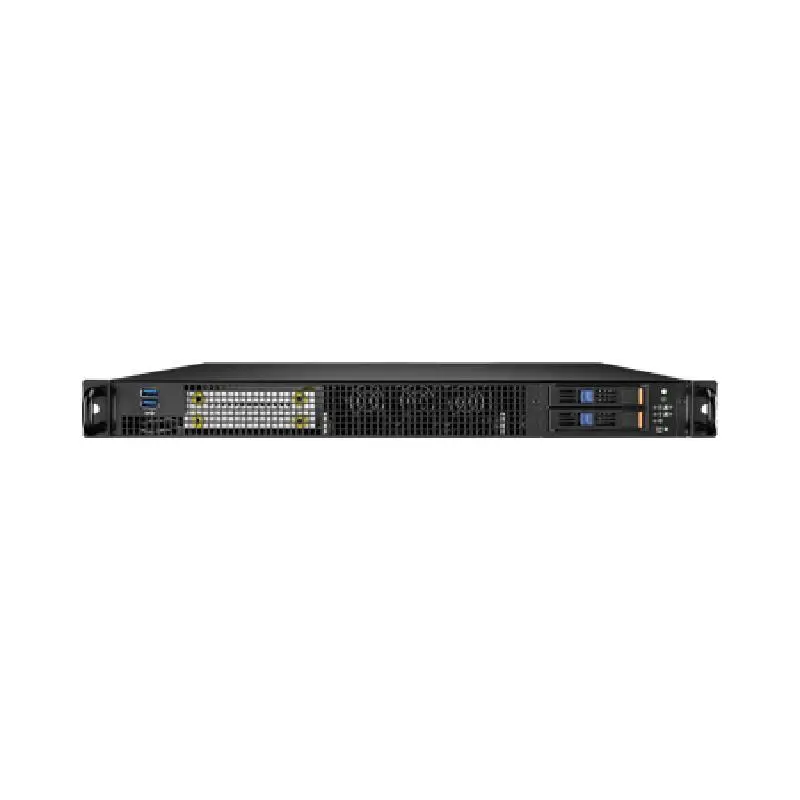

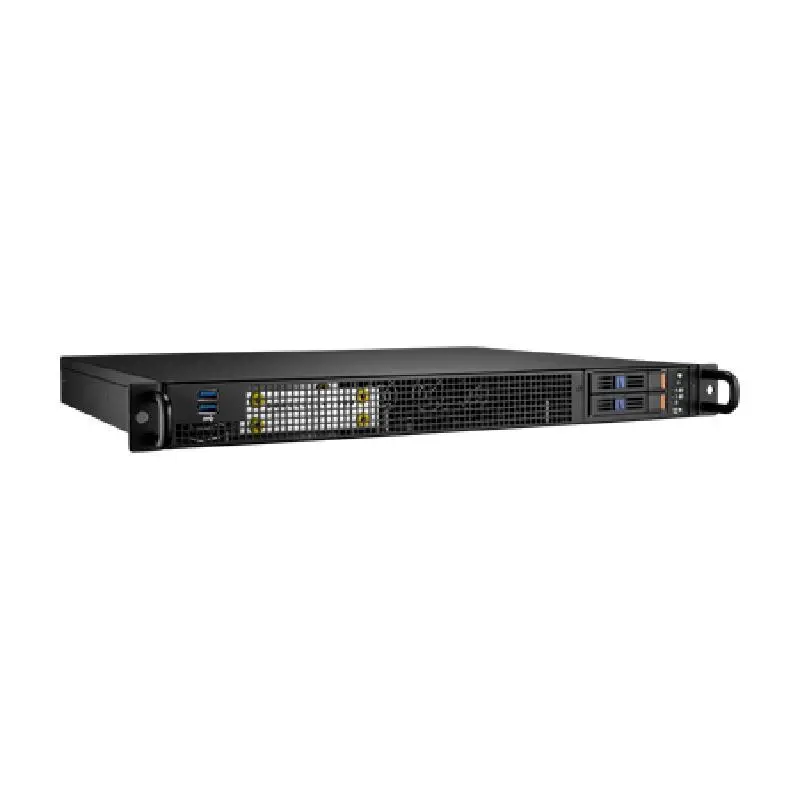

Advantech HPC-7120S 1U Short-Depth Server Chassis for Micro ATX/ATX Motherboards
