| HPC-8104SA-50A1E | HPC-8104SA-65RA1 | ||
| Disk Drive Bay | 3.5"/2.5" Front-Accessible | 4 | 4 |
| Disk Drive Bay | 2.5" Internal | 2 | 2 |
| Disk Drive Bay | Slim ODD | 1 | 1 |
| Cooling | System Fan | 3(4056/34CFM) + 1(4028/23CFM) high speed fan | 3(4056/34CFM) + 1(4028/23CFM) high speed fan |
| Front I/O Interface | USB 3.0 | 2 | 2 |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, LAN2, System Information | Power, HDD, LAN1, LAN2, System Information |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) | 0 ~ 40° C (32 ~ 104° F) |
| Environment | Non-Operational Temperature | -40 ~ 60° C (-40 ~ 140° F) | -40 ~ 60° C (-40 ~ 140° F) |
| Environment | Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Non-operating Humidity | 10 ~ 95% @ 60° C, non-condensing | 10 ~ 95% @ 60° C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 0.25 Grms | 0.25 Grms |
| Environment | Non-Operating Vibration | 2 G | 2 G |
| Environment | Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Physical Characteristics | Dimensions (W x H x D) | 438 x 43.9 x 530 (17.24" x 1.73" x 20.87") | 438 x 43.9 x 530 (17.24" x 1.73" x 20.87") |
| Power Supply | Power Supply | 500W (Single) | 1+1 650W redundant power supply |

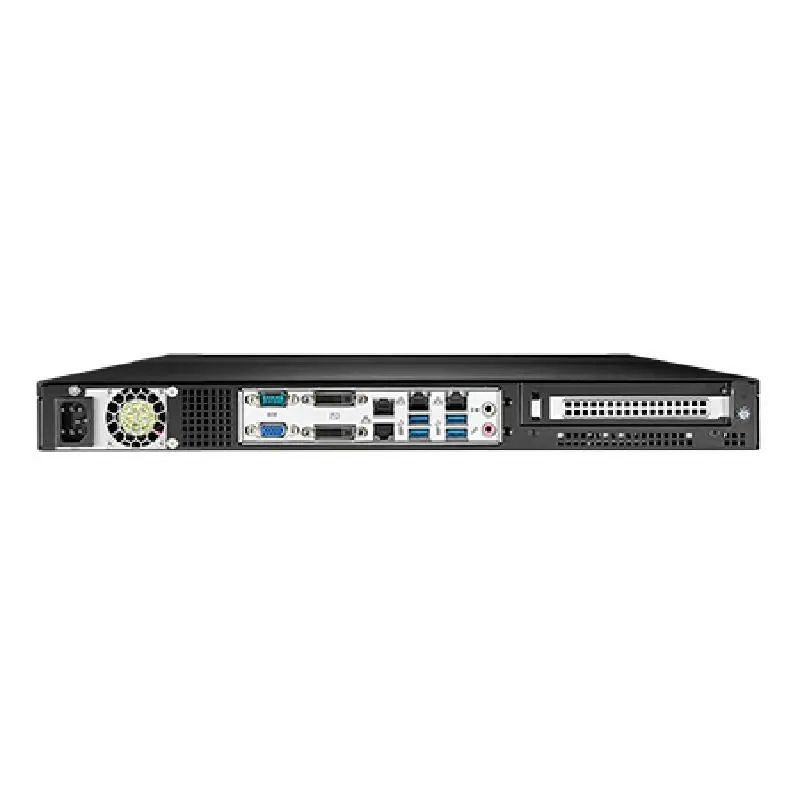

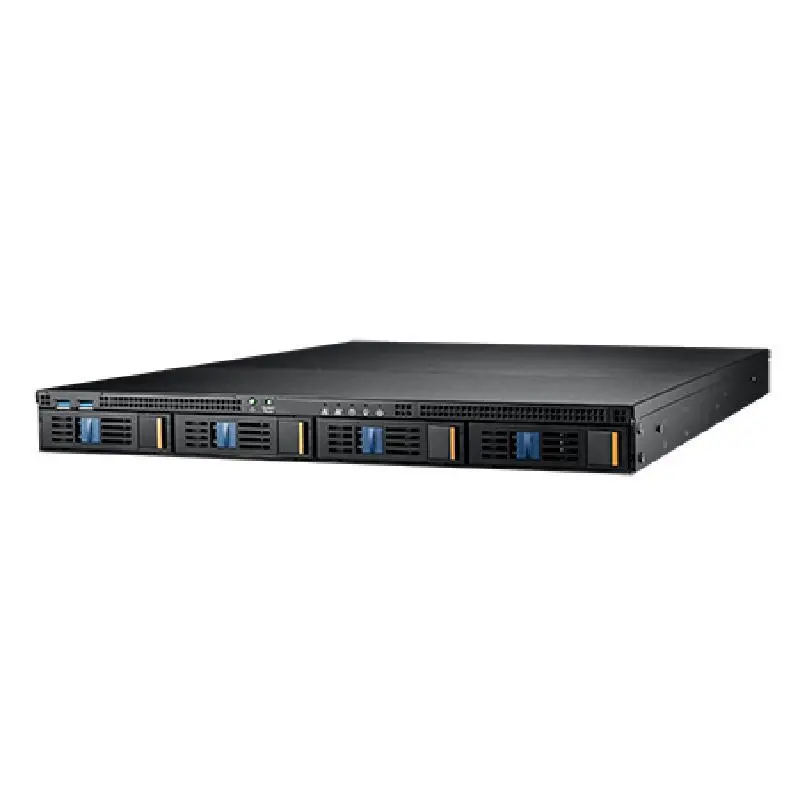

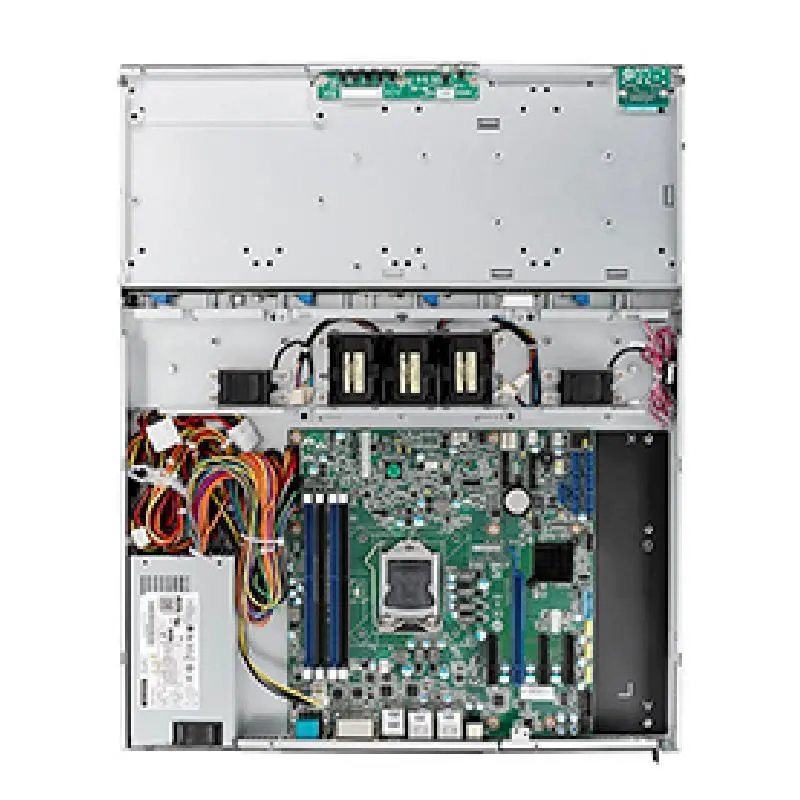

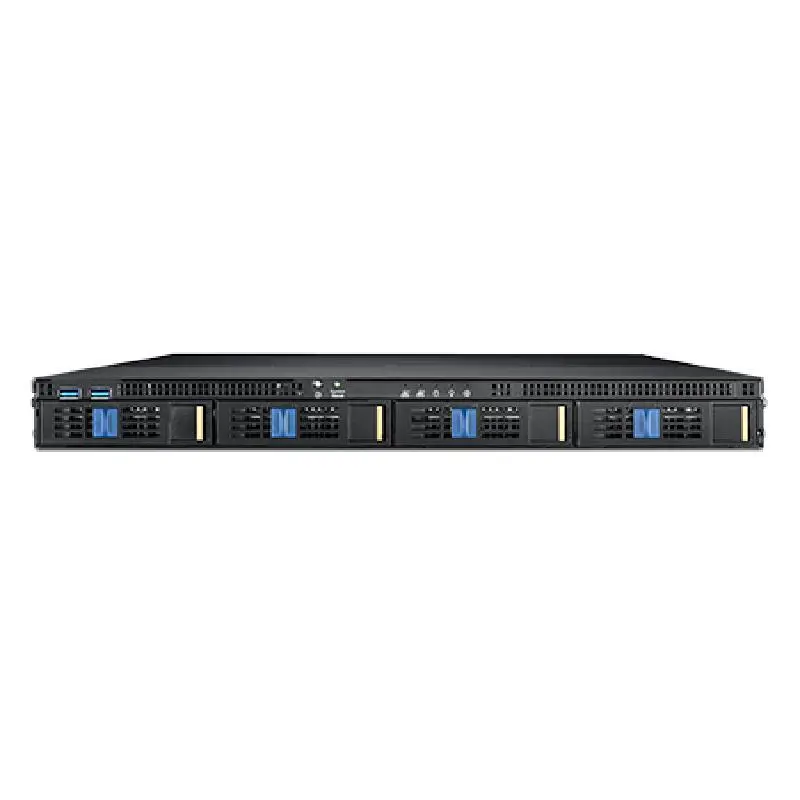

Advantech HPC-8104 1U Storage Chassis for MicroATX/ATX Serverboard with 4 Hot-swap Drive Bays
