| HPC-8108-65RA1 | HPC-8108-85ZA1 | ||
| Disk Drive Bay | Slim ODD | 1 | 1 |
| Disk Drive Bay | 2.5” External | 8(Hot-Swap) | 8(Hot-Swap) |
| Cooling | Fan | 3 (4056 / 34CFM) + 1 (4028 / 23CFM) high speed fan | 3 (4056 / 34CFM) + 1 (4028 / 23CFM) high speed fan |
| Front I/O Interface | USB 2.0 | 1 | 1 |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, LAN2, System Information | Power, HDD, LAN1, LAN2, System Information |
| Expansion Slot | - | 1 x Full Height / Half Length add-on card | 1 x Full Height / Half Length add-on card |
| Environment | Operating Temperature | 0 ~ 35° C (32 ~ 95° F) | 0 ~ 35° C (32 ~ 95° F) |
| Environment | Non-operating Temperature | -40 ~ 60 °C (-40 ~158 °F) | -40 ~ 60 °C (-40 ~158 °F) |
| Environment | Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Non-operating Humidity | 10 ~ 95% @ 60° C, non-condensing | 10 ~ 95% @ 60° C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 0.25 Grms | 0.25 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 Grms | 2 Grms |
| Environment | Operating Shock | 10G, half sine wave, 11 ms duration | 10G, half sine wave, 11 ms duration |
| Physical Characteristics | Dimensions (W x H x D) | 438 x 43.9 x 597 (17.24" x 1.73" x 23.5") | 438 x 43.9 x 597 (17.24" x 1.73" x 23.5") |
| Physical Characteristics | Weight | 9 kg (without hard drivers) | 9 kg (without hard drivers) |
| Power Supply | Power Supply | 1+1 650W redundant power supply | 850W (Single) |

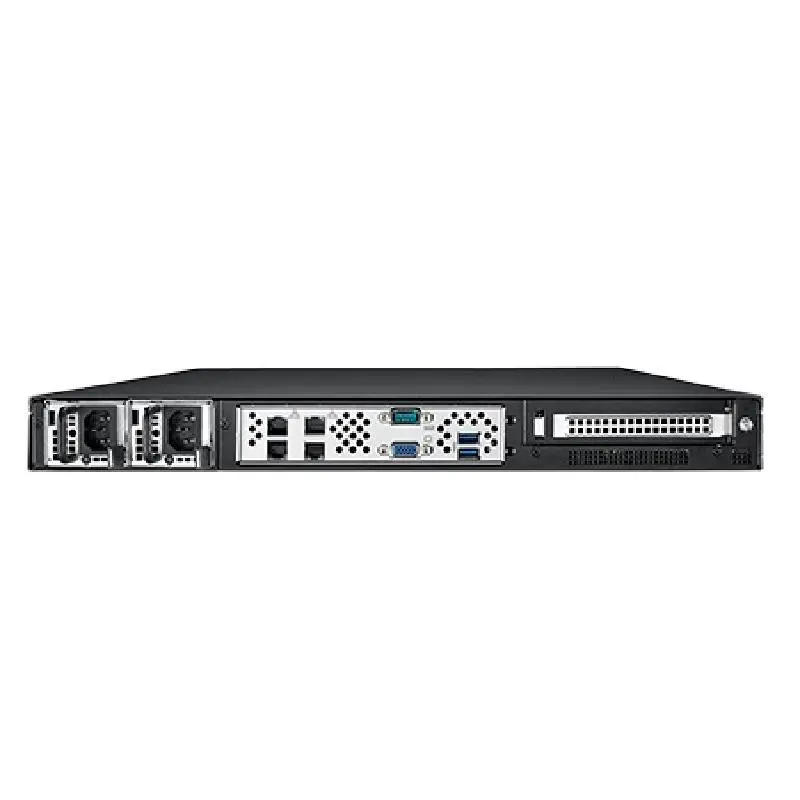

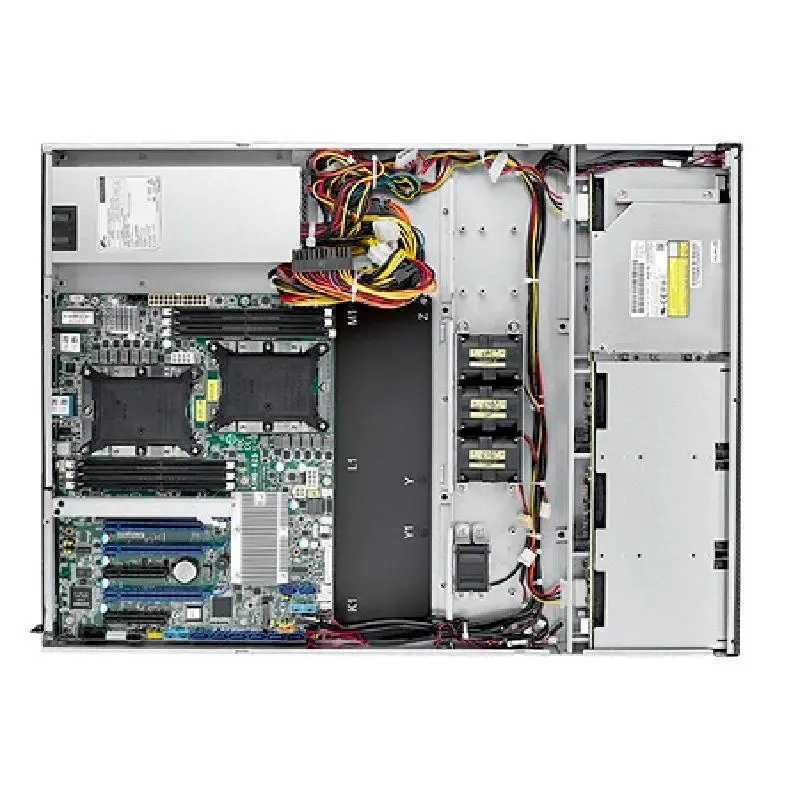

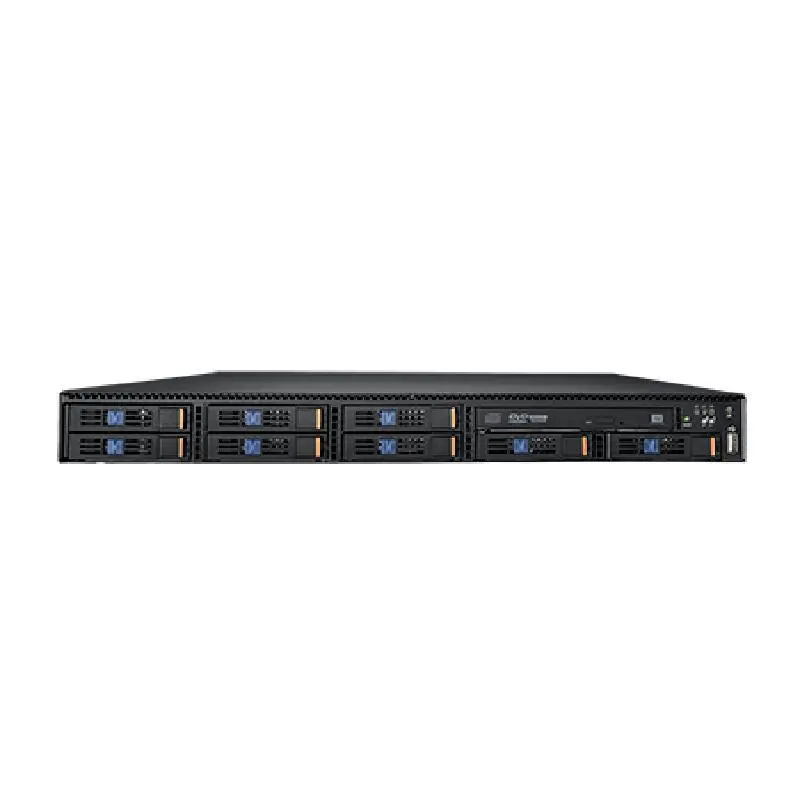

Advantech HPC-8108 1U Storage Chassis for EATX/ATX Server board with 8 hot-swap Drive Bays
