| HPC-7320MB-00XE | ||
| Cooling | Air Filter | Yes |

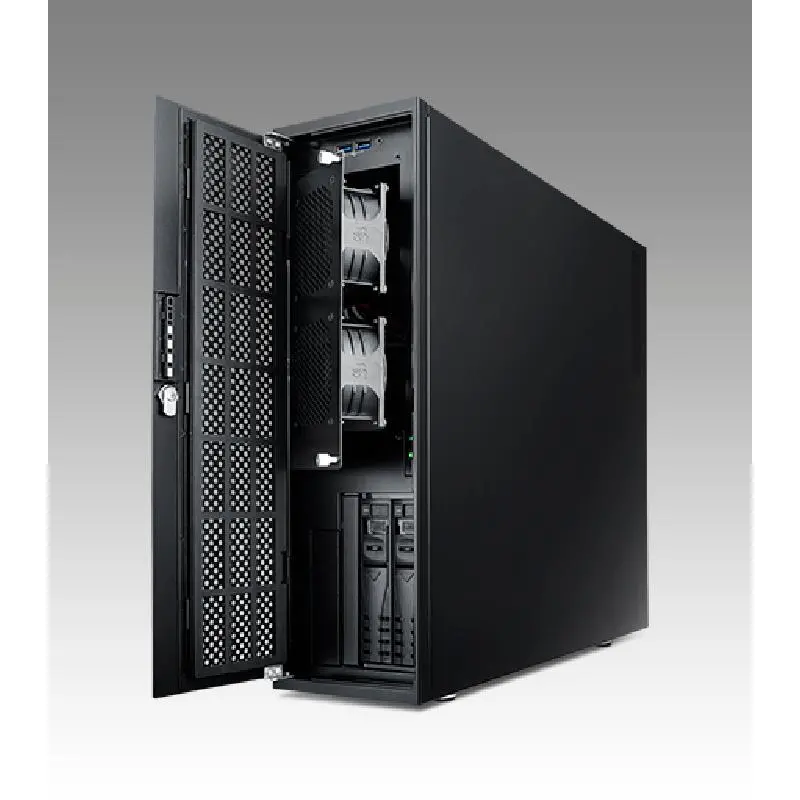

| Cooling | Fan | 2 (8cm / 141.9CFM) + 1 (6cm / 27.72CFM) |
| Drive Bay | 3.5 External Bay | - |
| Drive Bay | 3.5 Internal Bay | 2 |

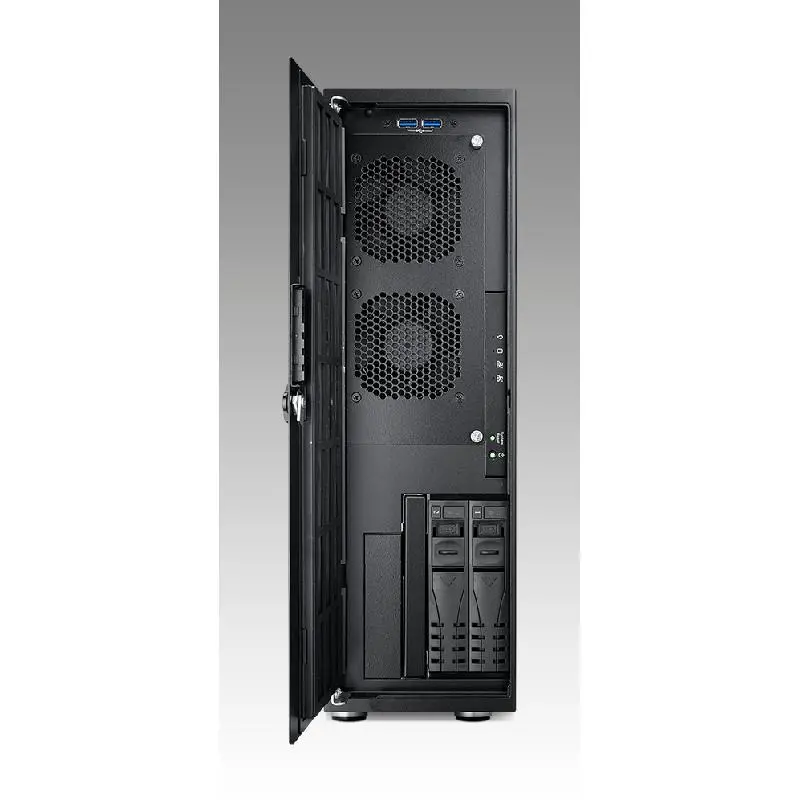

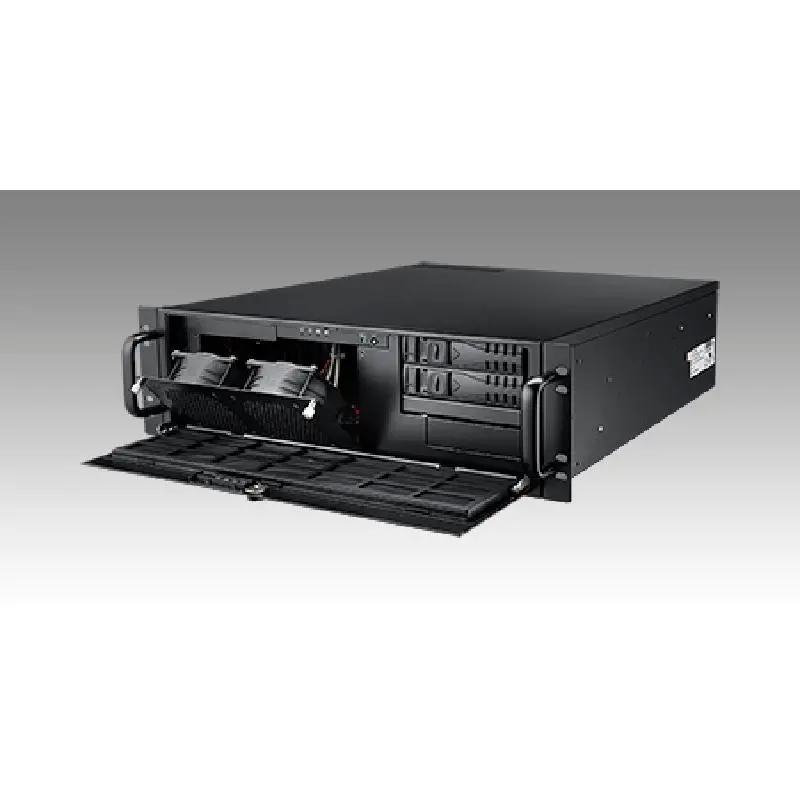

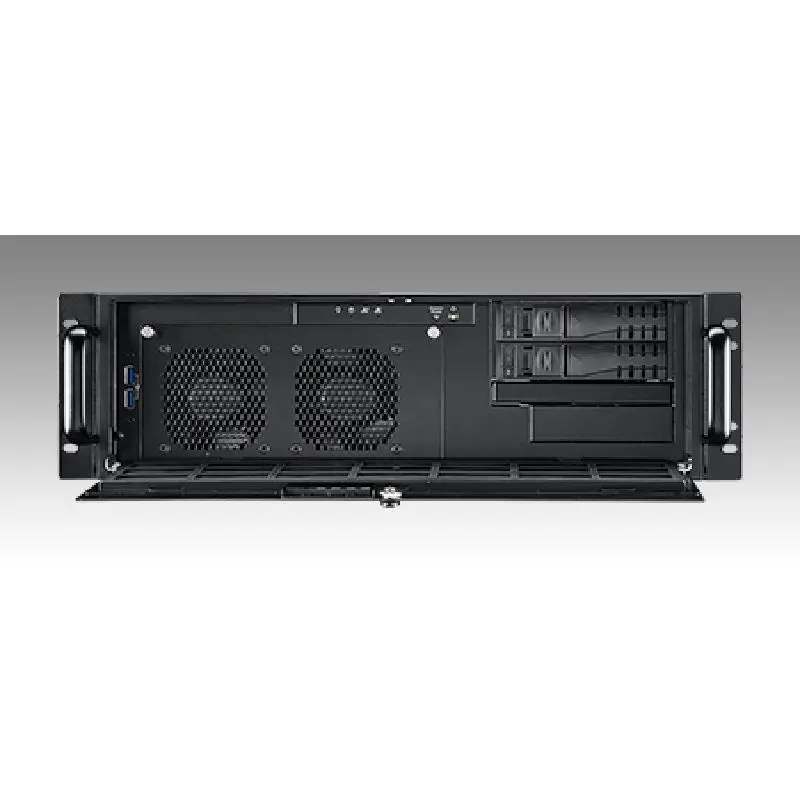

| Drive Bay | Hot Swap External | 2 (3.5" or 2.5") |
| Drive Bay | Slim Optical Drive External | 1 |
| Environment | Non-operating Humidity | 10 ~ 95% @ 60° C, non-condensing |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 Grms |
| Environment | Non-Operational Temperature | -40 ~ 70° C (-40 ~ 156° F) |
| Environment | Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Shock | 10 G (with 11 ms duration, half sine wave) |
| Environment | Vibration (5 ~ 500 Hz) | 1 Grms |
| Front I/O Interface | USB 3.0 | 2 |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, and LAN2 |

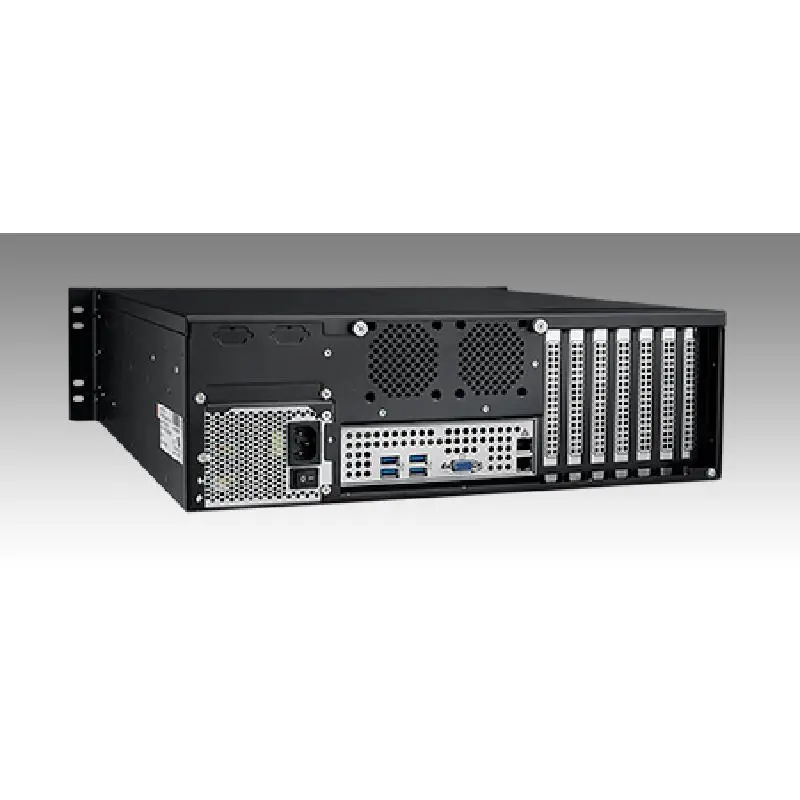

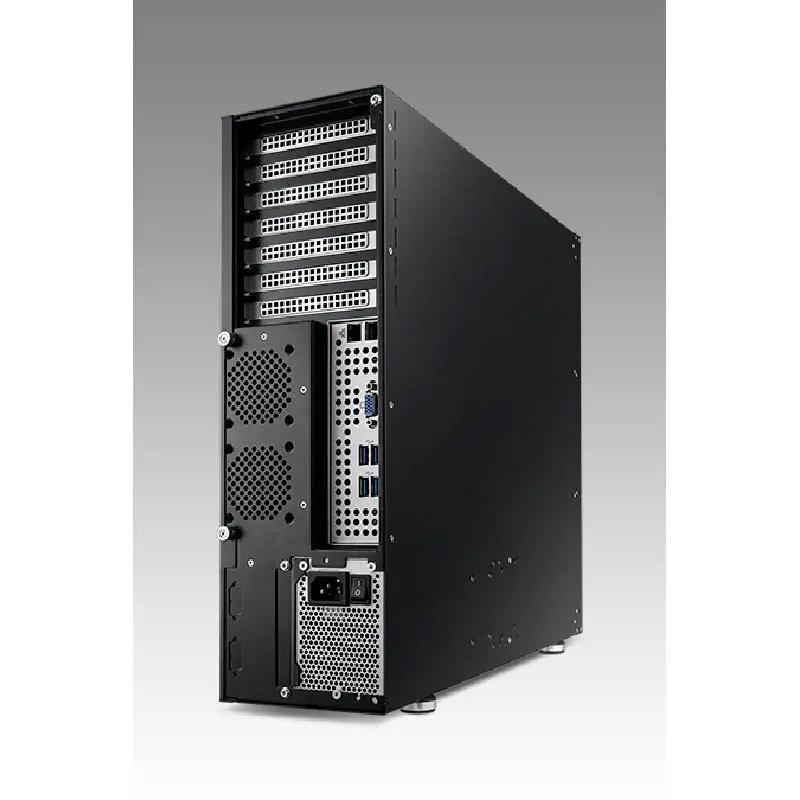

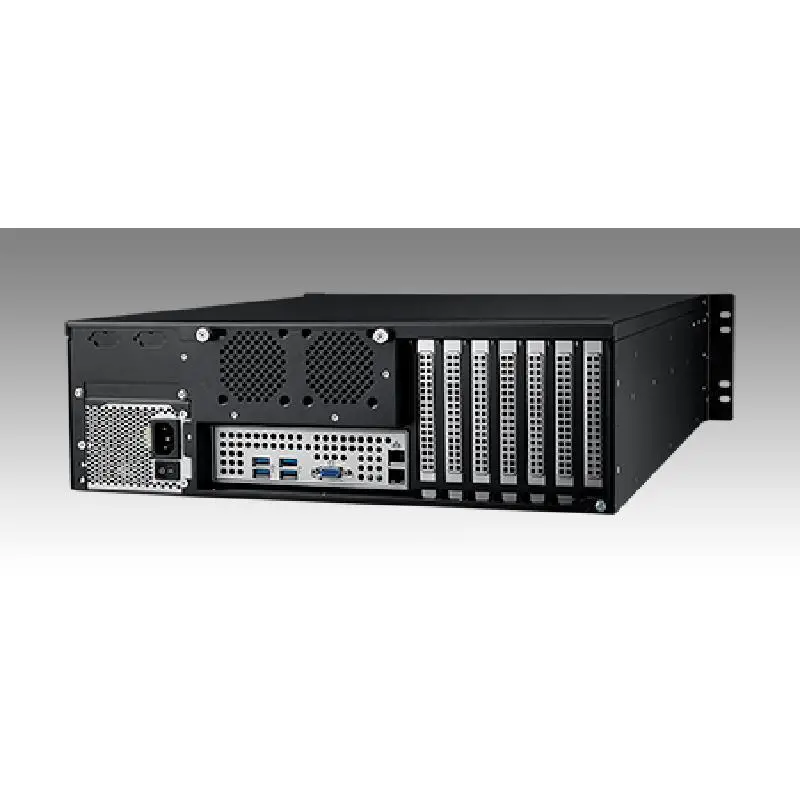

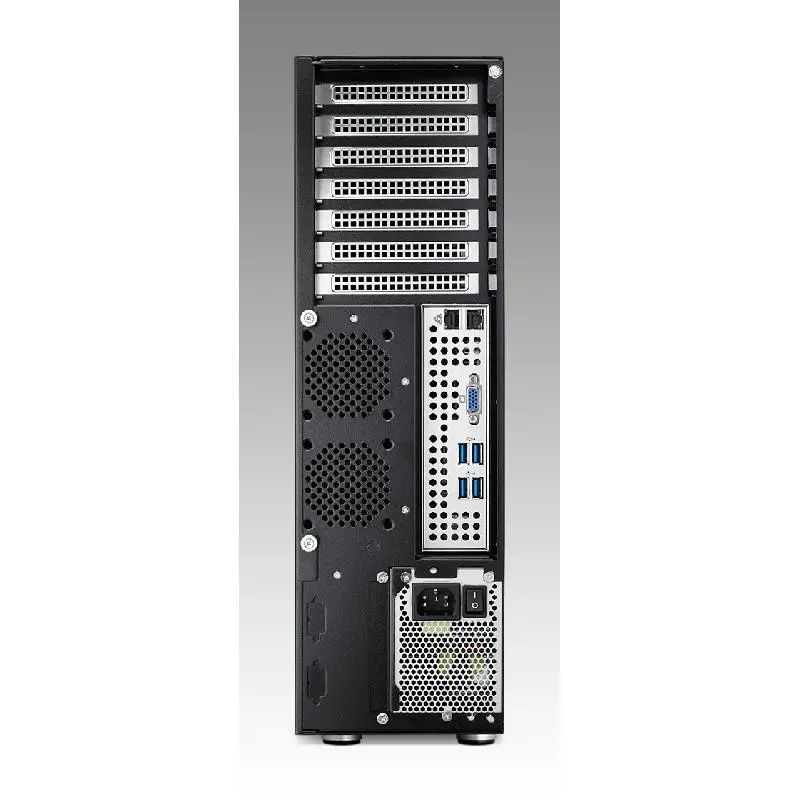

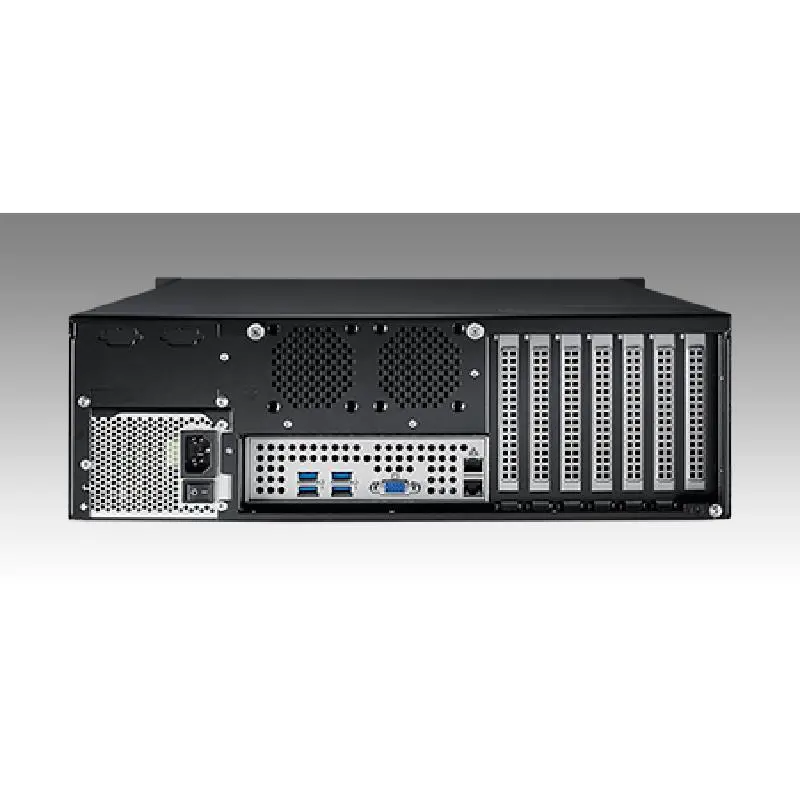

| Miscellaneous | Rear Panel | Two 9-pin D-Sub openings |
| Physical Characteristics | Dimensions (W x H x D) | 426.4 x 132.2 x 480 mm (16.79" x 5.2" x 18.9") |
| Physical Characteristics | Weight | 12 kg |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) |

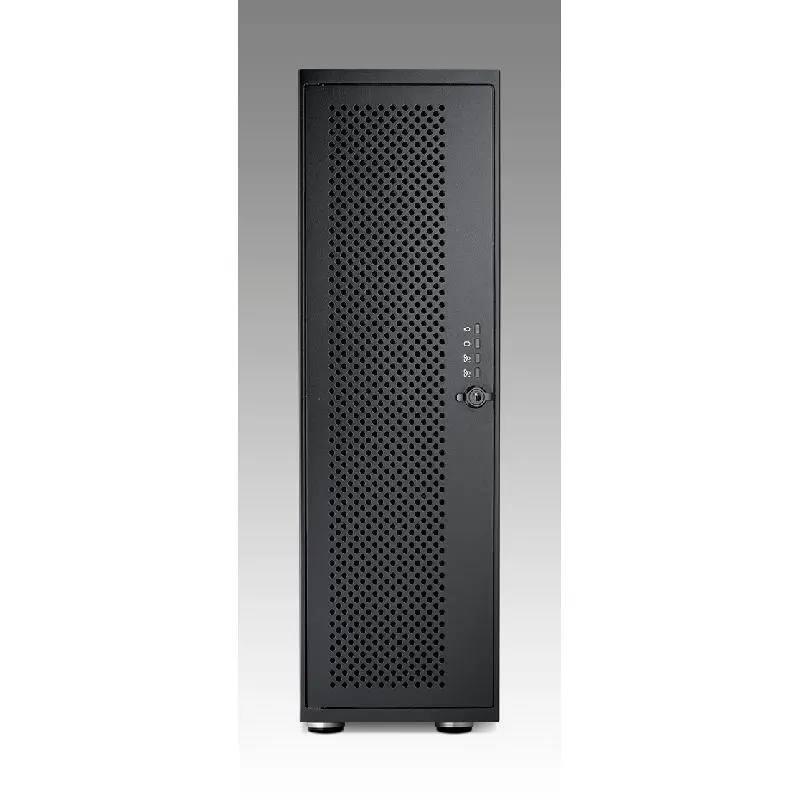

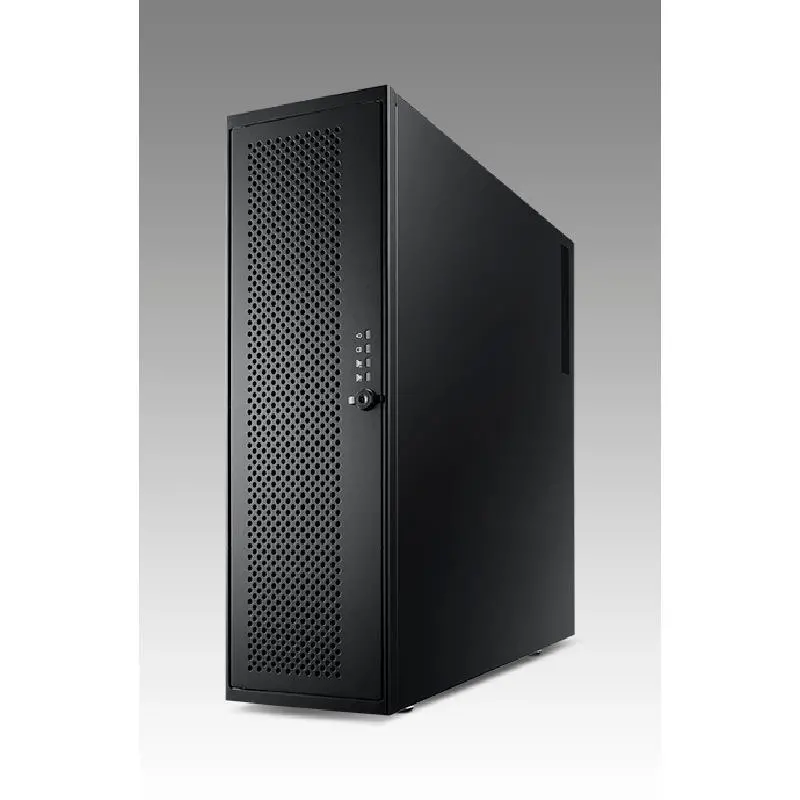

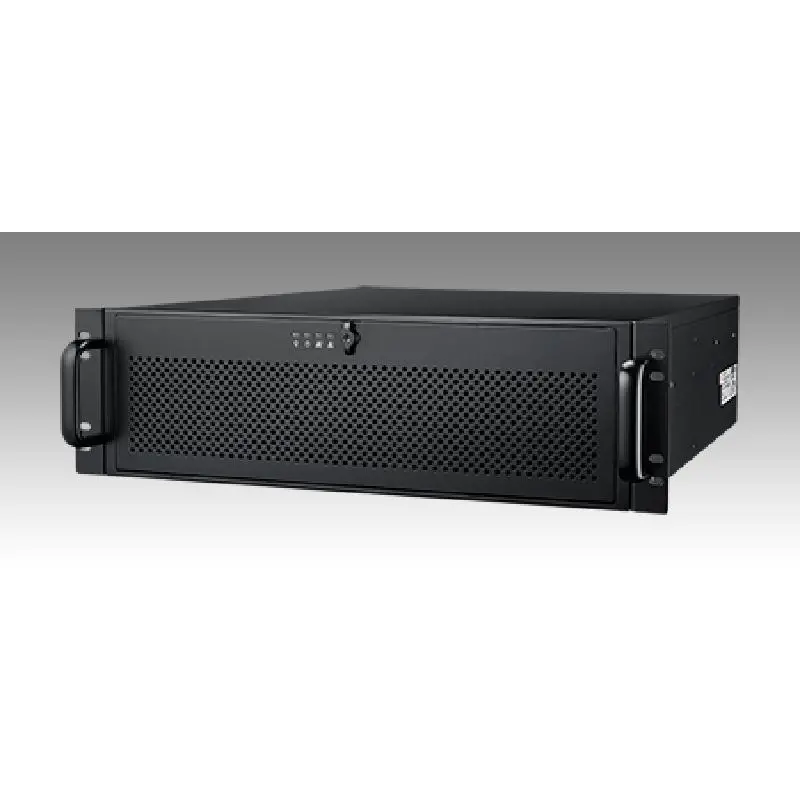

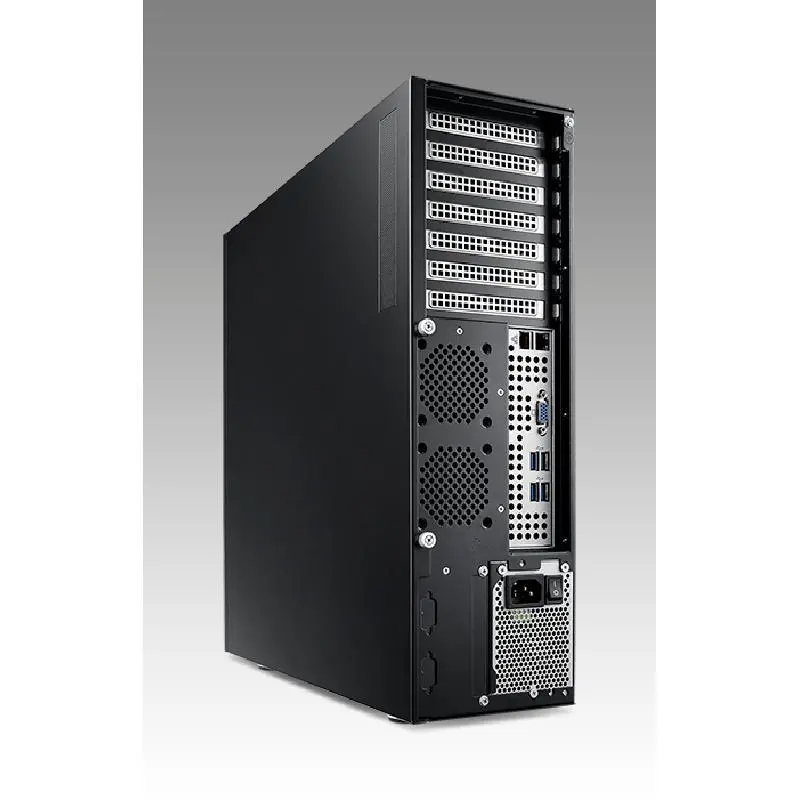

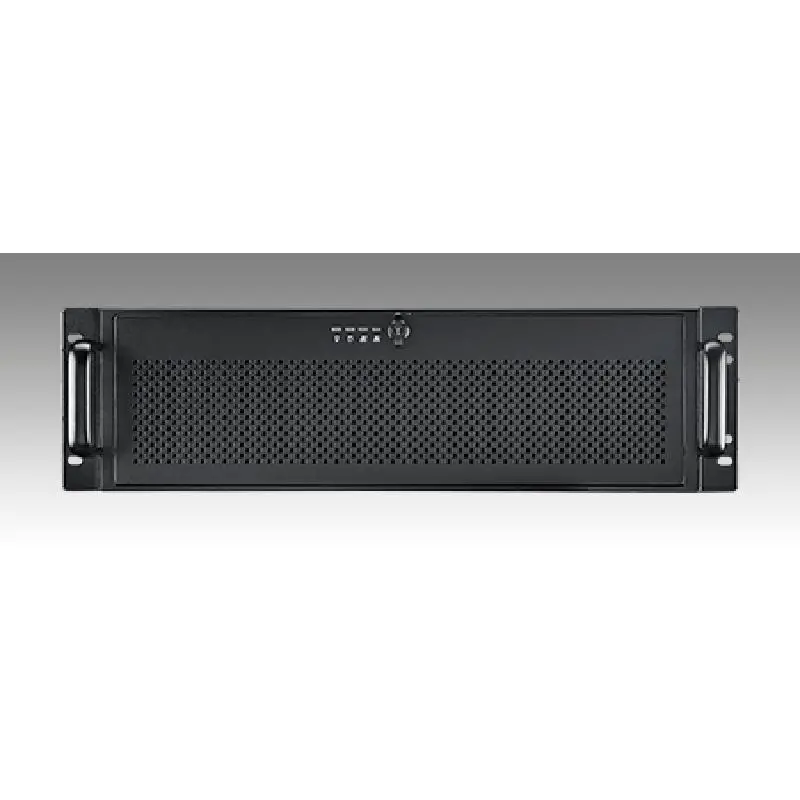

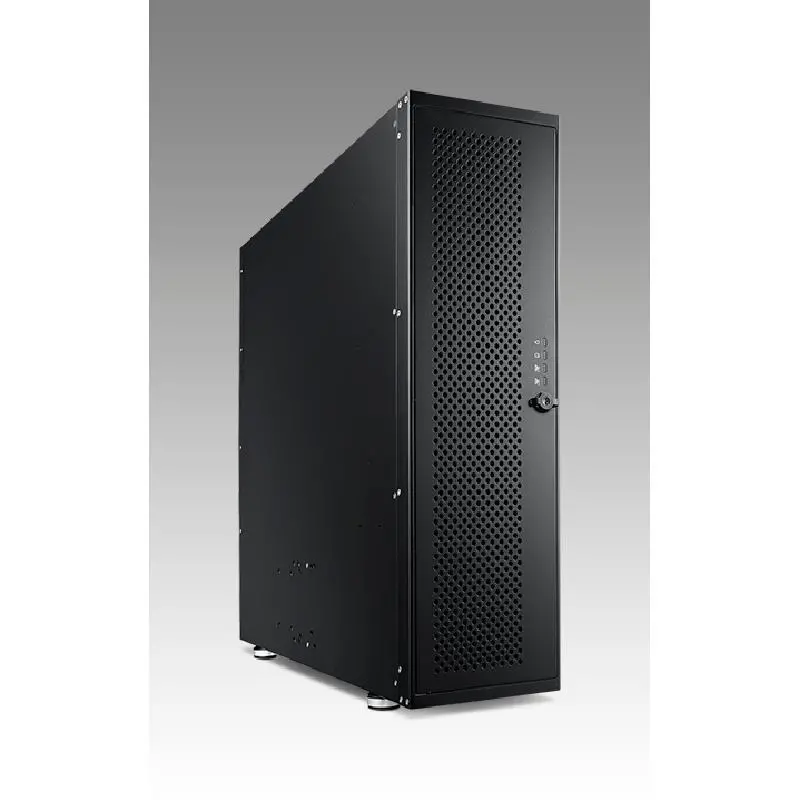

Advantech HPC-7320 3U Short-depth Rackmount/ Tower Chassis for EATX/ATX/MicroATX Motherboard
