| HPC-7420-85ZX | HPC-7420-12ZX | ||
| Disk Drive Bay | Slim/Ultra Slim ODD | 1 | 1 |
| Disk Drive Bay | 2.5" Front-Accessible | 2 (option) | 2 (option) |
| Disk Drive Bay | 3.5" Internal | 2 (1 can to 2.5" HDD bracket) | 2 (1 can to 2.5" HDD bracket) |
| Cooling | Fan | 3 (8cm / 57CFM) | 3 (12cm/238CFM) |
| Cooling | Air Filter | Yes | Yes |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, LAN2, System Information | Power, HDD, LAN1, LAN2, System Information |
| Miscellaneous | Rear Panel | Two USB reserved ports | Two USB reserved ports |
| Expansion Slot | FHFL PCIe | Up to 7 | Up to 11 |
| Environment | Operating Temperature | 0 ~ 50°C (with wide-temp peripherals) | 0 ~ 50°C (with wide-temp peripherals) |
| Environment | Non-operating Temperature | -40 ~ 70 °C (-40 ~ 156 °F) | -40 ~ 70 °C (-40 ~ 156 °F) |
| Environment | Operating Humidity | 10 ~ 95% @ 50°C, non-condensing | 10 ~ 95% @ 50°C, non-condensing |
| Environment | Non-operating Humidity | 10 ~ 95% @ 70°C, non-condensing | 10 ~ 95% @ 70°C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 0.3 Grms | 0.3 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 Grms | 2 Grms |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Physical Characteristics | Dimensions (W x H x D) | 438 x 177 x 450 mm ( 17.24" x 6.97" x 17.7") | 438 x 177 x 450 mm ( 17.24" x 6.97" x 17.7") |
| Physical Characteristics | Weight | 16 kg | 16 kg |
| Power Supply | Power Supply | 850W (Single) | 1200 (1+0 non-redundancy) |
| Form Factor | Board | ATX MB | EEATX/EATX/ATX MB |
| Certification | EMC | CE/FCC | CE/FCC |

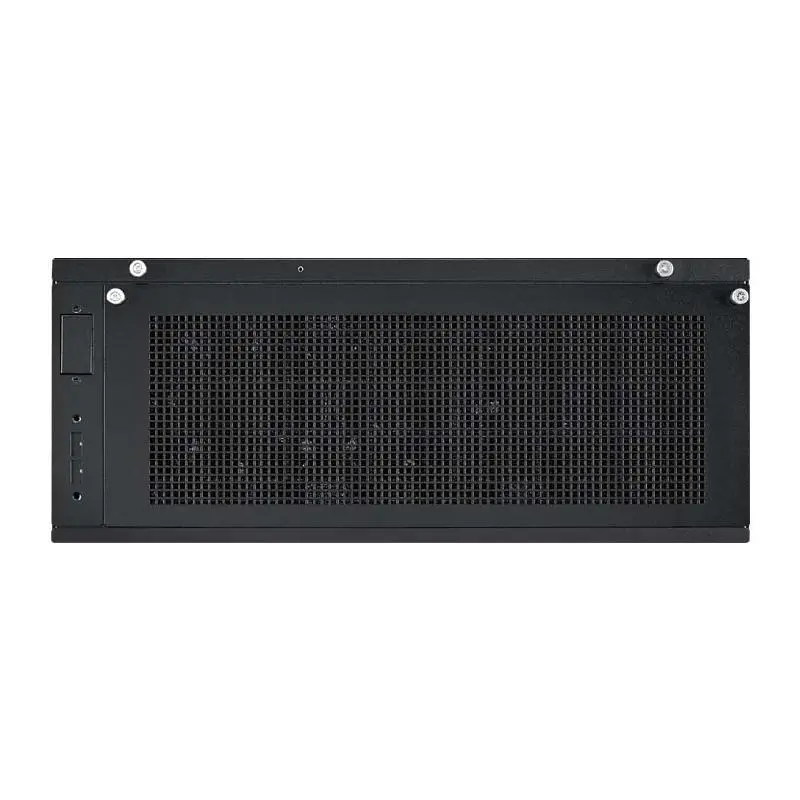

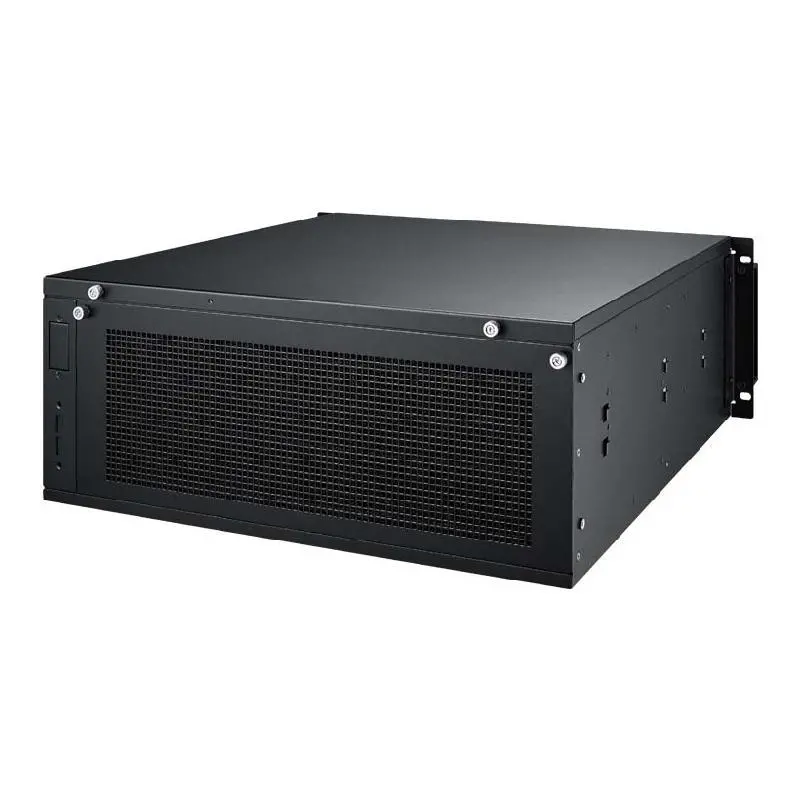

Advantech HPC-7420 Short depth 4U Front Access Chassis for EE-ATX/EATX/ATX Server board with 11 FH/FL expansion slots
