| HPC-7484-70ZB | HPC-7484-12ZB | ||
| Disk Drive Bay | Slim ODD | 1 | 1 |
| Disk Drive Bay | 2.5” External | 1 | 1 |

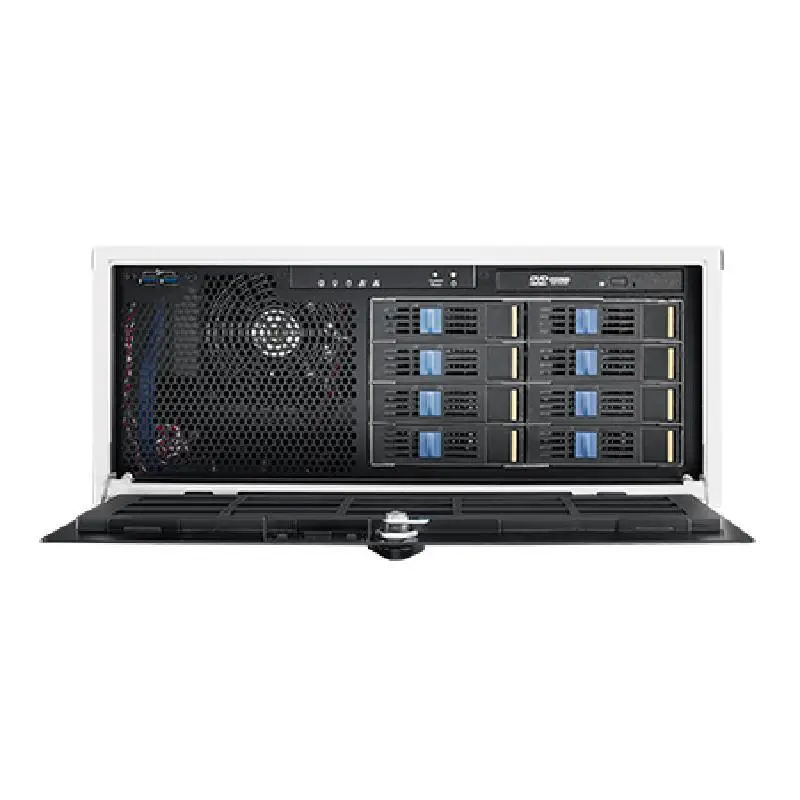

| Disk Drive Bay | Hot-swap | 8 (2.5"/3.5" SASIII/SATAIII HDD) | 8 (2.5"/3.5" SASIII/SATAIII HDD) |
| Cooling | Fan | 2 (12cm / 150CFM) | 2 (12cm / 150CFM) |
| Cooling | Air Filter | Yes | Yes |
| Front I/O Interface | USB 3.0 | 2 | 2 |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, LAN2, System Information | Power, HDD, LAN1, LAN2, System Information |

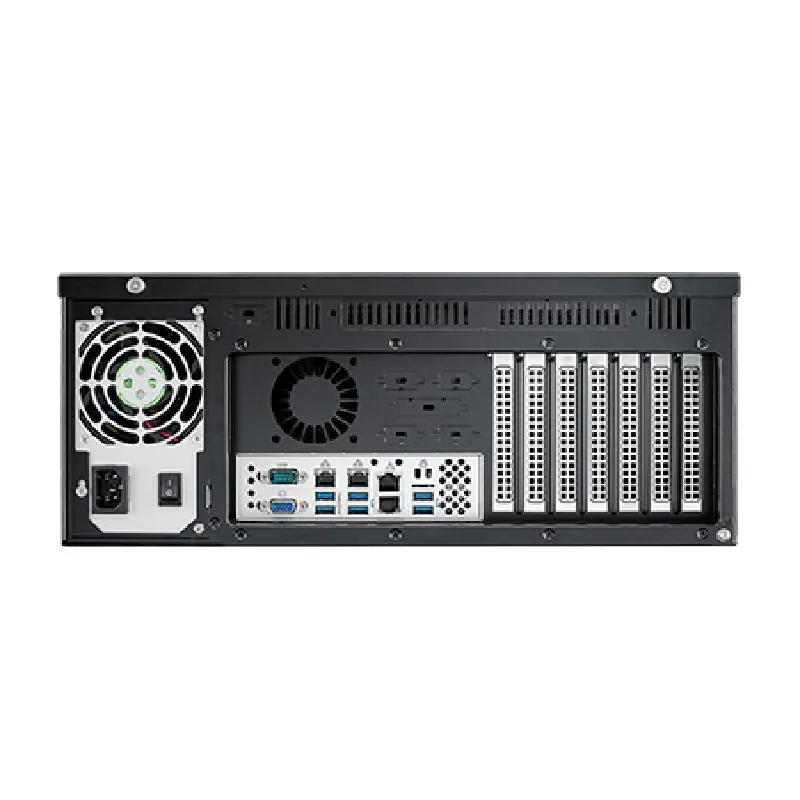

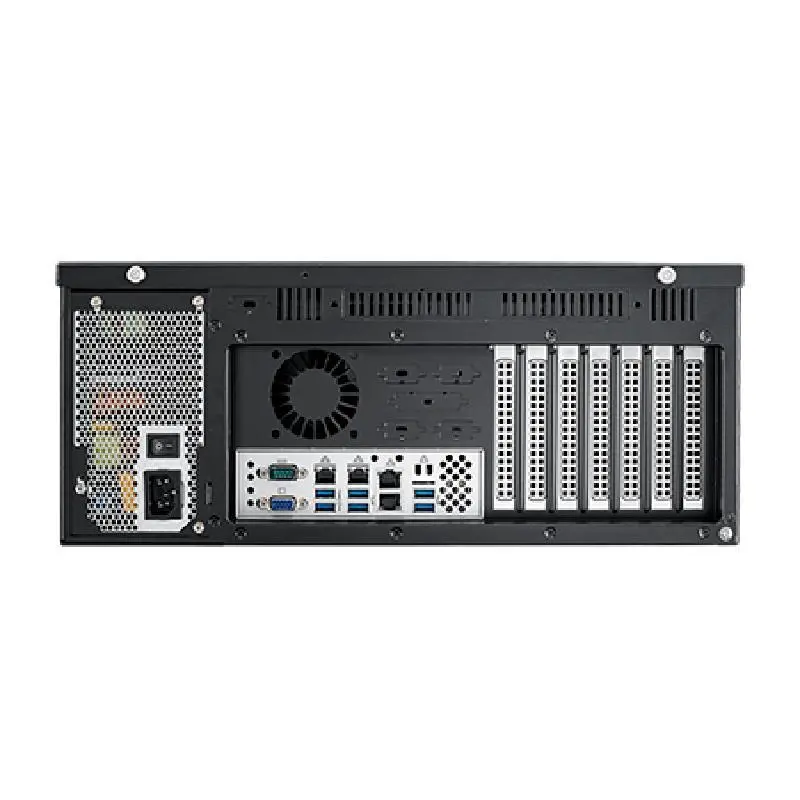

| Miscellaneous | Rear Panel | Five 9-pin D-Sub & one 68-pin SCSI openings | Five 9-pin D-Sub & one 68-pin SCSI openings |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) | 0 ~ 40° C (32 ~ 104° F) |
| Environment | Non-operating Temperature | -40 ~ 70 °C (-40 ~ 156 °F) | -40 ~ 70 °C (-40 ~ 156 °F) |
| Environment | Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Non-operating Humidity | 10 ~ 95% @ 60° C, non-condensing | 10 ~ 95% @ 60° C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 1 Grms | 1 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 Grms | 2 Grms |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Physical Characteristics | Dimensions (W x H x D) | 426 x 177 x 630 mm (16.7" x 7.0" x 24.8") | 426 x 177 x 630 mm (16.7" x 7.0" x 24.8") |
| Physical Characteristics | Weight | 19.0 kg (41.8 lb) | 19.0 kg (41.8 lb) |
| Power Supply | Power Supply | 700W (Single) | 1200W (Single) |

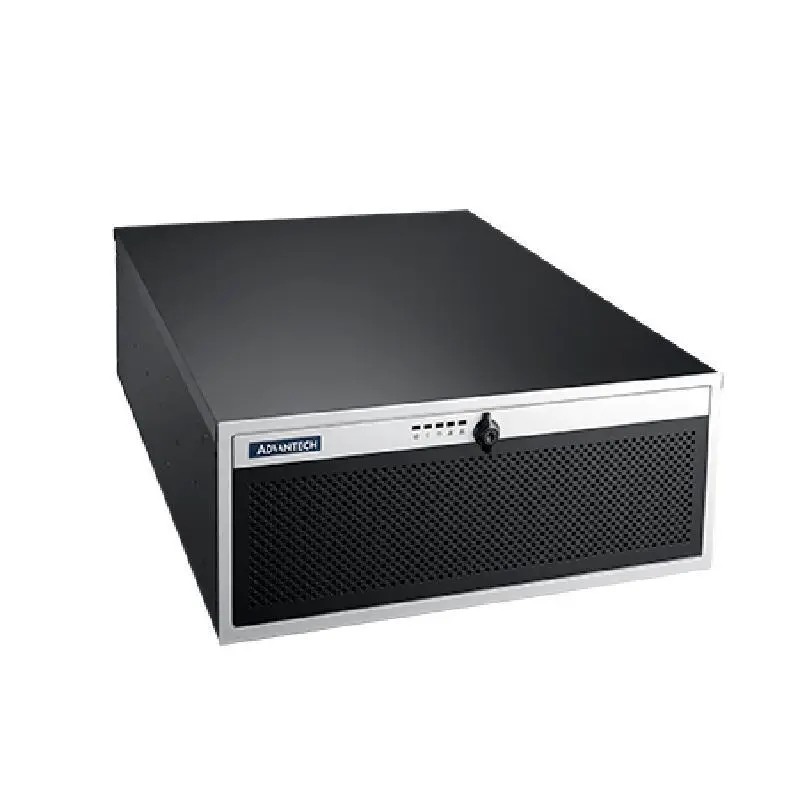

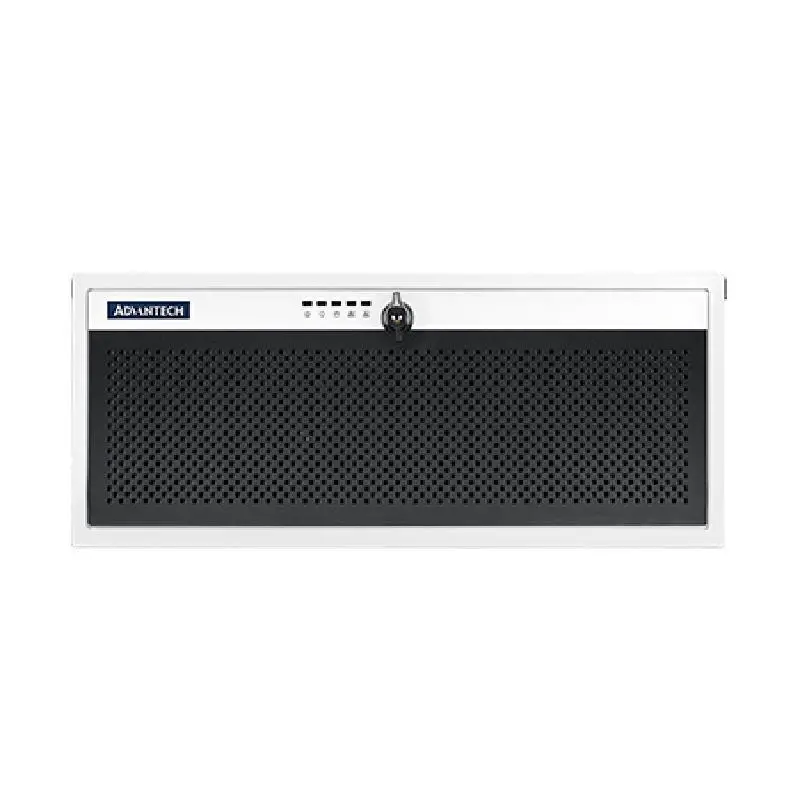

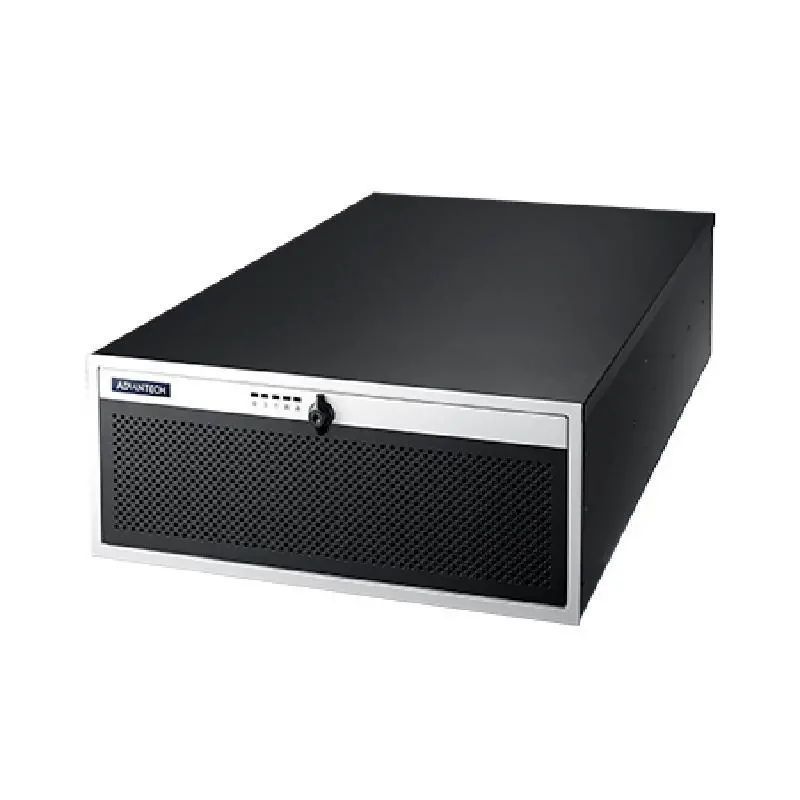

Advantech HPC-7484 4U Rackmount / Tower Chassis for EATX/ATX/MicroATX Motherboard with 8 Hot Swap Drive Trays
