| PCIE-1221PS-00A1E | ||
| Controller | Controller | Intel® X550 |
| Controller | Physical Functions | 2 |
| Controller | Virtual Functions | 128 |
| Ethernet | PCI Express Lanes | x4 |
| Ethernet | Speed | Gen 3 |
| Ethernet | Port Number | 2 |

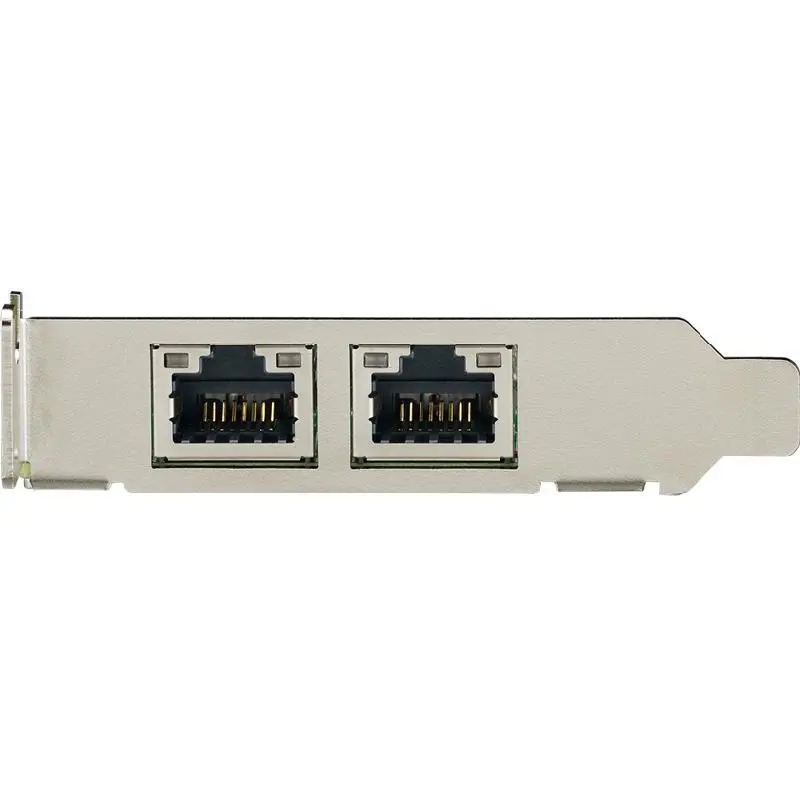

| Ethernet | Ports | 10GbE Base-T (RJ45) |
| Networking | LAN bypass | Not supported |
| Power | Voltage | +12V |
| Power | Watts | 12.5W |
| Environment | Operating Humidity | 0 to 90% (non-condensing) |
| Environment | Operating Temperature | 0 ~ 55 °C (32 ~ 131 °F) |
| Environment | Storage | -40 ~ 65° C (-40 ~ 149° F) |
| Mechanical Design | Board Dimensions | 110 x 68.8 mm |
| Mechanical Design | Bracket | Full height and half height options available |
| Certification | EMC | CE/FCC Class A |
| Compatibility (Processor architecture/Model) | Intel Haswell | SKY-8200 / ASMB-923 / ASMB-823 / AGS-913 |
| Compatibility (Processor architecture/Model) | Intel Broadwell | SKY-8100 / SKY-8200 |
| Compatibility (Processor architecture/Model) | Intel Skylake | SKY-8101 / SKY-8201 / ASMB-815 / ASMB-825 / ASMB-925 / ASMB-935 / ASMB-975 / SKY-6100 / SKY-6200 |
| Compatibility (Processor architecture/Model) | Intel Kaby Lake | ASMB-585 / ASMB-785 |
| Compatibility (Processor architecture/Model) | OS version | Win2012/ Win10 x64 / CentOS Linux release 7.3/ Red Hat Enterprise Linux Server 7.2 |

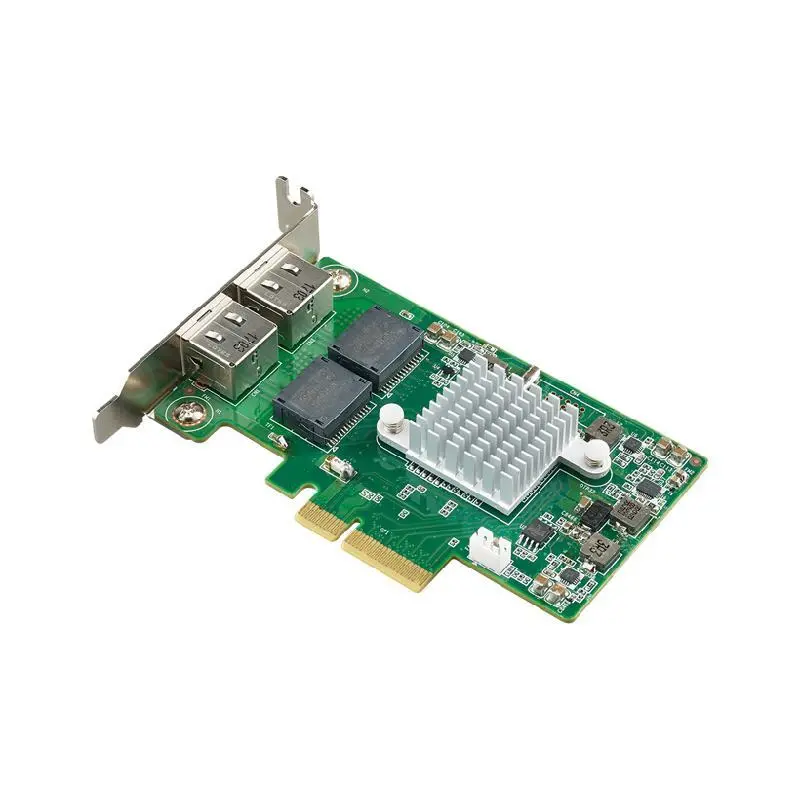

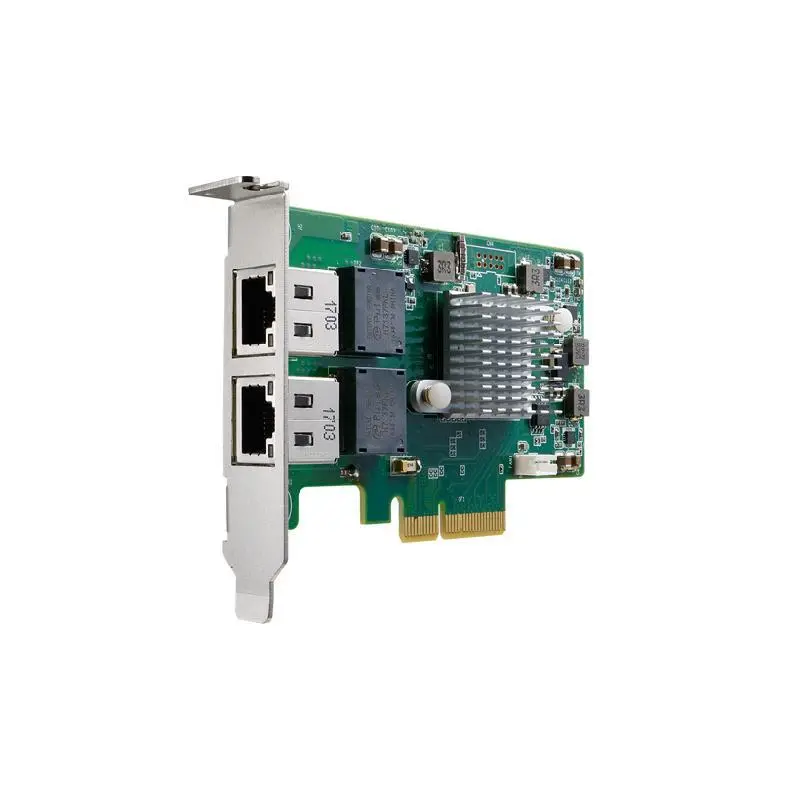

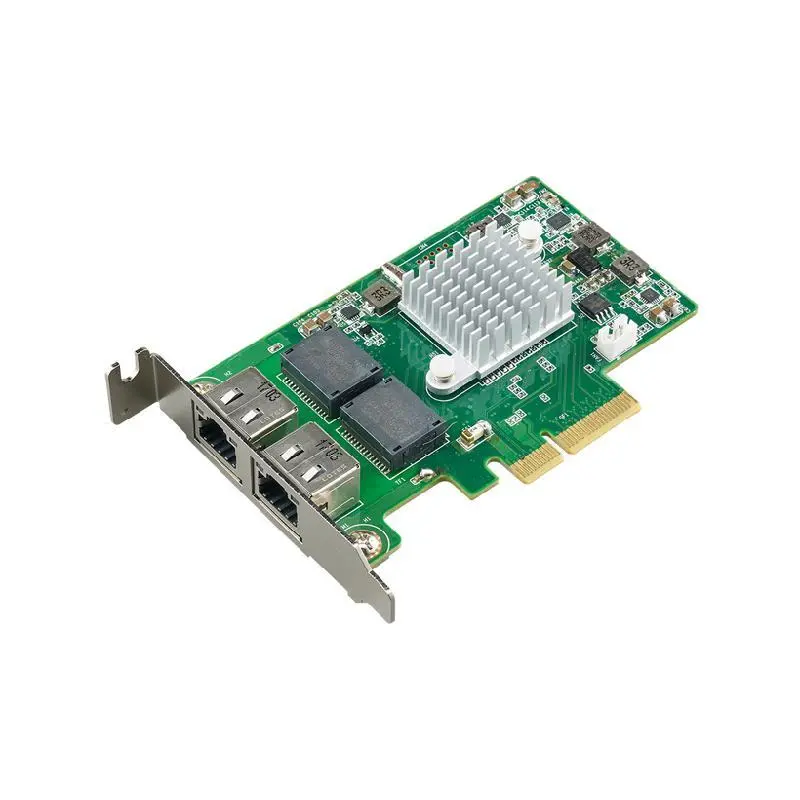

Advantech PCIE-1221 Dual Port Copper 10GbE Ethernet PCI Express Server Adapter with Intel® X550
