| PCIE-5711NP-MEA1E | ||
| Controller | Controller | NVIDIA® BlueField®-2 |
| Controller | Physical Functions | 8 |
| Controller | Virtual Functions | 1K |
| Ethernet | PCI Express Lanes | x16 |
| Ethernet | Speed | Gen 4 |
| Ethernet | Port Number | 1 |
| Ethernet | Ports | 200GbE QSFP56 |
| Networking | LAN bypass | Not supported |
| Power | Voltage | +12V |
| Power | Watts | 75W |
| Mechanical Design | Board Dimensions | 167 x 68.9 mm |
| Mechanical Design | Bracket | Full height and half height options available |
| Environment | Operating Humidity | 0 to 90% (non-condensing) |
| Environment | Operating Temperature | 0 ~ 45° C (32 ~ 113° F) |
| Environment | Storage | -40 ~ 70 °C (-40 ~ 158 °F) |
| Certification | EMC | CE / FCC / VCCI / ICES / RCM |
| Compatibility (Processor architecture/Model) | Intel Cascade Lake | ASMB-815/ ASMB-825/ ASMB-925/ ASMB-935/ ASMB-975 |
| Compatibility (Processor architecture/Model) | Intel Ice Lake | ASMB-816/ ASMB-976 /ASMB-622 |
| Compatibility (Processor architecture/Model) | Intel Alder lake | ASMB-588/ ASMB-788/ ASMB-610V3 |
| Compatibility (Processor architecture/Model) | AMD Milian | ASMB-830 |

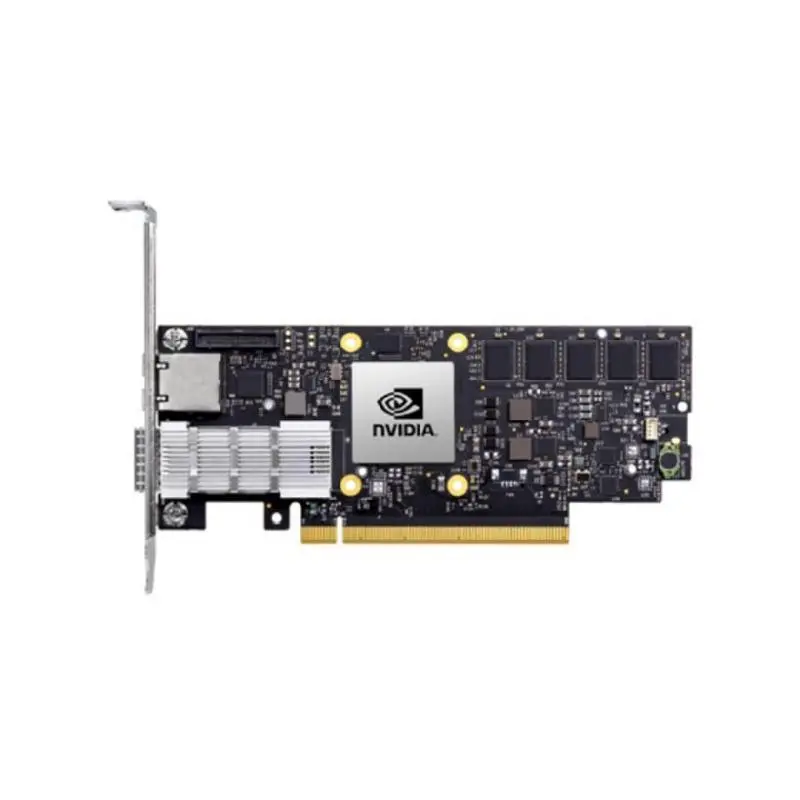

Advantech PCIE-5711NP Single Port Fiber 200GbE Ethernet PCI Express Data Processing Unit with NVIDIA® BlueField®-2
