| NMC-4008-02FBSLA1 | ||
| Controller | Controller | Intel® X710-BM2 |
| Interface | Interface | PCI-E 3.0 x8 |
| Speed | Speed | 40GbE |
| Port | Port | 2x QSPF+ Port |
| Advanced Software Features | Advanced Software Features | Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation |
| LED Definition | LED Definition | -Port#1 & Port#2 Indicator:Link: LED onAct: Blinking-Bypass mode Indicator (Orange):Bypass mode: on Normal mode: off |
| OS Support | OS support | Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 |
| Operating Conditions | Operating Conditions | Operation: 0 ~ 45°C, Storage: -20 ~ 60°C |
| Power Voltage & consumption | Power Voltage & consumption | +12V ± 15% 16W |
| Dimension (mm) | Dimension (mm) | 163.7 x 74.6 x 35.5 mm (6.4" x 2.9" x 1.4") (Latch type), 175 x 74.5 x 42.5 mm (6.9" x 2.9" x 1.7") (Thumbscrew type) |
| Compliance | Compliance | CE/FCC |

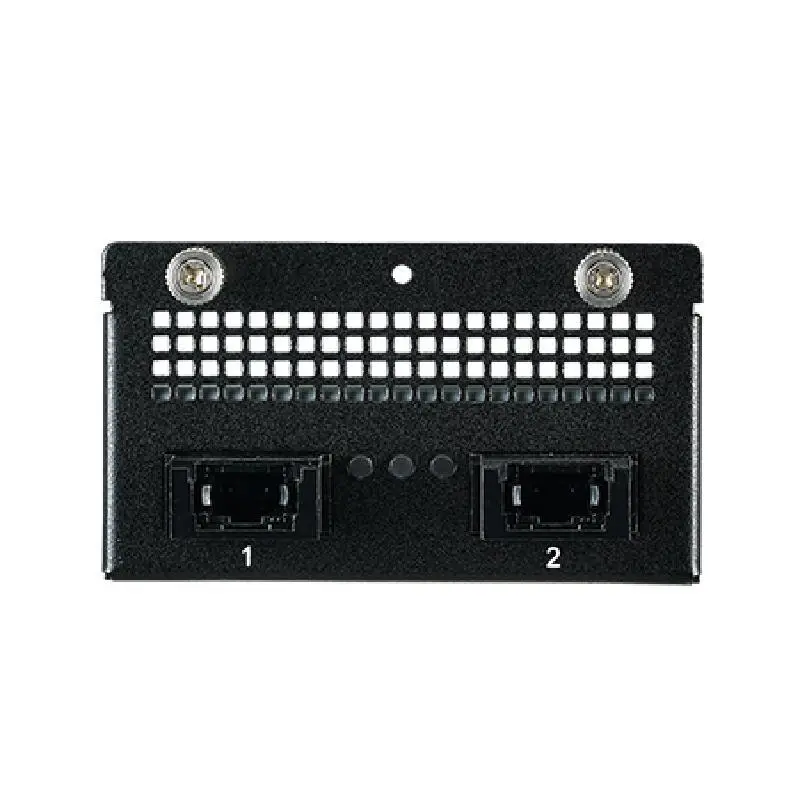

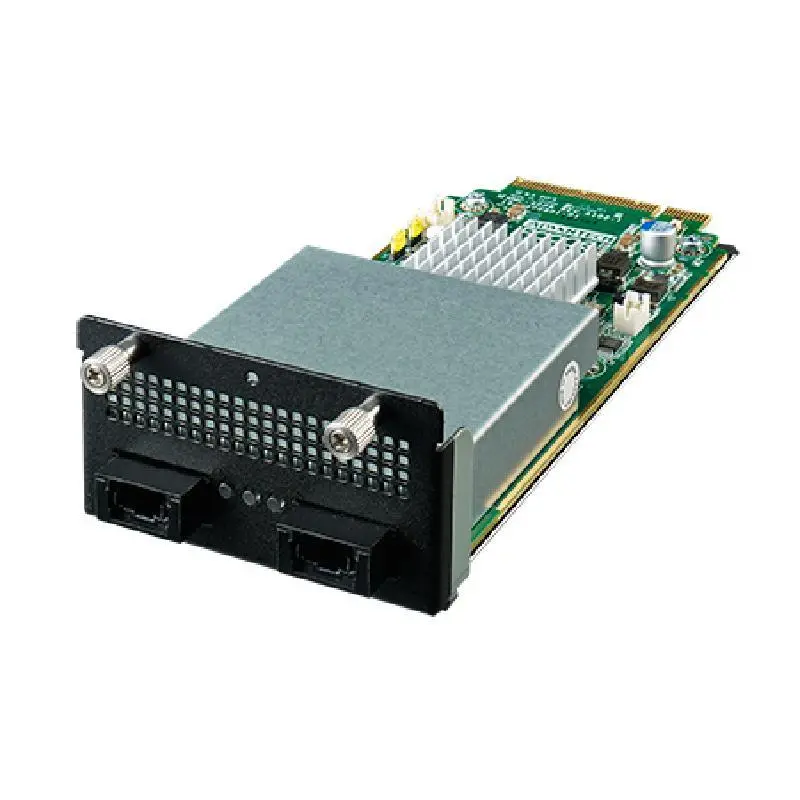

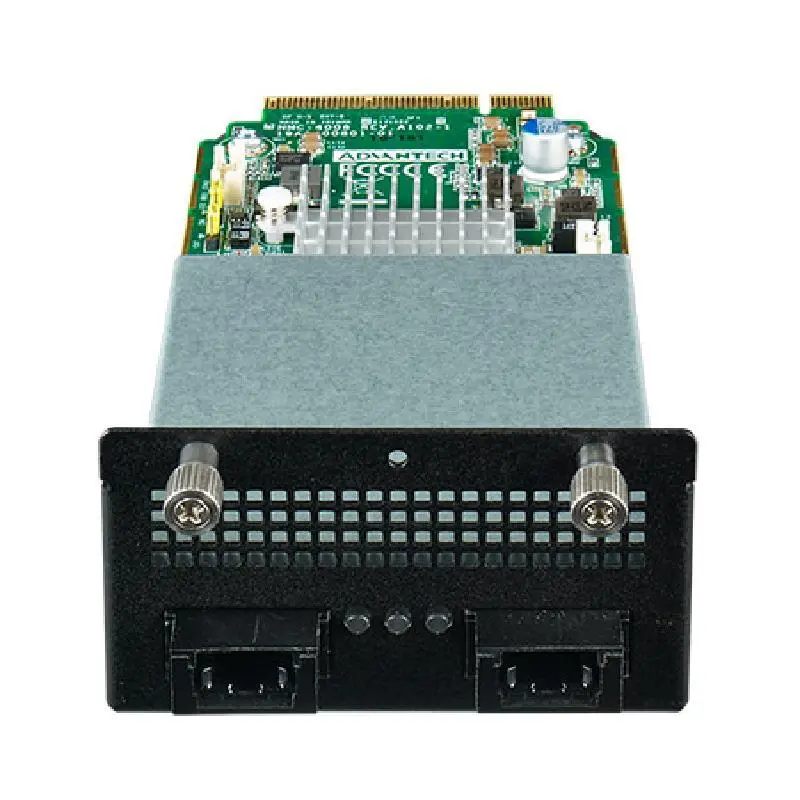

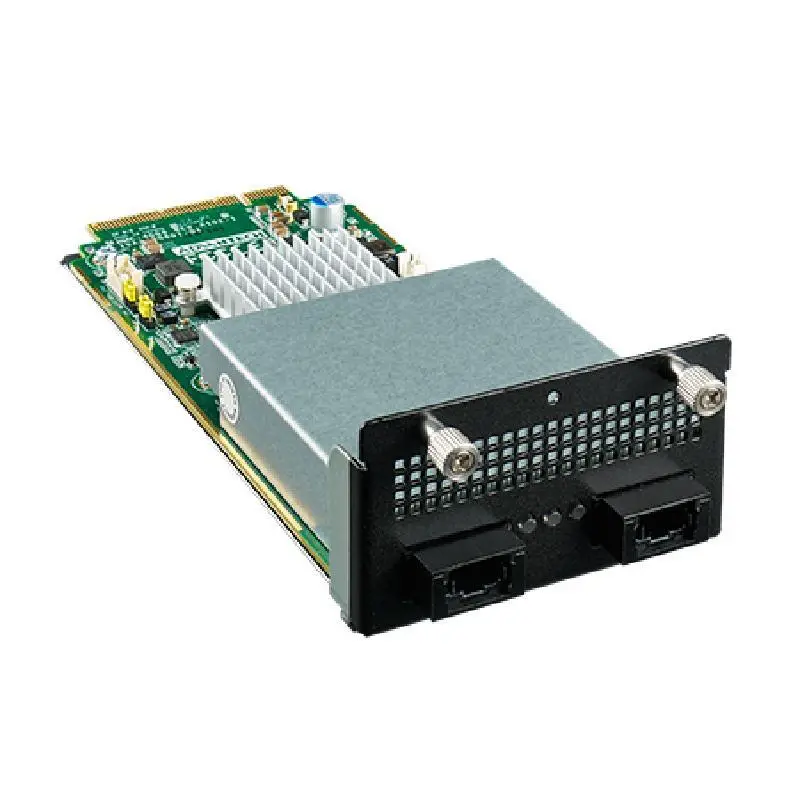

Advantech NMC-4008 2 Ports 40GbE QSFP+ Bypass Network Mezzanine Card
