| NMC-0804-08FSA1 | ||
| Speed | Speed | 1GbE |
| LED Definition | LED Definition | 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking |
| Interface | Interface | 2x PCI-E 2.0 x4 |
| Controller | Controller | Intel® I350-AM4 |
| Advanced Software Features | Advanced Software Features | Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation |
| OS Support | OS support | Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 |
| Port | Port | 8x SFP |
| Operating Conditions | Operating Conditions | Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C |
| Power Voltage & consumption | Power Voltage & consumption | +12V ± 15% 16W |
| Dimension (mm) | Dimension (mm) | 74.6 x42.4 x 174.7 mm (2.9" x 1.7" x 6.9" ) |
| Compliance | Compliance | CE/FCC |

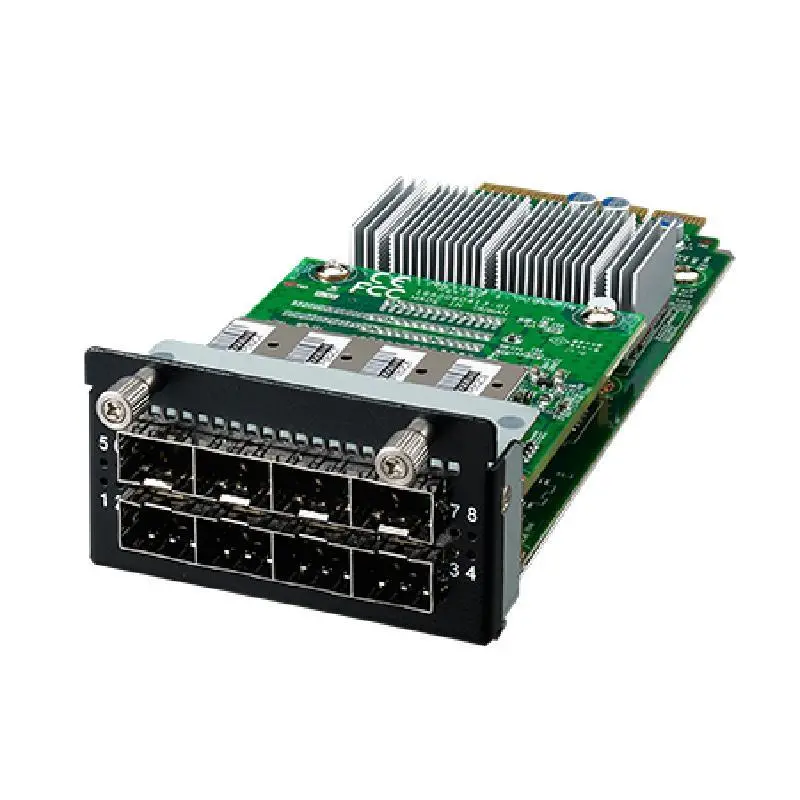

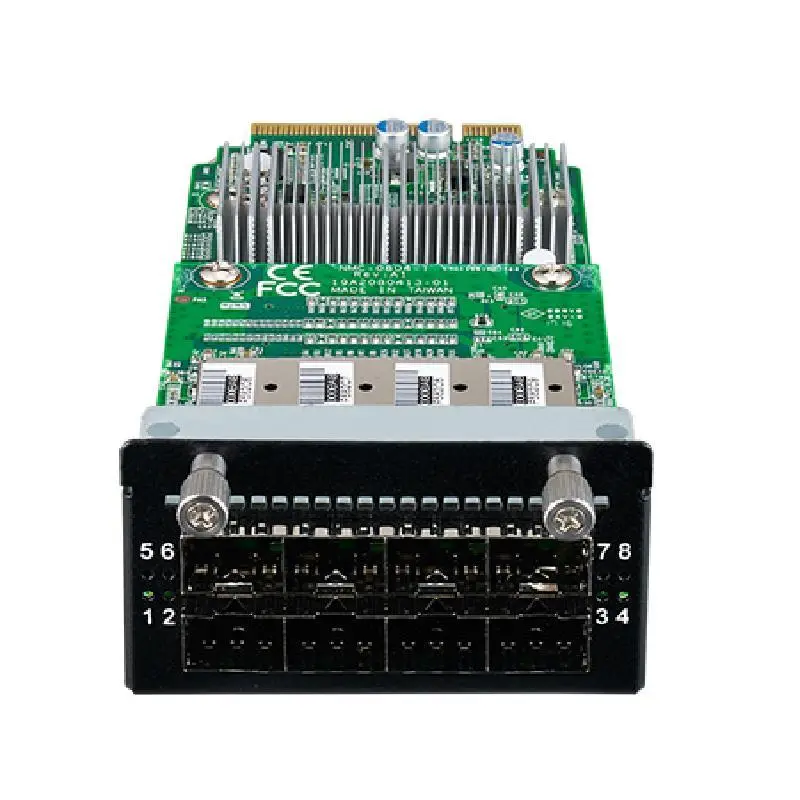

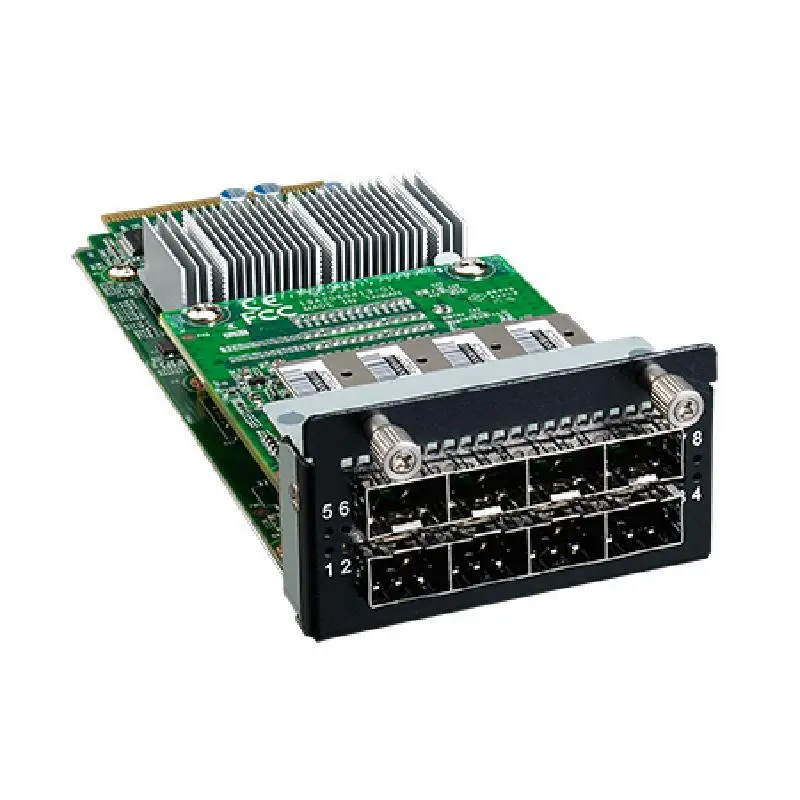

Advantech NMC-0804 8 Ports 1GbE Fiber Module
