| NMC-0108-04FSA1 | NMC-0108-10E | ||
| Advanced Software Features | Advanced Software Features | Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation | Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation |
| Controller | Controller | Intel® I350-AM4 | Intel® I350-AM4 |
| Interface | Interface | PCI-E 2.0 x4 | PCI-E 2.0 x4 |
| LED Definition | LED Definition | Port#1~#4 Indicator: Link: LED on Act: Blinking | Port#1~#4 Indicator: Link: LED on Act: Blinking |
| Port | Port | 4x SFP | 4x SFP |
| Speed | Speed | 1GbE | 1GbE |
| OS Support | OS support | Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 | Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 |
| Operating Conditions | Operating Conditions | Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C | Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C |
| Power Voltage & consumption | Power Voltage & consumption | +12V ± 15% 10W | +12V ± 15% 10W |
| Dimension (mm) | Dimension (mm) | 74.6 x42.4 x 174.7 mm (2.9" x 1.7" x 6.9" ) | 74.6 x 35.6 x 175.0 mm (2.9" x 1.4" x 6.9" ) |
| Compliance | Compliance | CE/FCC | CE/FCC |

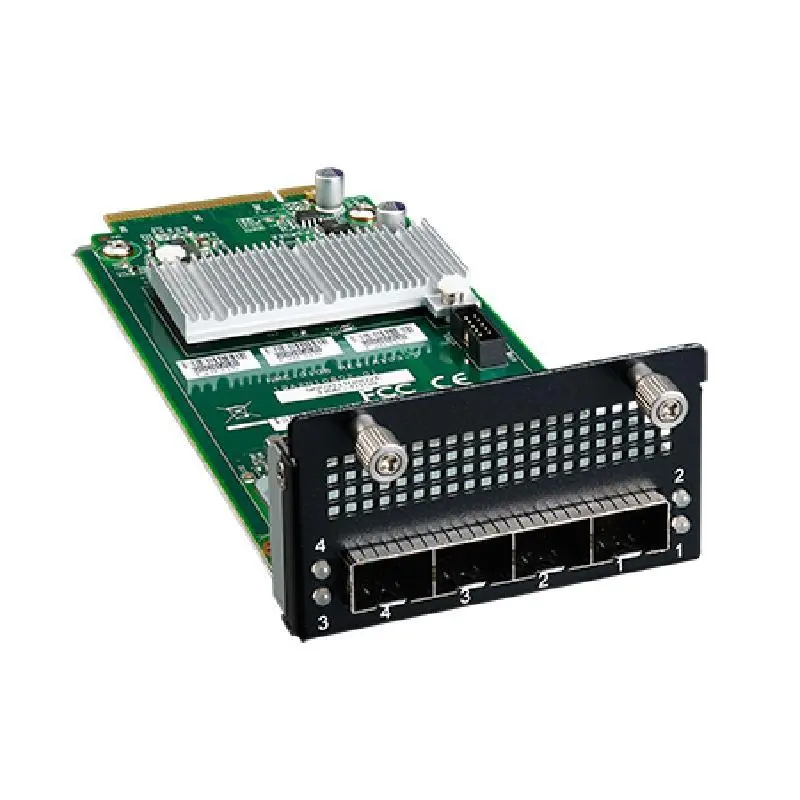

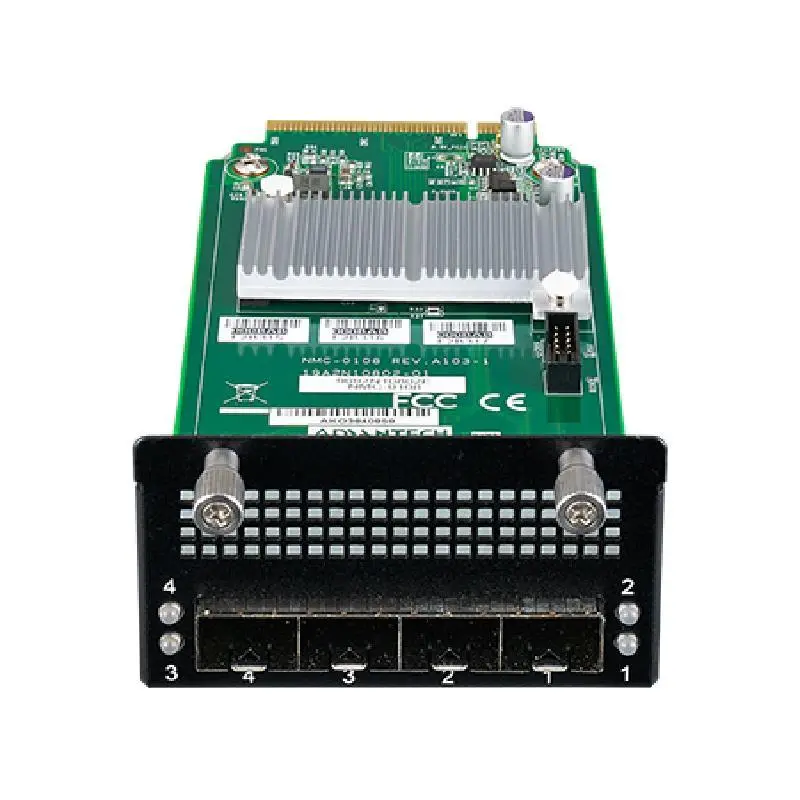

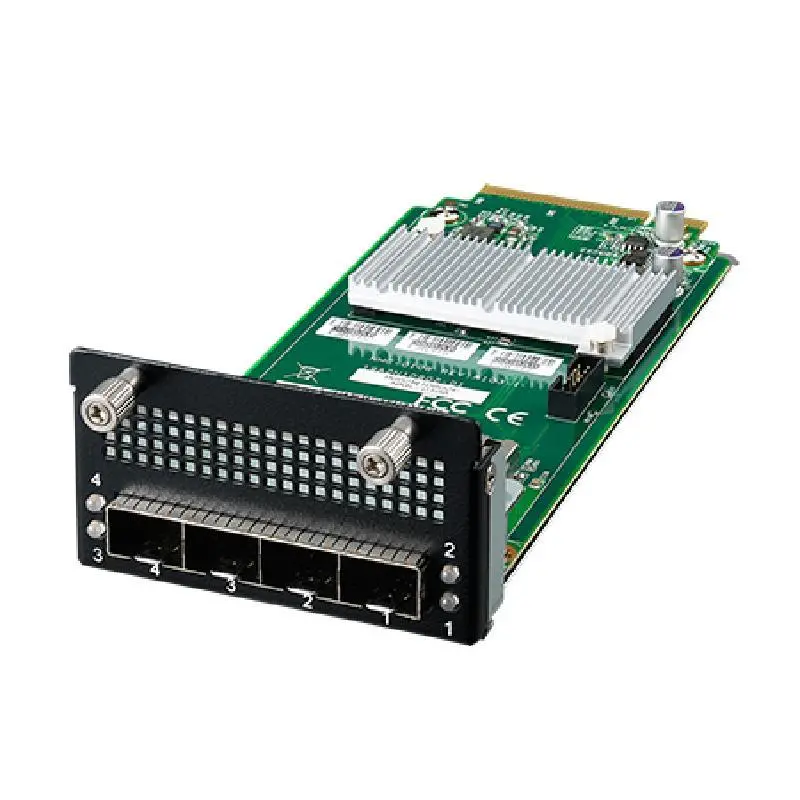

Advantech NMC-0108 4 Ports 1GbE SFP Module
