| VEGA-1000-B1HCFB | VEGA-1000-B1HCFM | VEGA-1101-B1HCFB | ||
| Processor System | Platform | BlueRiver AVP2000 | BlueRiver AVP2000 | BlueRiver AVP2000T |
| Video Inputs and Outputs | Channels (Max.) | 1 | 1 | 1 |
| Video Inputs and Outputs | Resolution | 480i/480p/720p/1080i/1080p/4K2K | 480i/480p/720p/1080i/1080p/4K2K | 480i/480p/720p/1080i/1080p/4K2K |
| Video Inputs and Outputs | Frame Rate | up to 4K60 | up to 4K60 | up to 4K60 |
| Video Inputs and Outputs | Chroma Sampling Format | 4:4:4 | 4:4:4 | 4:4:4 |
| Video Inputs and Outputs | Bit Depth | 8/10/12-bit | 8/10/12-bit | 8/10/12-bit |
| Video Inputs and Outputs | Input Interface | HDMI 2.0 | HDMI 2.0 | HDMI 2.0 |
| Video Inputs and Outputs | Output Interface | HDMI 2.0 | HDMI 2.0 | HDMI 2.0 |
| Video Inputs and Outputs | Loop Out | HDMI 2.0 | HDMI 2.0 | HDMI 2.0 |
| Video Encoding | Standard | SDVoE | SDVoE | SDVoE |
| Video Encoding | Bit Depth | 8/10/12-bit | 8/10/12-bit | 8/10/12-bit |
| Video Encoding | Chroma Subsampling | 4:4:4/4:2:2/4:2:0 | 4:4:4/4:2:2/4:2:0 | 4:4:4/4:2:2/4:2:0 |
| Video Decoding | Standard | - | - | - |
| Video Decoding | Bit Depth | - | - | - |
| Video Decoding | Chroma Subsampling | - | - | - |
| VoIP | Connectivity | 1 x 10 GbE (SFP+ cages),1 x 10 GbE copper,1 GbE copper | 1 x 10 GbE (SFP+ cages),1 x 10 GbE copper,1 GbE copper | 1 x 10 GbE (SFP+ cages),1 x 10 GbE copper,1 GbE copper |
| VoIP | Standard Supported | SDVoE | SDVoE | SDVoE |
| Compatibility | OS Version | - | - | - |
| Audio | Channels (Max.) | 8 | 8 | 8 |
| Audio | Formats | Stereo Multi-channel linear PCM up to 8 channels (7:1) | Stereo Multi-channel linear PCM up to 8 channels (7:1) | Stereo Multi-channel linear PCM up to 8 channels (7:1) |
| Audio | Sampling Frequency | - | - | - |
| Audio | Sampling Bit Depth | - | - | - |
| Audio | Audio Connectors | 1 x input, 1 x output | 1 x input, 1 x output | 1 x input, 1 x output |
| Functionality | Streaming Protocol | SDVoE | SDVoE | SDVoE |
| Functionality | Management & Control Interface | Remote control GUI interface | Remote control GUI interface | Remote control GUI interface |
| Functionality | Development Kits | Semtech BlueRiver | Semtech BlueRiver | Semtech BlueRiver |
| Functionality | USB | 3 x USB 1.0 Type-A HID | 3 x USB 1.0 Type-A HID | 3 x USB 1.0 Type-A HID |
| Network Interface | Media | 10 GbE SFP+ fiber,10 GbE copper,1 GbE copper | 10 GbE SFP+ fiber,10 GbE copper,1 GbE copper | 10 GbE SFP+ fiber,10 GbE copper,1 GbE copper |
| Power | Input | 12 V DC | 12 V DC | 12 V DC |
| Power | Consumption | 12.5W | 12.5W | 12.5W |
| Mechanical | Form Factor | - | - | - |
| Mechanical | Dimension (W x H x D) | 172 x 162 x 30 mm (6.77" x 6.37" x 1.18") | 172 x 162 x 30 mm (6.77" x 6.37" x 1.18") | 172 x 162 x 30 mm (6.77" x 6.37" x 1.18") |

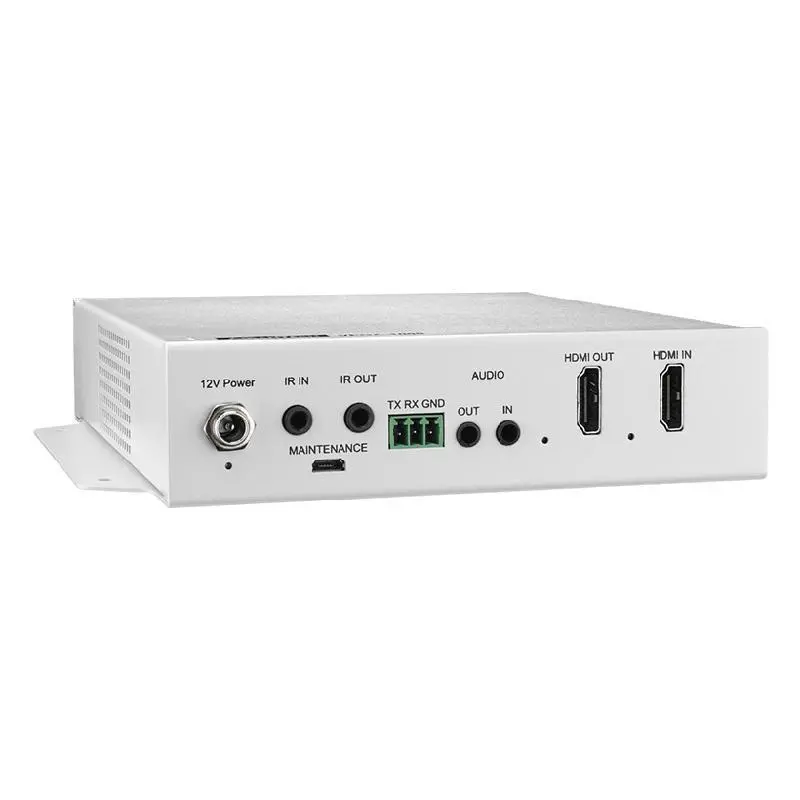

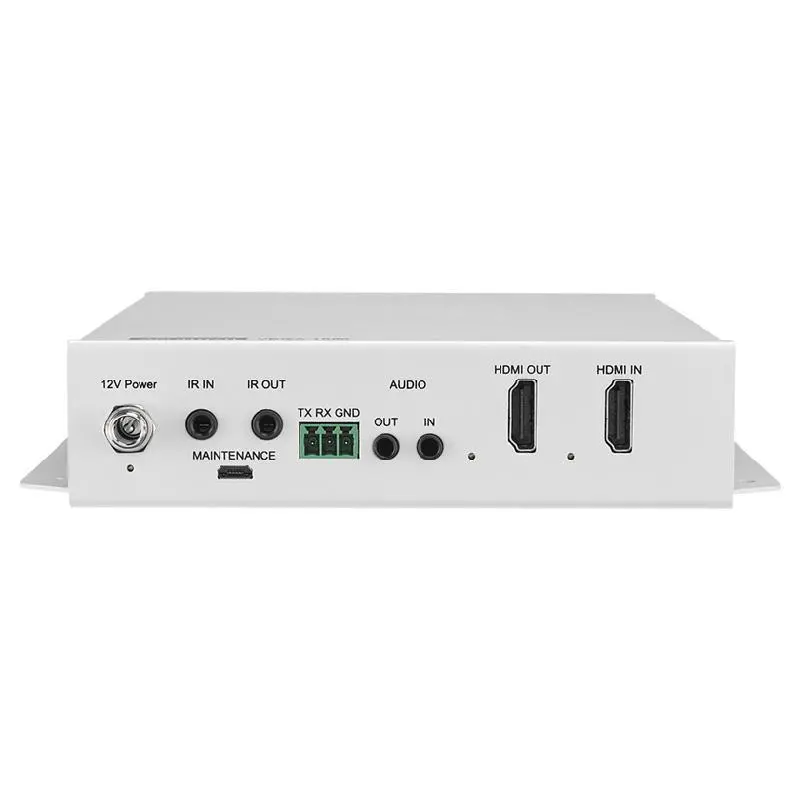

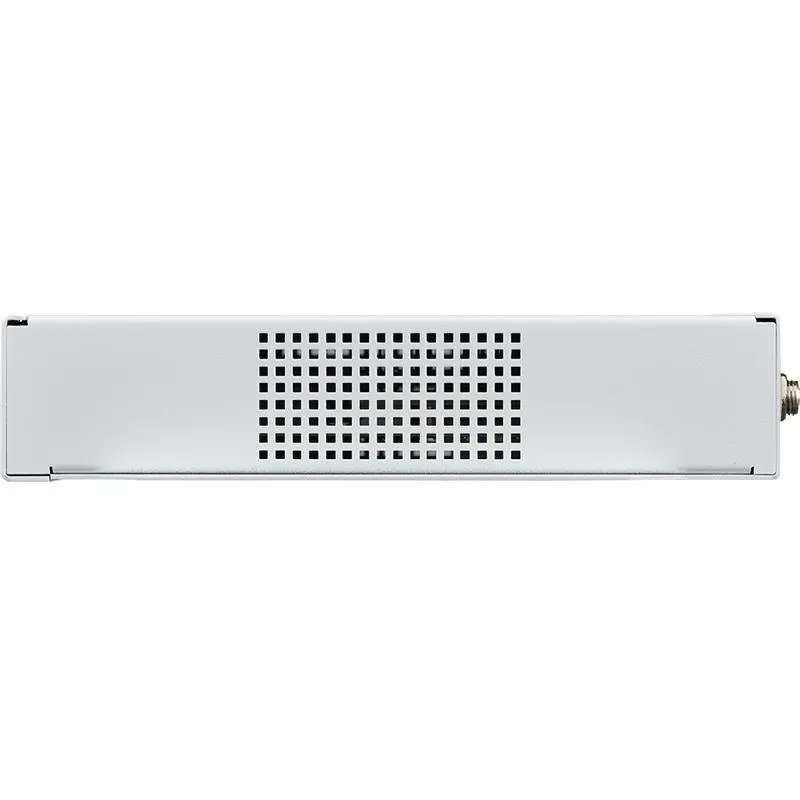

Advantech VEGA-1000 VEGA-1000 HDMI 2.0 Transceiver Extender with bi-directional IR, RS-232, audio extender/extractor.
