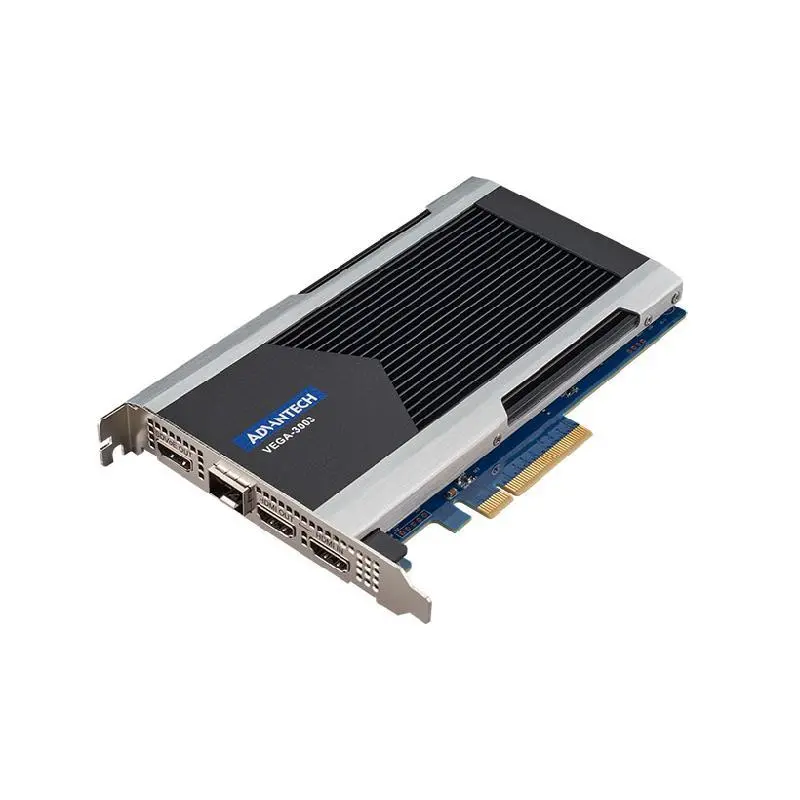

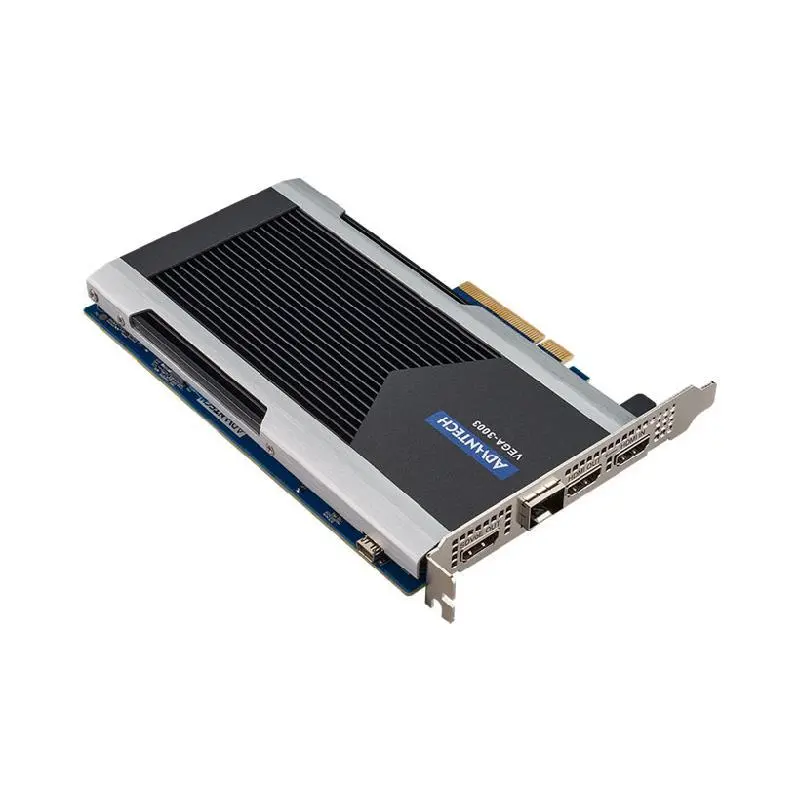

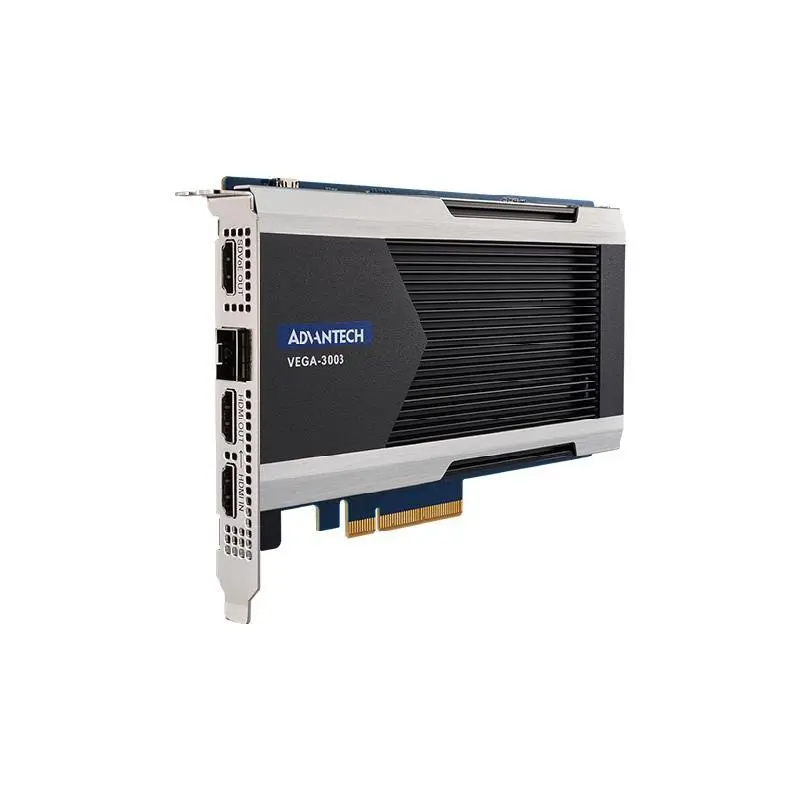

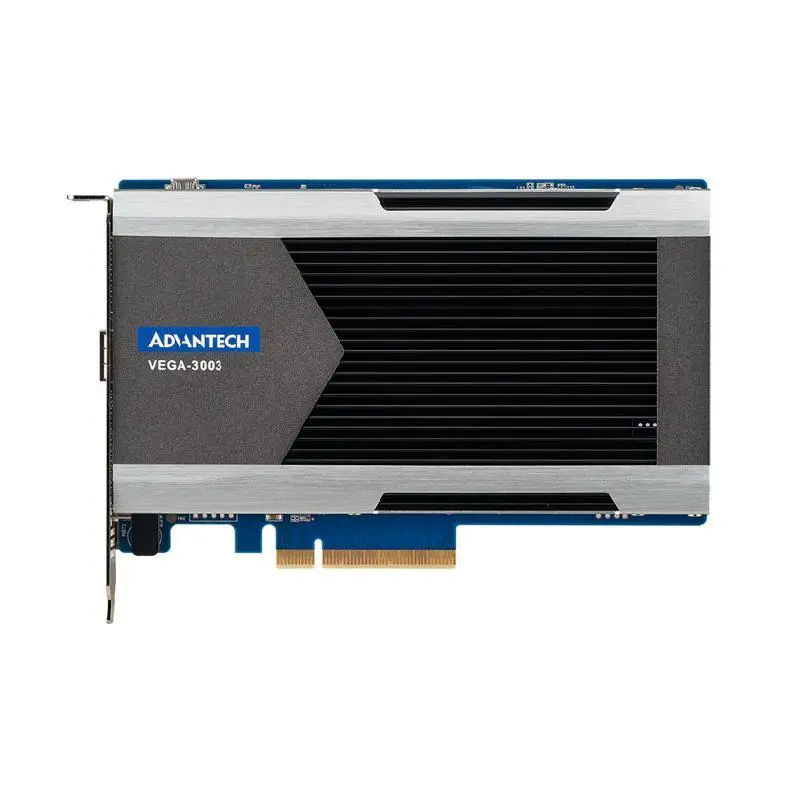

Advantech VEGA-3003 UHD SDVoE Video Capture Card

UHD SDVoE zero latency video capture & Loop-out by HDMI 2.0

HDMI 2.0 Video capture & Loop-out

FPGA based color space covert and de-interlace support

Customized resolution video capture and processing support

Linux and Windows SDK including simple-to-use API and example code

FHHL PCI Express Gen3 x8, compatible with standard PCIe slots

		VEGA-3003-S0H0
Processor System	Platform	Xilinx UltraScale+
Video Inputs and Outputs	Channels (Max.)	2 (Up to 4Kp60)
Video Inputs and Outputs	Resolution	3840 x 2160, 1920 x 1080, 1280 x 720, 720 x 480
Video Inputs and Outputs	Frame Rate	60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 59.94i, 50i
Video Inputs and Outputs	Chroma Sampling Format	4:4:4, 4:2:2, 4:2:0
Video Inputs and Outputs	Bit Depth	8/10-bit
Video Inputs and Outputs	Input Interface	1 x HDMI 2.0/ 1 x SDVoE
Video Inputs and Outputs	Output Interface	HDMI loop-Out/ PCIe Gen3 x8
Video Inputs and Outputs	Loop Out	-
Video Encoding	Standard	-
Video Encoding	Bit Depth	-
Video Encoding	Chroma Subsampling	-
Video Decoding	Standard	-
Video Decoding	Bit Depth	-
Video Decoding	Chroma Subsampling	-
VoIP	Connectivity	-
VoIP	Standard Supported	-
Compatibility	OS Version	Windows, Linux
Audio	Channels (Max.)	-
Audio	Formats	-
Audio	Sampling Frequency	-
Audio	Sampling Bit Depth	-
Audio	Audio Connectors	-
Functionality	Streaming Protocol	-
Functionality	Management & Control Interface	-
Functionality	Development Kits	Microsoft DirectShow, V4L2
Functionality	USB	-
Network Interface	Media	-
Power	Input	-
Power	Consumption	< 15 W
Mechanical	Form Factor	PCIe (HL/FH)
Mechanical	Dimension (W x H x D)	167.65 x 111.15 mm(6.6 x 4.37")
