| VEGA-3311-A0M0 | VEGA-3311-S0M0 | VEGA-3311-I0F0 | ||
| Processor System | Platform | Xilinx UltraScale Socionext M30 | Xilinx UltraScale Socionext M30 | Xilinx UltraScale Socionext M30 |
| Video Inputs and Outputs | Channels (Max.) | 1 (up to 4Kp60)/4 (up to 1080p60) | 1 (up to 4Kp60)/4 (up to 1080p60) | 1 (up to 4Kp60)/4 (up to 1080p60) |
| Video Inputs and Outputs | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 720 x 480 | 3840 x 2160, 1920 x 1080, 1280 x 720, 720 x 480 | 3840 x 2160, 1920 x 1080, 1280 x 720, 720 x 480 |
| Video Inputs and Outputs | Frame Rate | 60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 59.94i, 50i | 60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 59.94i, 50i | 60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 59.94i, 50i |
| Video Inputs and Outputs | Chroma Sampling Format | 4:2:2, 4:2:0 | 4:2:2, 4:2:0 | 4:2:2, 4:2:0 |
| Video Inputs and Outputs | Bit Depth | 8/10-bit | 8/10-bit | 8/10-bit |
| Video Inputs and Outputs | Input Interface | 4 x 3G-SDI/ 1 x 12G-SDI, 2 x 10 GigE (VEGA-3311-I) | 4 x 3G-SDI/ 1 x 12G-SDI, 2 x 10 GigE (VEGA-3311-I) | 4 x 3G-SDI/ 1 x 12G-SDI, 2 x 10 GigE (VEGA-3311-I) |
| Video Inputs and Outputs | Output Interface | PCIe Gen3 x8 | PCIe Gen3 x8 | PCIe Gen3 x8 |
| Video Inputs and Outputs | Loop Out | - | - | - |
| Video Encoding | Standard | H.265 (HEVC)/H.264 (AVC) | H.265 (HEVC)/H.264 (AVC) | H.265 (HEVC)/H.264 (AVC) |
| Video Encoding | Bit Depth | 8/10-bit | 8/10-bit | 8/10-bit |
| Video Encoding | Chroma Subsampling | 4:2:2/ 4:2:0 | 4:2:2/ 4:2:0 | 4:2:2/ 4:2:0 |
| Video Decoding | Standard | H.265 (HEVC)/H.264 (AVC) | H.265 (HEVC)/H.264 (AVC) | H.265 (HEVC)/H.264 (AVC) |
| Video Decoding | Bit Depth | 8/10-bit | 8/10-bit | 8/10-bit |
| Video Decoding | Chroma Subsampling | 4:2:2/ 4:2:0 | 4:2:2/ 4:2:0 | 4:2:2/ 4:2:0 |
| VoIP | Connectivity | 2 x 10 GbE (SFP+ cages) | 2 x 10 GbE (SFP+ cages) | 2 x 10 GbE (SFP+ cages) |
| VoIP | Standard Supported | SMPTE 2110 w/ AES67 audio & SMPTE 2059 sync | SMPTE 2110 w/ AES67 audio & SMPTE 2059 sync | SMPTE 2110 w/ AES67 audio & SMPTE 2059 sync |
| Compatibility | OS Version | Windows, Linux | Windows, Linux | Windows, Linux |
| Audio | Channels (Max.) | 8/16 channels | 8/16 channels | 8/16 channels |
| Audio | Formats | - | - | - |
| Audio | Sampling Frequency | 48/96 KHz | 48/96 KHz | 48/96 KHz |
| Audio | Sampling Bit Depth | 16-bit | 16-bit | 16-bit |
| Audio | Audio Connectors | - | - | - |
| Functionality | Streaming Protocol | - | - | - |
| Functionality | Management & Control Interface | - | - | - |
| Functionality | Development Kits | FFmpeg, Microsoft DirectShow | FFmpeg, Microsoft DirectShow | FFmpeg, Microsoft DirectShow |
| Functionality | USB | - | - | - |
| Network Interface | Media | - | - | - |
| Power | Input | - | - | - |
| Power | Consumption | < 35 W | < 35 W | < 35 W |
| Mechanical | Form Factor | PCIe (HL/FH) | PCIe (HL/FH) | PCIe (HL/FH) |
| Mechanical | Dimension (W x H x D) | 167.65 x 111.15 mm(6.6 x 4.37") | 167.65 x 111.15 mm(6.6 x 4.37") | 167.65 x 111.15 mm(6.6 x 4.37") |

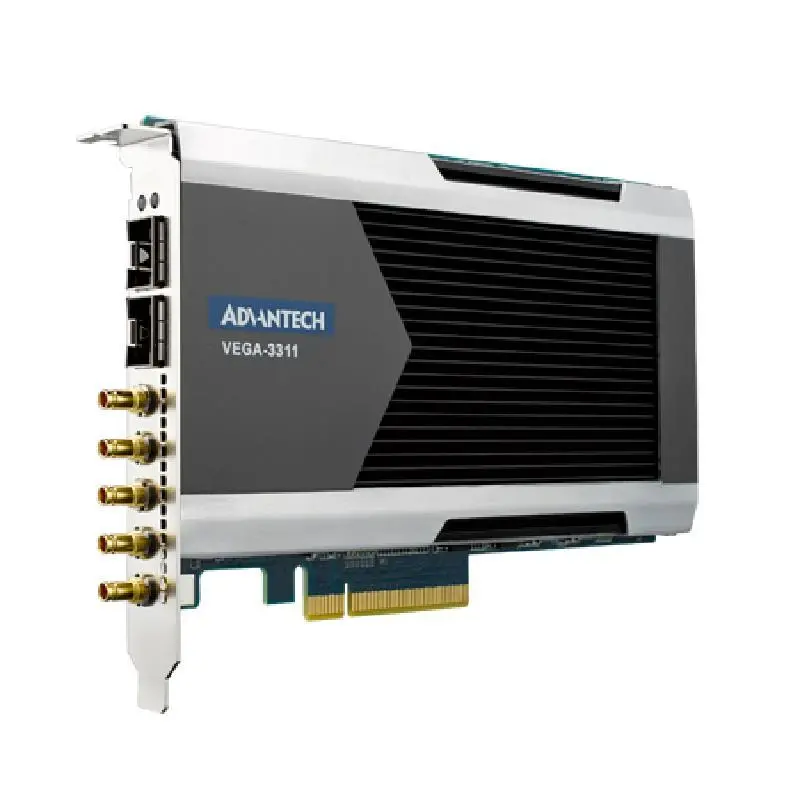

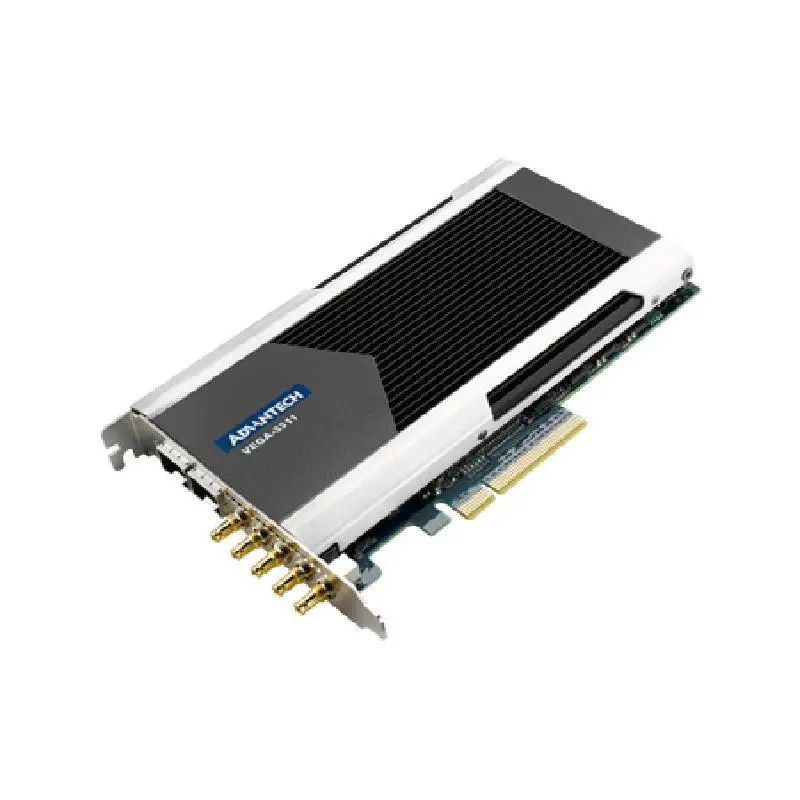

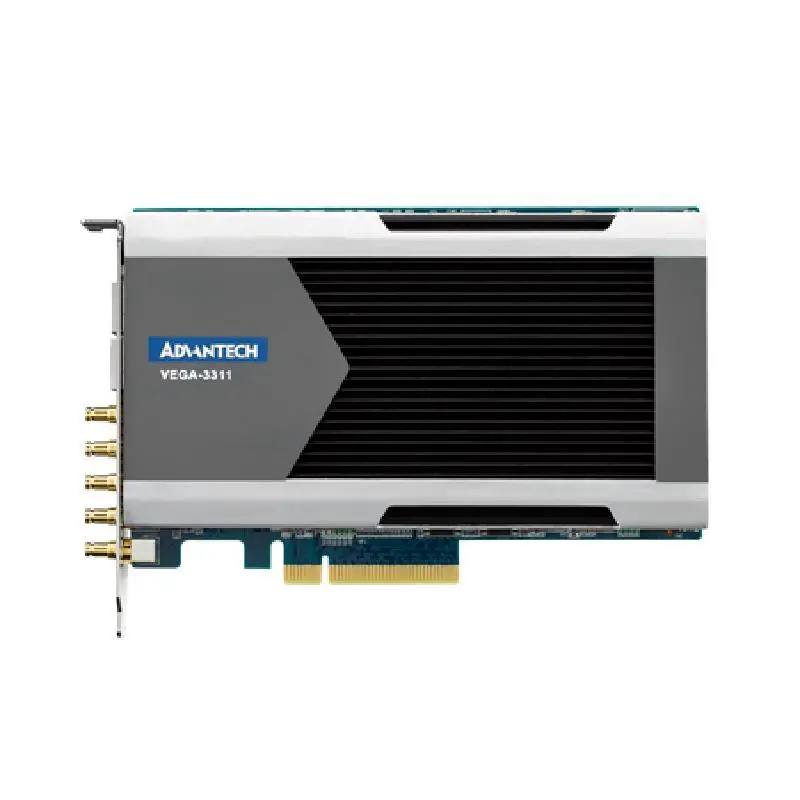

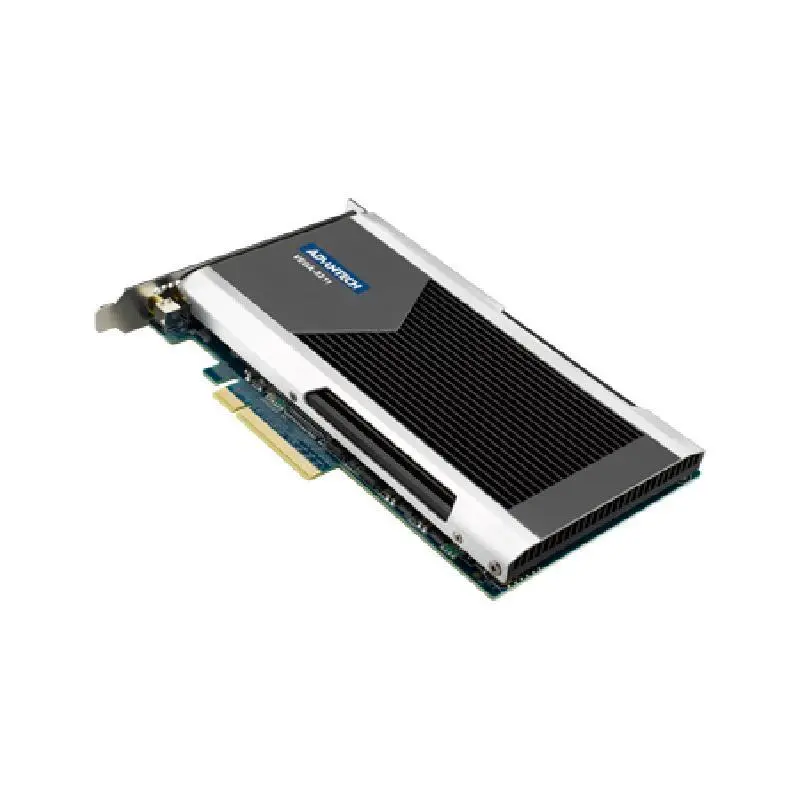

Advantech VEGA-3311 4K HEVC Broadcast Video Encoding Card
