| VEGA-3310-A0 | ||
| Processor System | Platform | Socionext M30 |
| Video Inputs and Outputs | Channels (Max.) | 2 (Up to 4Kp60) /8 (Up to 1080p60) |
| Video Inputs and Outputs | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 720 x 480 |
| Video Inputs and Outputs | Frame Rate | 60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 59.94i, 50i |
| Video Inputs and Outputs | Chroma Sampling Format | 4:2:2, 4:2:0 |
| Video Inputs and Outputs | Bit Depth | 8/10-bit |
| Video Inputs and Outputs | Input Interface | PCIe Gen3 x8 |
| Video Inputs and Outputs | Output Interface | PCIe Gen3 x8 |
| Video Inputs and Outputs | Loop Out | - |
| Video Encoding | Standard | H.265 (HEVC)/H.264 (AVC) |
| Video Encoding | Bit Depth | 8/10-bit |
| Video Encoding | Chroma Subsampling | 4:2:2/ 4:2:0 |
| Video Decoding | Standard | H.265 (HEVC)/H.264 (AVC) |
| Video Decoding | Bit Depth | 8/10-bit |
| Video Decoding | Chroma Subsampling | 4:2:2/ 4:2:0 |
| VoIP | Connectivity | - |
| VoIP | Standard Supported | - |
| Compatibility | OS Version | Windows, Linux |
| Audio | Channels (Max.) | - |
| Audio | Formats | - |
| Audio | Sampling Frequency | - |
| Audio | Sampling Bit Depth | - |
| Audio | Audio Connectors | - |
| Functionality | Streaming Protocol | - |
| Functionality | Management & Control Interface | - |
| Functionality | Development Kits | FFmpeg, Microsoft DirectShow |
| Functionality | USB | - |
| Network Interface | Media | - |
| Power | Input | - |
| Power | Consumption | < 35 W |
| Mechanical | Form Factor | - |
| Mechanical | Dimension (W x H x D) | 167.65 x 111.15 mm(6.6 x 4.37") |

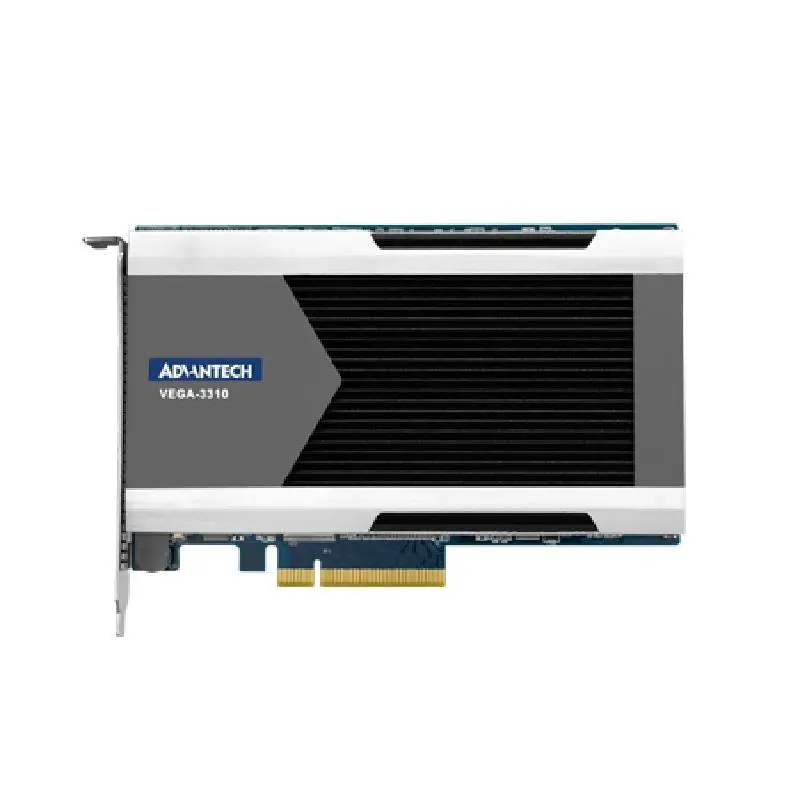

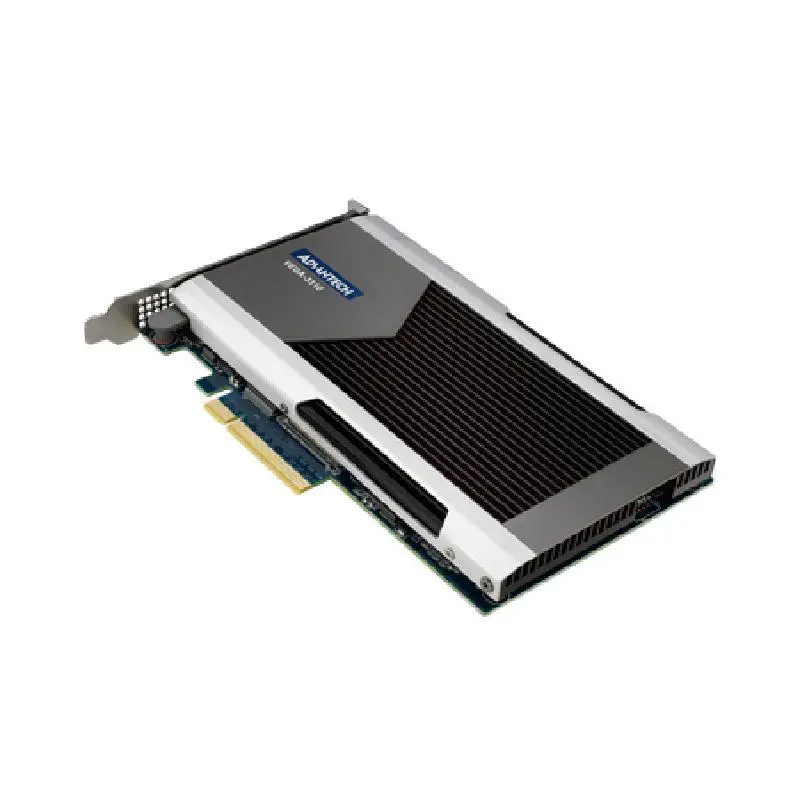

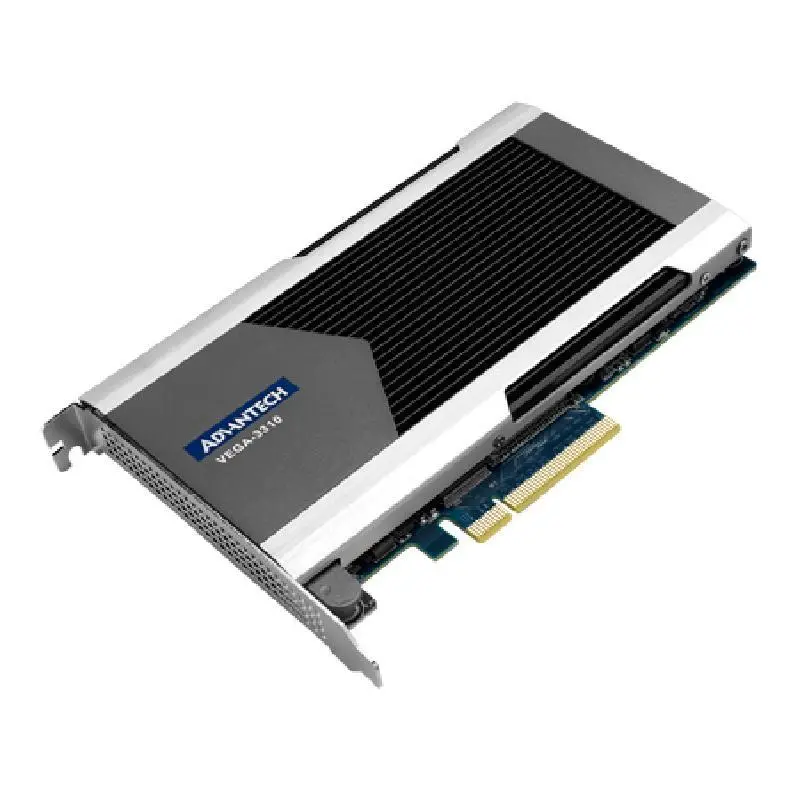

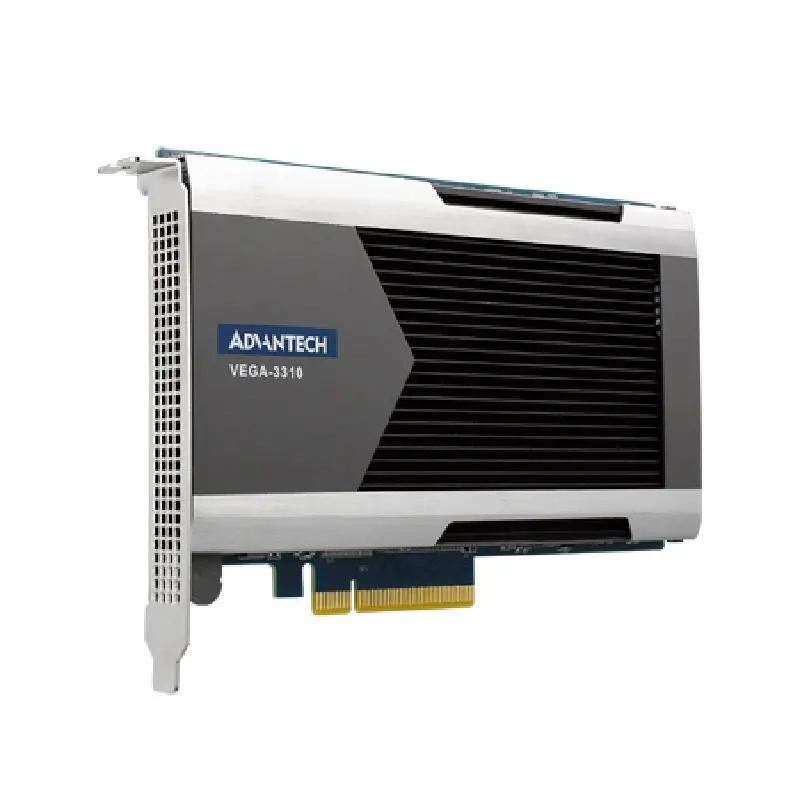

Advantech VEGA-3310 4K HEVC Broadcast Video Encoding/ Decoding / Transcoding Card
