| DVP-7035HE | ||
| General | Description | 4-ch H.264 HD-SDI Video Capture Card with SDK |
| Interface | Host Interface | PCIe x1 |
| Video | Channels | 4 |
| Video | Connectors | BNC Connector |
| Video | Max. Display Rate | 30/25 fps (NTSC/PAL) @ 1920 x 1080p |
| Video | Max. Recording Rate | 30/25 fps (NTSC/PAL) @ 1920 x 1080p |
| Video | Video Input | AHD/CVI/TVI |
| Compression | Hardware | - |
| Compression | Software | Yes |
| Video Inputs and Outputs | Channels (Max.) | 4 |
| Video Inputs and Outputs | Host Interface | PCIe 2.0 x4 |
| Video Inputs and Outputs | Input Interface | 4 x TVI |
| Video Inputs and Outputs | Resolution | 1920 x 1080@30/25fps |
| Environment | Operating Temperature | "-20 ~ 70°C(-4 ~ 158°F)" |
| Mechanical | Dimension (W x H x D) | 128 x 101.01 mm(5.04" x 3.98") |
| Certification | EMC | CE/FCC |
| Compatibility | OS Version | Windows 7/Windows 8/Windows 8.1/Windows 10Linux 4.8 or Higher ( 32-bit and 64-bit )Linux ARMNVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |

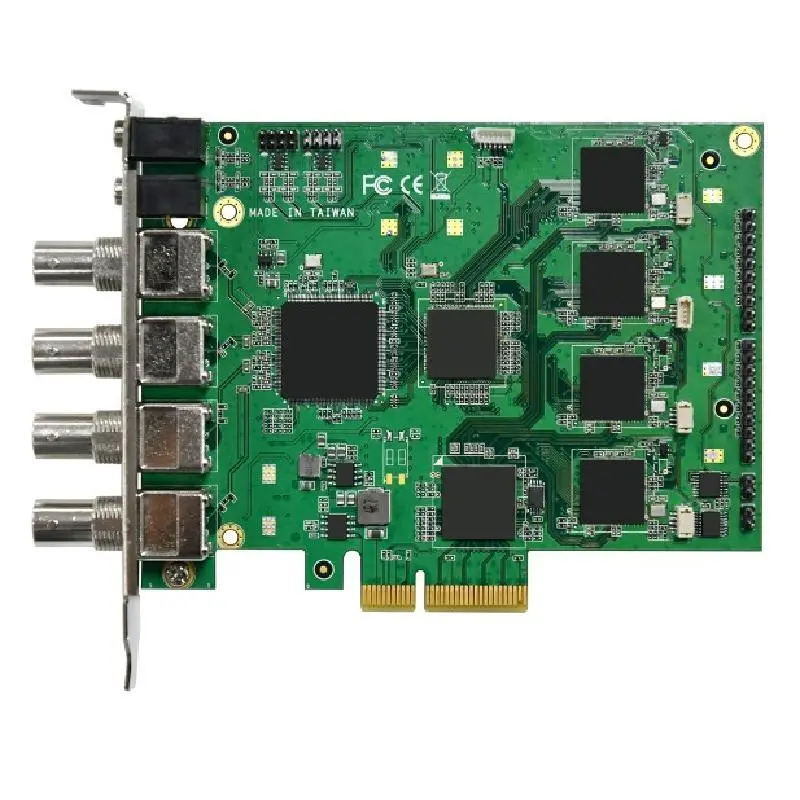

Advantech DVP-7035HE 4-ch Full HD H.264/MPEG4 AHD/CVI/TVI/CVBS PCIe Video Capture Card with SDK
