| DVP-7036HE | ||
| Compression | Hardware | - |
| Compression | Software | Yes |
| Video Inputs and Outputs | Channels (Max.) | 4 |
| Video Inputs and Outputs | Host Interface | Mini PCIe 2.0 x1 |
| Video Inputs and Outputs | Input Interface | 4 x TVI |
| Video Inputs and Outputs | Resolution | 1920 x 1080@30/25fps |
| Environment | Operating Temperature | "-20 ~ 70°C(-4 ~ 158°F)" |
| Mechanical | Dimension (W x H x D) | 30 x 50.95 mm(1.18" x 2.01") |
| Certification | EMC | CE/FCC |
| Compatibility | OS Version | Windows 7/Windows 8/Windows 8.1/Windows 10Linux 4.8 or Higher ( 32-bit and 64-bit )Linux ARMNVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |

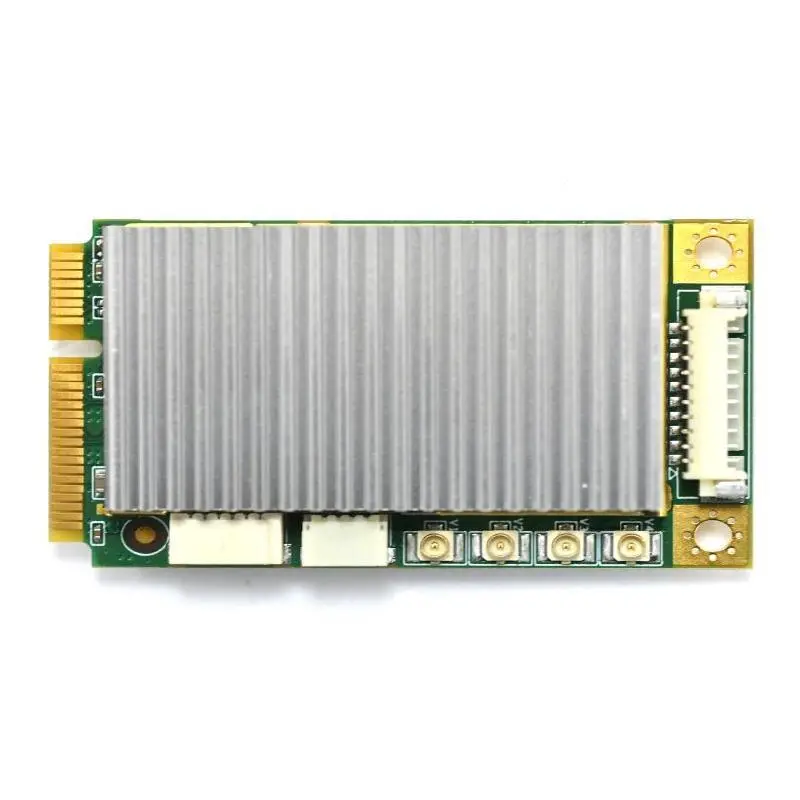

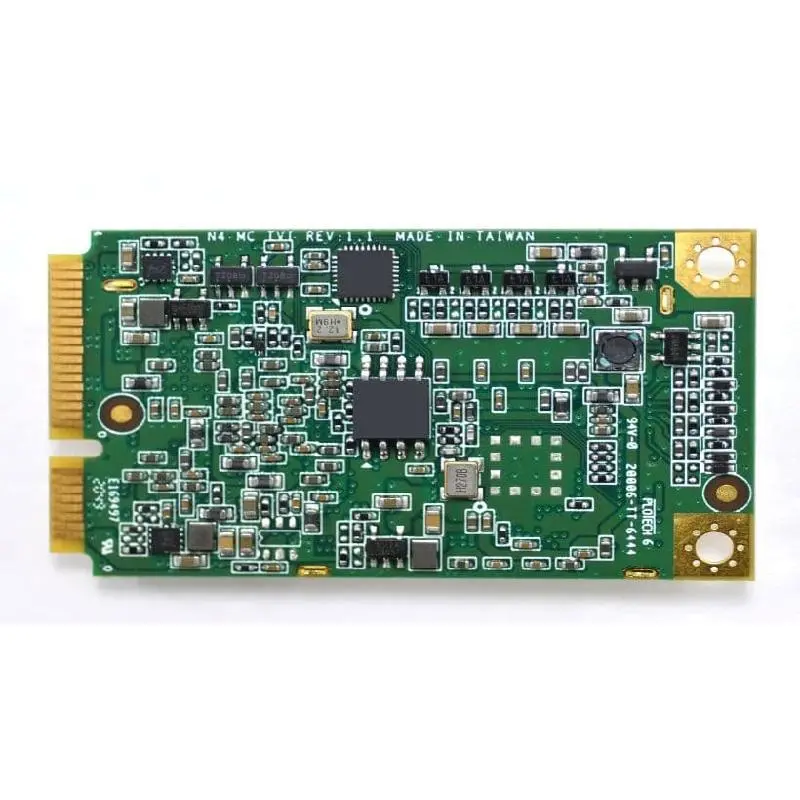

Advantech DVP-7036HE 4-ch Full HD TVI Mini-PCIe Video Capture Card with SDK
