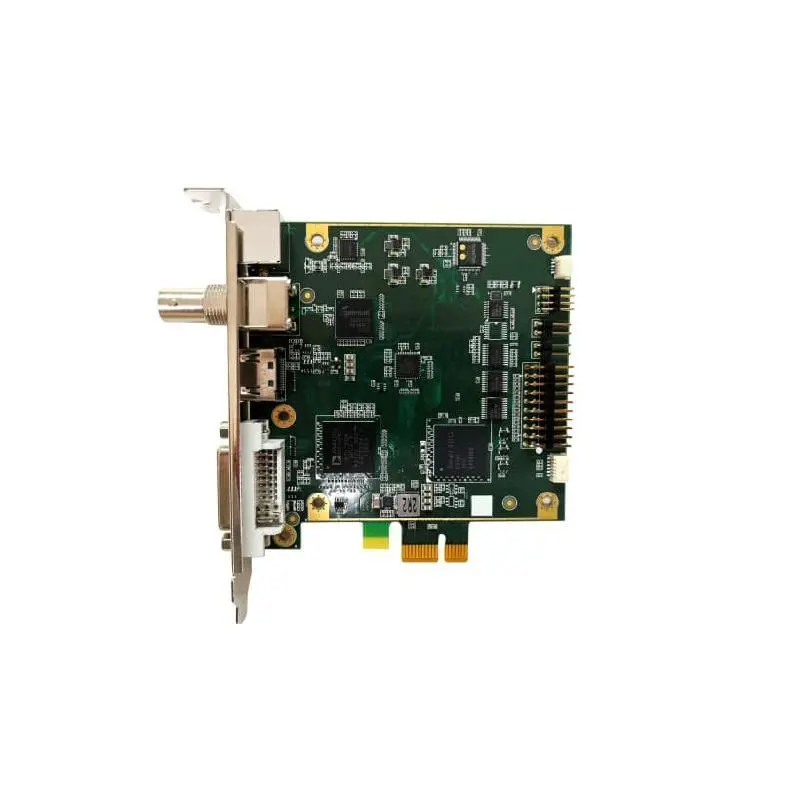

Advantech DVP-7011HE-1 1-ch Full HD H.264/MPEG4 PCIe Video Capture Card with SDK

1-channel HD-SDI/HDMI/DVI-I/YPbPr video input with H.264/MPEG4 software compression

60/50 fps (NTSC/PAL) at up to 1920 x 1080p resolution for recording and display

PCIe x 1 host interface

Supports Watchdog function

Windows/Linux OS supported

		DVP-7011HE-1
Compression	Hardware	-
Compression	Software	Yes
Video Inputs and Outputs	Channels (Max.)	1
Video Inputs and Outputs	Host Interface	Mini PCIe 2.0 x1
Video Inputs and Outputs	Input Interface	1 x HDMI, 1 x DVI-I, 1 x YPbPr, 1 x SDI, 1 x CVBS, 1 x S Video
Video Inputs and Outputs	Resolution	1920 x 1080@60/50fps
Environment	Operating Temperature	"-20 ~ 70°C(-4 ~ 158°F)"
Mechanical	Dimension (W x H x D)	94.43 x 101.01 mm(3.72" x 3..98")
Certification	EMC	CE/FCC
Compatibility	OS Version	Windows 7/Windows 8/Windows 8.1/Windows 10Linux 4.8 or Higher ( 32-bit and 64-bit )Linux ARMNVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
