| DVP-7025UHE | ||
| Compression | Hardware | - |
| Compression | Software | Yes |
| Video Inputs and Outputs | Channels (Max.) | 2 |
| Video Inputs and Outputs | Host Interface | PCIe 2.0 x4 |
| Video Inputs and Outputs | Input Interface | 2 x 12G-SDI, 2 x 6G-SDI, 4 x 3G-SDI |
| Video Inputs and Outputs | Resolution | 4096 x 2160 @60/50fps |
| Environment | Operating Temperature | "-20 ~ 70°C(-4 ~ 158°F)" |
| Mechanical | Dimension (W x H x D) | 153.95 x 101.01 mm (6.06" x 3.98") |
| Certification | EMC | CE/FCC |
| Compatibility | OS Version | Windows 7/Windows 8/Windows 8.1/Windows 10Linux 4.8 or Higher ( 32-bit and 64-bit )Linux ARMNVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |

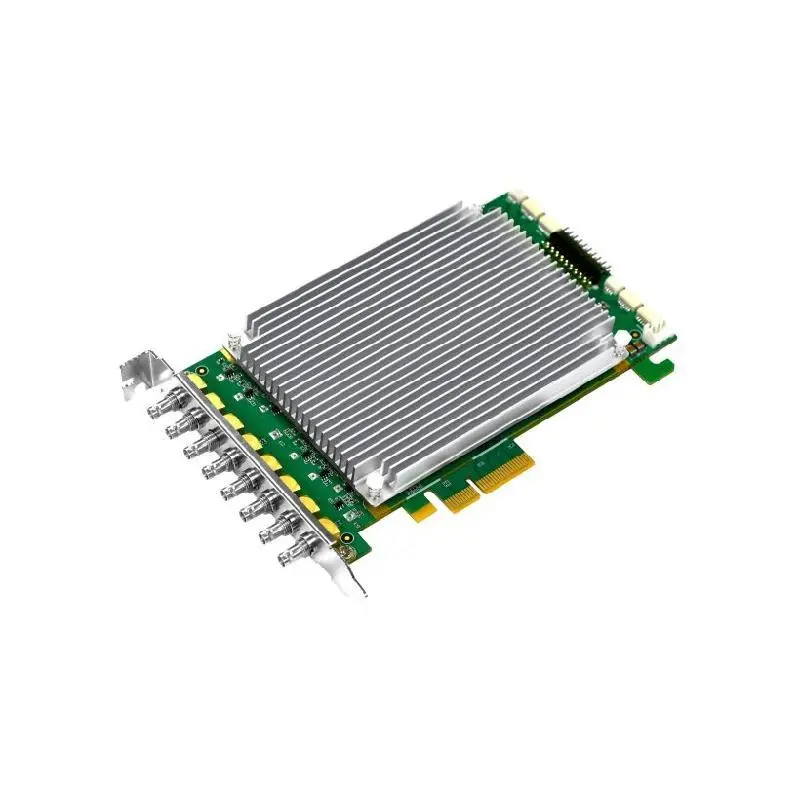

Advantech DVP-7025UHE 2-ch 4k60 12G-SDI PCIE Video Capture Card
