| DVP-7012UHEL | ||
| Compression | Hardware | - |
| Compression | Software | Yes |
| Video Inputs and Outputs | Channels (Max.) | 1 |
| Video Inputs and Outputs | Host Interface | PCIe 2.0 x4 |
| Video Inputs and Outputs | Input Interface | 1 x 12G-SDI/ 1 x HDMI 2.0 |
| Video Inputs and Outputs | Resolution | 4096 x 2160 @60/50fps |
| Environment | Operating Temperature | "-20 ~ 70°C(-4 ~ 158°F)" |
| Mechanical | Dimension (W x H x D) | 126.96 x 68.9 mm(4.99" x 2.71") |
| Certification | EMC | CE/FCC |
| Compatibility | OS Version | Windows 7/Windows 8/Windows 8.1/Windows 10Linux 4.8 or Higher ( 32-bit and 64-bit )Linux ARMNVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |

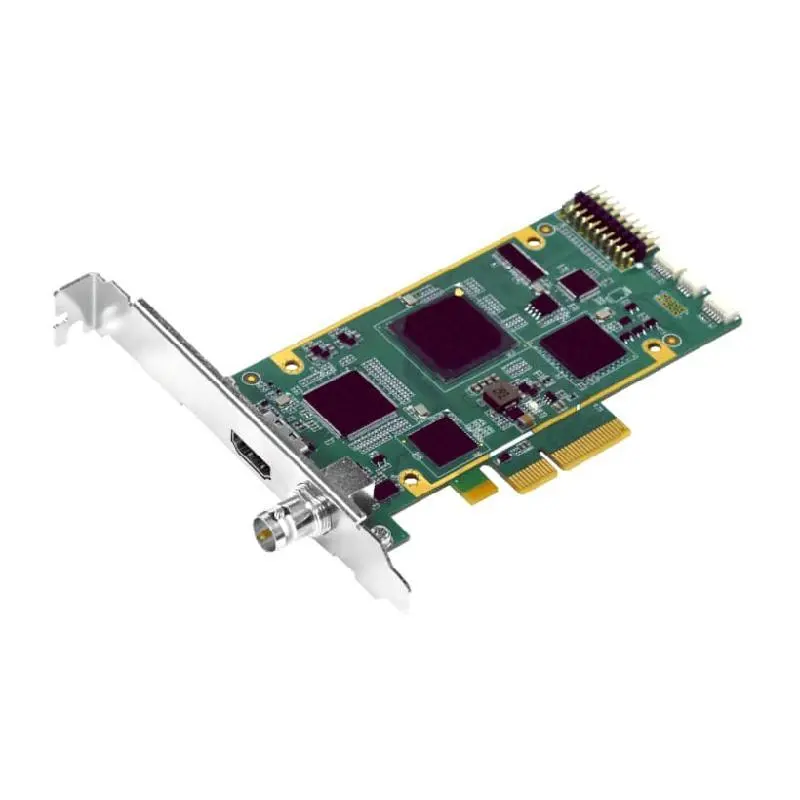

Advantech DVP-7012UHEL 1-ch 4K60 12G-SDI+HDMI 2.0 PCIE Video Capture Card
