| DVP-7037HEL | ||
| Compression | Hardware | - |
| Compression | Software | Yes |
| Video Inputs and Outputs | Channels (Max.) | 4 |
| Video Inputs and Outputs | Host Interface | PCIe 2.0 x1 |
| Video Inputs and Outputs | Input Interface | 4 x TVI |
| Video Inputs and Outputs | Resolution | 1920 x 1080@30/25fps |
| Environment | Operating Temperature | "-20 ~ 70°C(-4 ~ 158°F)" |
| Mechanical | Dimension (W x H x D) | 96.49 x 68.9 mm (3.8" x 2.71") |
| Certification | EMC | CE/FCC |
| Compatibility | OS Version | Windows 7/Windows 8/Windows 8.1/Windows 10Linux 4.8 or Higher ( 32-bit and 64-bit )Linux ARMNVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |

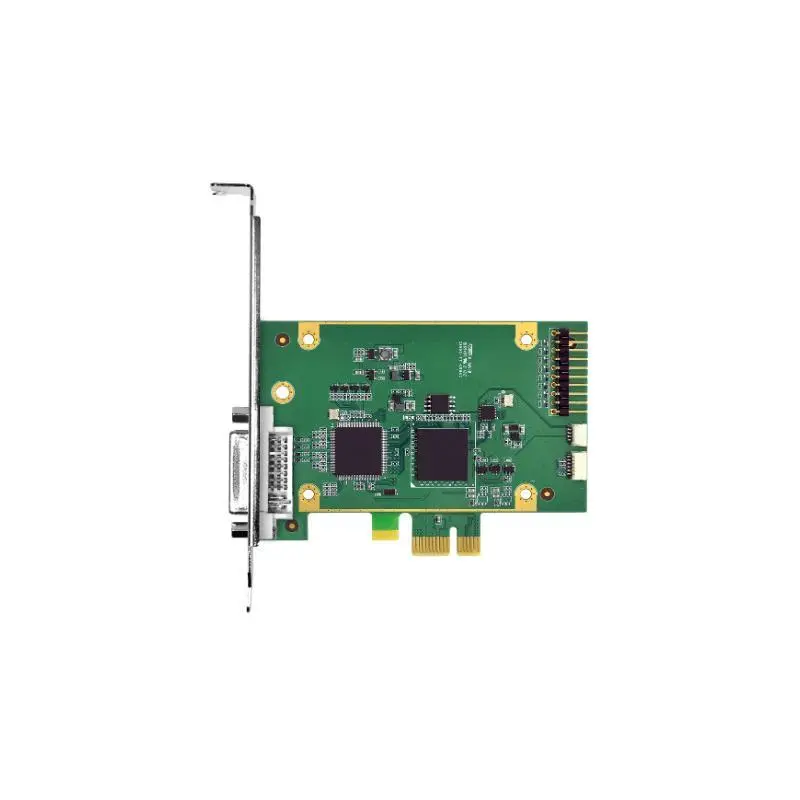

Advantech DVP-7037HEL 4-ch Full HD TVI PCIE Video Capture Card
