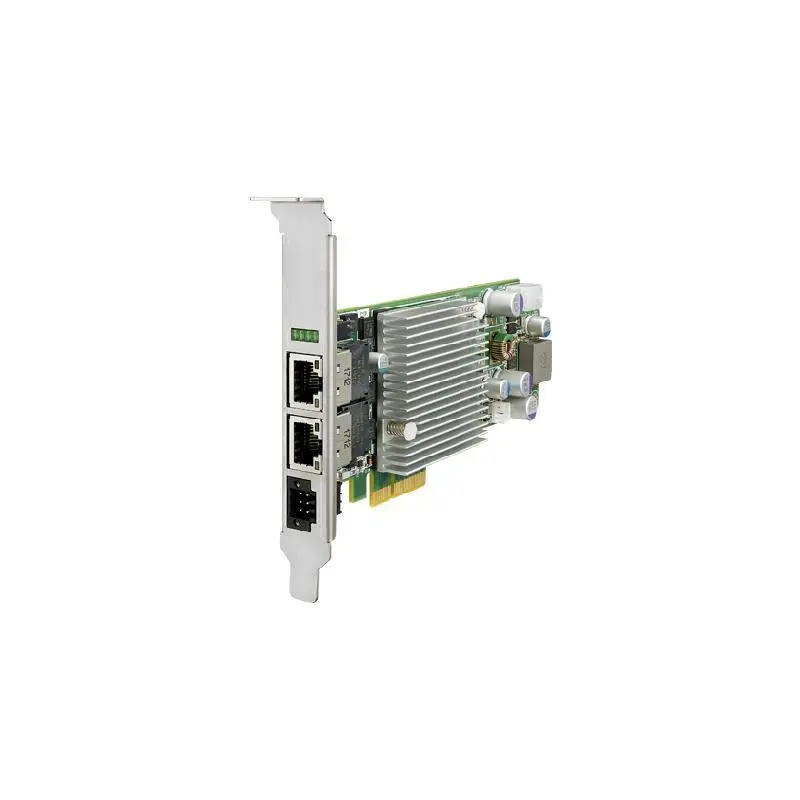

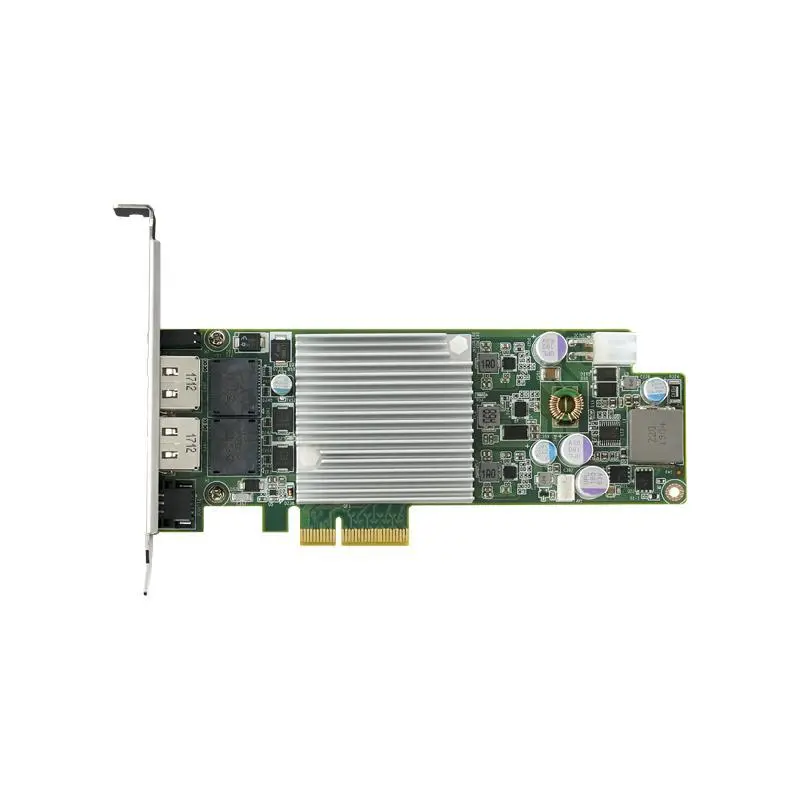

Advantech PCIE-1182 2-port PCI Express 10 GigE Vision Frame Grabber

    Intel server-grade X550-AT2 10GbE MAC+PHY Ethernet Controller

    PCI Express x4 compliant, low profile

    PoE+ compliant, dual channel 12VDC output

    Programmable PoE+ power on/off control

    Powered Device (PD) auto detection and classification

PCIE-1182-AE
Environment Operating Temperature 0~60 °C (32~140 °F)
Environment Storage Temperature -20~80 °C (-4~176 °F)
Ethernet Speed 10,000 Mbps
GigE Vision Compatibility IEEE802.3af
GigE Vision Jumbo Frame 9 KB
GigE Vision No. of Ports 2
GigE Vision Port Connector 8-pin RJ45
Power Requirements Input Voltage 12 VDC
Power Requirements Output PoE Power 48 VDC PoE Power output, 15.4 W per port, total Max. 60 W
